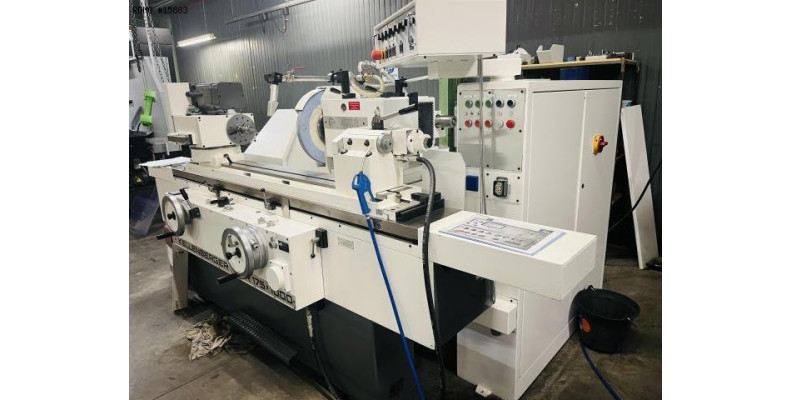

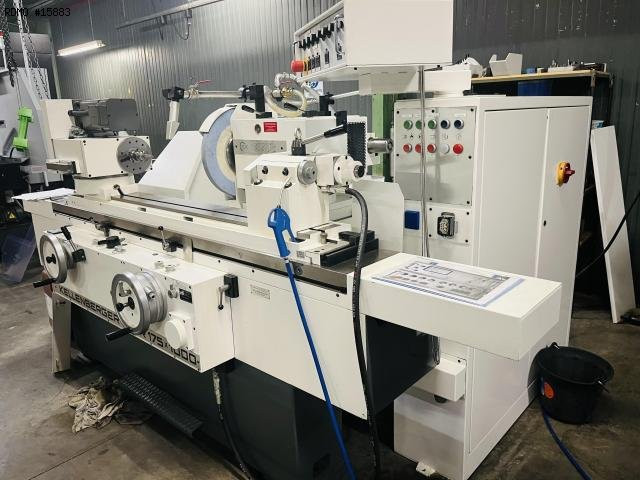

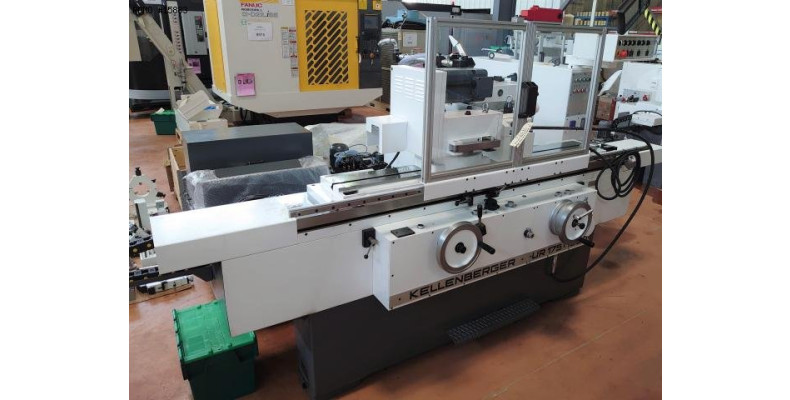

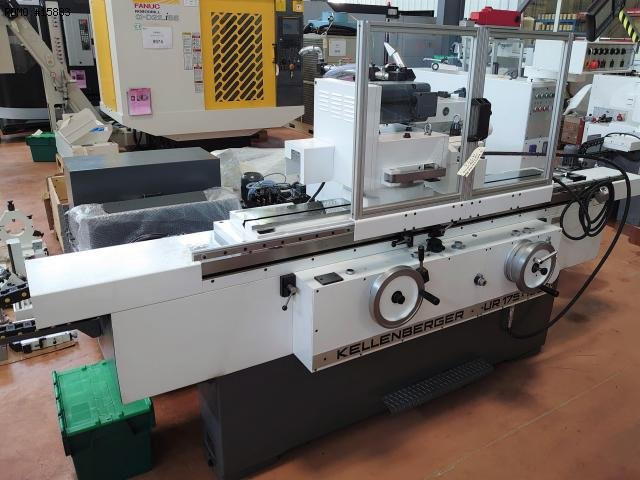

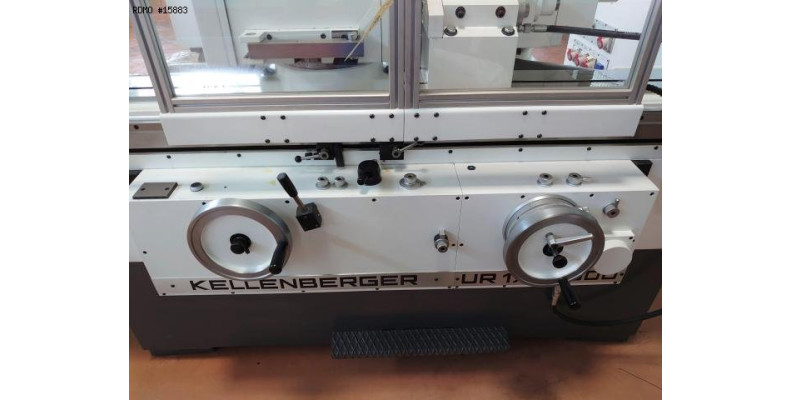

KELLENBERGER UR175X1000

Name: Cylindrical grinder KELLENBERGER UR175X1000
Brand: KELLENBERGER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

15883

PDF datasheet to download:

Brand: KELLENBERGER

Model: UR175X1000

Year: 1987

Serial: 31.210.045

15883

KELLENBERGER UR175X1000

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: KELLENBERGER

Model: UR175X1000

Year: 1987

Serial: 31.210.045

Ask Price

Caracteristics

- Distance between centers : 1000 [mm]
- Center height : 175 [mm]
- Table orientation : 9 [°]
- Universal wheelhead
- Left grinding wheels dimensions : 400 x 50 x 127 [mm]
- Motor power : 3 [kW]
- Spindle speeds : 1500 / 1700 / 2200
- Orientation of grinding wheel holder headstock : 270° (3 x 90 °)
- Boring for internal spindle : 90 [mm]

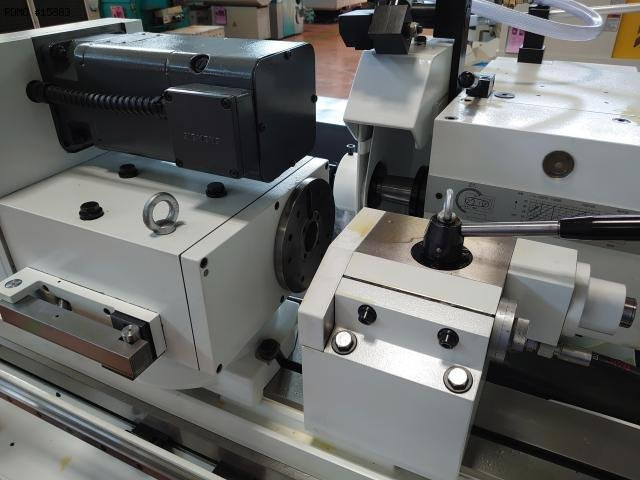

- Orientation of part holder headstock : 180 [°]
- Spindle speeds : 20 - 400 [rpm]
- Spindle internal cone : Morse 5
- Motor power : 0,9 [kW]

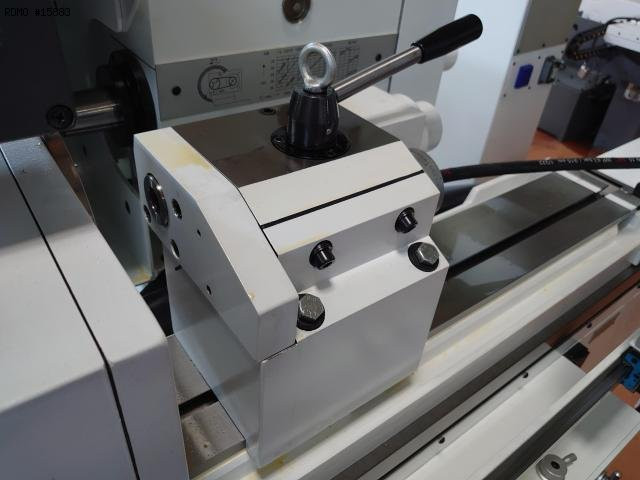

- Inner cone tailstock : Morse 4
- Tailstock sleeve travel : 30 [mm]
- Dimensions : 2860 x 1680 x 1670 [mm]
- Machine weight : 2500 [kg]

Equipment

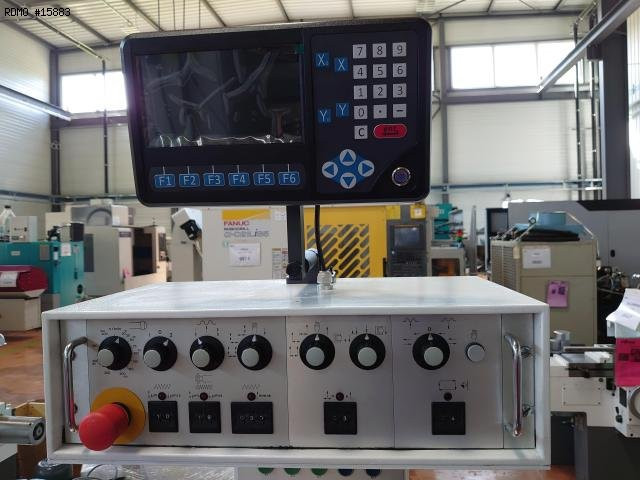

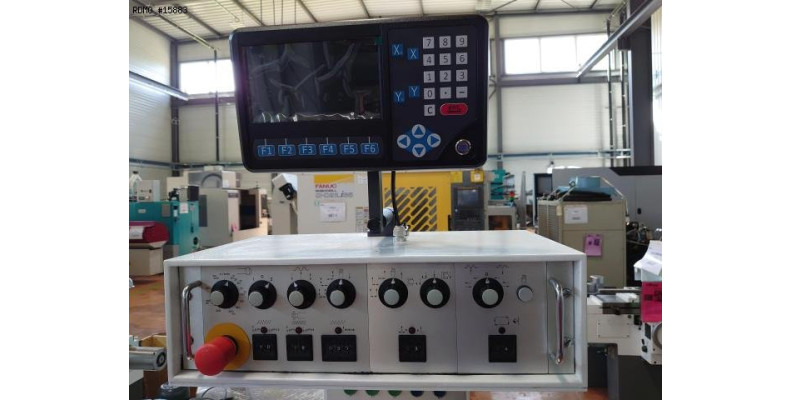

- Automatic cycle work (rough part, finishing and reverse)

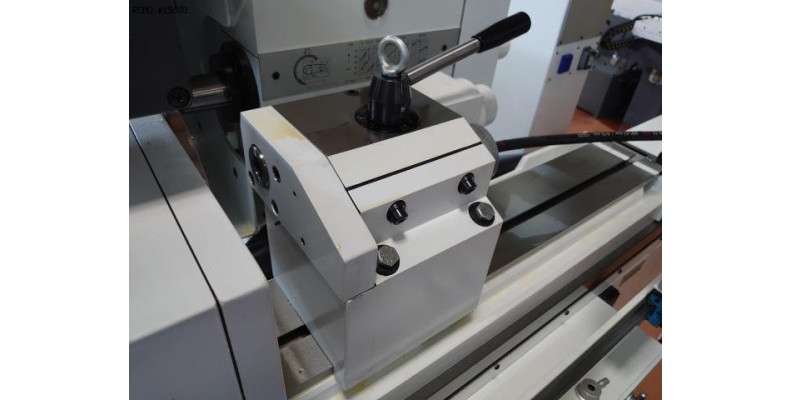

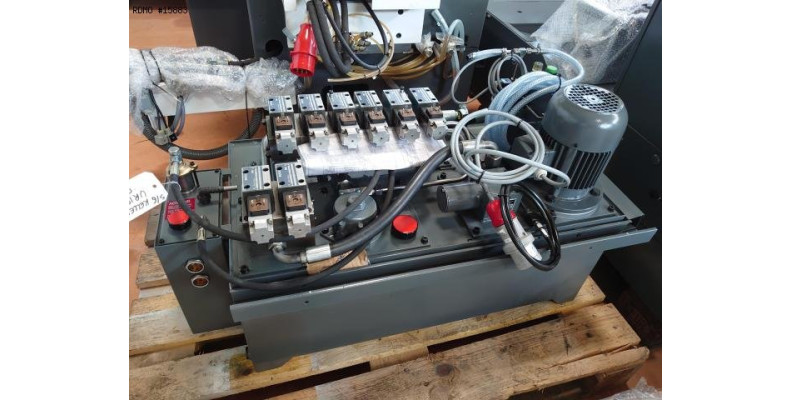

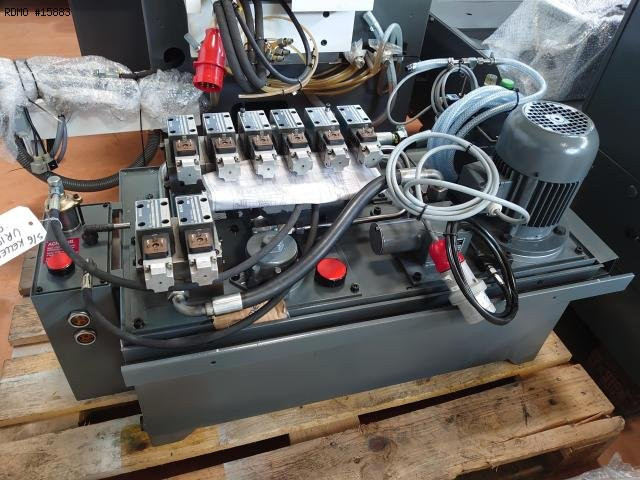

- Hydraulic tail stock

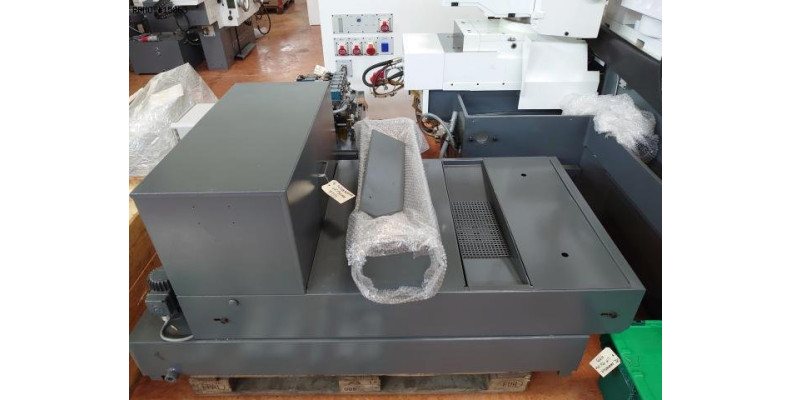

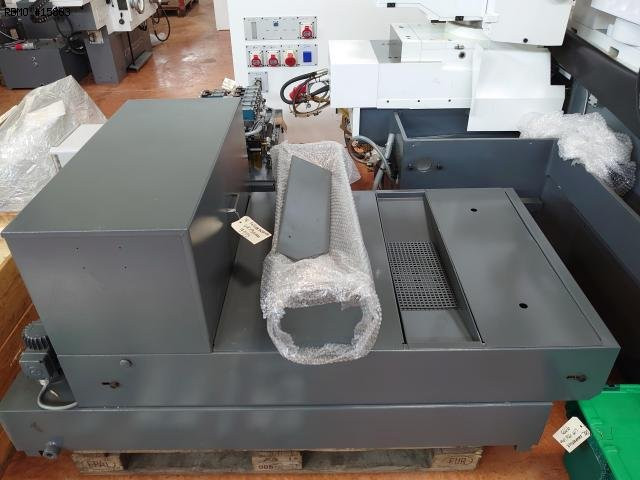

- Lubricating tank with paper filter

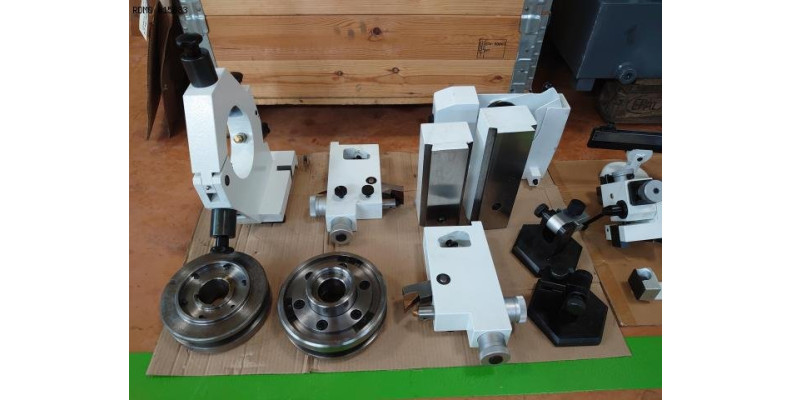

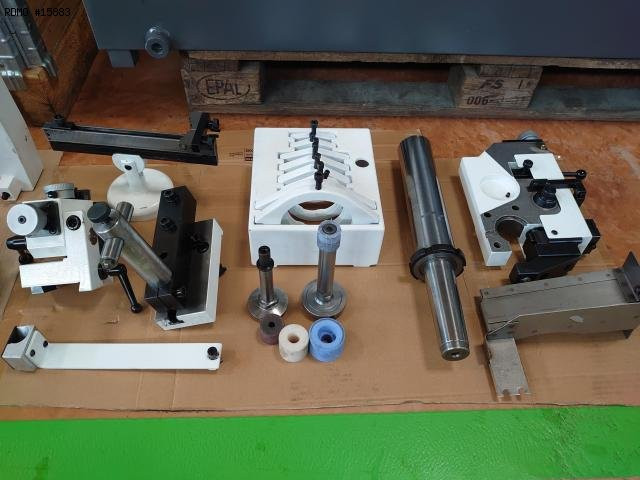

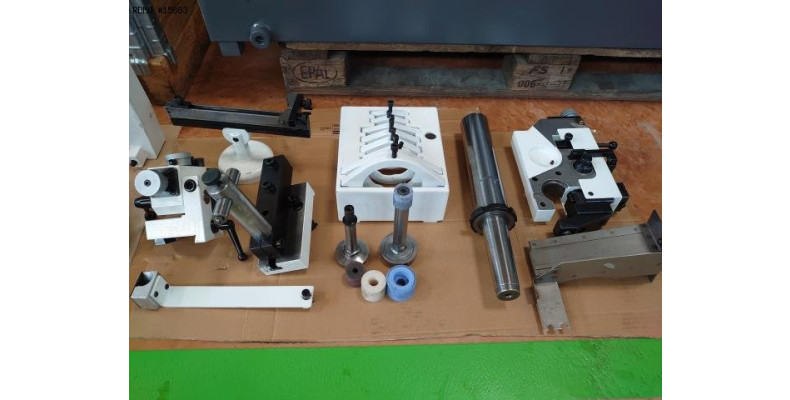

- 1 internal grinding spindle

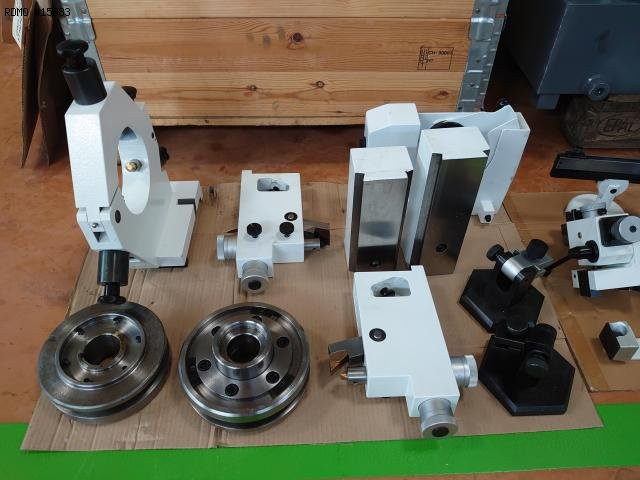

- 1 diamond holder
- 2 two-key steady rests
- 1 three-key steady rest
- 1 set of drive knobs
- Various wheel holders
