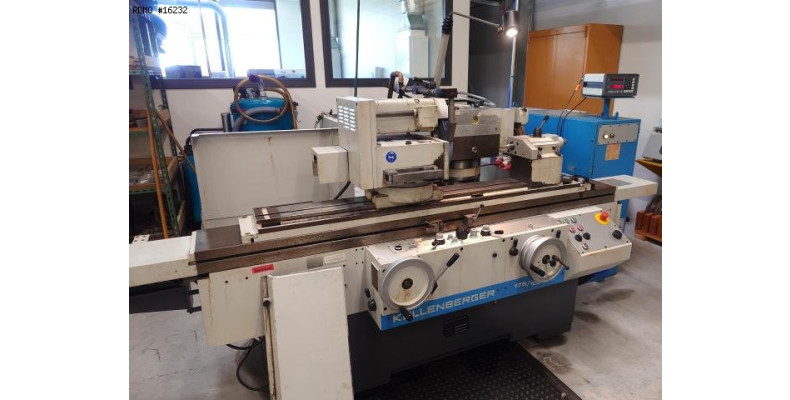

KELLENBERGER 1000 U - 175

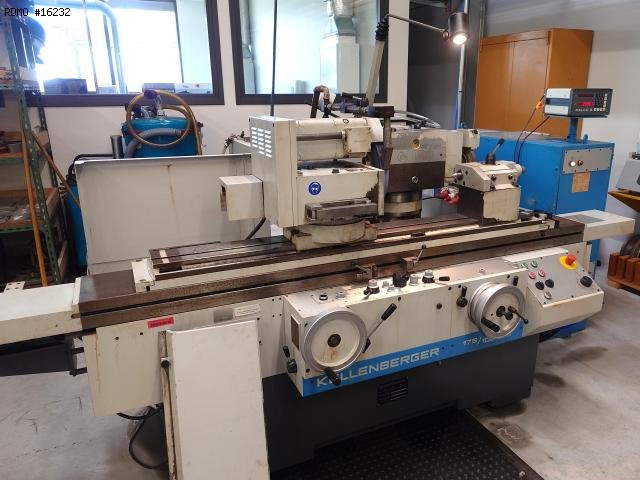

Name: Cylindrical grinder KELLENBERGER 1000 U - 175
Brand: KELLENBERGER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

16232

PDF datasheet to download:

Brand: KELLENBERGER

Model: 1000 U - 175

Year: 1991

Serial: 613420

16232

KELLENBERGER 1000 U - 175

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: KELLENBERGER

Model: 1000 U - 175

Year: 1991

Serial: 613420

Ask Price

Caracteristics

- Distance between centers : 1000 [mm]
- center height : 175 [mm]

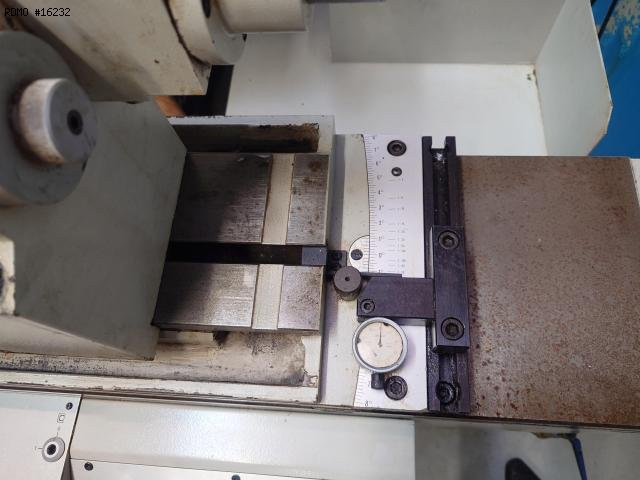

- Table orientation : 9 [°]

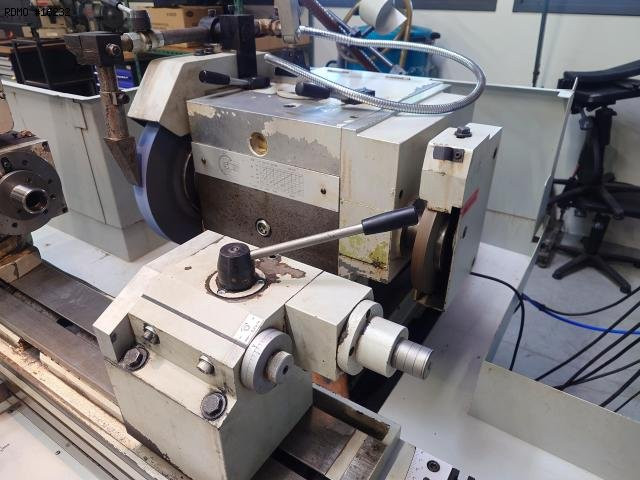

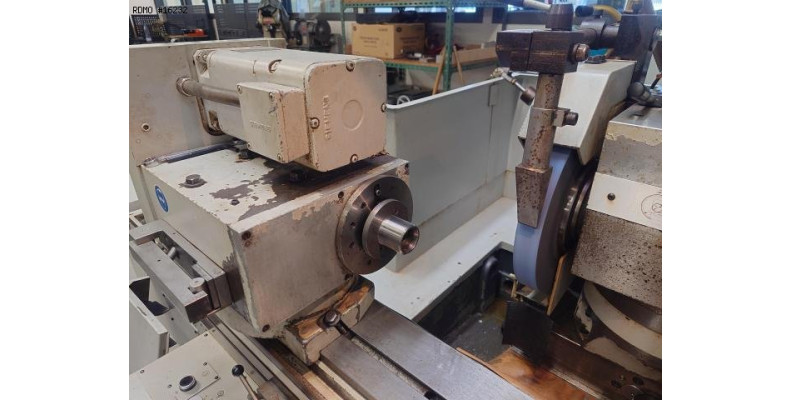

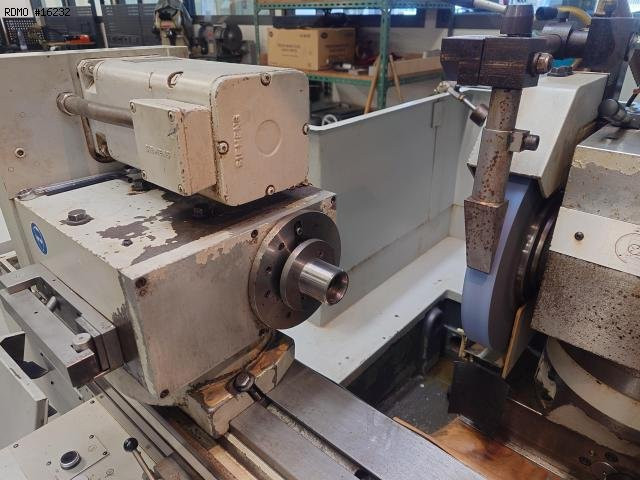

GRINDING WHEEL HOLDER HEADSTOCK
- Left grinding wheels dimensions : 400 x 50 x 127 [mm]
- Right grinding wheels dimensions : 225 x 20 x 76,2 [mm]
- Power : 3 [kW]
- Spindle speeds : 1500 / 1700 / 2200 [rpm]
- Orientation of grinding wheel holder headstock : 270 [°]
- Boring for internal spindle : 90 [mm]
PART-HOLDER HEADSTOCK
- Orientation of part holder headstock : 360 [°]
- Spindle speeds : 20 - 400 [rpm]
- Spindle internal cone : Morse 5
- Power : 0.9 [kW]

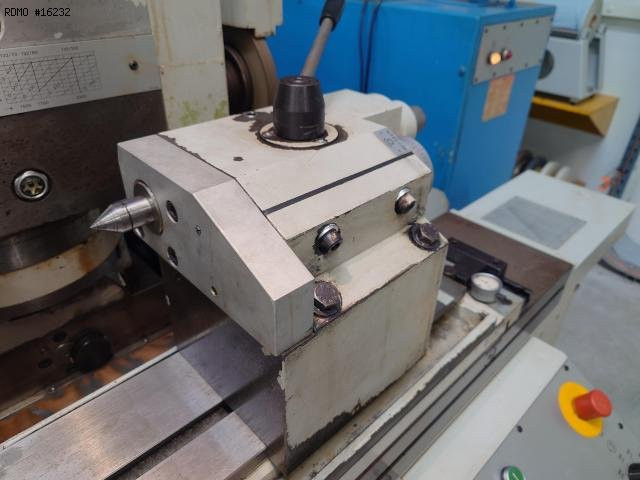

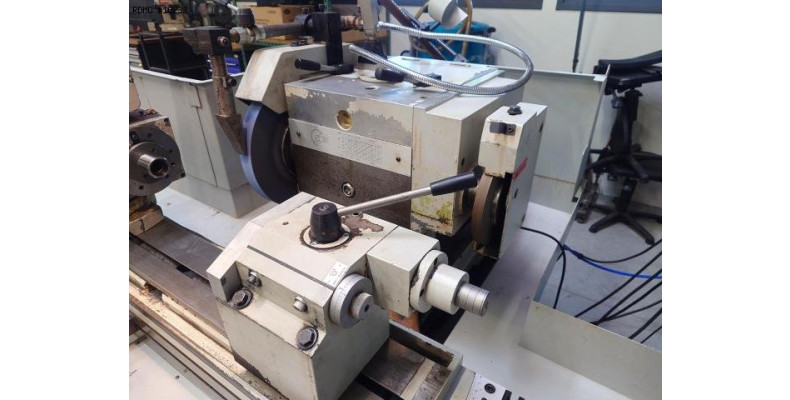

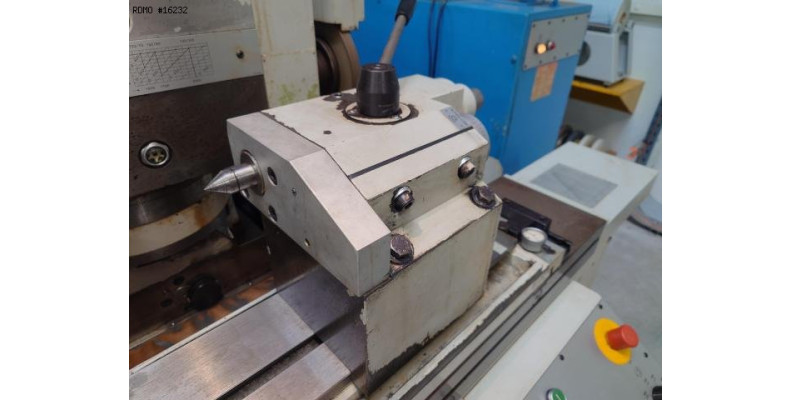

TAILSTOCK
- Internal cone : Morse 3
- Quill stroke : 30 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2860 x 1680 [mm]
- Machine height : 1670 [mm]
- Machine weight : 2500 [kg]

Equipment

- Automatic cycle work (rough part, finishing and reverse)

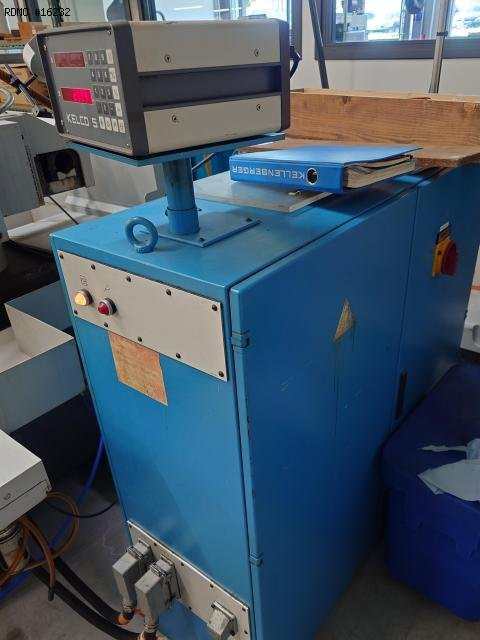

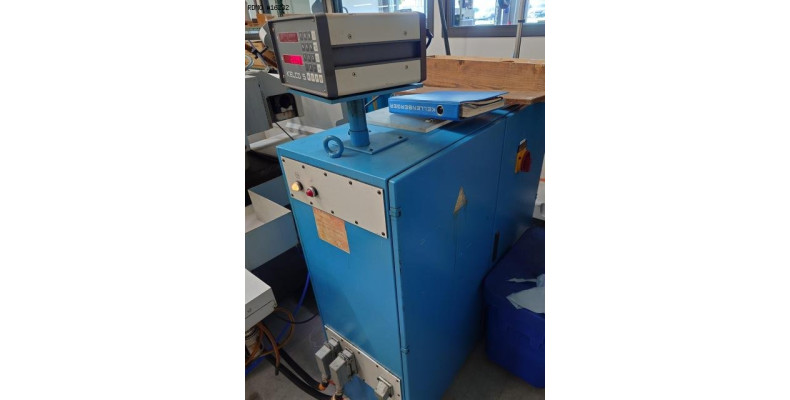

- Kelco 5 display

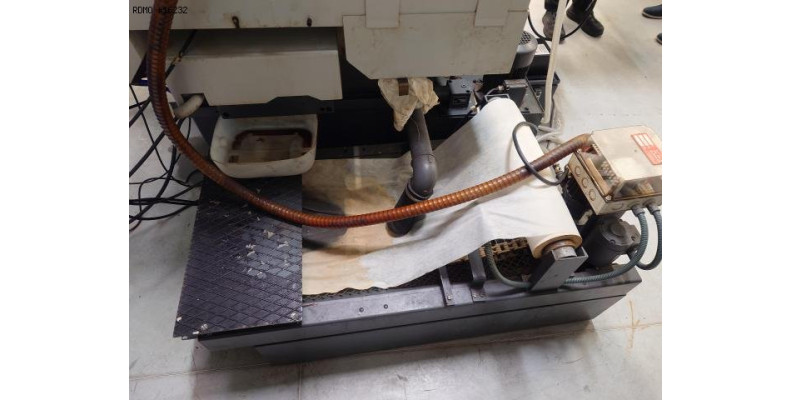

- Coolant tank

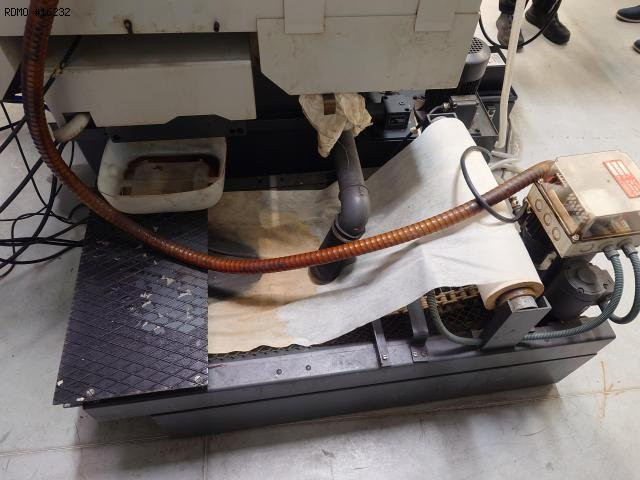

* with paper filtering unit

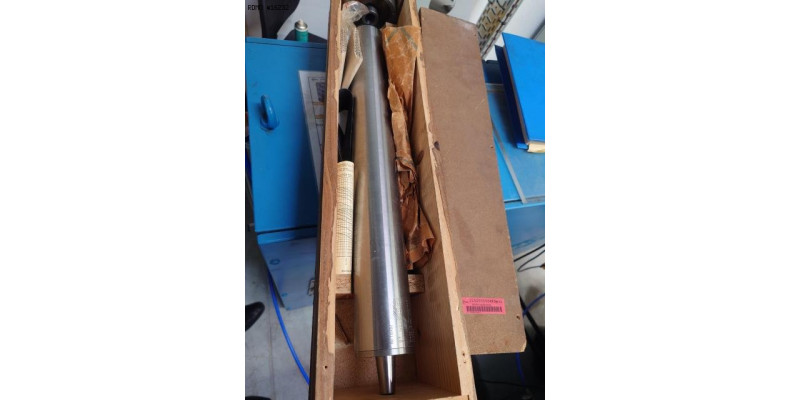

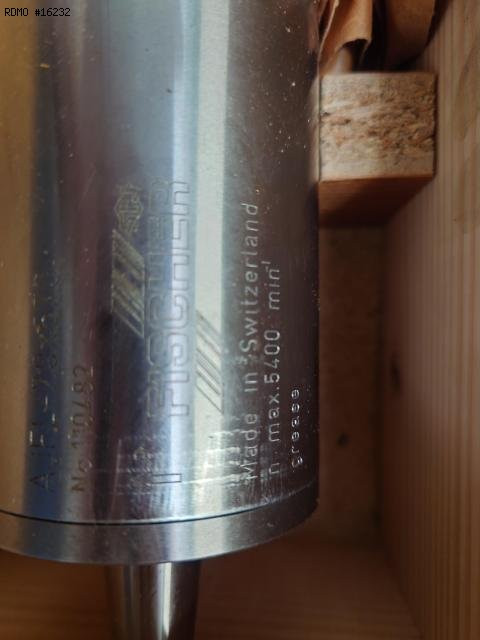

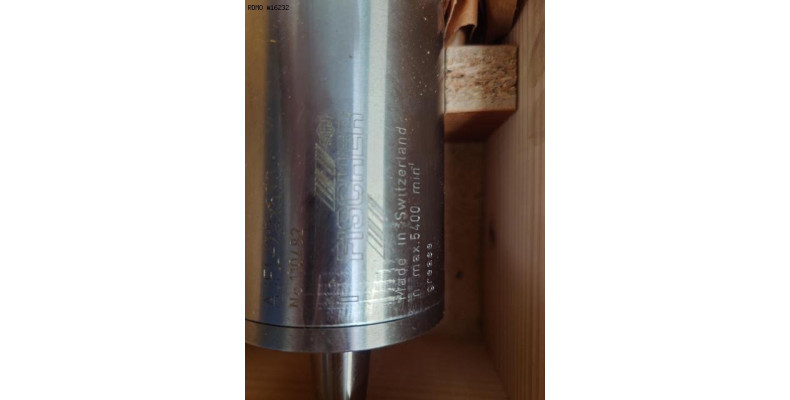

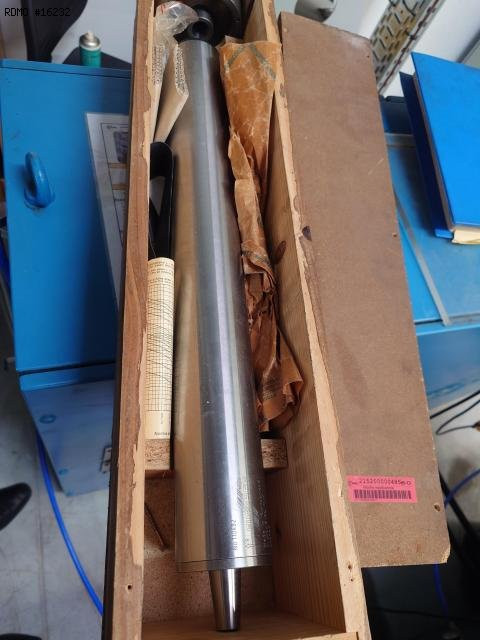

- 1 internal grinding spindle : 5400 [rpm]
- Chuck 4 jaws

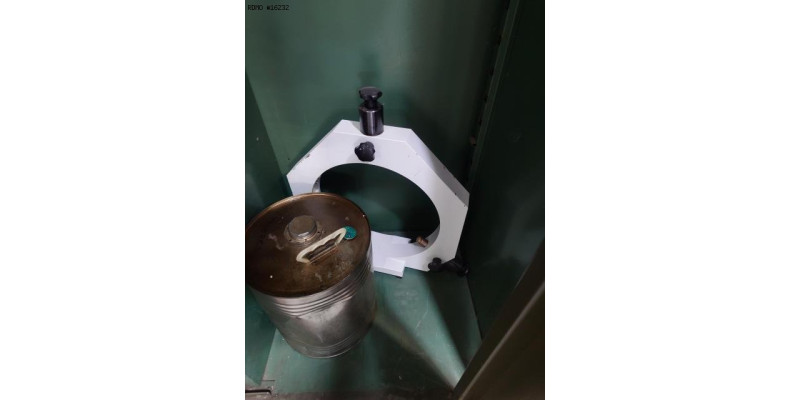

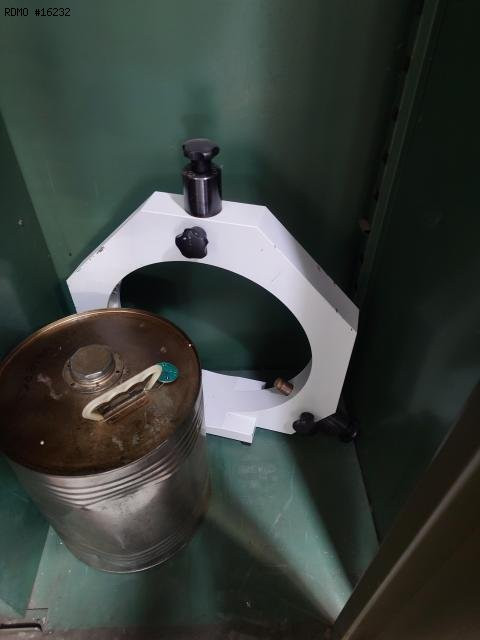

- 1 three-key steady rest
- Set of wheels
