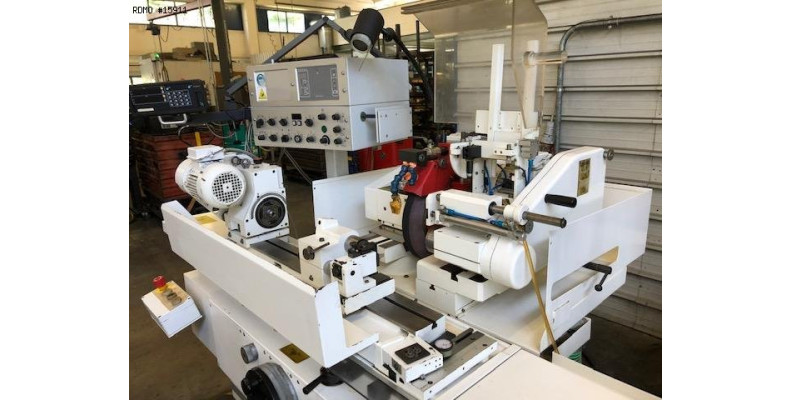

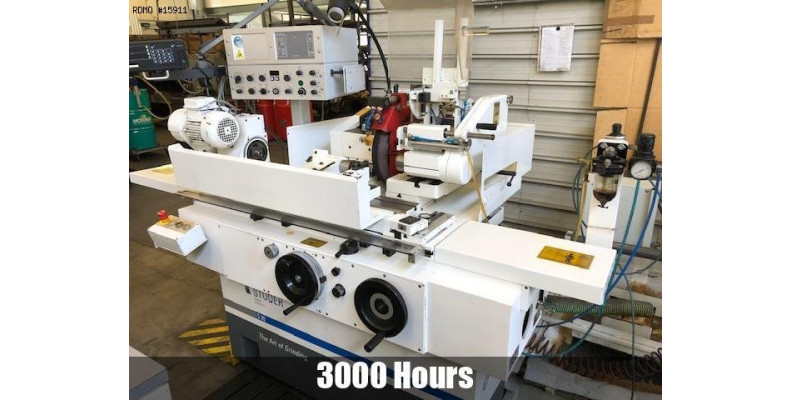

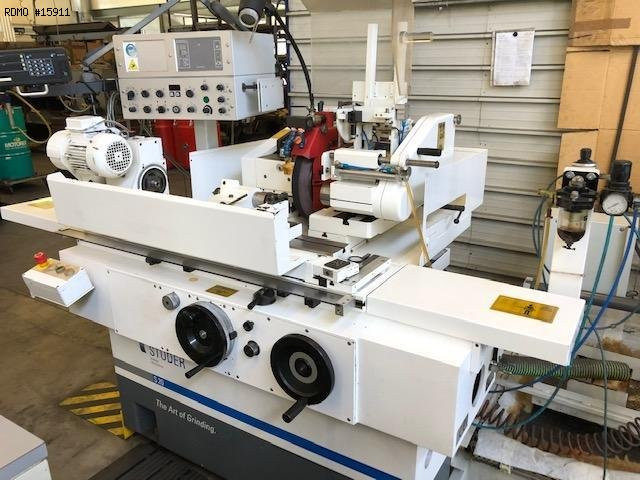

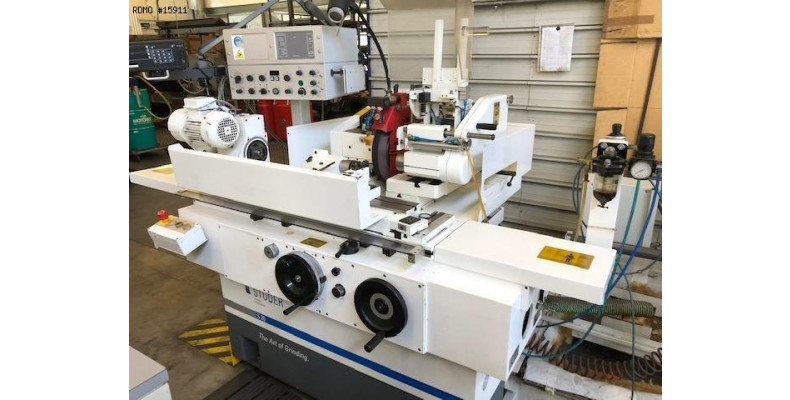

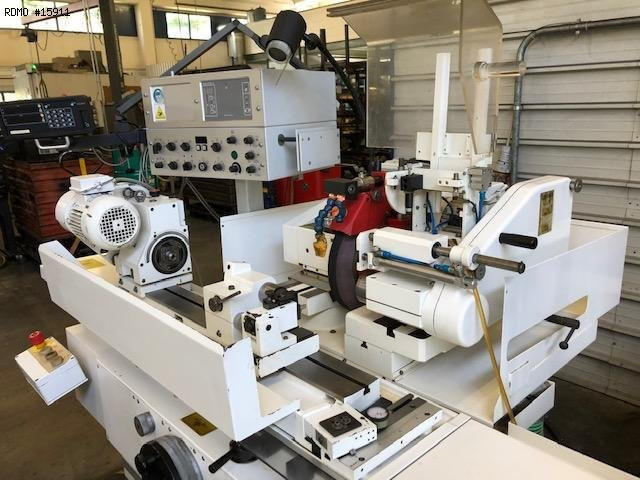

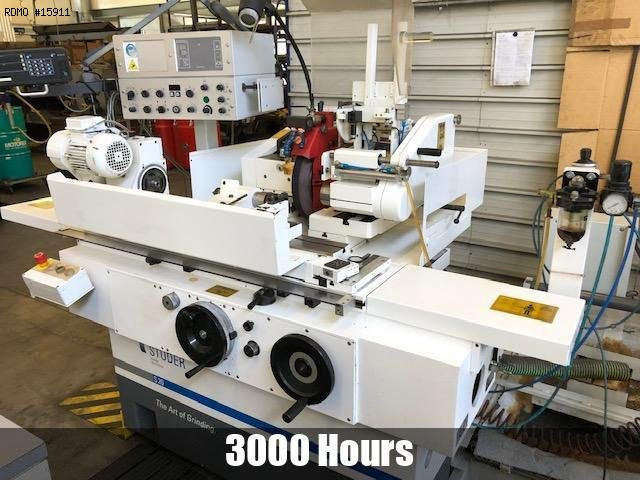

STUDER S20-2

Name: Cylindrical grinder STUDER S20-2
Brand: STUDER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

15911

PDF datasheet to download:

Brand: STUDER

Model: S20-2

Year: 2009

Serial: serie 197, N°1015-2175

15911

STUDER S20-2

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: STUDER

Model: S20-2

Year: 2009

Serial: serie 197, N°1015-2175

Ask Price

Caracteristics

- center height : 100 [mm]
- Distance between centers : 650 [mm]
- Max. table orientation : 15 [°]
- Travel : 650 [mm]
- Speed : 100 - 3500 [mm/min]
GRINDING WHEEL HOLDER HEADSTOCK
- Orientation : 0 / 15 / 30 [°]
- T1 grinding wheel dimensions : 350 x 32 x 127 [mm]
- Power : 3 [kW]

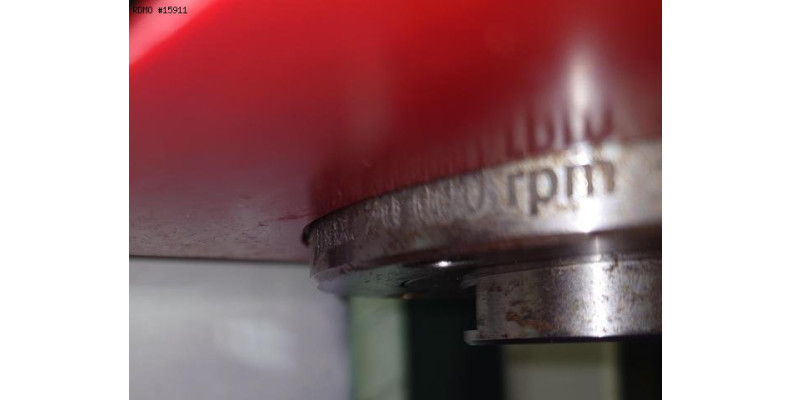

- Speed : 1600 - 2200 [rpm]
- Peripheral speed : 30 [m/s]
PART-HOLDER HEADSTOCK
- Spindle speeds : 30 - 1200 [rpm]
- Power : 0.5 [kW]
- Type of cone : CM4
- Max. part weight : 20 [kg]
- Orientation : 0 - 90 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Power : 8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3000 x 1500 [mm]
- Machine height : 1650 [mm]
- Machine weight : 1900 [kg]
MACHINE HOURS

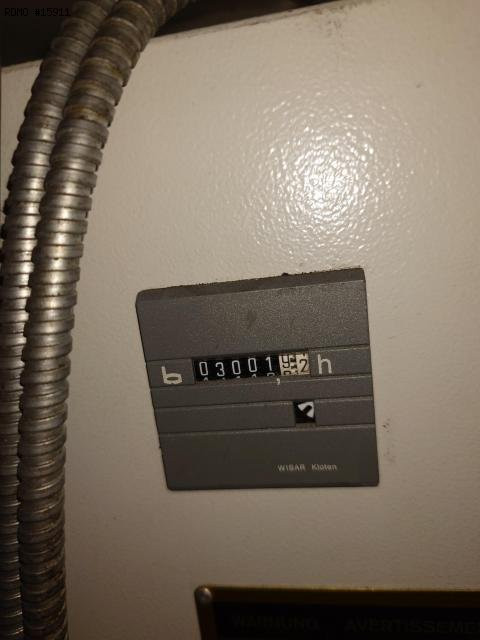

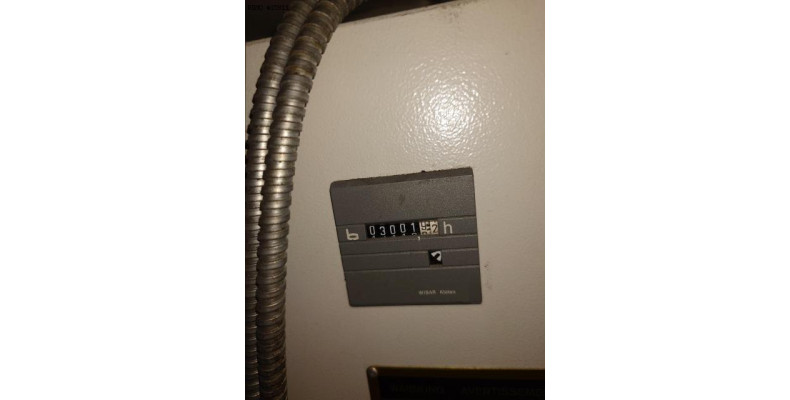

- Number of hours under power : 3001 [h]

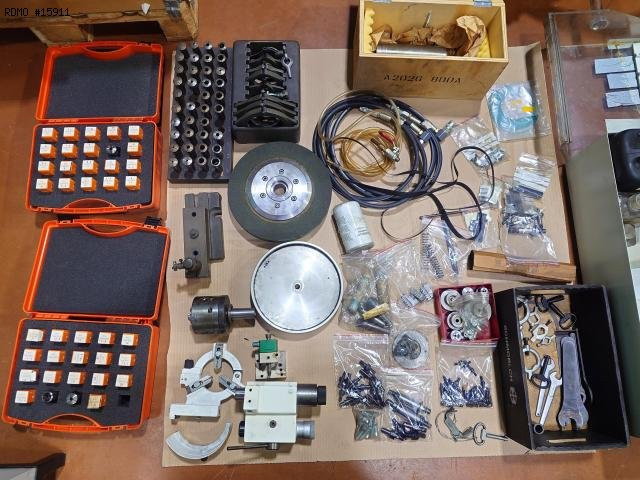

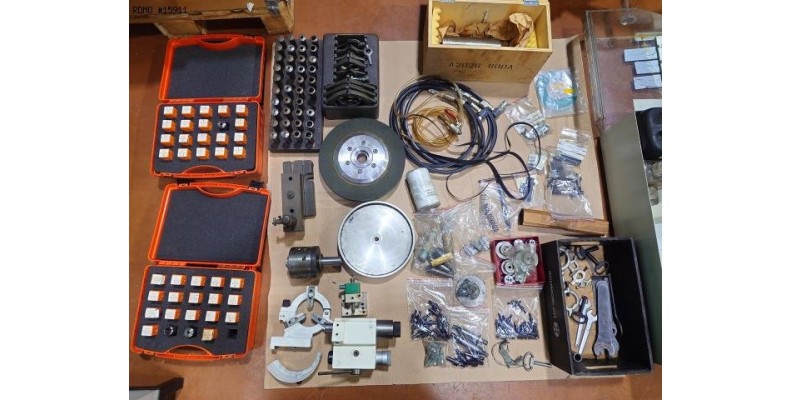

Equipment

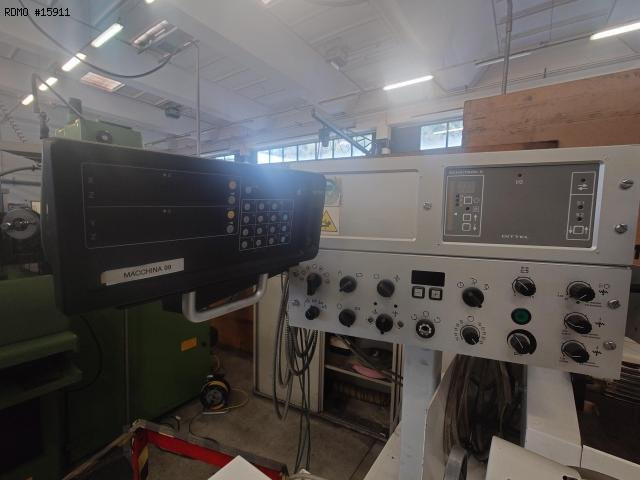

- Sony LG20-2 display

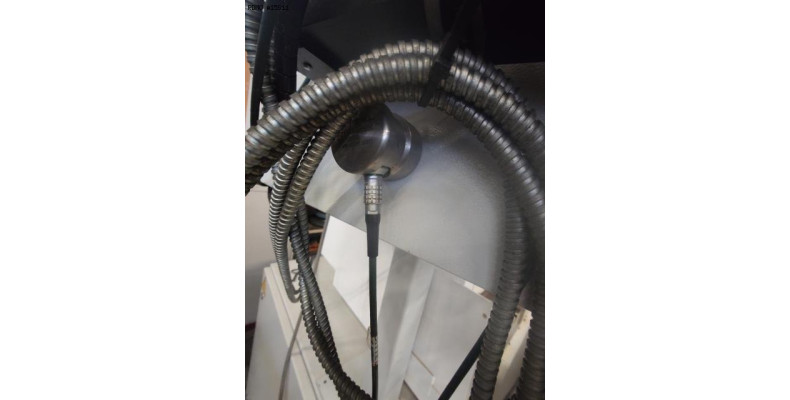

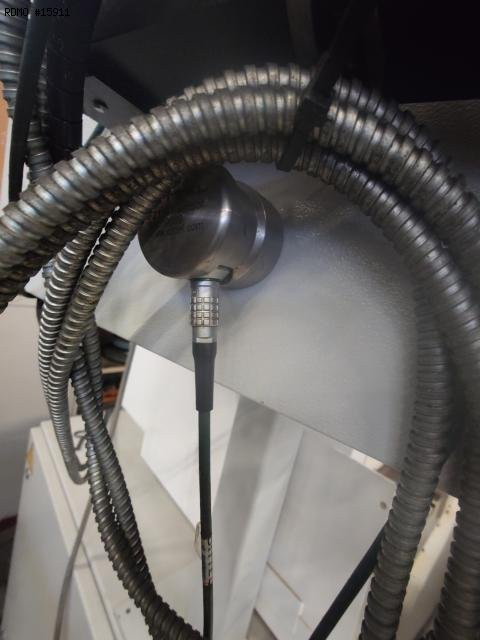

- Automatic contact detection : SENSITRON 6
- 1 tailstock with fine adjustment

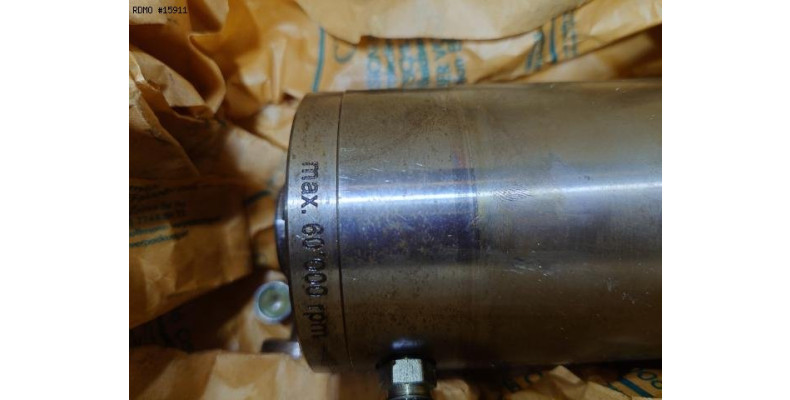

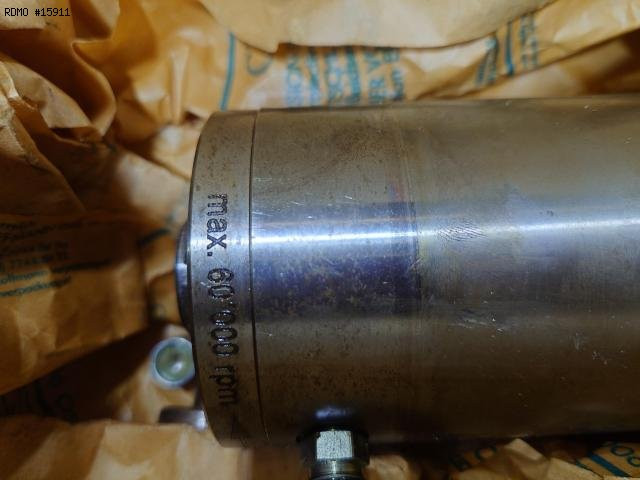

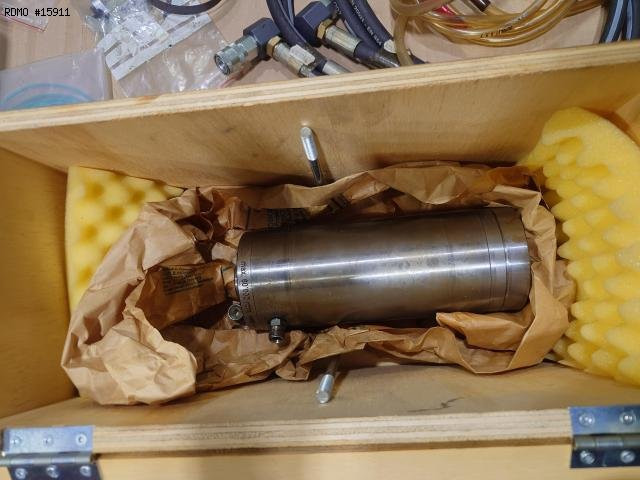

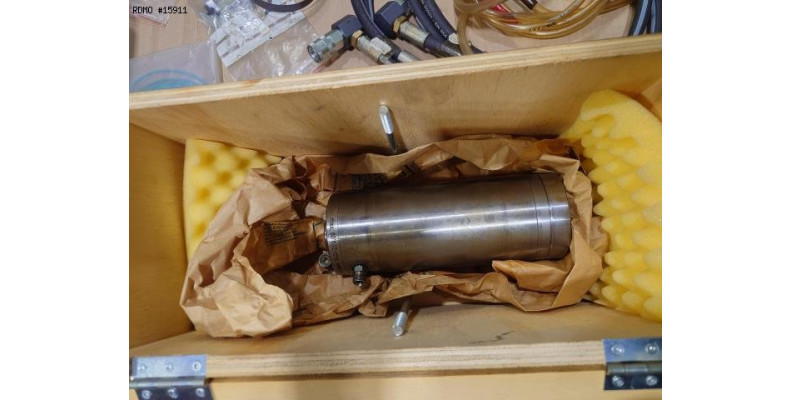

- 2 internal grinding spindles : 20.000 / 60.000 [rpm]
- Fixed dressing device

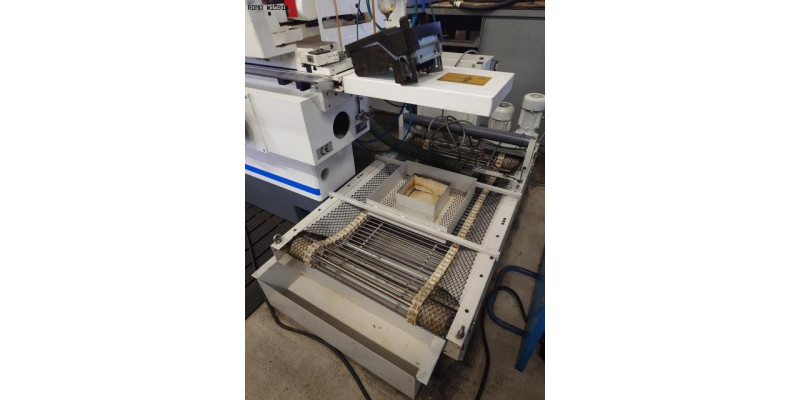

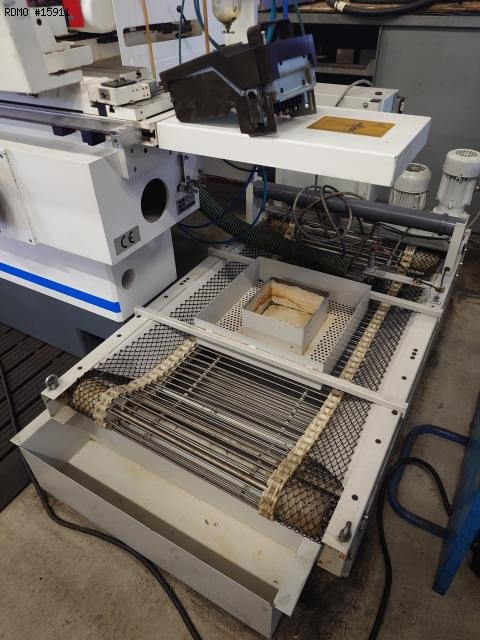

- Coolant tank

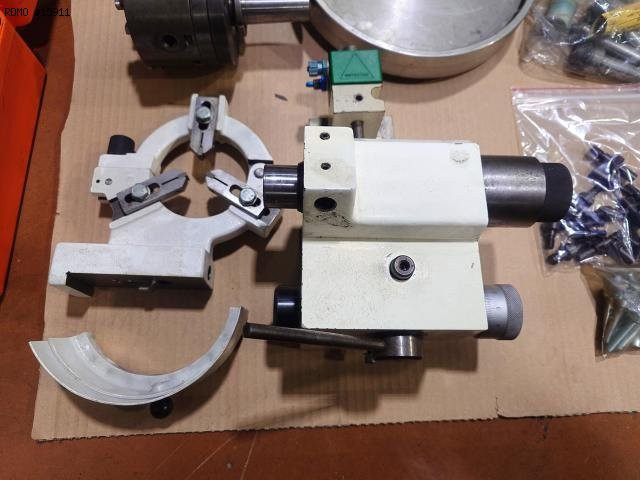

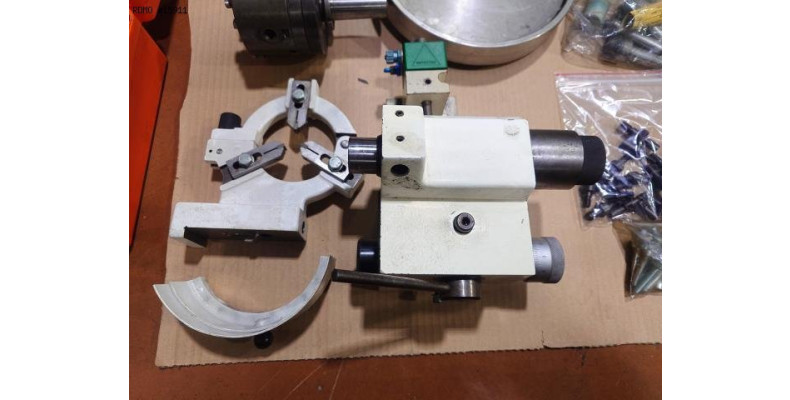

- 1 three-key steady rest
- 3-jaw chuck, Ø 100 mm

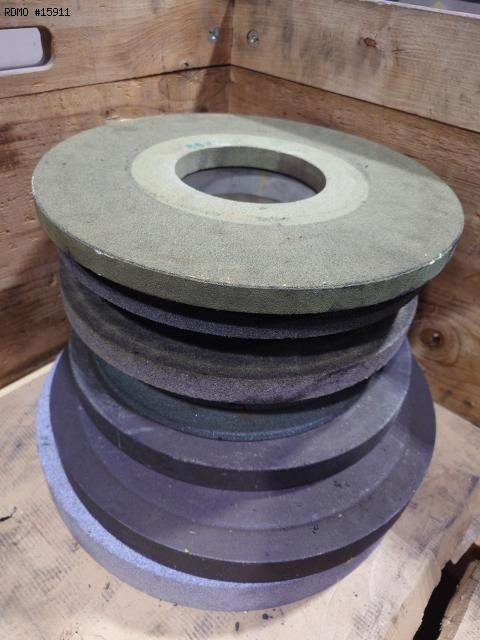

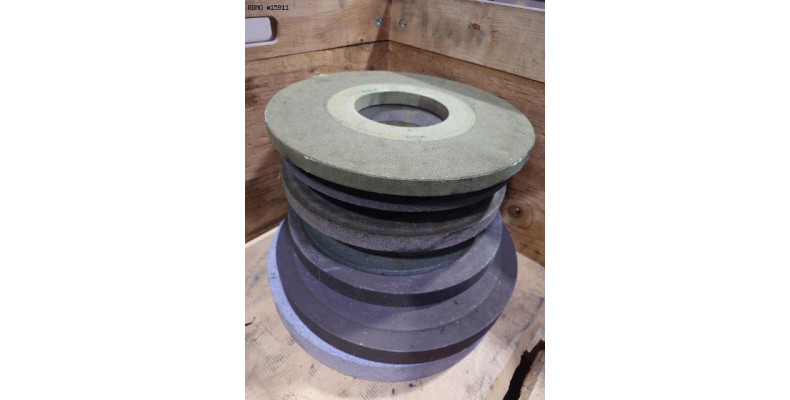

- Various grinding wheels
