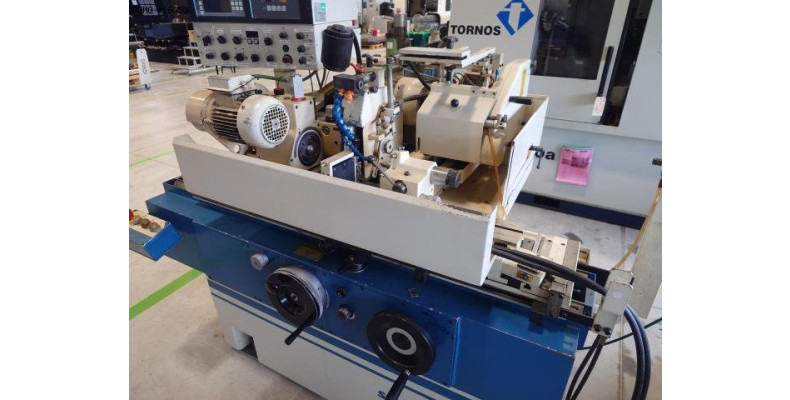

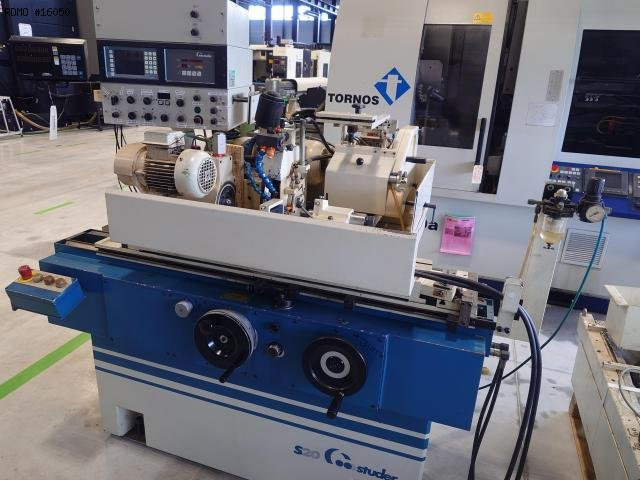

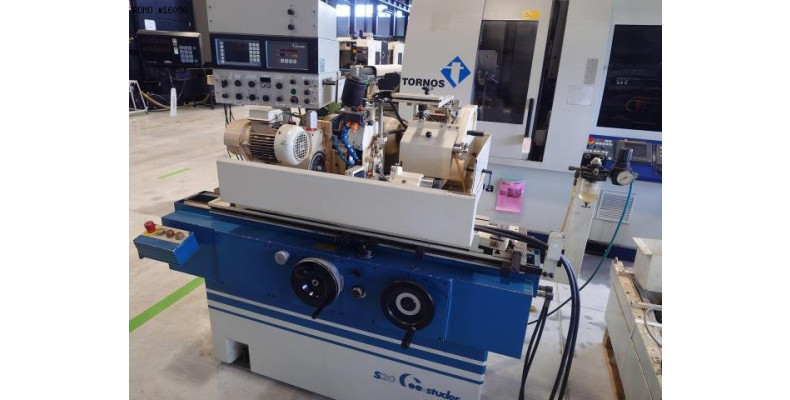

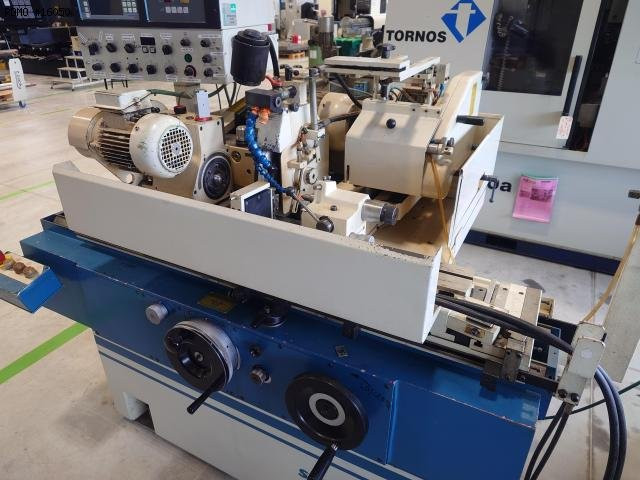

STUDER S20.2

Name: Cylindrical grinder STUDER S20.2
Brand: STUDER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

16050

PDF datasheet to download:

Brand: STUDER

Model: S20.2

Year: 2002

Serial: 015.1932

16050

STUDER S20.2

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: STUDER

Model: S20.2

Year: 2002

Serial: 015.1932

Ask Price

Caracteristics

- center height : 100 [mm]
- Distance between centers : 650 [mm]
- Max. table orientation : 15 [°]
- Travel : 650 [mm]
- Speed : 100 - 3500 [mm/min]

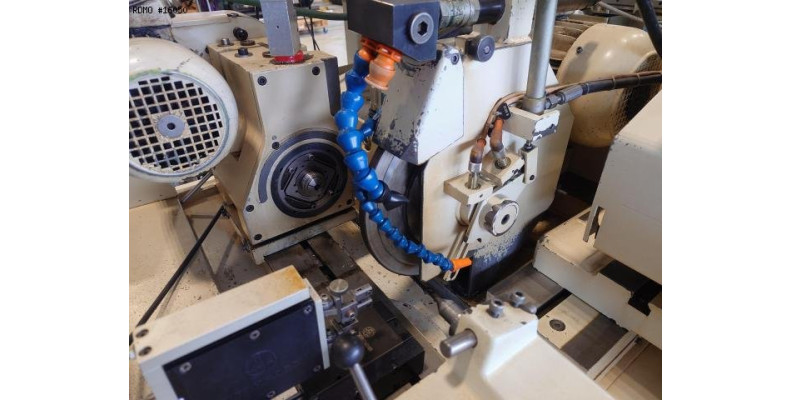

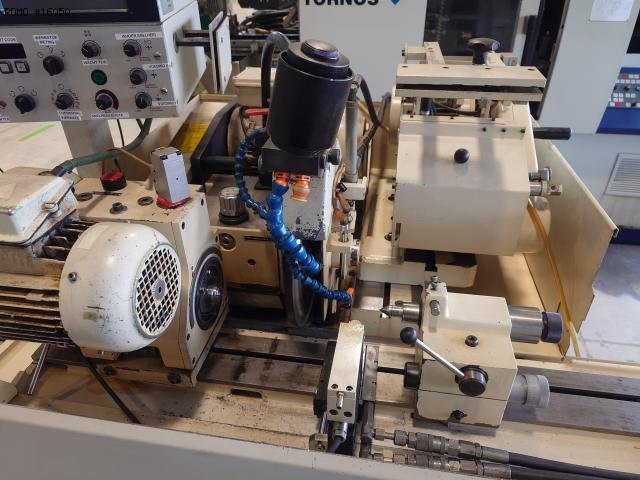

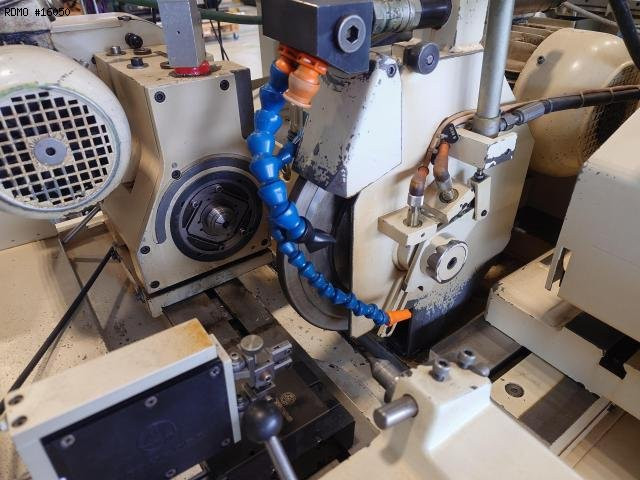

GRINDING WHEEL HOLDER HEADSTOCK
- Orientation : 0 / 15 / 30 [°]
- T1 grinding wheel dimensions : 350 x 32 x 127 [mm]
- Power : 3 [kW]
- Speed : 1600 - 2200 [rpm]
- Peripheral speed : 30 [m/s]
PART-HOLDER HEADSTOCK
- Spindle speeds : 30 - 1200 [rpm]
- Power : 0.5 [kW]
- Type of cone : CM4
- Max. part weight : 20 [kg]
- Orientation : 0 - 90 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Power : 8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3000 x 1500 [mm]
- Machine height : 1650 [mm]
- Machine weight : 1900 [kg]
MACHINE HOURS
- Number of hours under power : 3001 [h]

Equipment

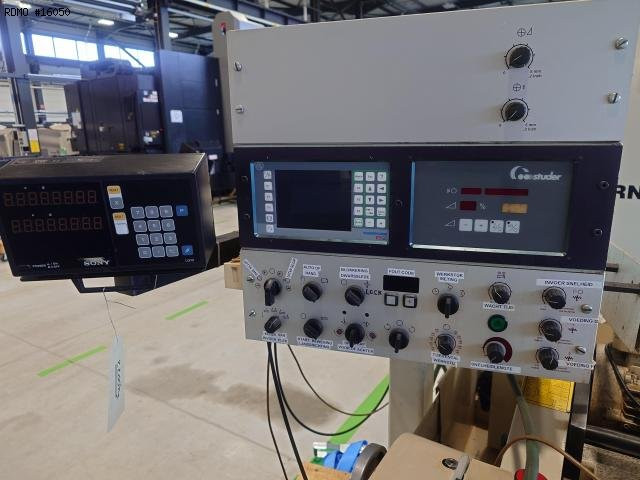

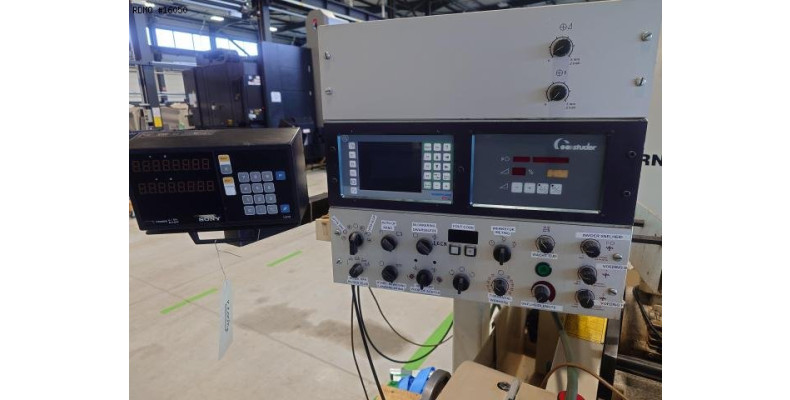

- Sony LG20-2 display
- Automatic contact detection : SENSITRON 6
- 1 tailstock with fine adjustment
- 1 internal grinding spindle
- Fixed dressing device

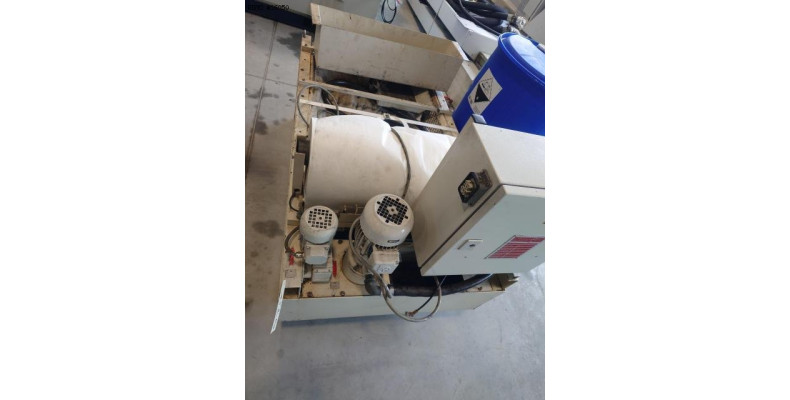

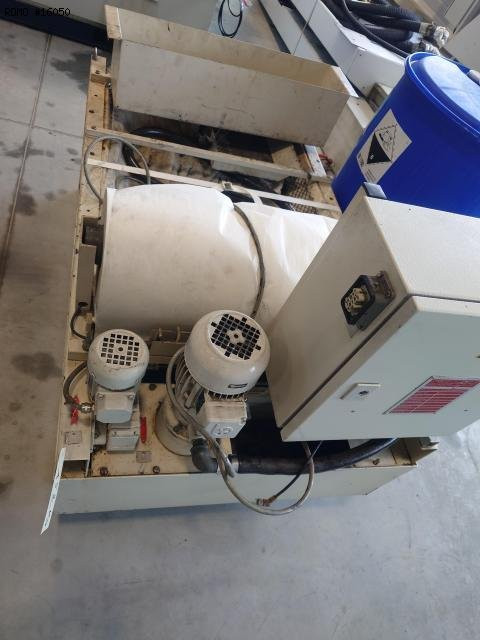

- Coolant tank
- 1 three-key steady rest
