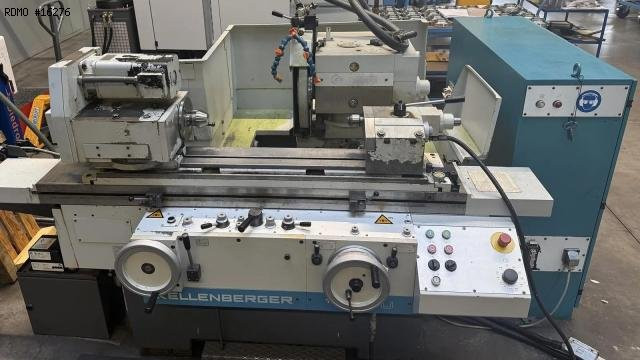

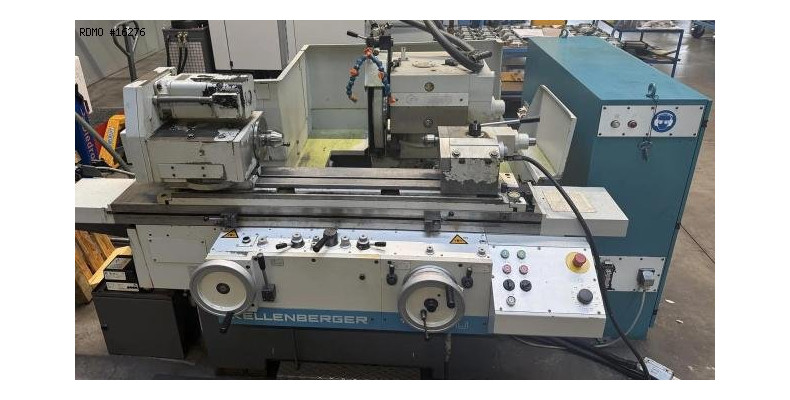

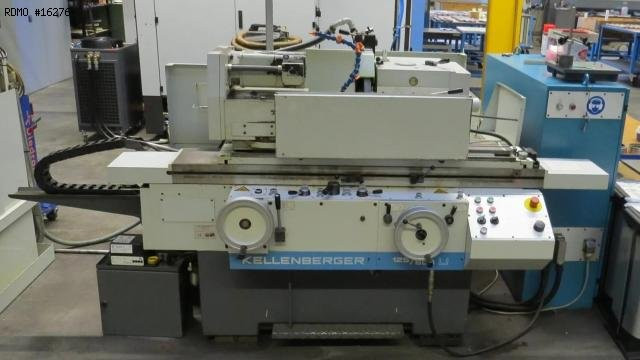

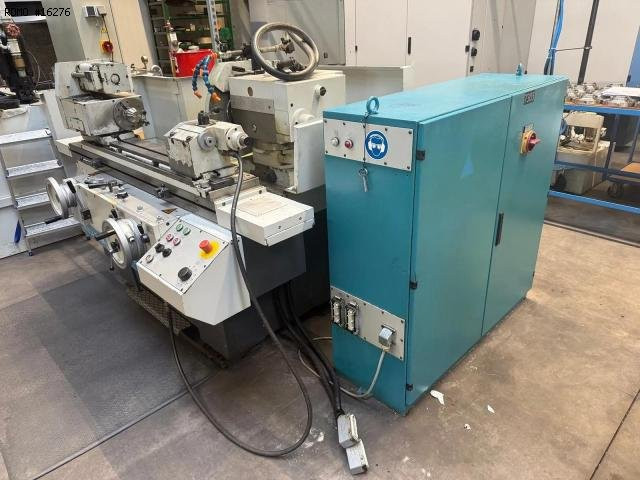

KELLENBERGER 600 U x125

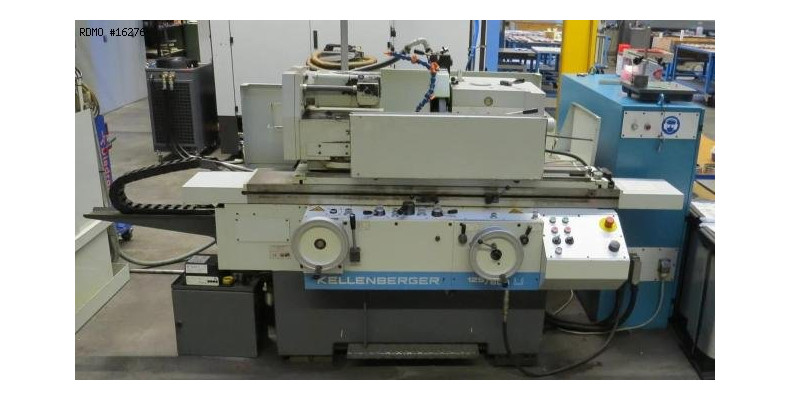

Name: Cylindrical grinder KELLENBERGER 600 U x125
Brand: KELLENBERGER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

16276

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U x125

Year: 1994

Serial: 613617

16276

KELLENBERGER 600 U x125

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U x125

Year: 1994

Serial: 613617

Ask Price

Caracteristics

- Distance between centers : 600 [mm]
- center height : 125 [mm]
- Table orientation : 11 [°]
GRINDING WHEEL HOLDER HEADSTOCK
- Left grinding wheels dimensions : 400 x 50 x 127 [mm]
- Power : 3 [kW]
- Spindle speeds : 1500 / 1700 / 2200 [rpm]
- Orientation of grinding wheel holder headstock : 270 [°]
PART-HOLDER HEADSTOCK
- Orientation of part holder headstock : 360 [°]
- Spindle speeds : 20 - 400 [rpm]
- Spindle internal cone : Morse 5
- Power : 0.9 [kW]
TAILSTOCK
- Internal cone : MT4
- Quill stroke : 30 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2580 x 1680 [mm]
- Machine height : 1670 [mm]
- Machine weight : 2200 [kg]

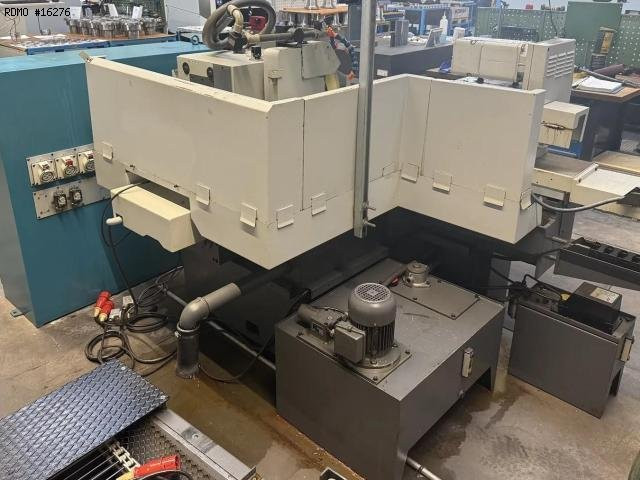

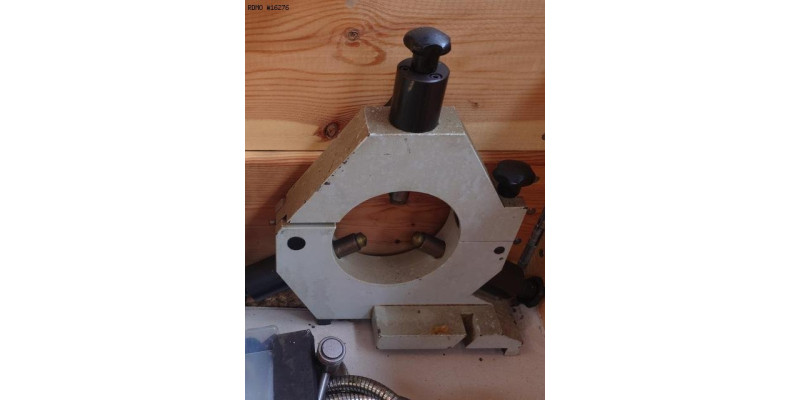

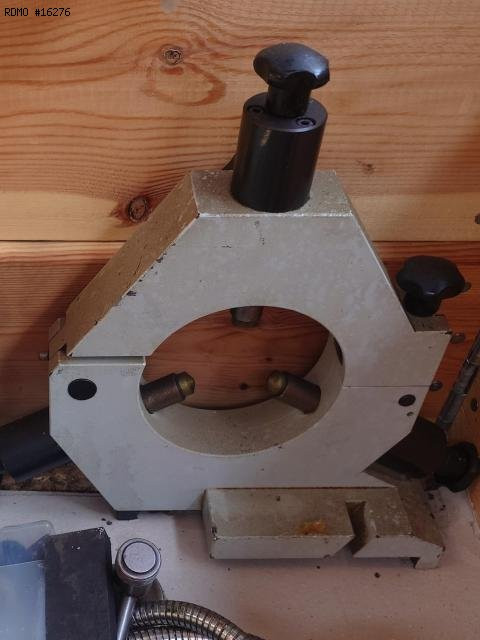

Equipment

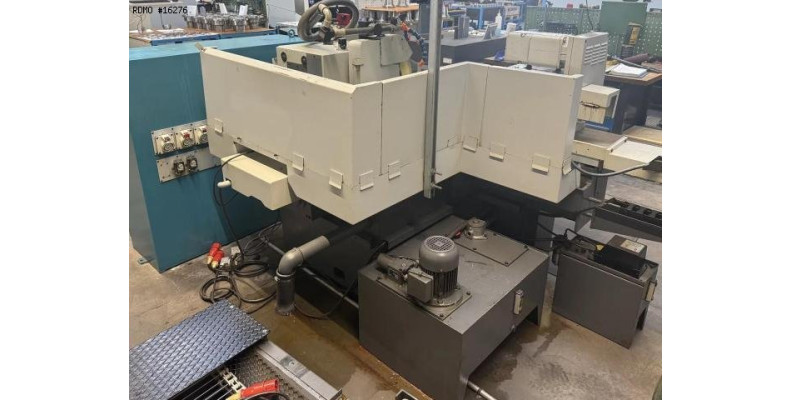

- Coolant tank

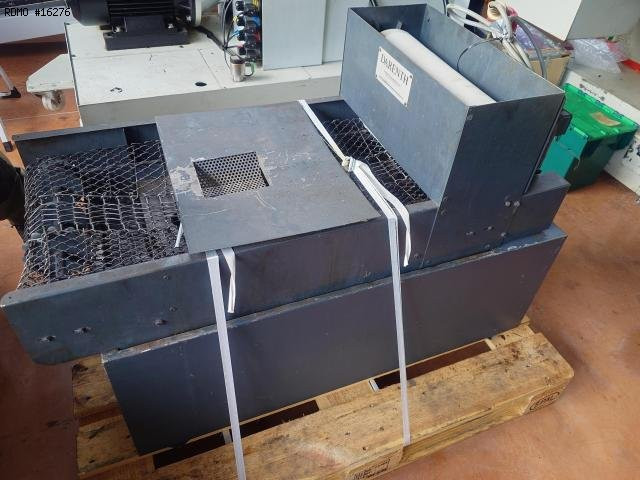

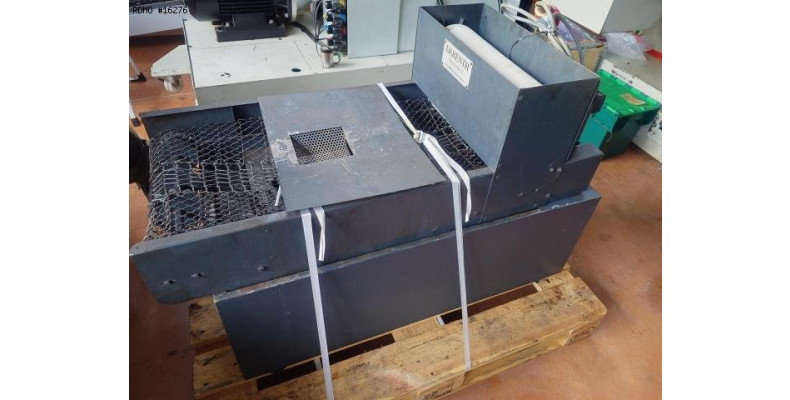

* with paper filtering unit
- 1 internal grinding spindle
- Lubricating tank with pump
