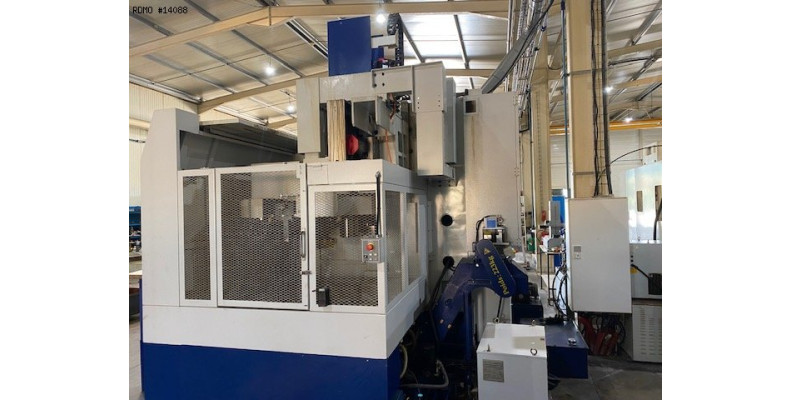

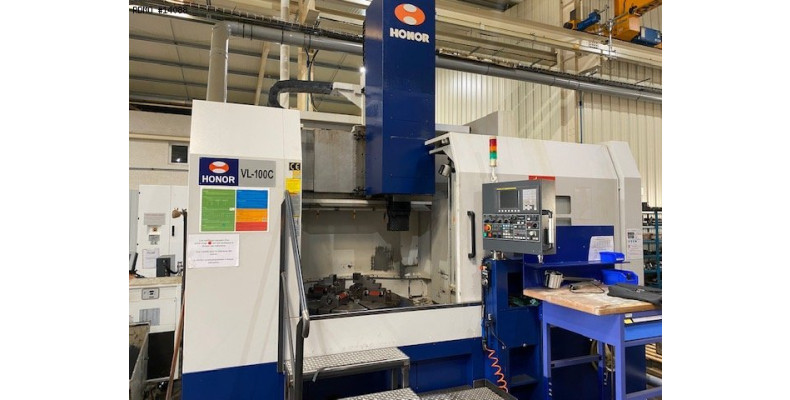

HONOR SEIKI VL-100C 2 axis

14088
Brand: HONOR SEIKI
Model: VL-100C
Year: 2018
Serial: 80821
14088
HONOR SEIKI VL-100C 2 axis
Brand: HONOR SEIKI
Model: VL-100C
Year: 2018
Serial: 80821

Caracteristics & Equipment

Caracteristics
- Maximum passage diameter : 1200 [mm]
- Maximum turning diameter : 1200 [mm]
- RAM section : 200 x 200 [mm]
- Distance between RAM / tray surface : 925 [mm]
- Maximum turning height : 650 [mm]
- Tray diameter : 1000 [mm]
- Maximum part weight : 3500 [kg]

- X-axis travel : -100 / +750 [mm]
- Y-axis travel : 600 [mm]

- X & Y axis rapid feed : 10 [m/min]
- Work feed : 0.001 - 500 [mm/rev]

- Spindle speed : 3 - 400 [rpm]
- Number of ranges : 2
- Maximum torque : 14500 [Nm]

- Magazine type : 12 tools umbrella
- Tool section : square 25 / 32 [mm]
- Max. tool weight : 50 [kg]

- Spindle motor power (FANUC) : 30 / 37 [Kw]
- X&Y axis servo motor : 4.0 [Kw]

- Total power consumption : 70 [Kva]
- Floor space : 4060 x 4020 [mm]
- Machine height : 4000 [mm]
- Machine weight : 17800 [kg]

- Number of working hours : 4439 [h]
Equipment

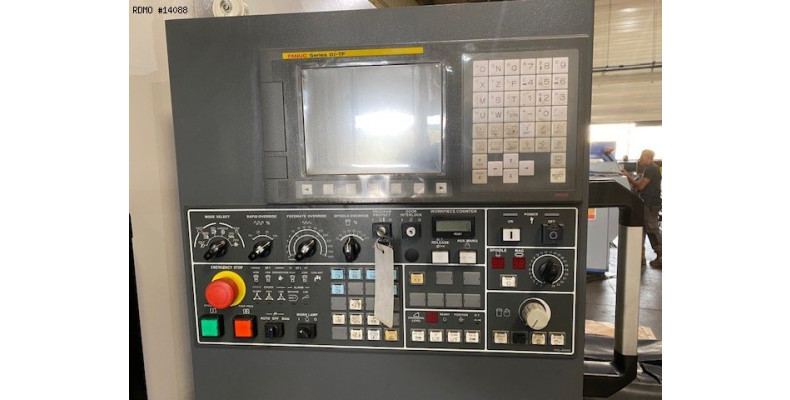

- CNC FANUC OI-TF
- Full fairing

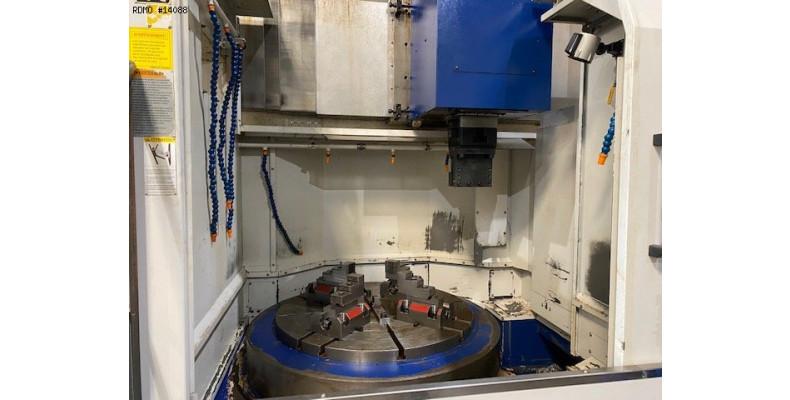

- Plate Ø1000 mm with 4 independent jaws
- Chip conveyor with bucket
- Coolant system with tank
- Coolant through tool holder
- Automatic lubrication of slideways + ball screws
- Automatic gearbox lubrication
- Tool holder chairs GC-200 (quantity 6)
- Oil separator
- Work + signaling lamp
- Tuning tool box
- Leveling skids and jacks
- Machine documentation
- Transformer
- Compliance with current CE standards
