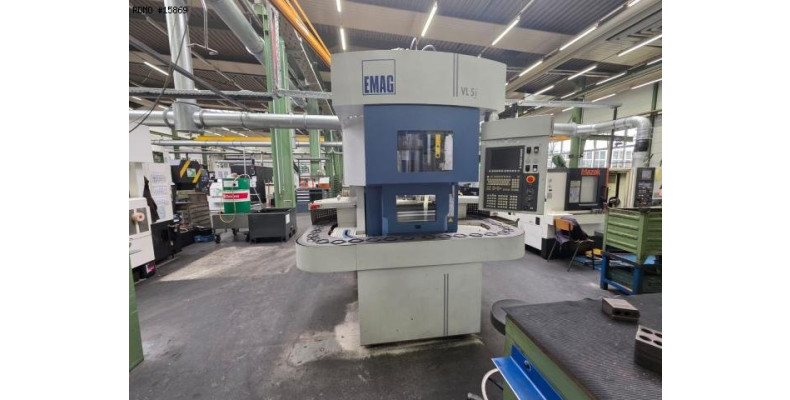

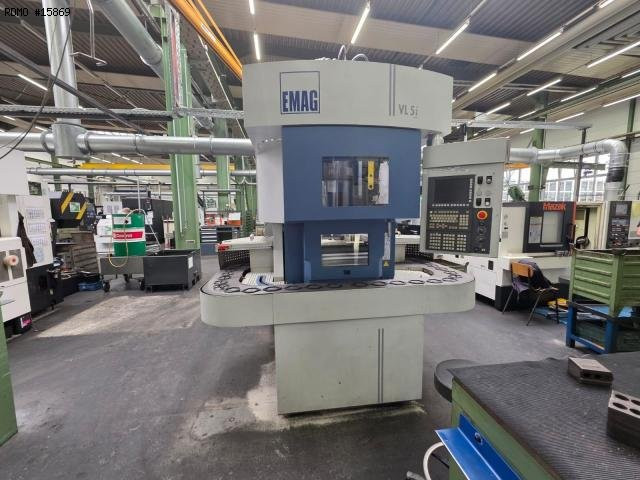

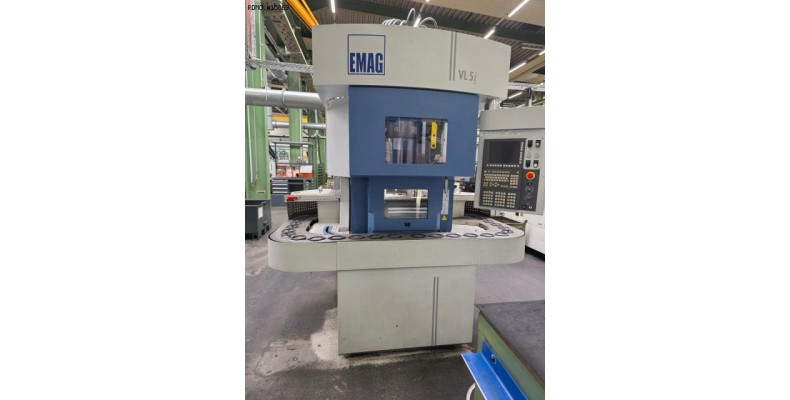

EMAG VL5i F 2 axis

Name: Vertical cnc lathe EMAG VL5i F 2 axes
Brand: EMAG
Availability: InStock

Turning Vertical cnc lathe

15869

PDF datasheet to download:

Brand: EMAG

Model: VL5i F

Year: 2011

Serial: 102787

15869

EMAG VL5i F 2 axis

Turning Vertical cnc lathe

PDF datasheet to download:

Brand: EMAG

Model: VL5i F

Year: 2011

Serial: 102787

Ask Price

Caracteristics

- Number of axes : 2
- Number of turrets : 1
- Max. turning diameter : 220 [mm]
- Maximum workpiece height : 175 [mm]
- X/Z stroke : 660/300 [mm]
MAIN SPINDLE
- Spindle speeds : 4500 [rpm]
- Spindle power : 27 [kW]
- C axis indexing precision : 0.001 [°]

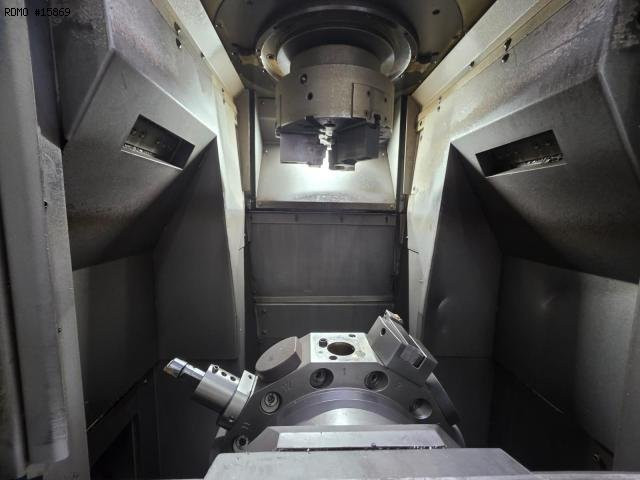

TURRET
- Tool type : VDI40
- Number of positions : 12
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 36 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3120/2266 [mm]
- Machine height : 3200 [mm]
- Machine weight : 7000 [kg]
MACHINE HOURS
- Number of hours under power : 74809 [h]
- Number of spindle hours : 30521 [h]

Equipment

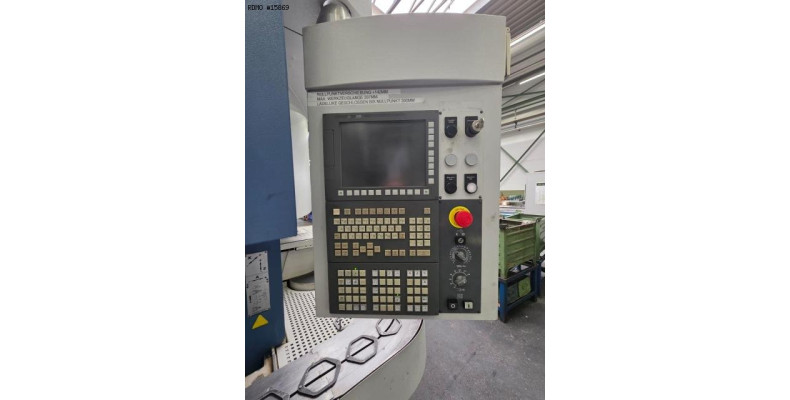

- CNC : Fanuc 32i-A
- Interface : Ethernet / RS232 / USB / PCMCIA
- Coolant tank

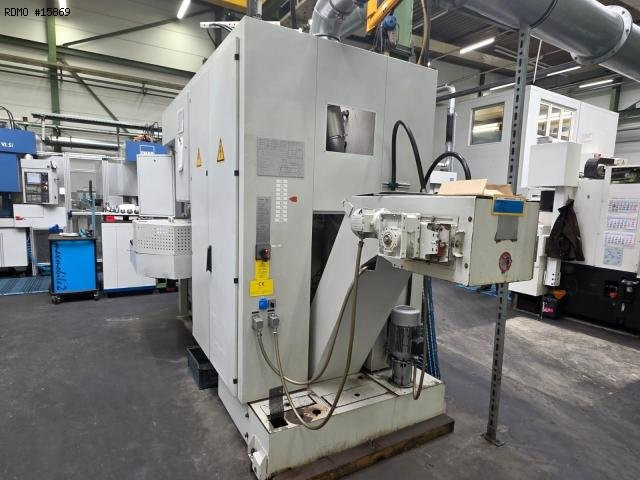

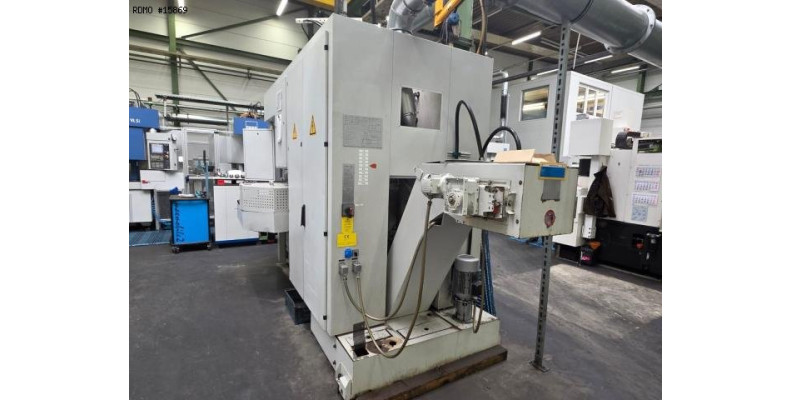

- Chips conveyor
- Parts conveying strip
- Chuck 3 jaws
