FAMAR SUB 160 2g 3 axis

Turning Vertical cnc lathe
13841
PDF datasheet to download:
Brand: FAMAR
Model: SUB 160 2g
Year: 2012
Serial: 11.07.040/3
13841
FAMAR SUB 160 2g 3 axis
PDF datasheet to download:
Brand: FAMAR
Model: SUB 160 2g
Year: 2012
Serial: 11.07.040/3
Ask Price

Caracteristics & Equipment

Caracteristics
- Max. machining diameter : 120 [mm]
- Max. part diameter : 160 [mm]
- Max. part length : 120 [mm]
- Stroke X/Z : 180/430 [mm]
- Quick movement X/Z : 60/90 [m/min]
- Spindle type : A2-5
- Rotation speed : 6000 [Rpm]
- Spindle power : 10 [kW]

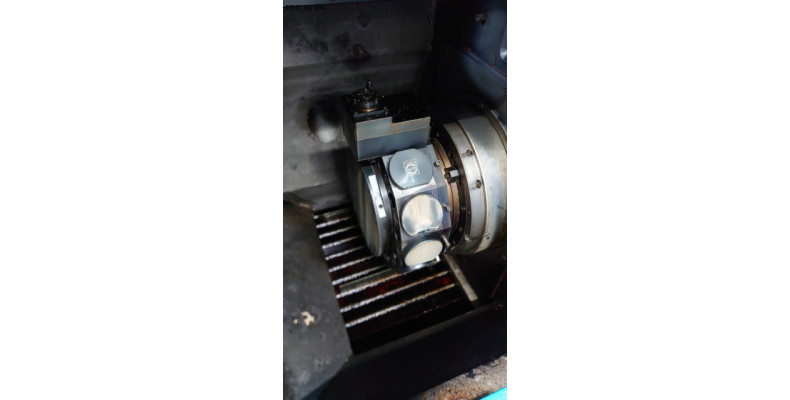

- Turret : 12 positions
- Tool type : VDI 40
- Motorized positions : 12
- Tool rotation speed : 6000 [Rpm]
- Loading / unloading time : 2 [s]
- Dimensions : 2300 x 2000 x 2700 [mm]
- Weight : 5 650 [kg]

- Operating hours : 14830 [H]
- Cutting time : 3600 [H]
Equipment

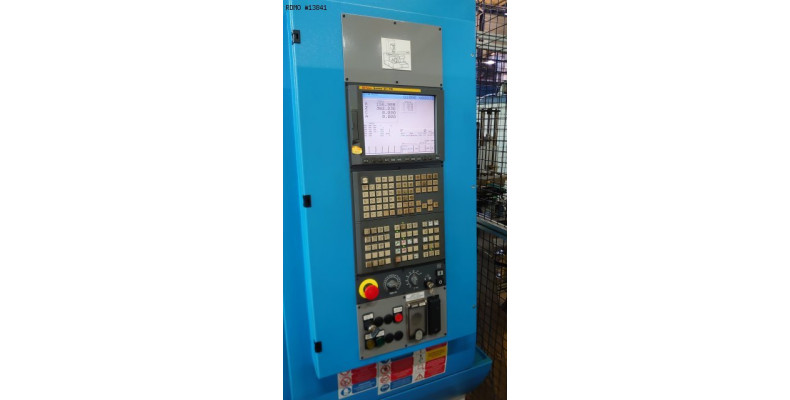

- CN FANUC 21-iTB

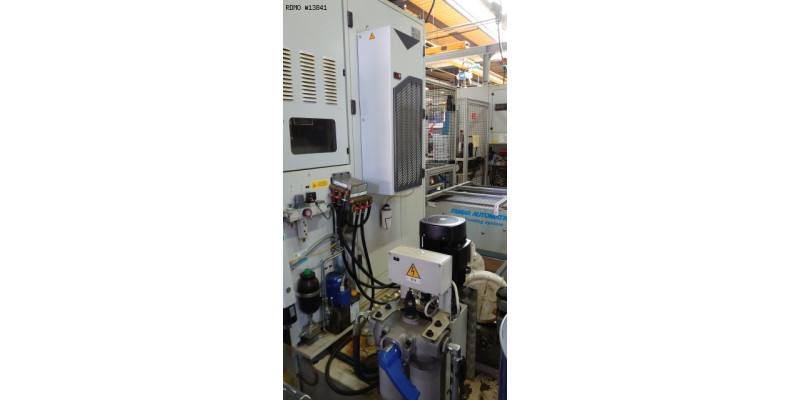

- Coolant tank with HP pump

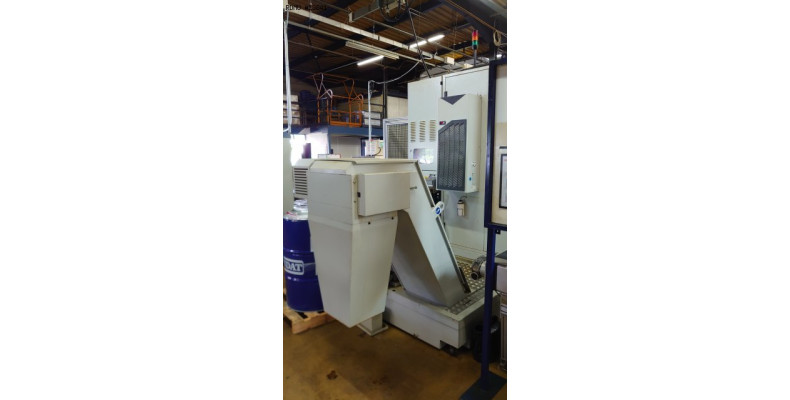

- Chip conveyor

Datasheet

PDF datasheet to download:
