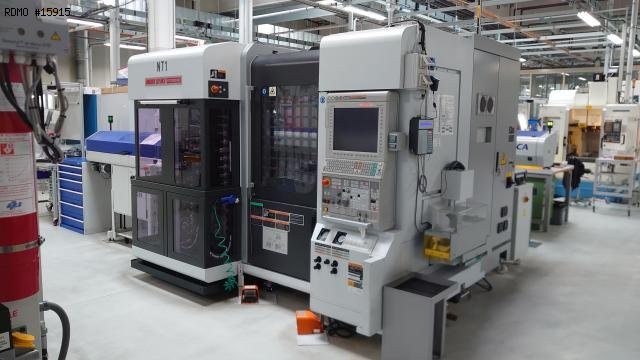

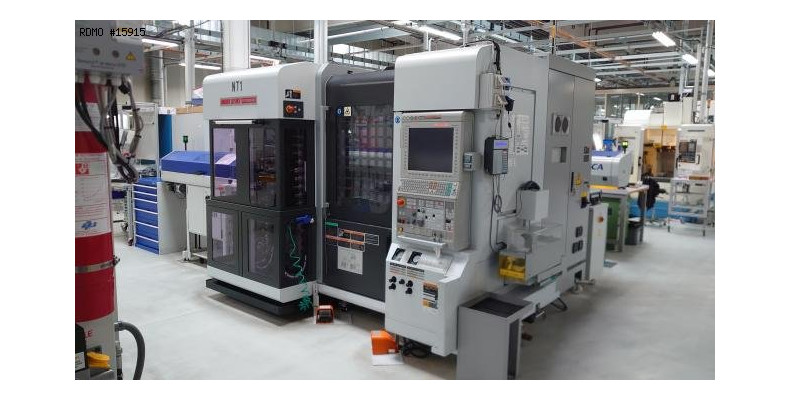

DMG MORI NTX1000/SZM

Name: Turn-mill center DMG MORI NTX1000/SZM
Brand: DMG MORI
Availability: InStock

Turning Turn-mill center

15915

PDF datasheet to download:

Brand: DMG MORI

Model: NTX1000/SZM

Year: 2011

Serial: NTX10KB0035

15915

DMG MORI NTX1000/SZM

Turning Turn-mill center

PDF datasheet to download:

Brand: DMG MORI

Model: NTX1000/SZM

Year: 2011

Serial: NTX10KB0035

Ask Price

Caracteristics

- Number of axes : 5
- Number of spindles : 3

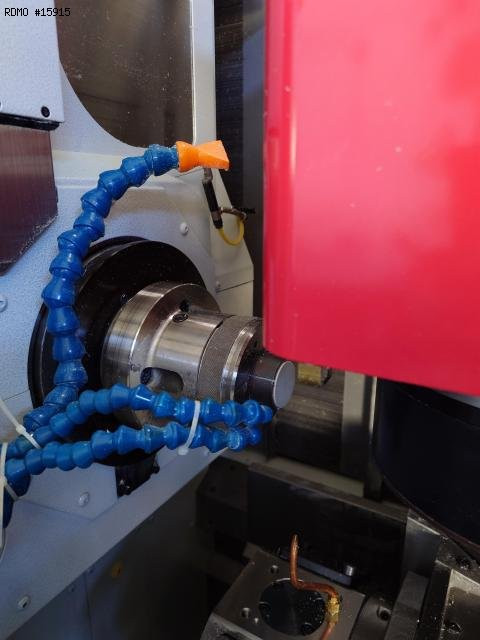

MAIN SPINDLE
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 52 [mm]
- C axis indexing precision : 0.0001 [°]
COUNTER-SPINDLE
- Spindle power : 7.5 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 38 [mm]
- C axis indexing precision : 0.0001 [°]

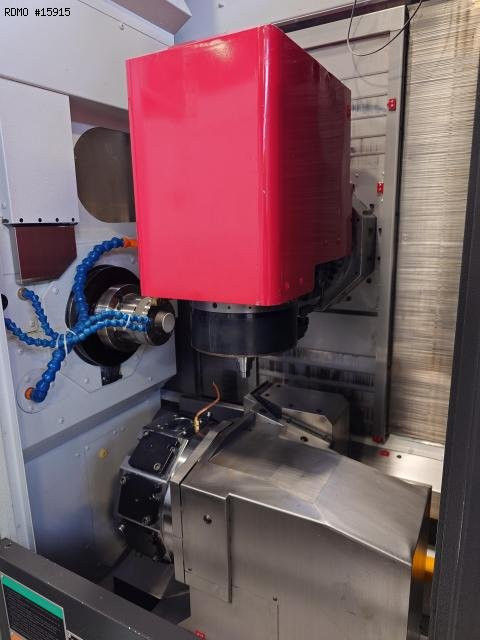

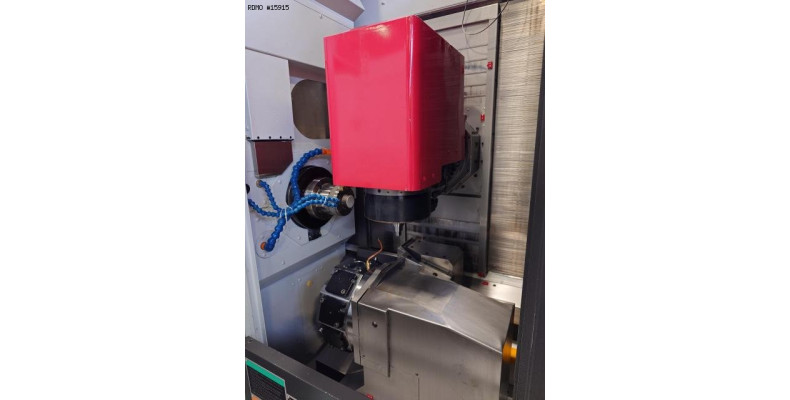

TURNING-MILLING SPINDLE
- X/Z stroke : 455/800 [mm]
- Y stroke : 105 [mm]
- B Axis stroke : 120 [°]
- B axis indexing precision : 0.0001 [°]

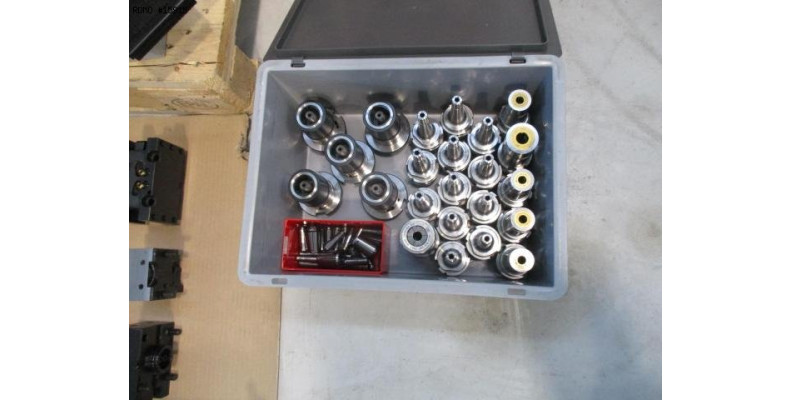

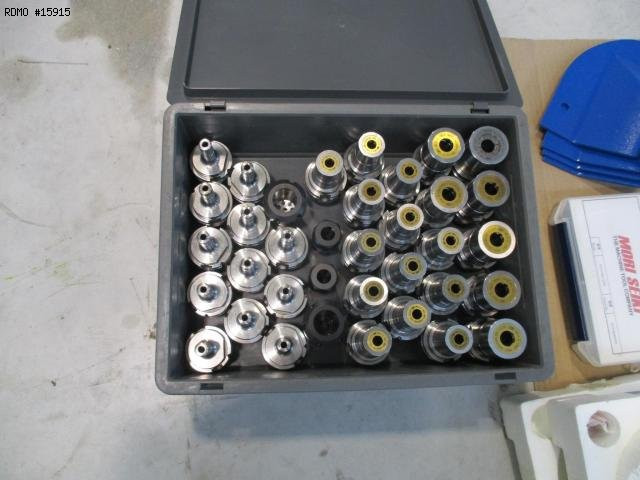

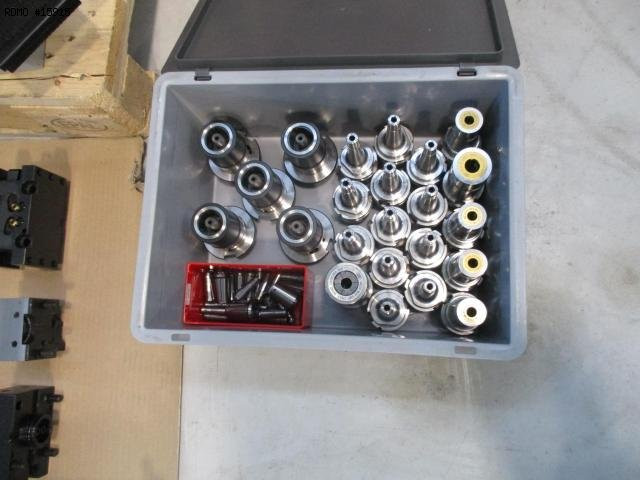

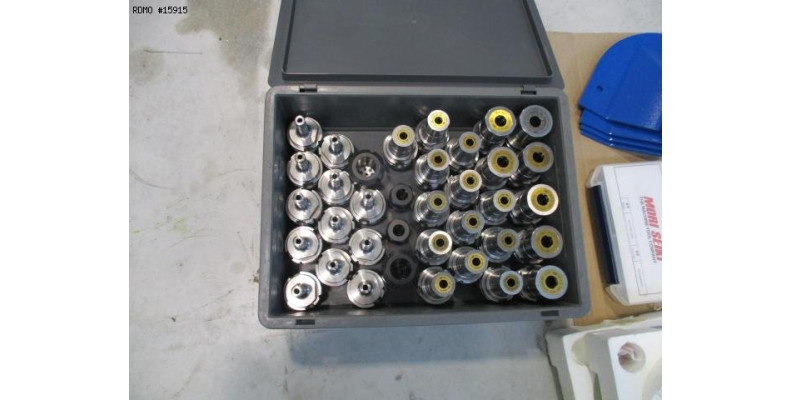

- Tool type : HSK50
- Spindle speeds : 30000 [rpm]
- Spindle power : 9 [kW]
TOOL CHANGER
- Tool magazine capacity : 76

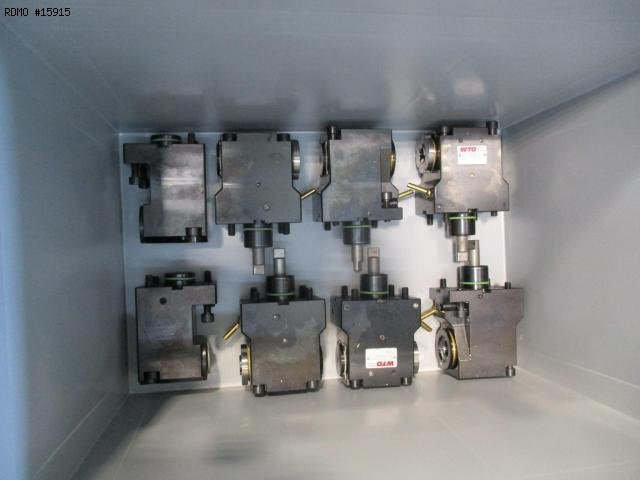

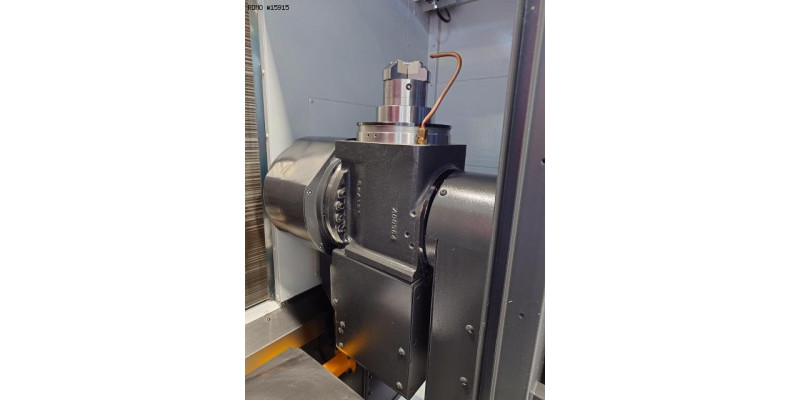

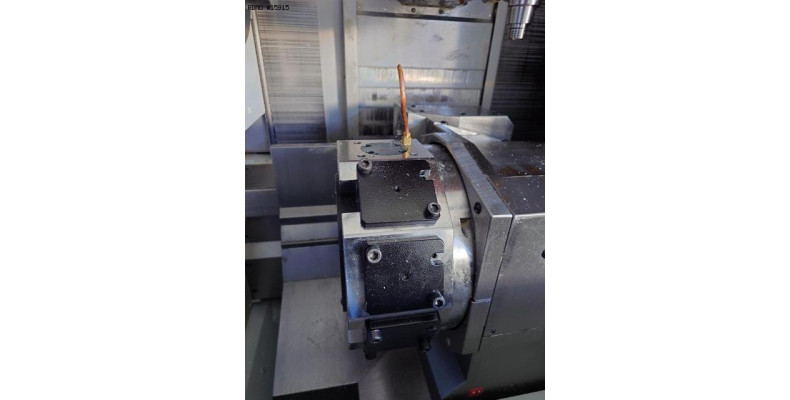

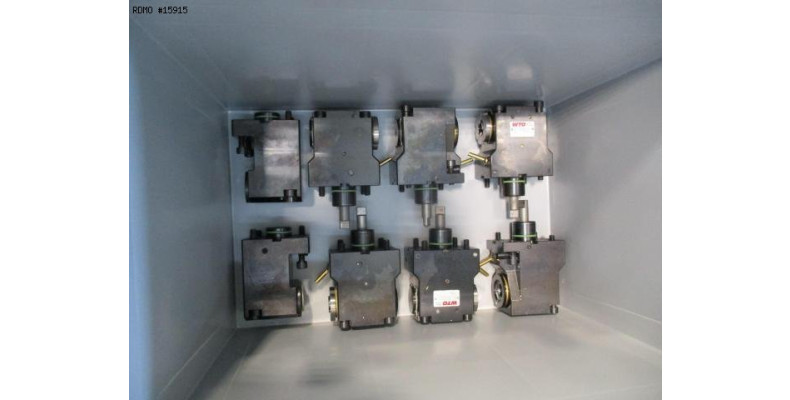

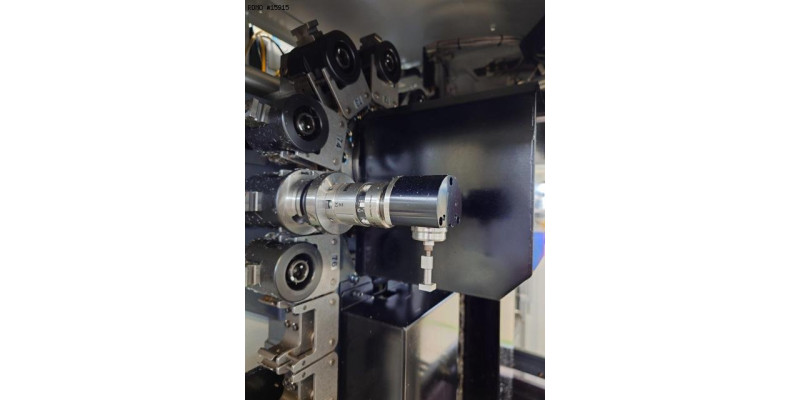

LOWER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 48 [kVA]

Equipment

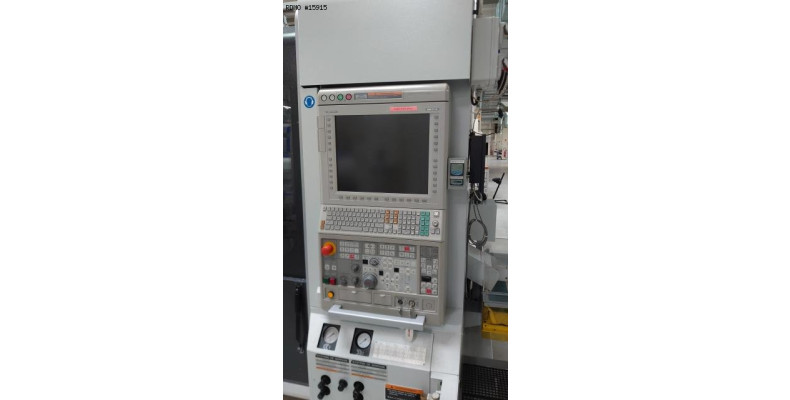

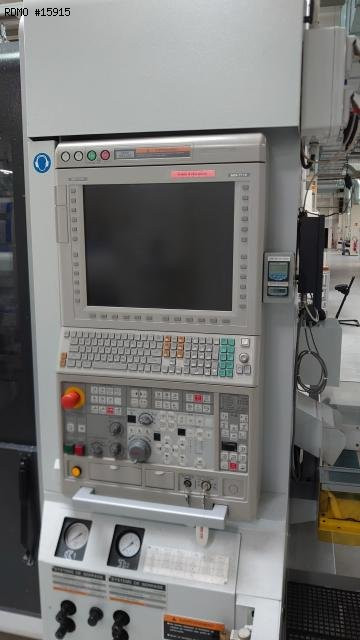

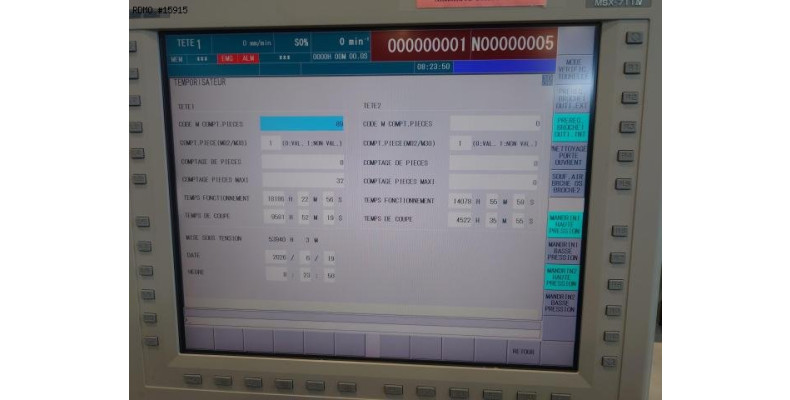

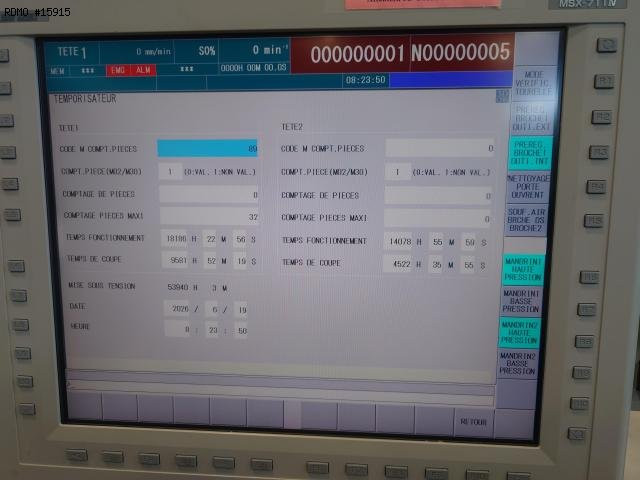

- CNC : FANUC 31i MAPPSIV
- Linear scales

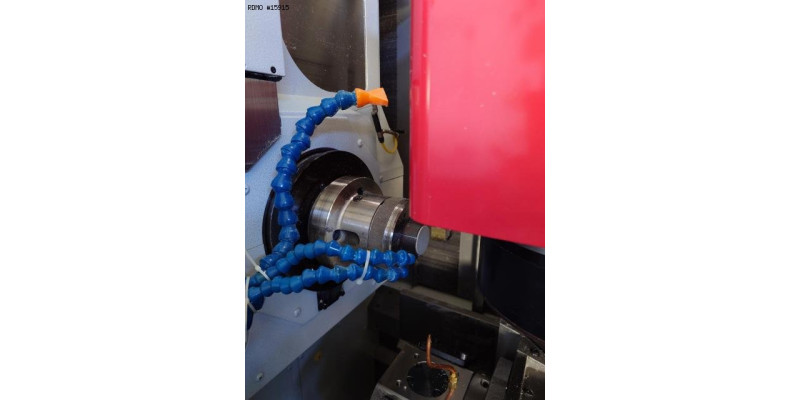

* Coolant through spindle
- Tailstock option with counterspindle

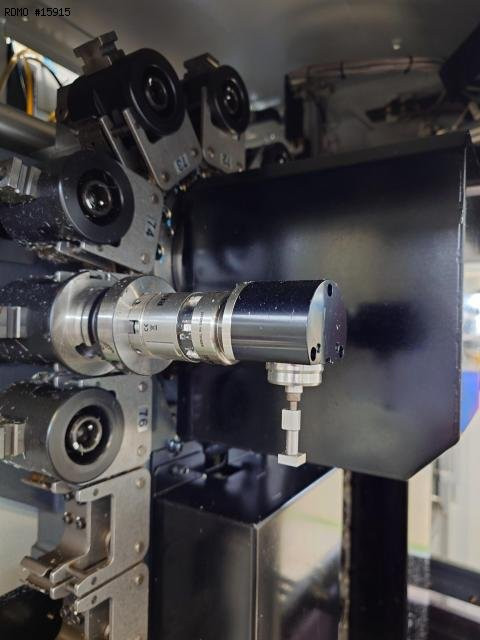

- Tool probe
- Workpiece probe : Renishaw

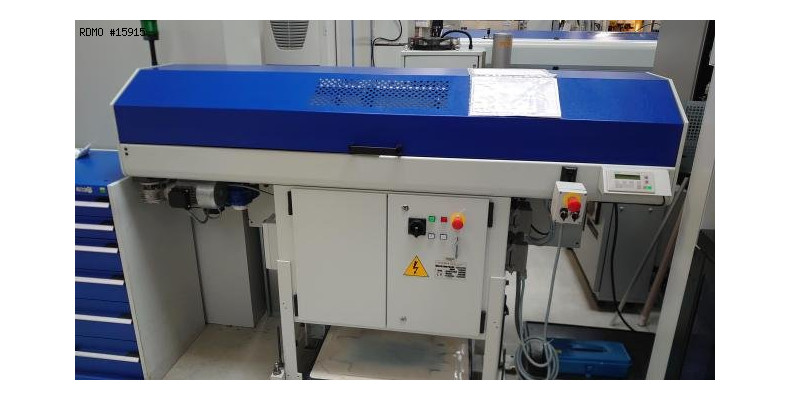

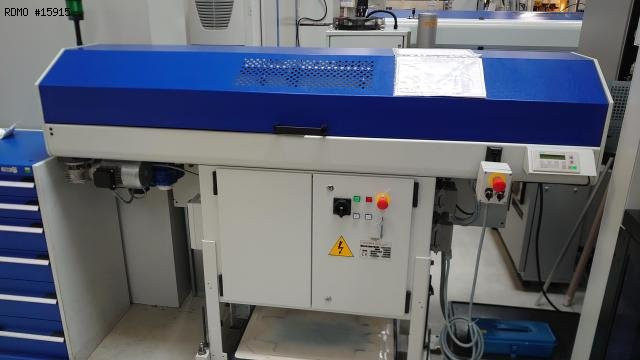

- Bar loader : IEMCA KID 80

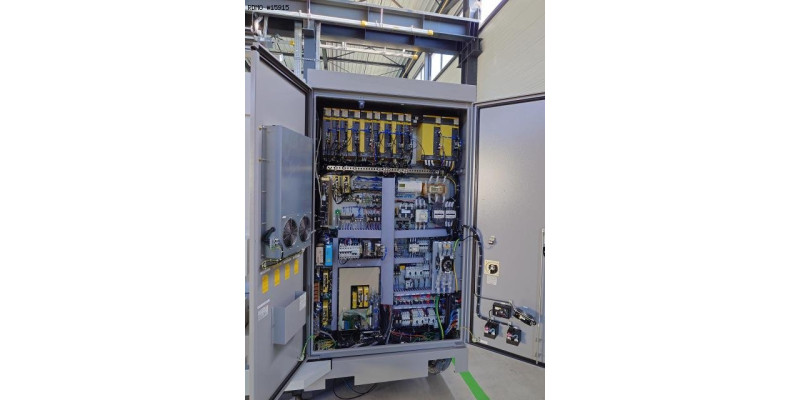

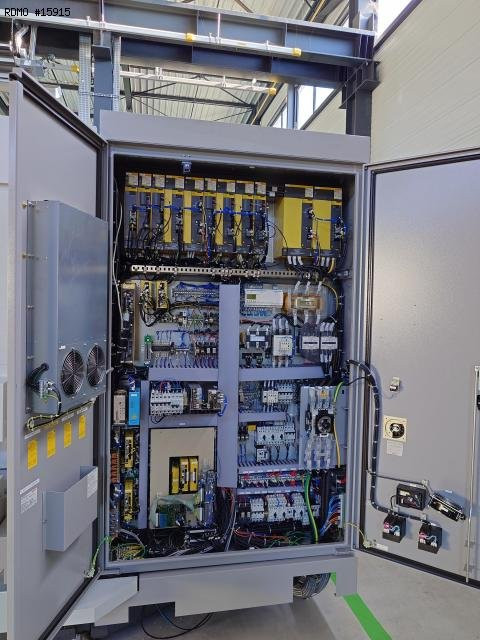

- Electric transformer
