- Number of axes : 11
- Number of spindles : 2

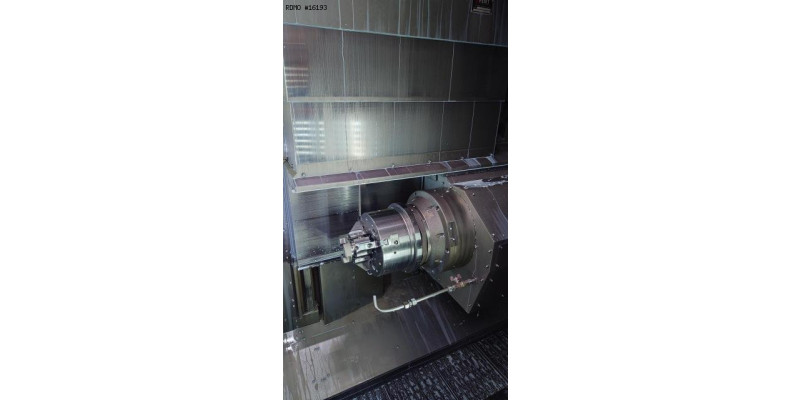

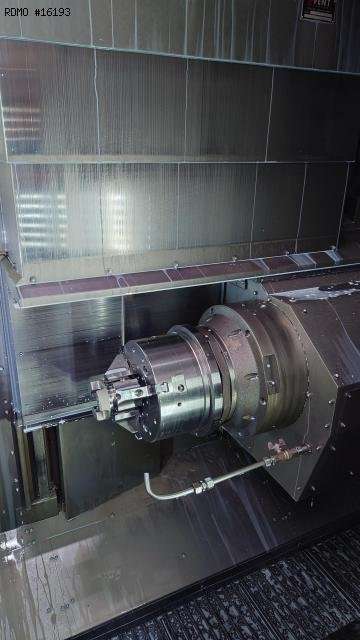

MAIN SPINDLE
- Spindle power : 47 [kW]
- Spindle speeds : 3500 [rpm]
- Max. bar diameter : 102 [mm]
- C axis indexing precision : 0.001 [°]

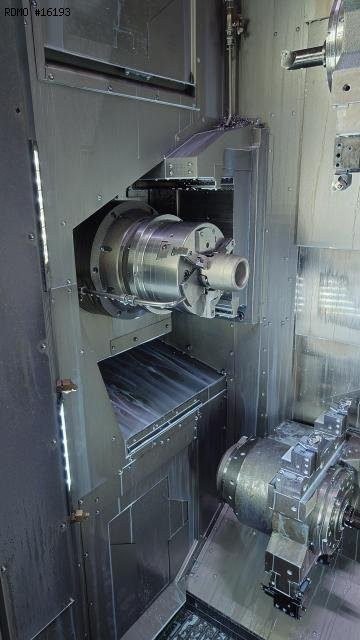

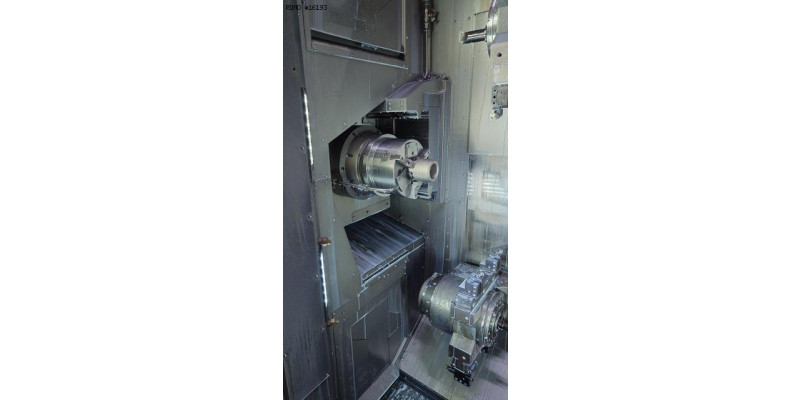

COUNTER-SPINDLE
- Spindle power : 47 [kW]
- Spindle speeds : 3500 [rpm]
- Max. bar diameter : 102 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 610 [mm]

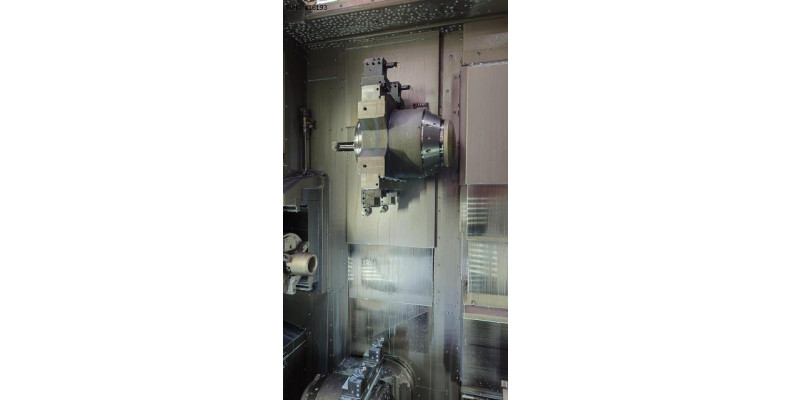

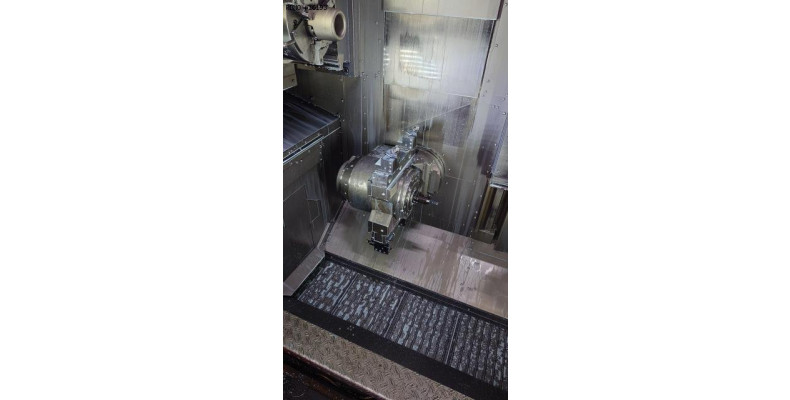

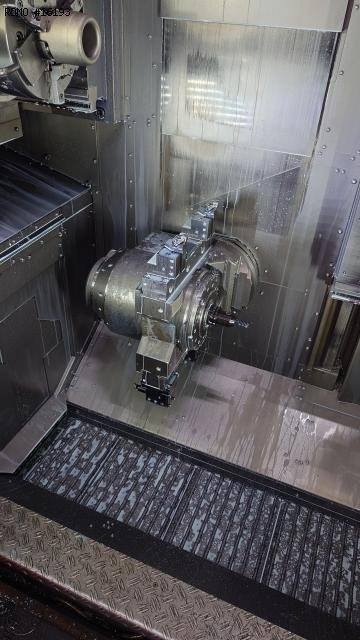

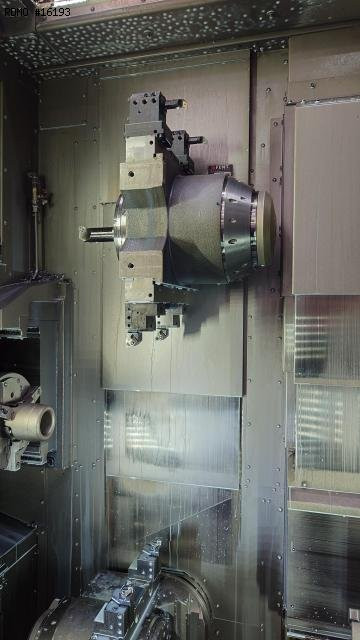

TURNING-MILLING SPINDLE
- X stroke : 580 [mm]
- Y stroke : ± 140 [mm]
- B Axis stroke : 270 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : HSK-T63
- Spindle speeds : 9000 [rpm]
- Spindle power : 24.5 [kW]

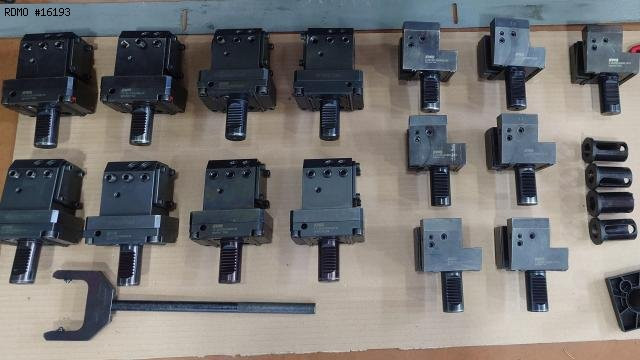

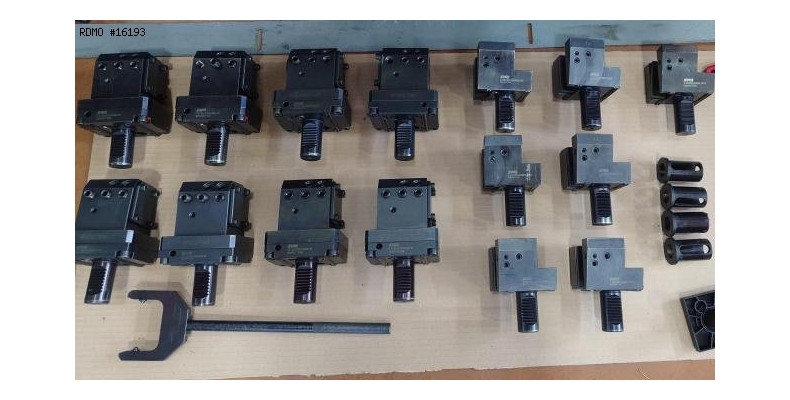

- Fixed tools on a milling electrospindle : 6 x VDI30
LOWER TURNING-MILLING SPINDLE
- Y stroke : ± 140 [mm]
- B Axis stroke : 270 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : HSK-T63
- Spindle speeds : 9000 [rpm]
- Spindle power : 24.5 [kW]
- Fixed tools on a milling electrospindle : 6 x VDI30

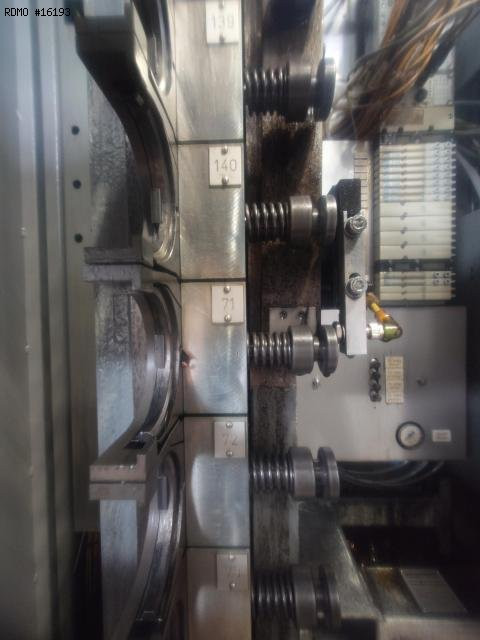

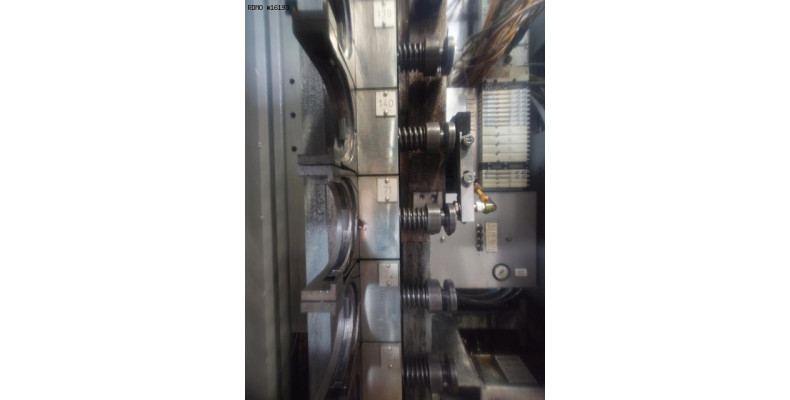

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 140
- Tool exchange time : 6 [sec]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 114 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 4800x2960 [mm]
- Machine height : 3170 [mm]
- Machine weight : 18500 [kg]

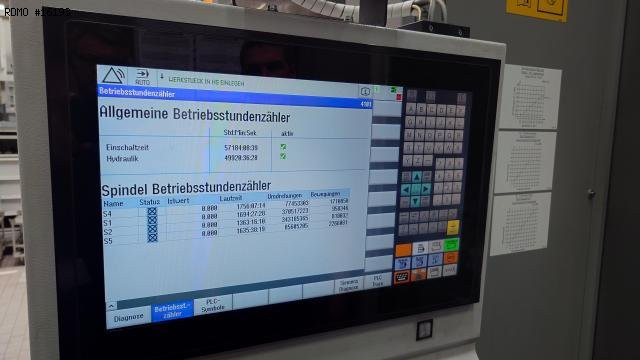

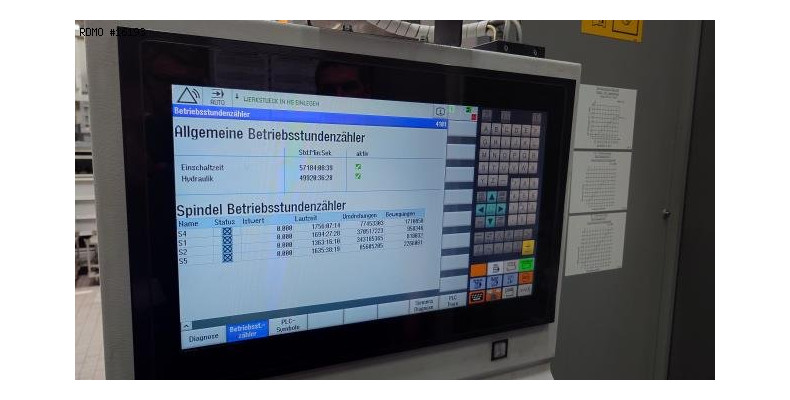

MACHINE HOURS
- Number of hours under power : 57184 [h]
- Spindle hours : 1756 [h]
- Number of turning-milling spindle hours : 1694 [h]
Equipment
- CNC : Siemens Sinumerik 840D SL

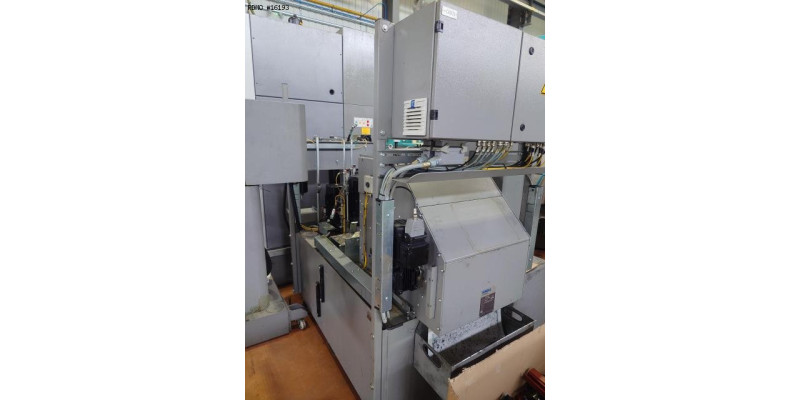

- Coolant tank
* with high-pressure pump
* with paper filtering unit
* Coolant through spindle

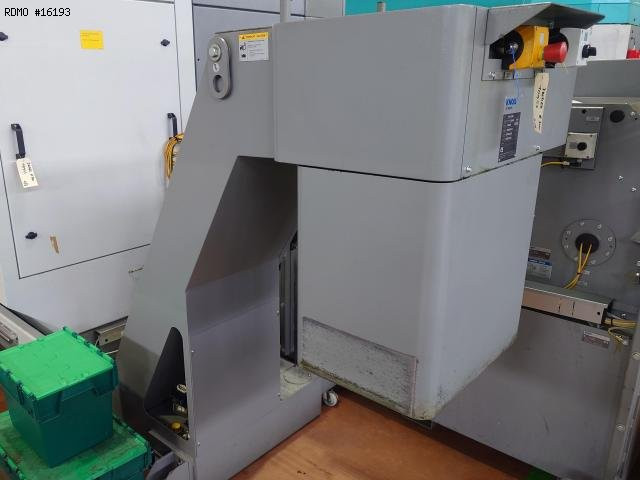

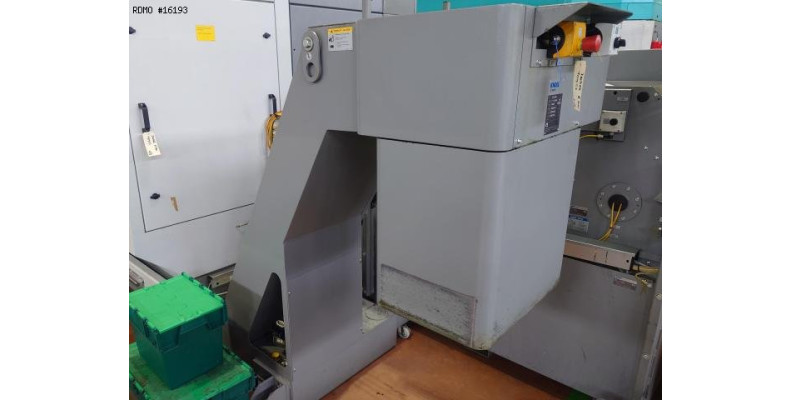

- Chips conveyor

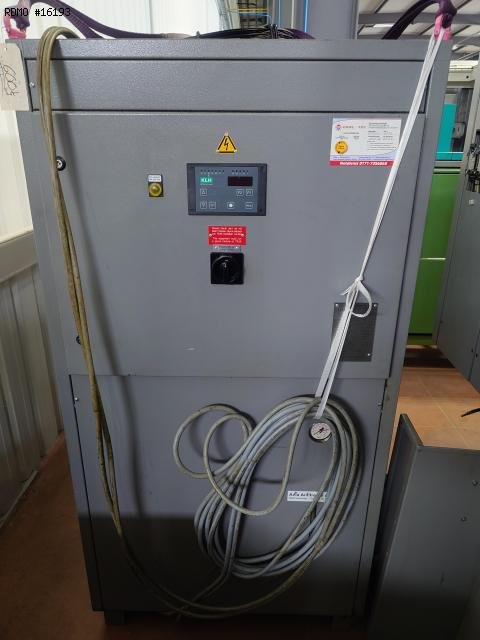

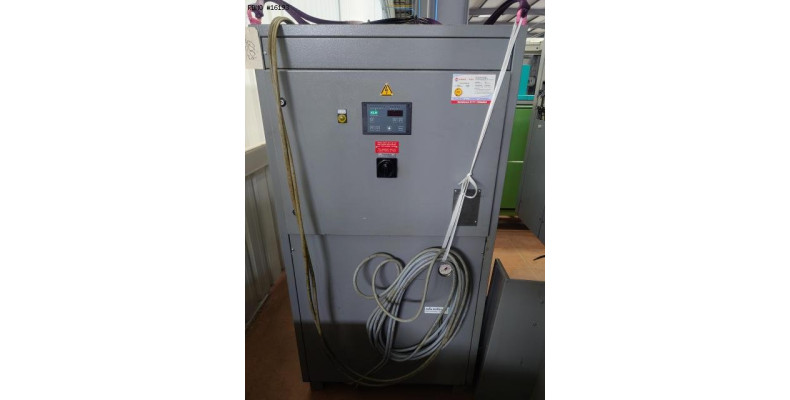

- Spindle cooling unit
- Workpiece probe : Renishaw
