DMG MORI NTX 1000 6 axis

Name: Turn-mill center DMG MORI NTX 1000 6 axes
Brand: DMG MORI
Availability: InStock

Turning Turn-mill center

16223

PDF datasheet to download:

Brand: DMG MORI

Model: NTX 1000

Year: 2014

Serial: NTX10140904

16223

DMG MORI NTX 1000 6 axis

Turning Turn-mill center

PDF datasheet to download:

Brand: DMG MORI

Model: NTX 1000

Year: 2014

Serial: NTX10140904

Ask Price

Caracteristics

- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Spindle power : 11 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 370 [mm]
- C axis indexing precision : 0.0001 [°]
TURNING-MILLING SPINDLE
- X/Z stroke : 380 / 615 [mm]
- Y stroke : 105 [mm]
- Rapid traverses rates (X/Y/Z) : 40.000 / 40.000 / 50.000 [mm/min]
- B Axis stroke : +/- 120 [°]
- B axis indexing precision : 0.0001 [°]
- Tool type : CAPTO C5
- Spindle speeds : 12000 [rpm]
- Spindle power : 9 [kW]
TOOL CHANGER
- Tool magazine capacity : 76
TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
- Tailstock stroke : 815 [mm]
POWER SUPPLY
- Total installed power : 39 [kVA]

Equipment

- CNC : FANUC 31iB5
- Electronic handwheel
- Coolant tank

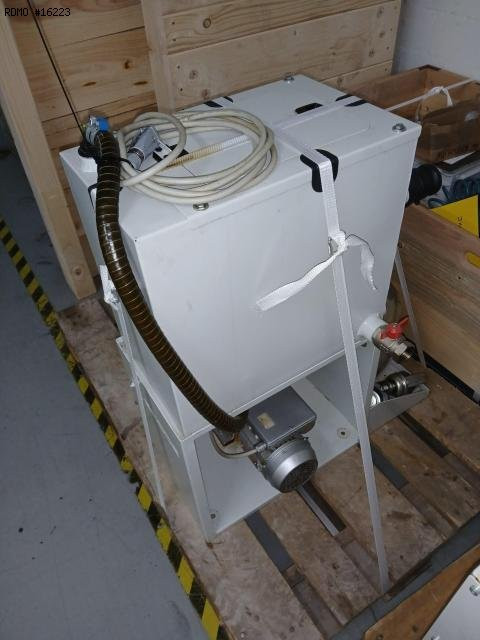

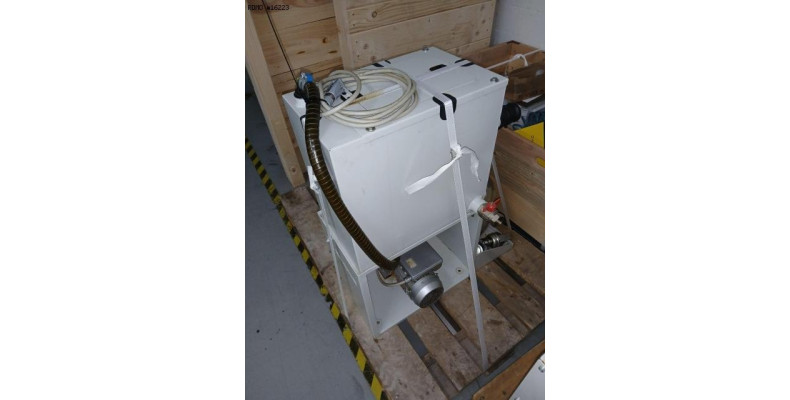

- Filtration : ECODE IP 600 C
- Chips conveyor : MAYFRAN CS 1
- Oil mist extractor
- Tool probe : Renishaw
- Workpiece probe : Renishaw
- Collet chuck
- Chuck 3 jaws

PDF datasheet to download:
