- Number of axes : 19
- Number of spindles : 6
- Number of counter-spindles : 1
SPINDLES
- Max. bar diameter : 32 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 13.6 [kW]
COUNTER-SPINDLE
- Spindle speeds : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 10100x1800 [mm]
- Machine height : 2600 [mm]
- Machine weight : 12000 [kg]
MACHINE HOURS
- Number of hours under power : 81250 [h]
- Number of working hours : 31982 [h]
Equipment

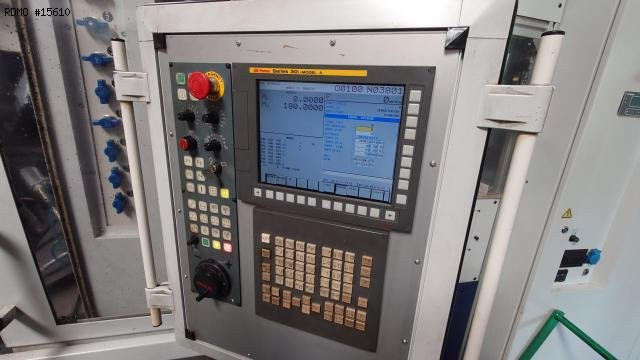

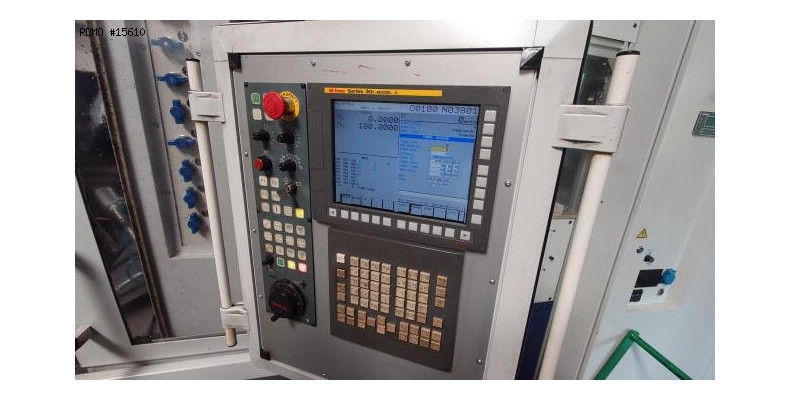

- CNC : Fanuc 30I
- Parts catcher
- Parts conveying strip
- Chips conveyor

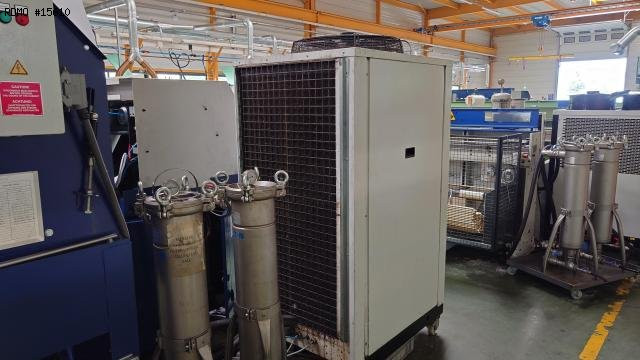

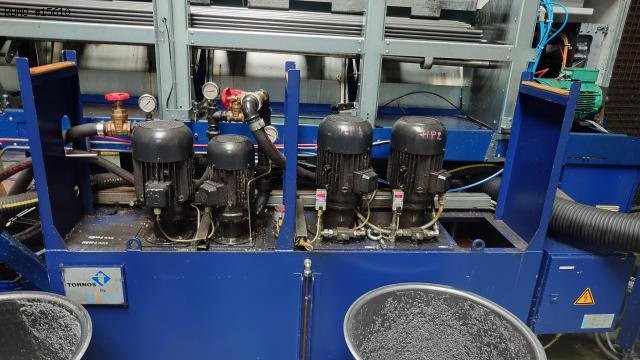

- Coolant tank

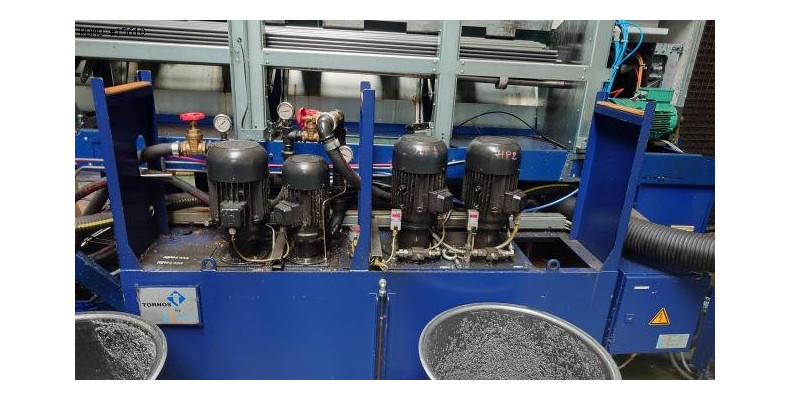

* with high-pressure pump

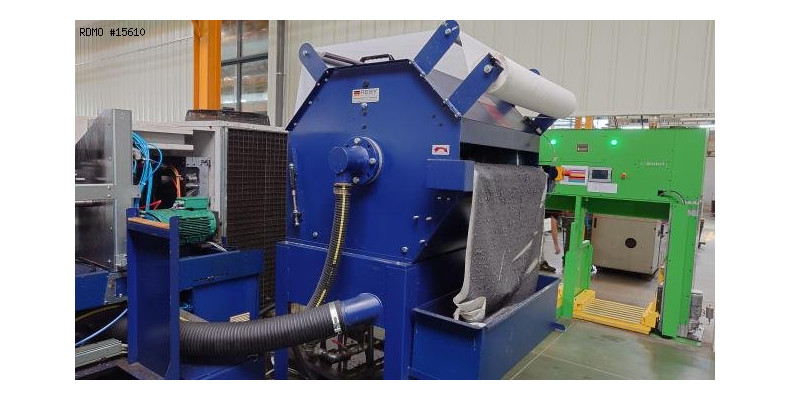

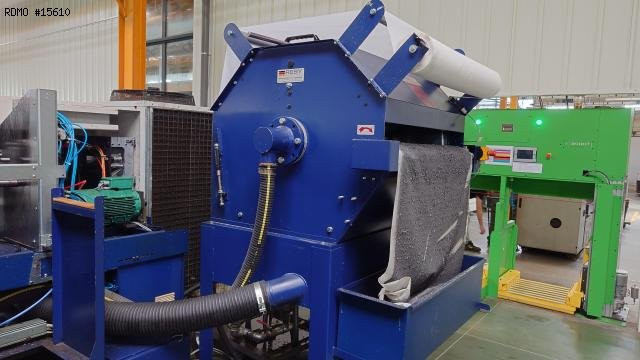

* with paper filtering unit

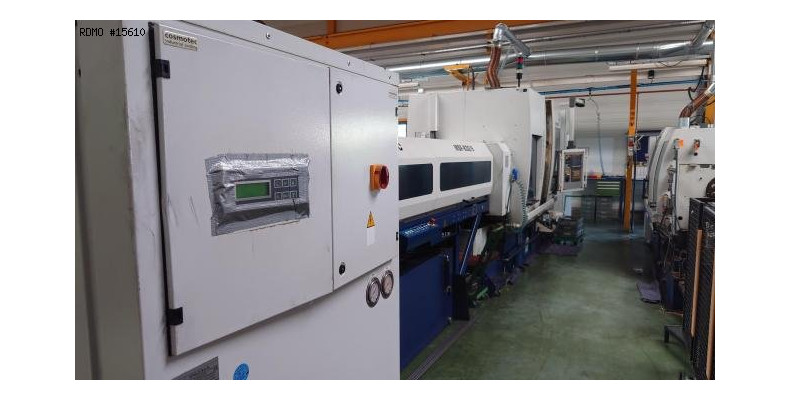

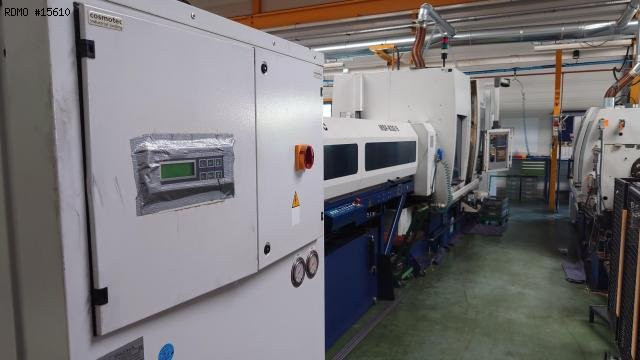

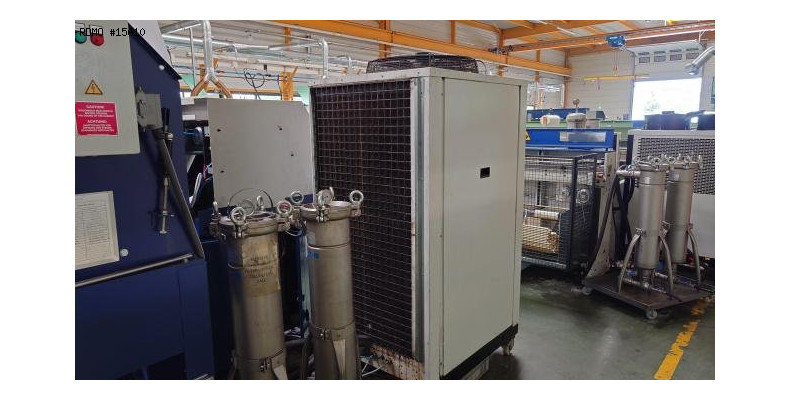

- Cooling unit
- Bar loader : Tornos MSF-832/6
