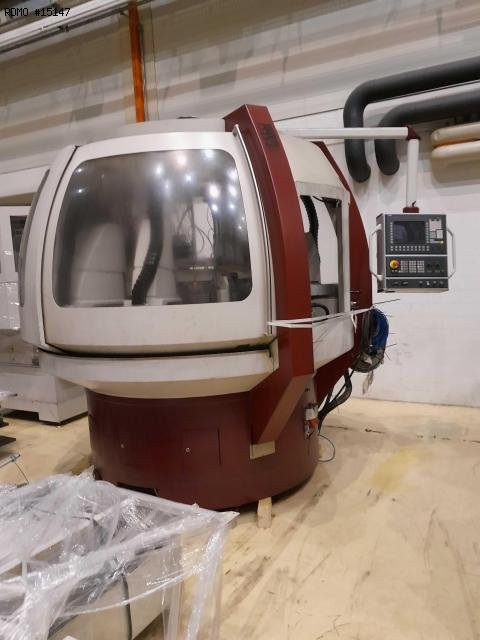

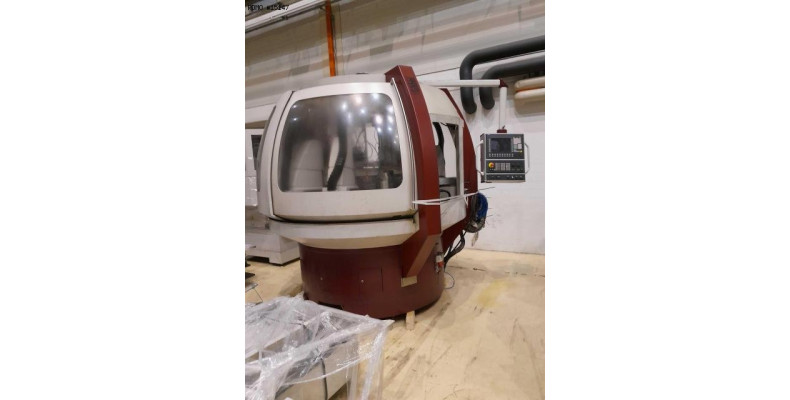

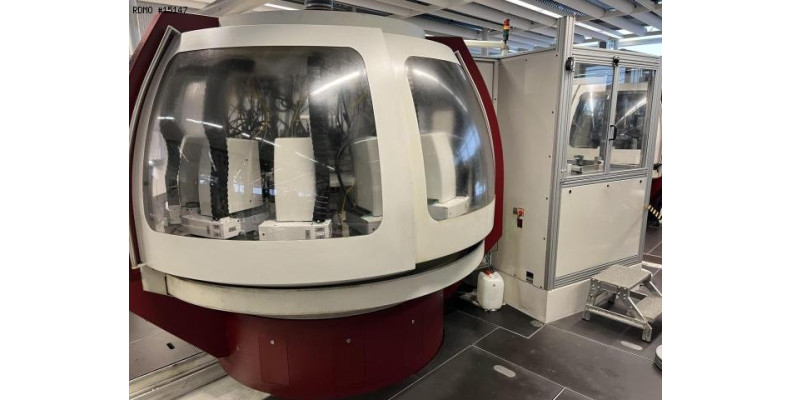

PRECITRAME MTR 212

- Number of axes : 27
- Number of posts : 12
- Number of machining stations : 9
- Indexing time : 2 [sec]

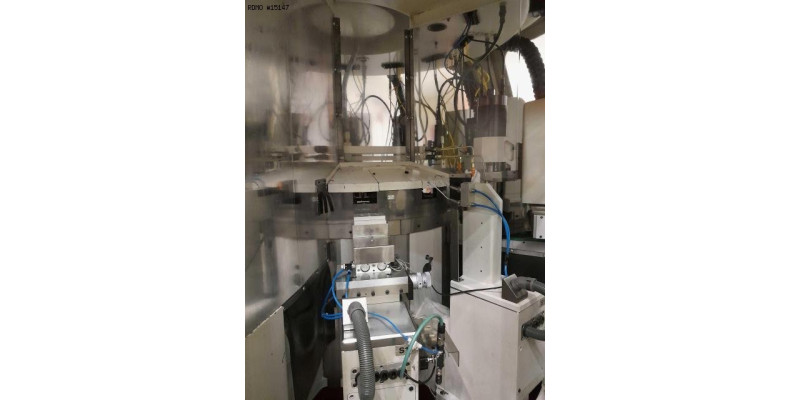

MACHINING UNIT
- Designation : UV151-3
- Number of units : 1
- Travels on X/Y/Z axes : 110 / 150 /100 [mm]
- Rapid traverse rate : 6500 [mm/min]
- Resolution : 0.001 [mm]
MACHINING UNIT
- Designation : UV50-3
- Number of units : 8
- Travels on X/Y/Z axes : 40 / 120/ 100 [mm]
- Rapid traverse rate : 6500 [mm/min]
- Resolution : 0.001 [mm]

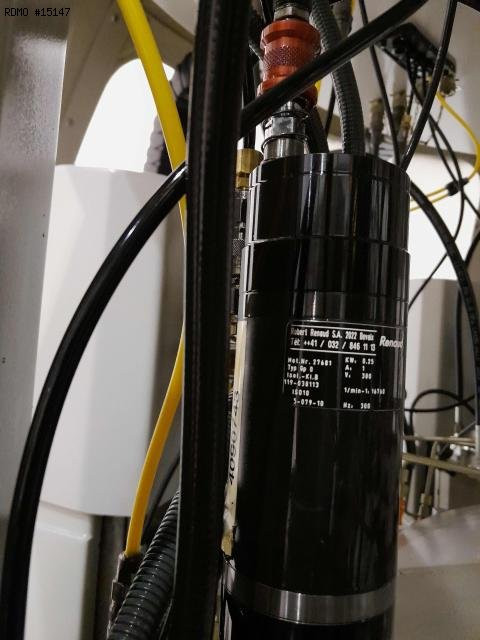

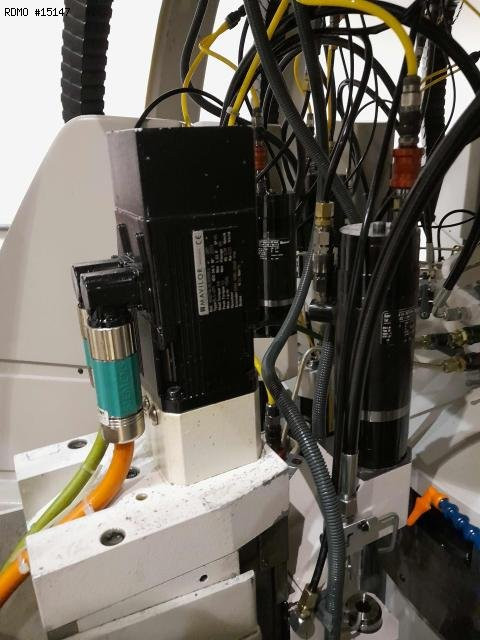

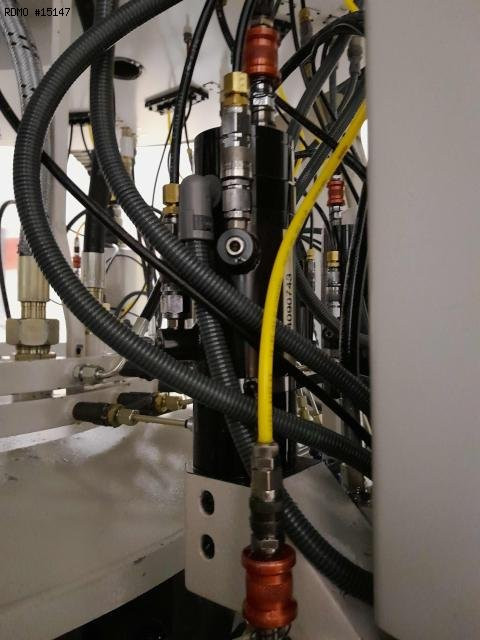

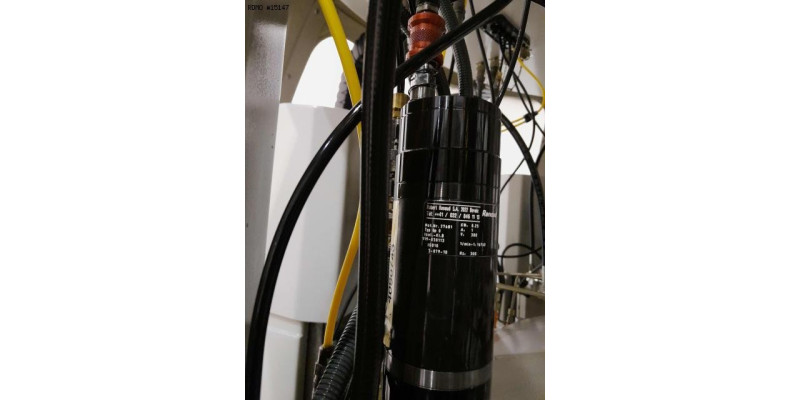

SPINDLES
- Spindle type : Electrobroche Ø38
* Number of spindles : 14
* Tool holder type : ISO10
* Spindle speeds : 18 000 [rpm]
* Spindle power : 0.25 [kW]
- Spindle type : Electrobroche Ø38
* Number of spindles : 4
* Tool holder type : ISO10
* Spindle speeds : 9000 [rpm]
* Spindle power : 0.25 [kW]
* Spindle type : Electrobroche Ø120
- Number of spindles : 1
- Tool holder type : HSK40
* Spindle speeds : 8710 [rpm]
* Spindle power : 3.8 [kW]
* Spindle type : Electrobroche Ø38
- Number of spindles : 2
- Tool holder type : ISO10
* Spindle speeds : 9000 [rpm]
* Spindle power : 0.25 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 10 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 4600 x 3600 [mm]
- Machine height : 3200 [mm]
- Machine weight : 13500 [kg]
- Equipment

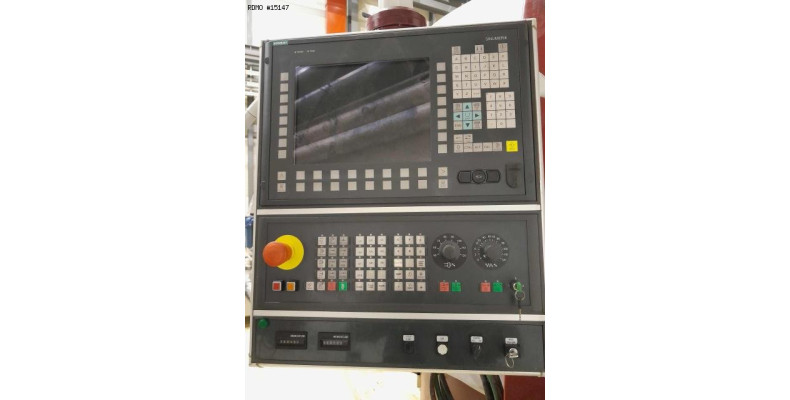

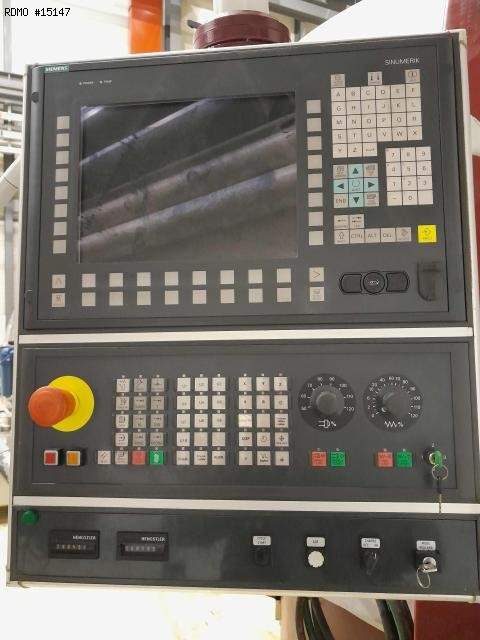

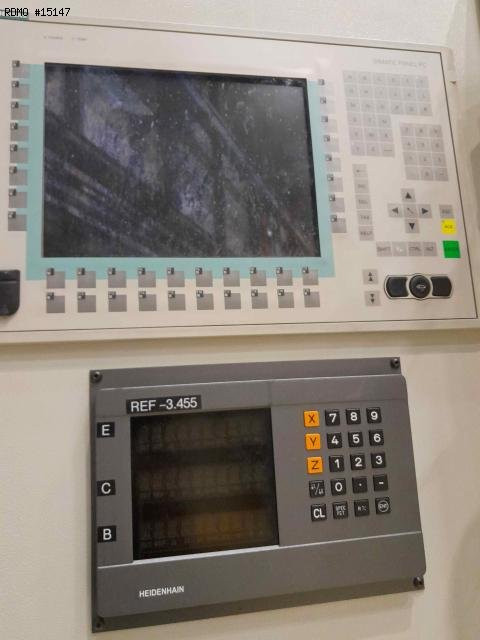

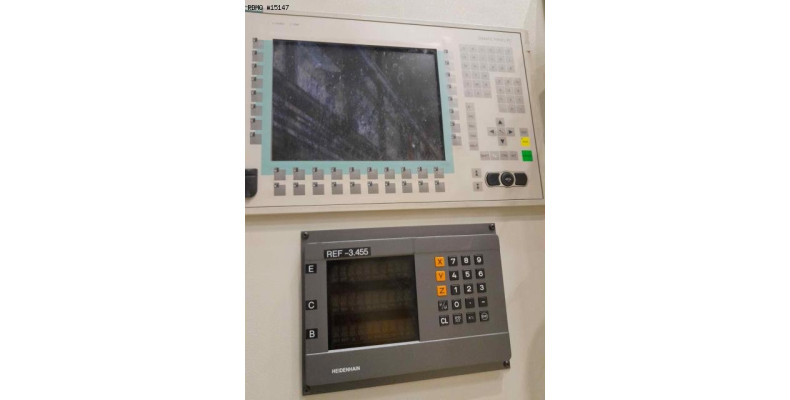

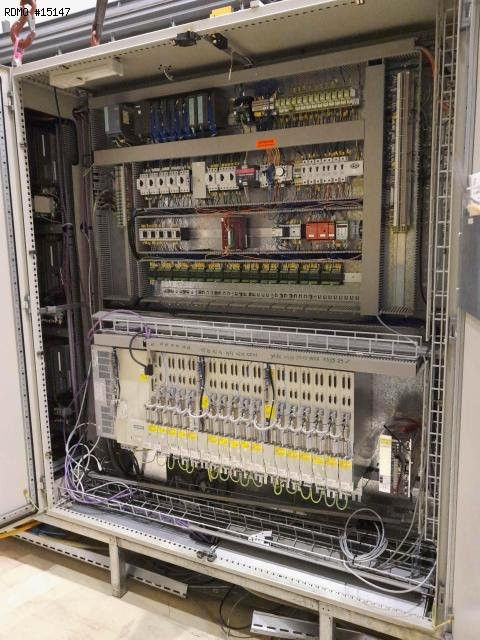

- CNC : Siemens

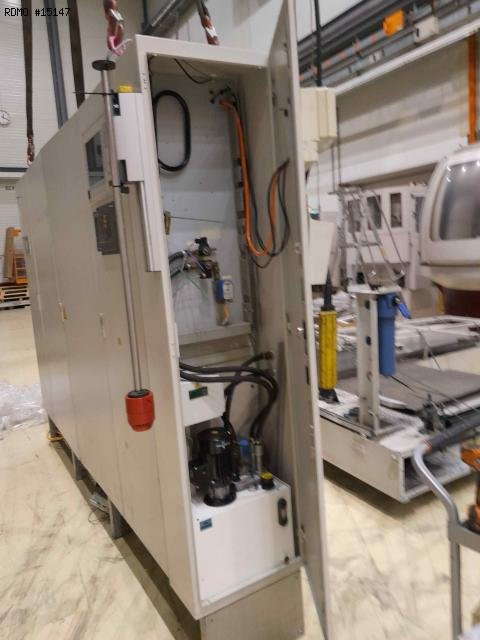

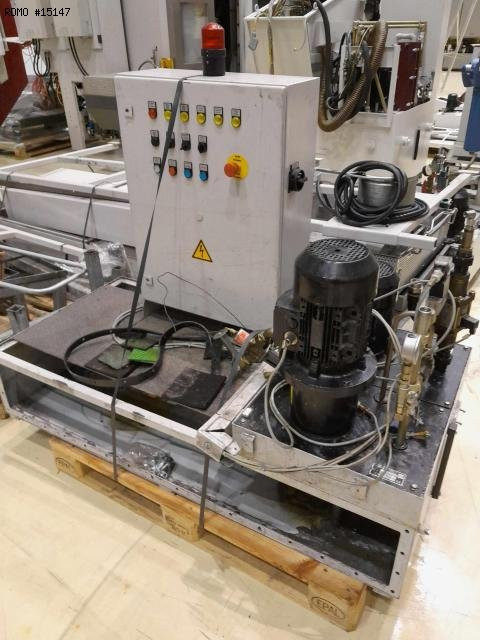

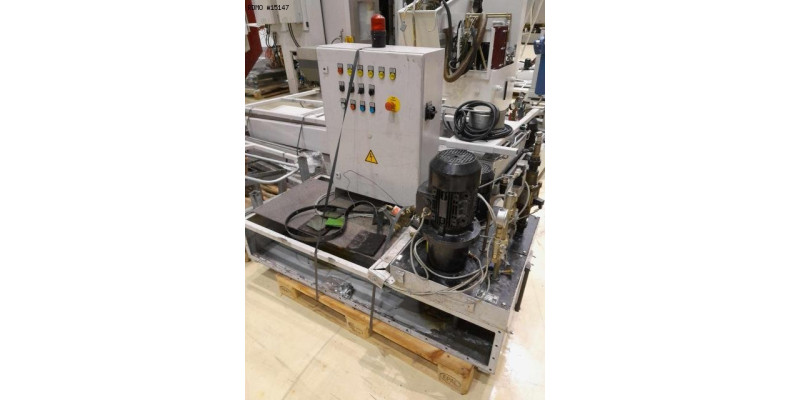

- Cooling unit

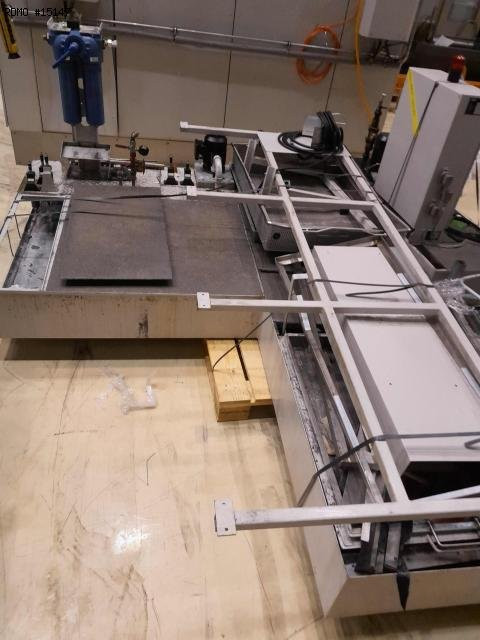

- Coolant tank
* with high-pressure pump
- Chips conveyor

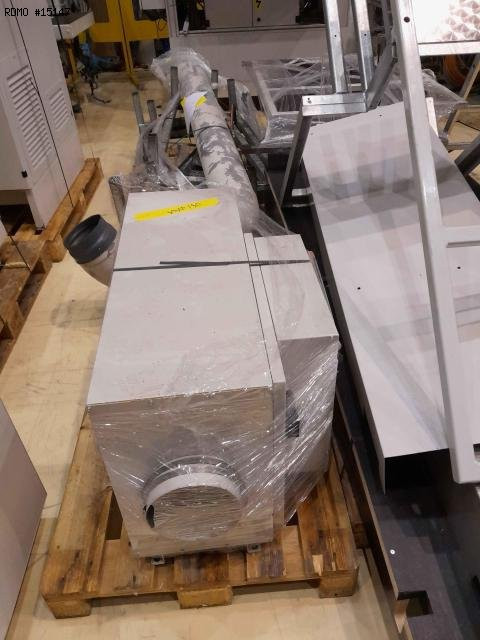

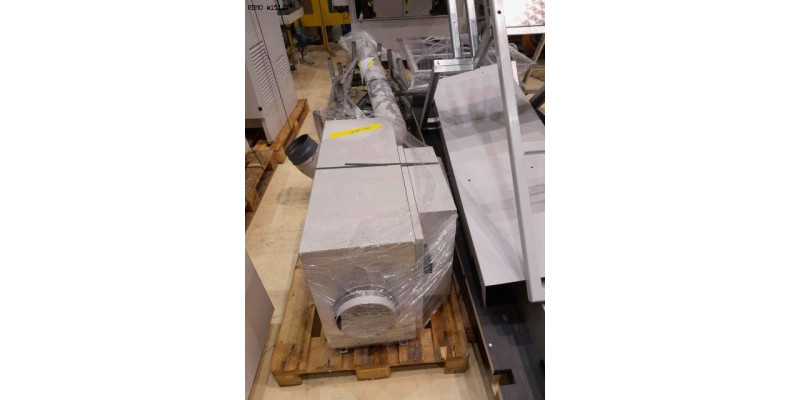

- Oil mist extractor : ELBARON RON/A 120

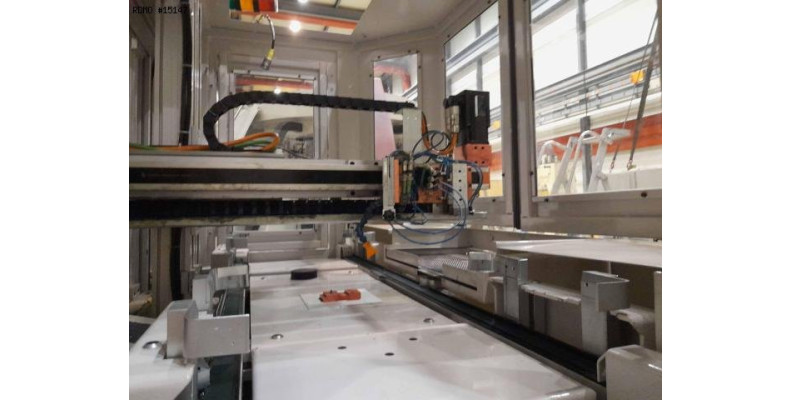

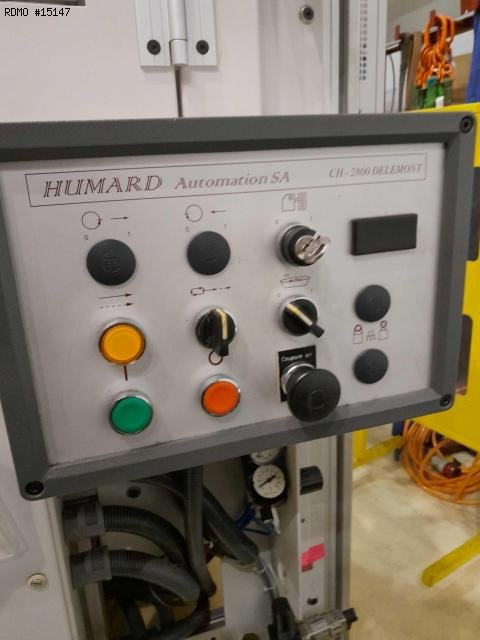

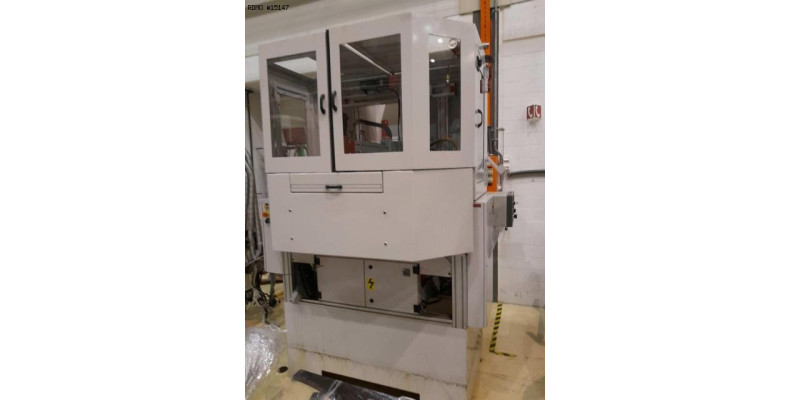

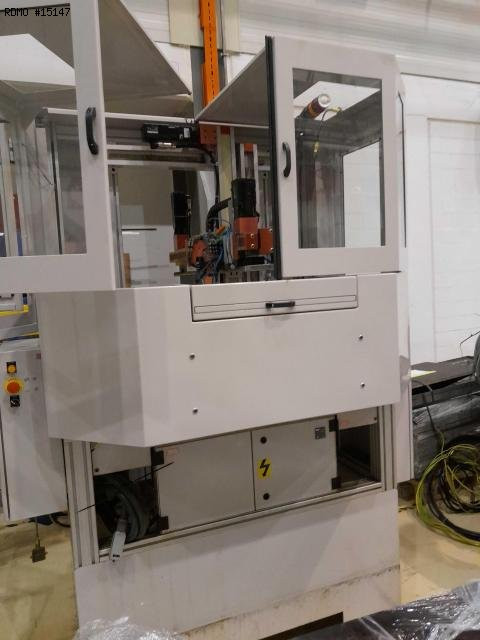

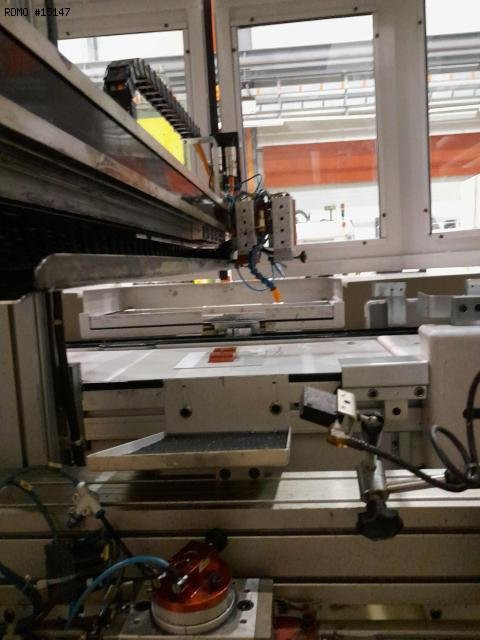

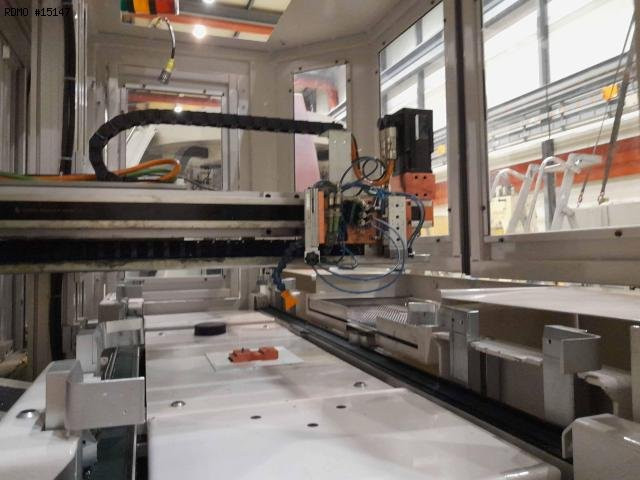

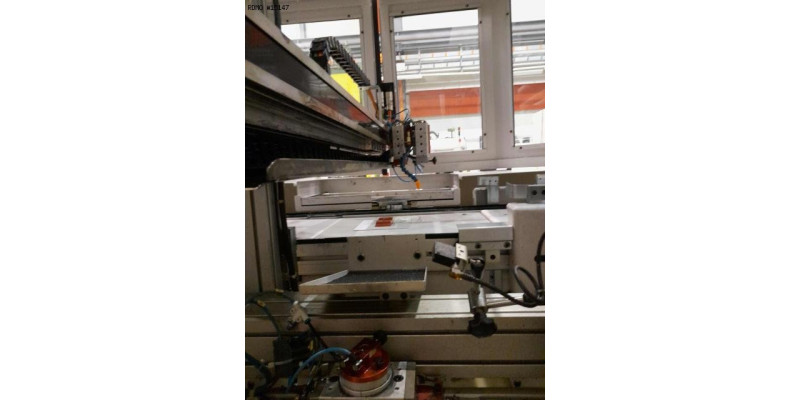

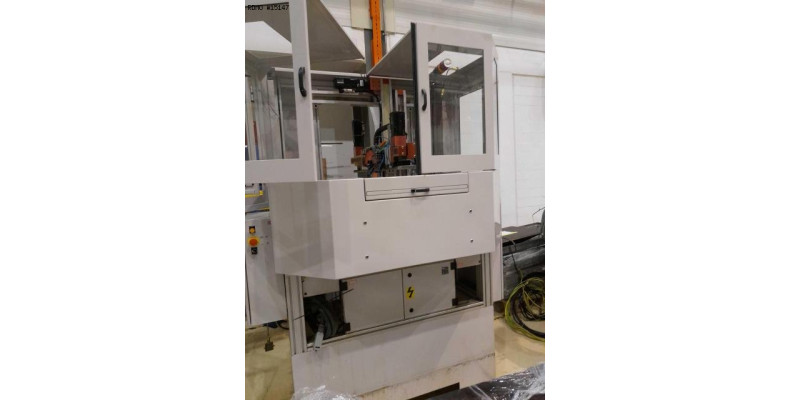

- Loader

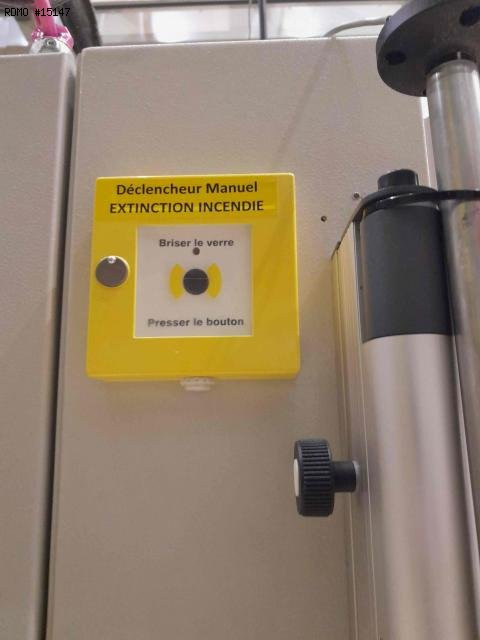

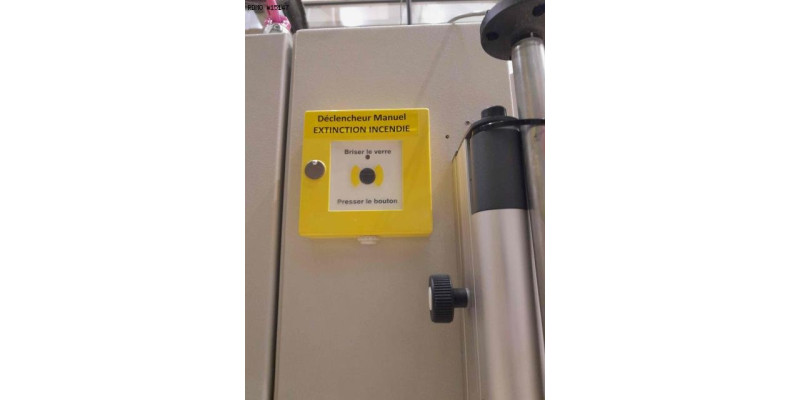

- Fire-fighting device
- Fitting
