Brand: Pfiffner - Hydromat
Model: HW 25/12
Year: 1998
Serial: HW25-697
Brand: Pfiffner - Hydromat
Model: HW 25/12
Year: 1998
Serial: HW25-697

Caracteristics & Equipment

Caracteristics

- Posts number : 12

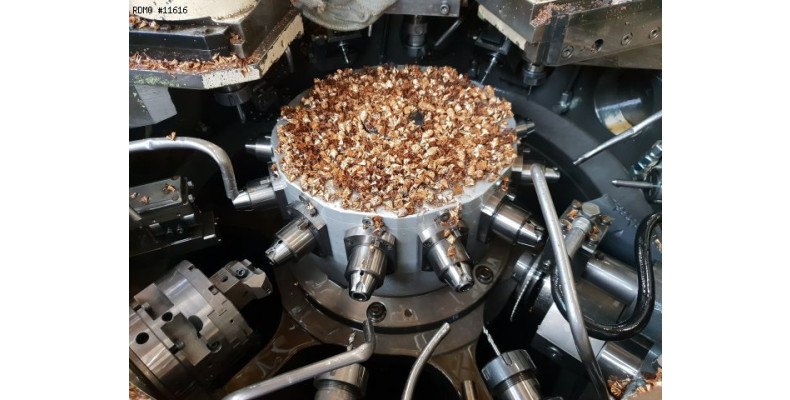

- Table indexing : 12 x 30 °
- Collet type : SCHAUBLIN W25
- Max. clamping diameter : 25 [mm]
- Max. part length : 100 [mm]
- Supply voltage : 3x 400 [V]
- Installed power : 32 [kW]
- Machine dimensions : 2700 x 2700 x 2500 [mm]
- Weight : 4000 [kg]
Equipment

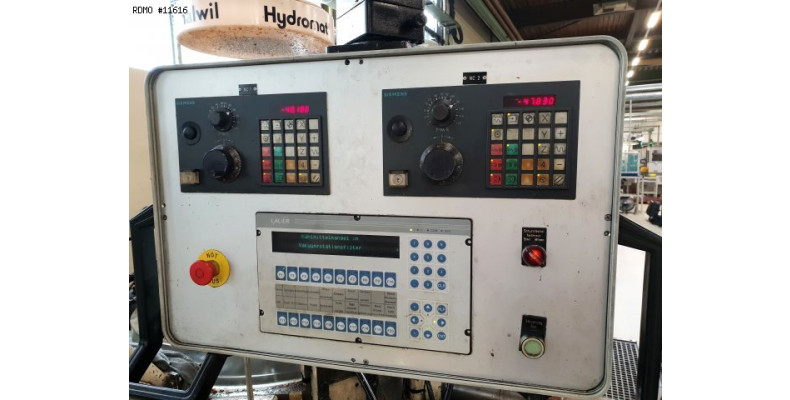

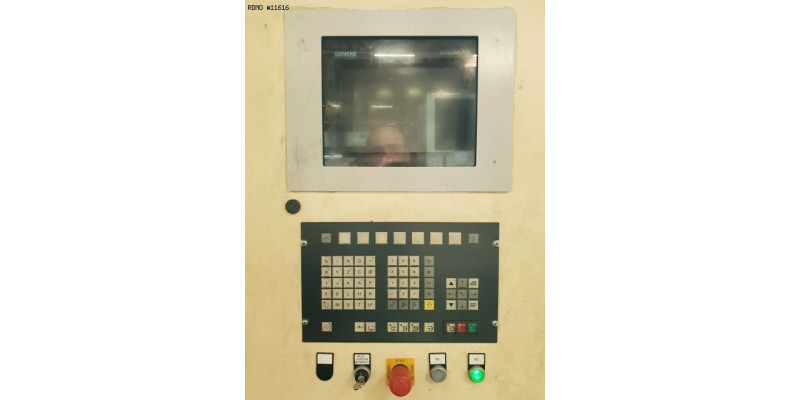

- CNC SIEMENS Sinumerik 805

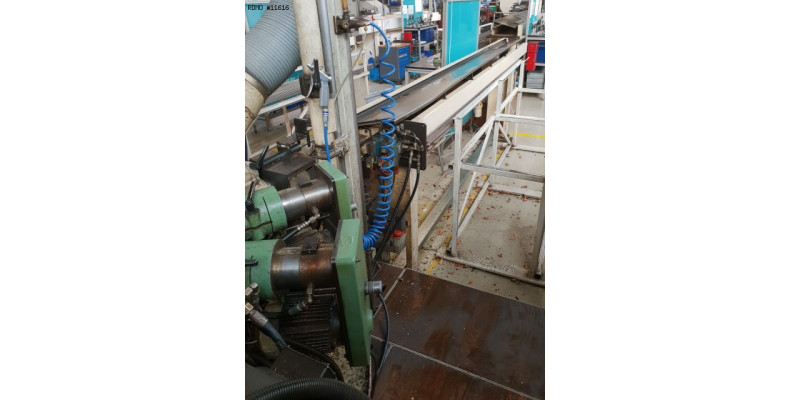

- Bar feeder HYDROMAT 5.07.018-4, capacity 4200 mm
- Post 1, bucking
- Post 2, longitudinal drilling 30/60
- Post 3, longitudinal drilling 30/60
- Post 4, CNC turning 2 axes
- Post 5, turnaround
- Post 6, radial drilling 30/60
- Post 7, CNC turning 2 axes
- Post 8, inclined drilling 30/60
- Post 9, radial drilling 30/60
- Post 10, inclined drilling 20/50
- Post 11, radial drilling 20/50
- Post 12, longitudinal drilling 30/60
- Ejection between the posts 12 and 1
- Part band conveyor

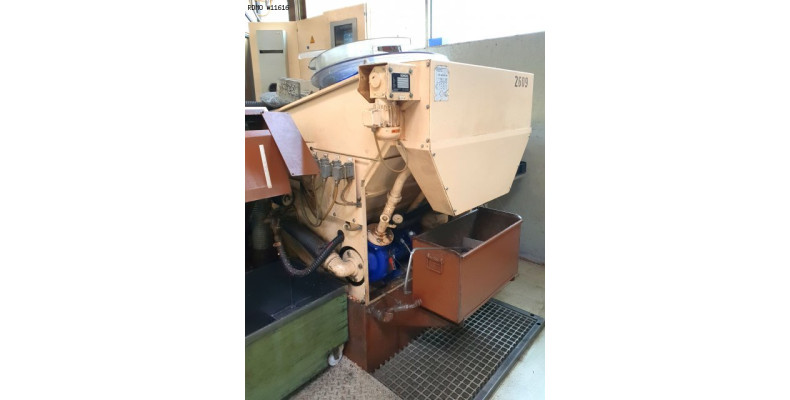

- Chip conveyor KNOLL 450 K-1/2000
- Lubrication tank KNOLL KTS-25-60-T
- Pump HP : 40 [bar]
- Filtration KNOLL VRF 500
PDF datasheet to download:

Description

This machine worked with full oil Used Machine tools for sale
