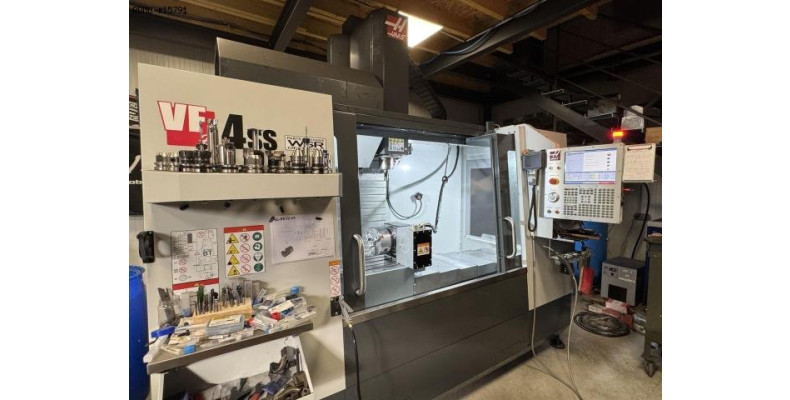

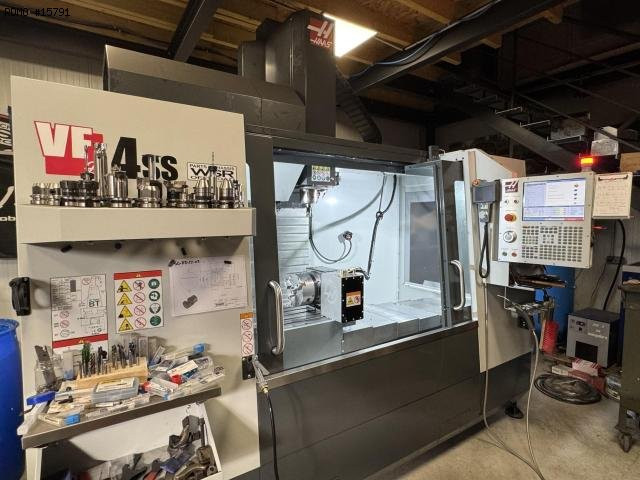

HAAS VF-4SS 4 axis

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 22 [kW]
- Spindle speeds : 12000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1270/508/635 [mm]
- Rapid traverses rates (X/Y/Z) : 35.6/35.6/35.6 [m/min]
- Cutting feed rates (X/Y/Z) : 21 [m/min]
- Distance table / spindle nose (min./max.) : 742 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30
TABLE
- Table dimensions : 1321/495 [mm]
- Maximum weight upon table : 794 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 30 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3870/2510 [mm]
- Machine height : 2690 [mm]
- Machine weight : 6260 [kg]
MACHINE HOURS
- Number of hours under power : 1138 [h]

- CNC : HAAS
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming
- Electronic handwheel
- Rigid tapping

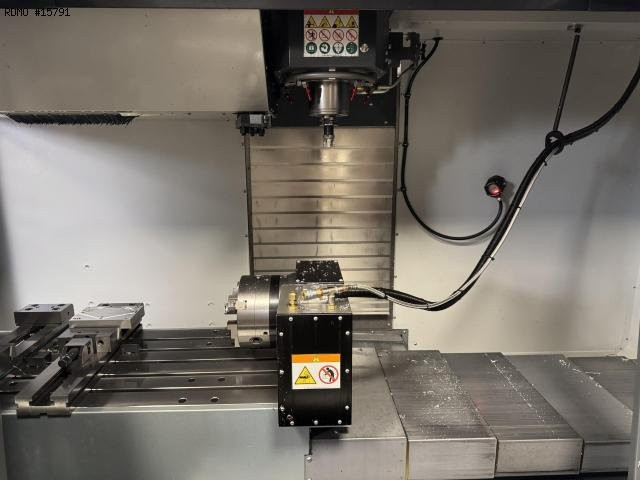

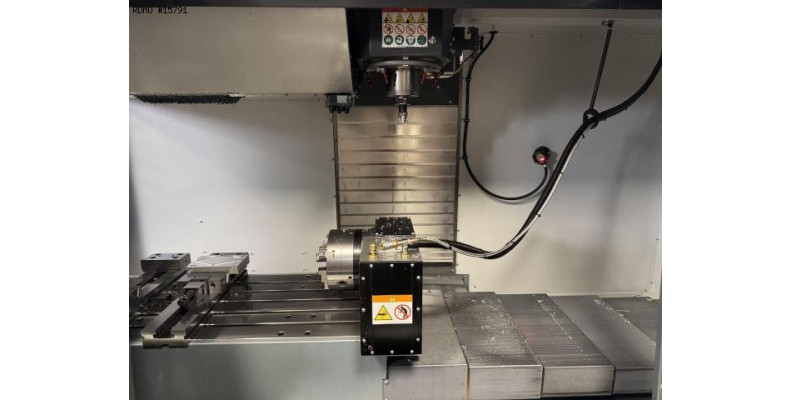

- Type of divisor : 4e axe CNC intégré
* manufacturer : HAAS
* model : HRT210
* clamping diameter : 203 [mm]
* tightening type : Manuel
- Coolant tank
- Predisposition Coolant through spindle
- Chips conveyor
- Tool probe
- Electric transformer
- Tool-holders
