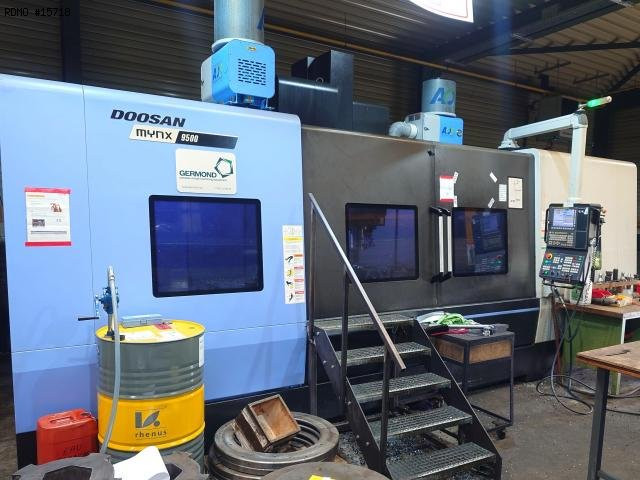

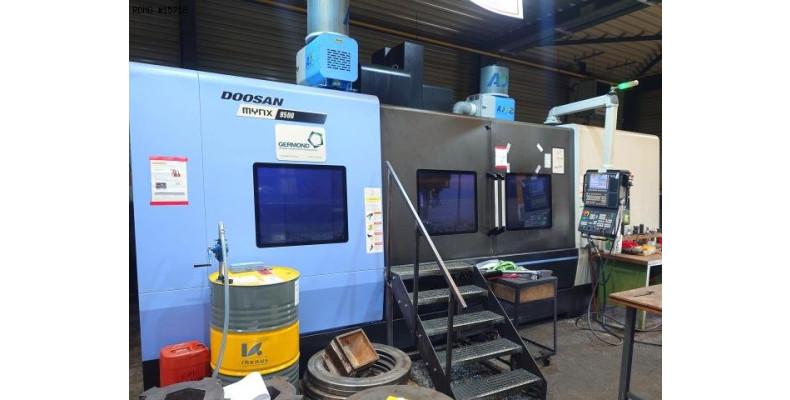

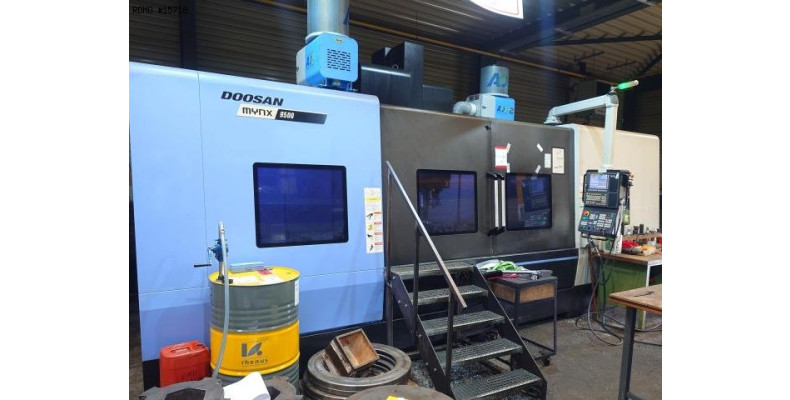

DOOSAN MYNX 9500 3 axis

Name: Vertical machining center DOOSAN MYNX 9500 3 axes
Brand: DOOSAN
Availability: InStock

Milling Vertical machining center

15718

PDF datasheet to download:

Brand: DOOSAN

Model: MYNX 9500

Year: 2017

Serial: MV0097-000080

15718

DOOSAN MYNX 9500 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: DOOSAN

Model: MYNX 9500

Year: 2017

Serial: MV0097-000080

Ask Price

Caracteristics

- Number of axes : 3

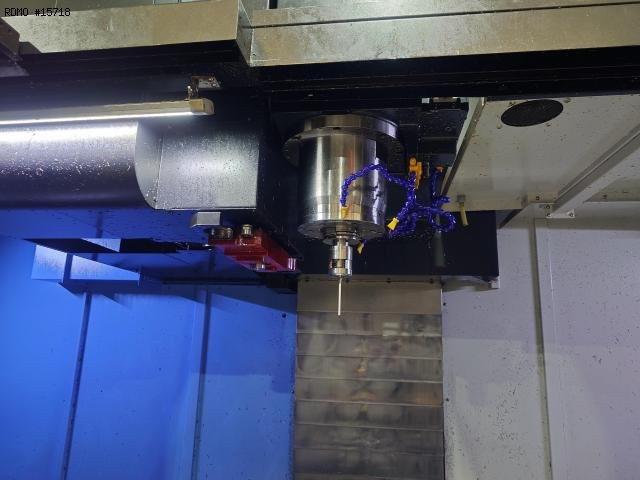

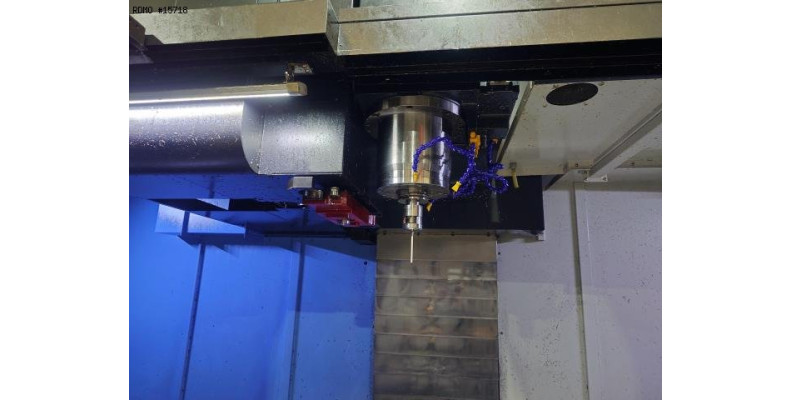

MILLING SPINDLE
- Tool holder type : BT50
- Spindle power : 30 [kW]
- Spindle speeds : 10.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 2500 x 950 x 850 [mm]
- Rapid traverses rates (X/Y/Z) : 16 / 16 / 16 [m/min]

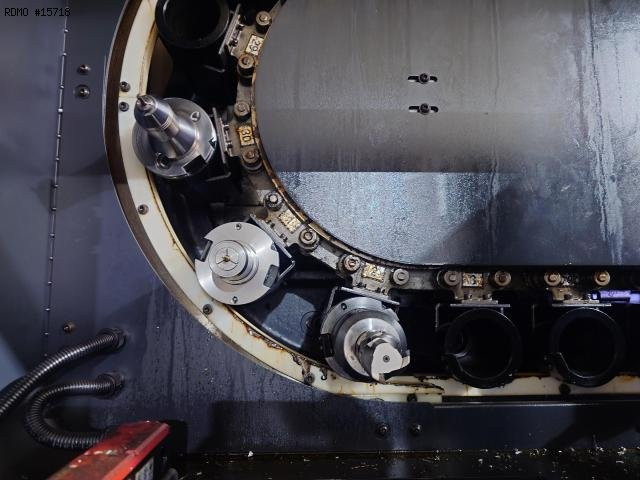

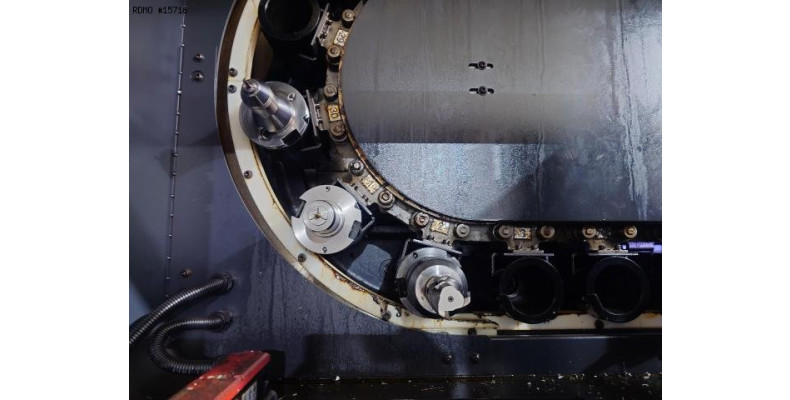

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30

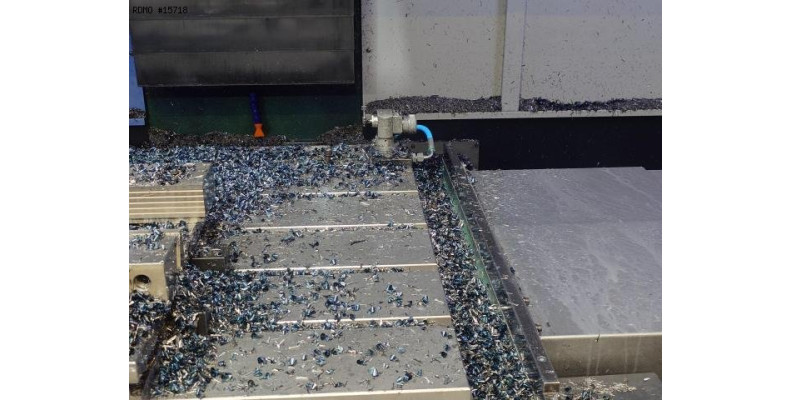

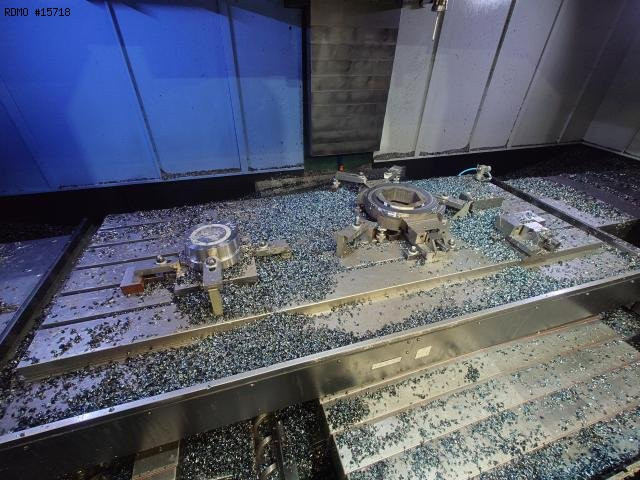

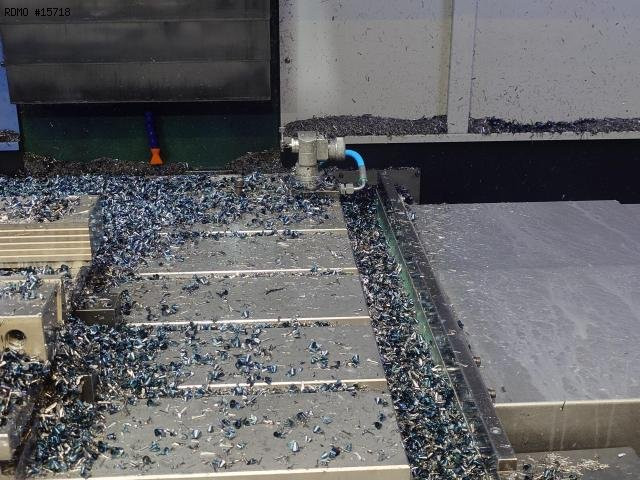

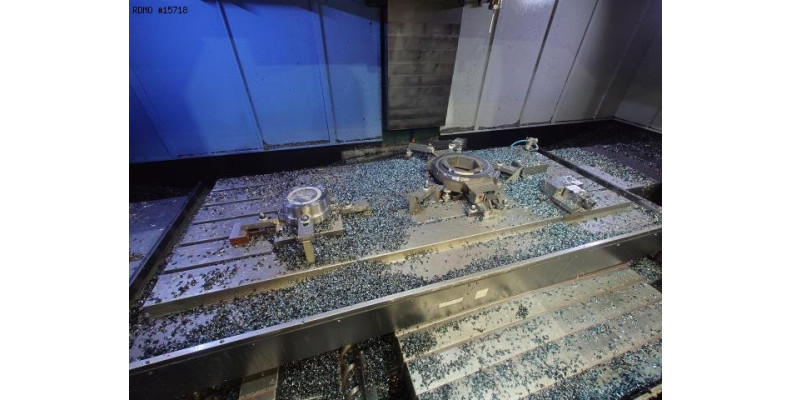

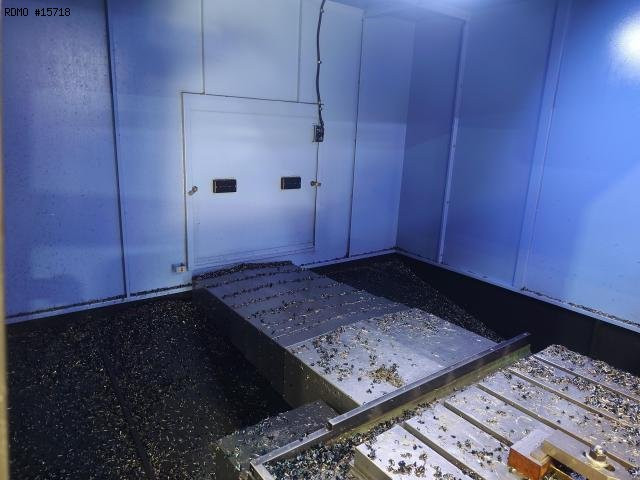

TABLE
- Table dimensions : 2500 x 950 [mm]
- Maximum weight upon table : 3500 [kg]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 54.2 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 6.480 x 4.315 [mm]
- Machine height : 3.595 [mm]
- Machine weight : 23.000 [kg]
MACHINE HOURS
- Number of working hours : 5.190 [h]

Equipment

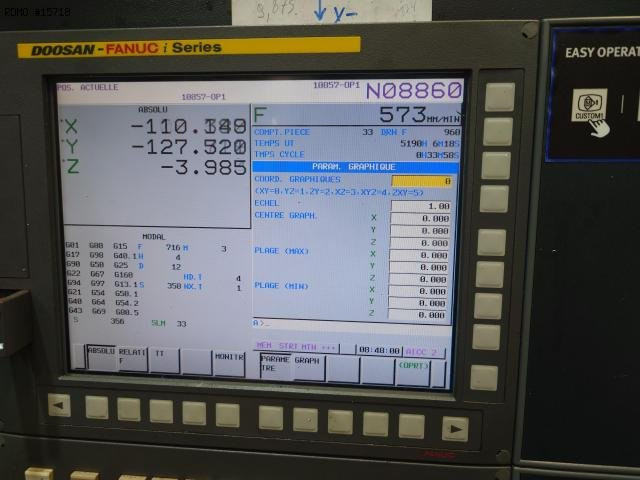

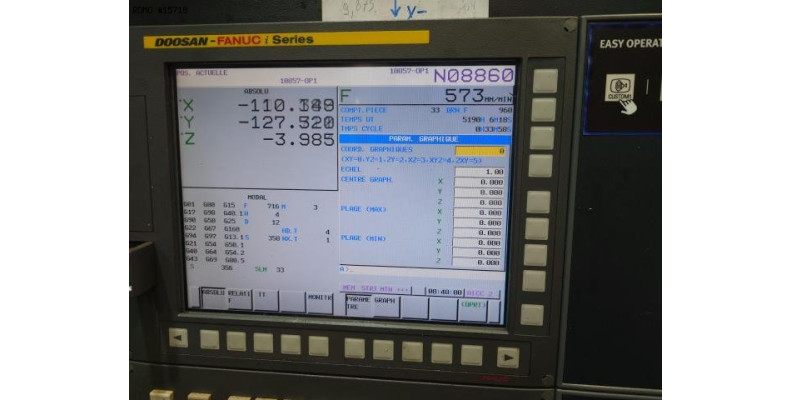

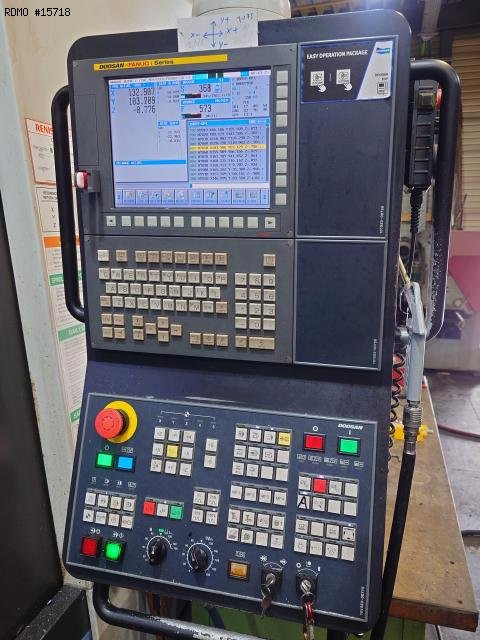

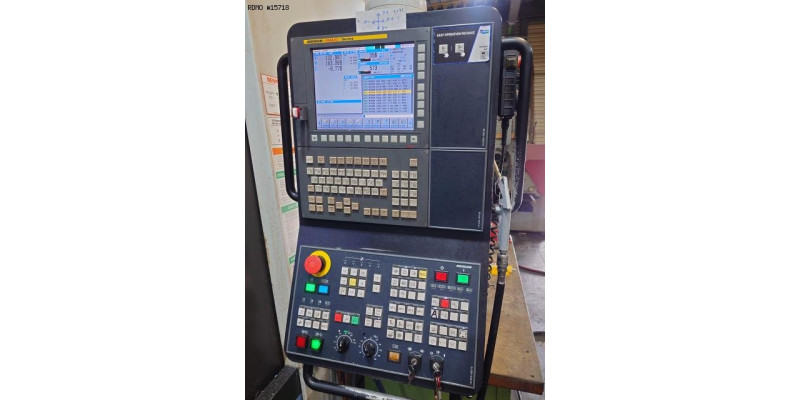

- CNC : Fanuc i Series
- Electronic handwheel
- 3 colors status lamp
- Coolant tank

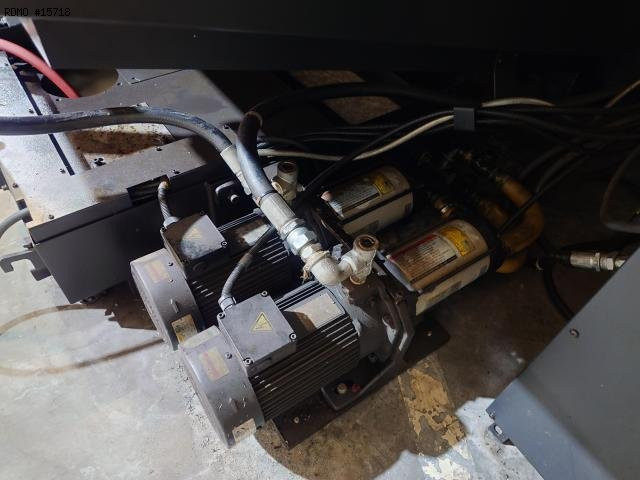

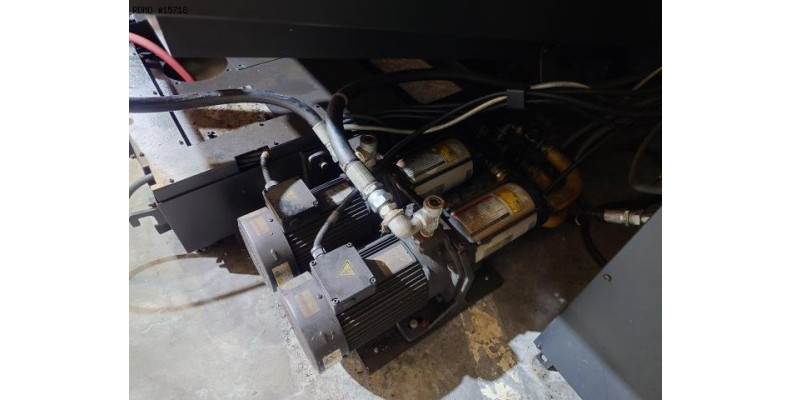

* with high-pressure pump

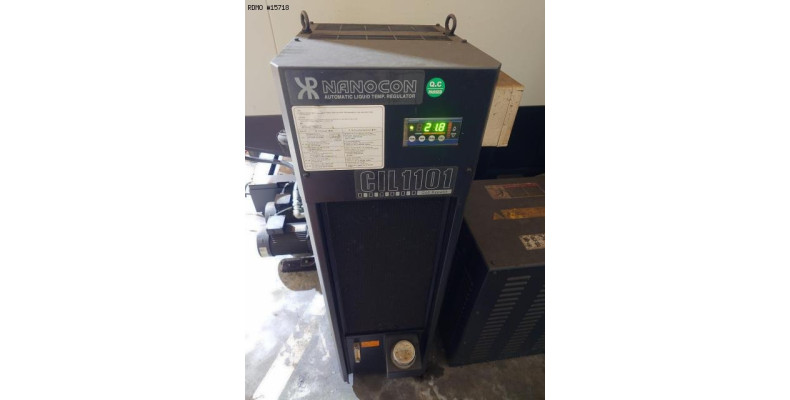

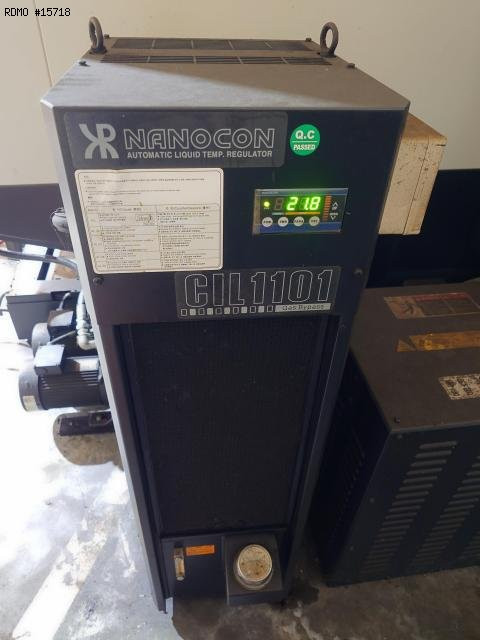

- Spindle cooling unit

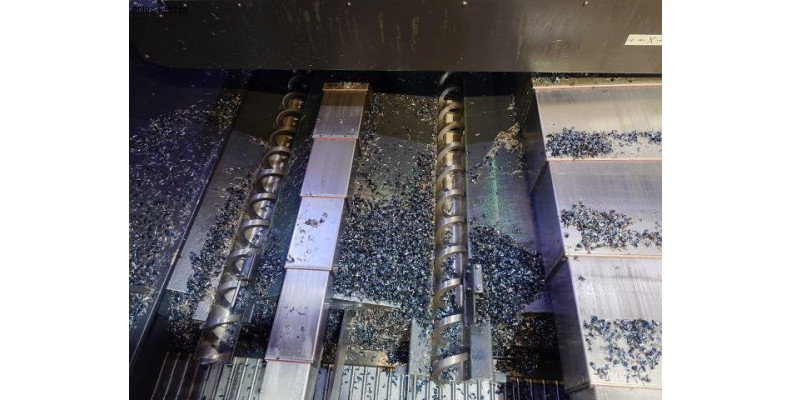

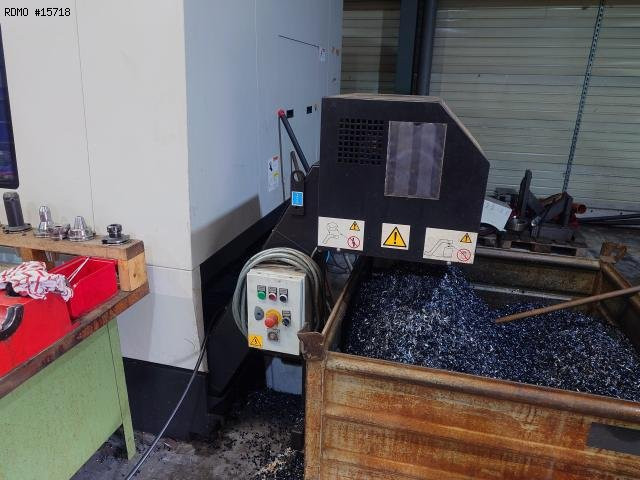

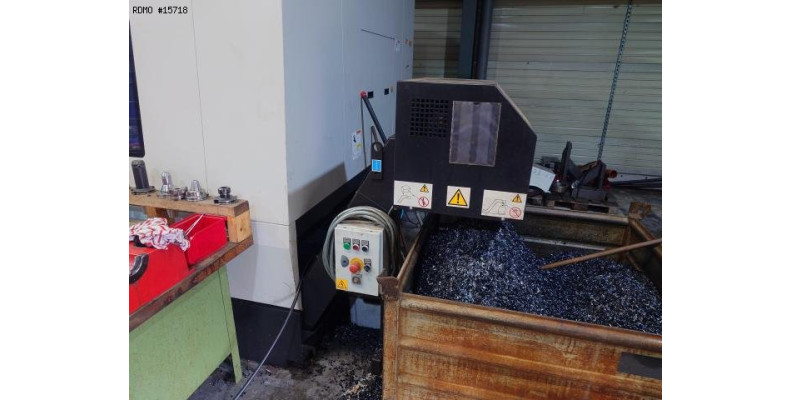

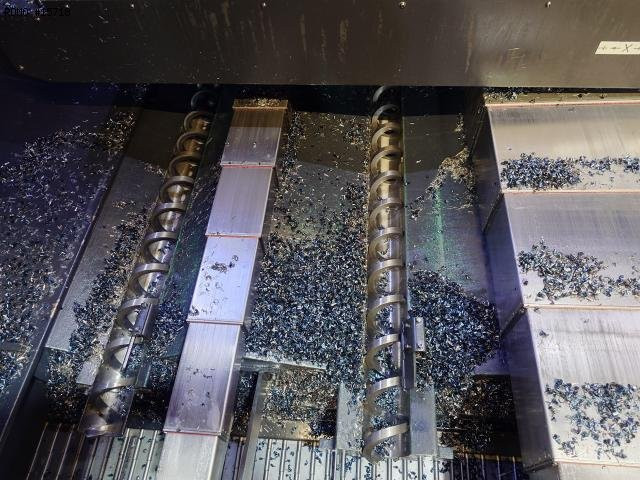

- Chips conveyor
- Tool probe
- Workpiece probe : Renishaw

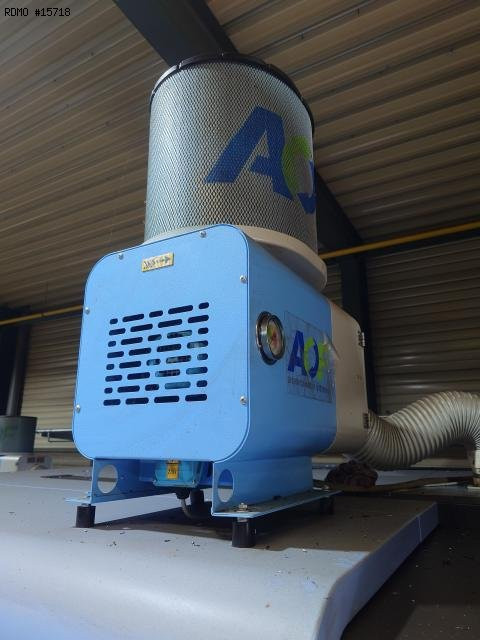

- Oil mist extractor

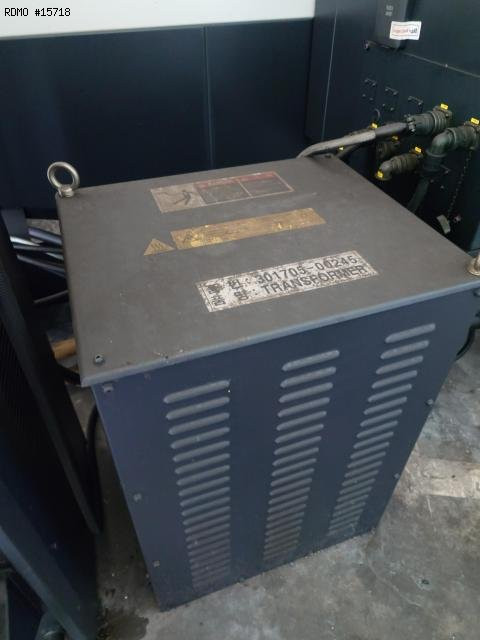

- Electric transformer
