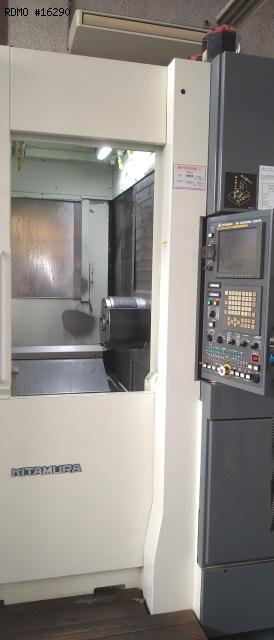

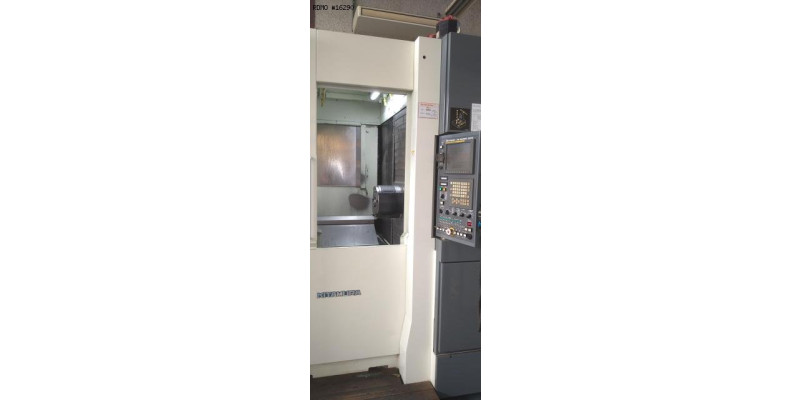

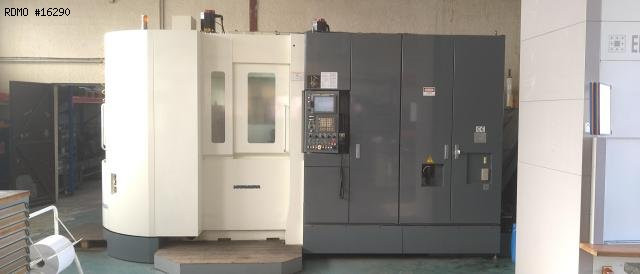

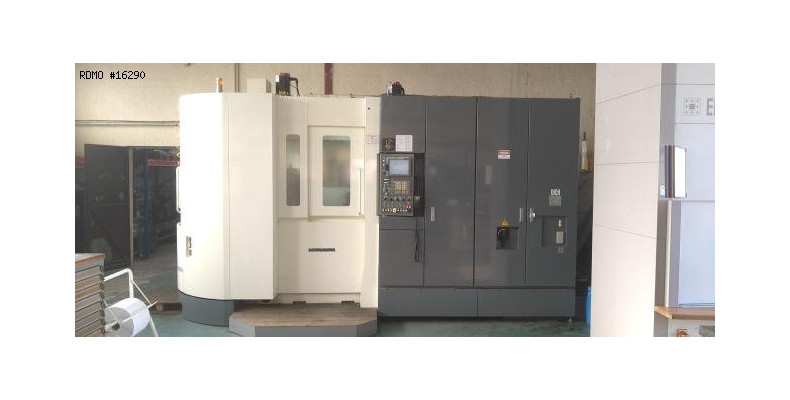

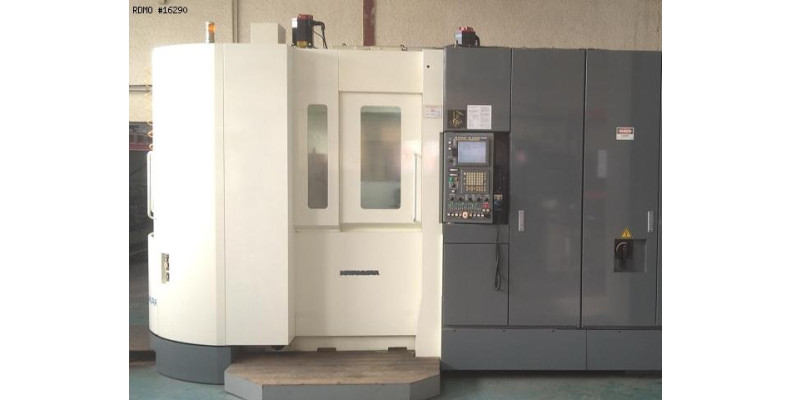

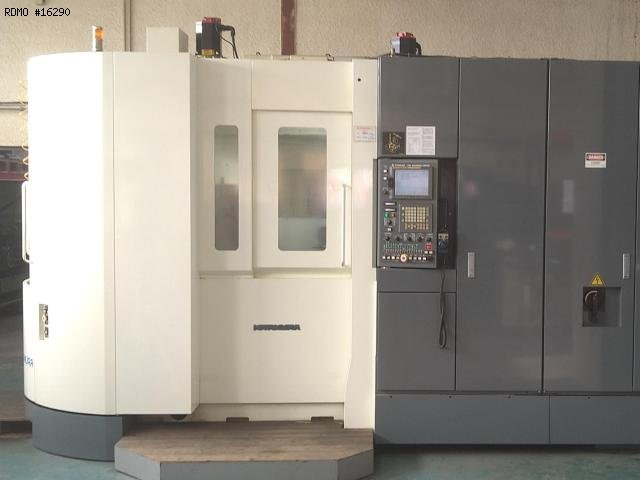

KITAMURA HX400iF 4 axis

Name: Horizontal machining center KITAMURA HX400iF 4 axes
Brand: KITAMURA
Availability: InStock

Milling Horizontal machining center

16290

PDF datasheet to download:

Brand: KITAMURA

Model: HX400iF

Year: 2006

Serial: 42763

16290

KITAMURA HX400iF 4 axis

Milling Horizontal machining center

PDF datasheet to download:

Brand: KITAMURA

Model: HX400iF

Year: 2006

Serial: 42763

Ask Price

Caracteristics

- Number of axes : 4

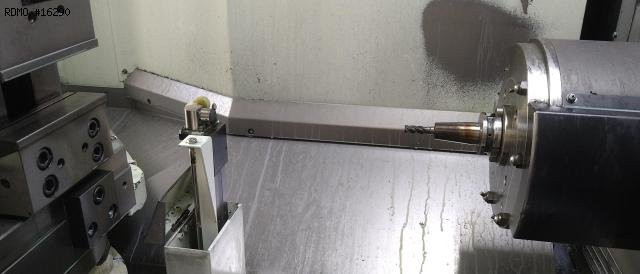

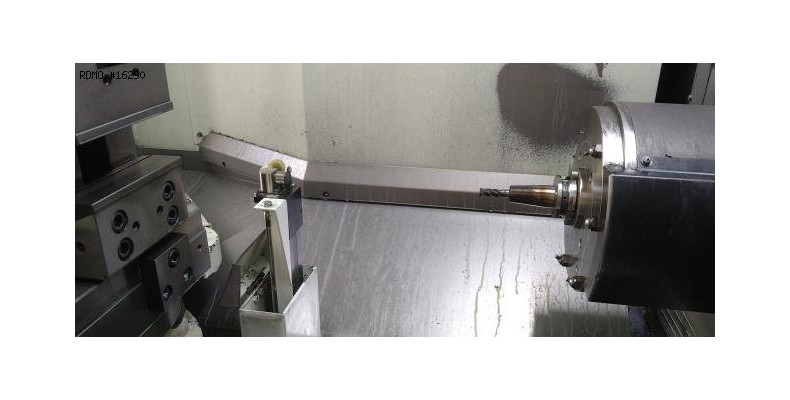

MILLING SPINDLE
- Tool holder type : BBT40
- Spindle power : 22 [kW]
- Spindle speeds : 13000 [rpm]
- Gearbox
LINEAR AXES
- Travels on X/Y/Z axes : 735/610/610 [mm]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]

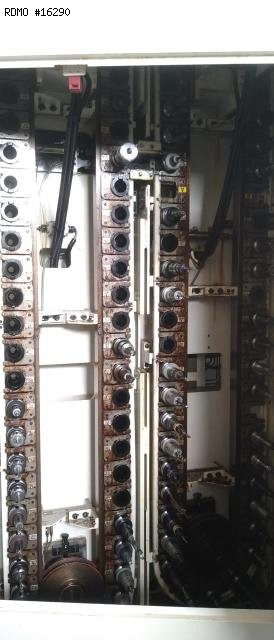

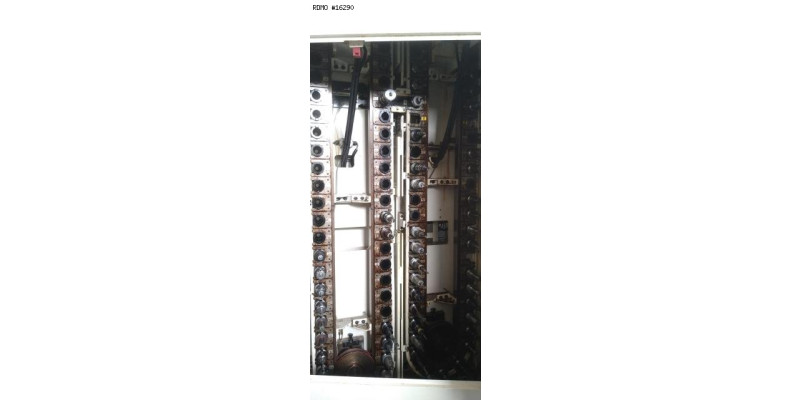

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 100

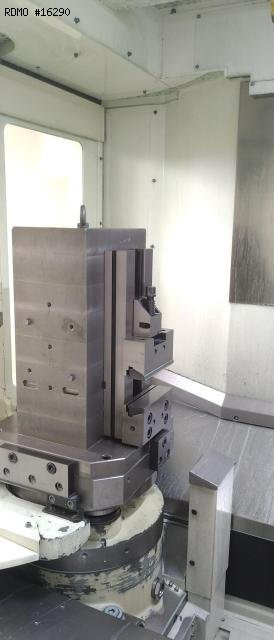

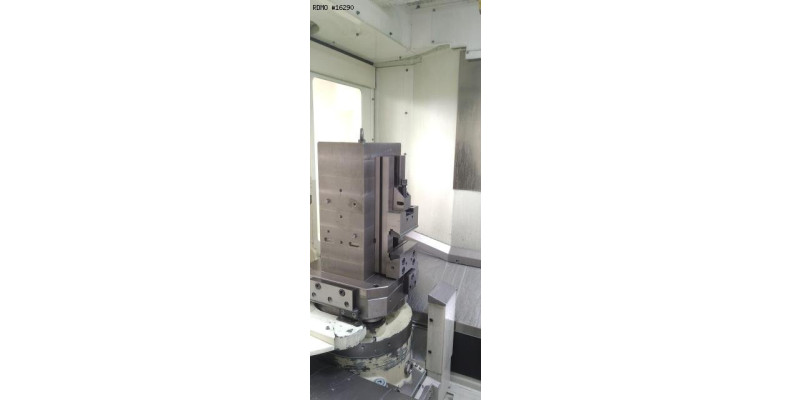

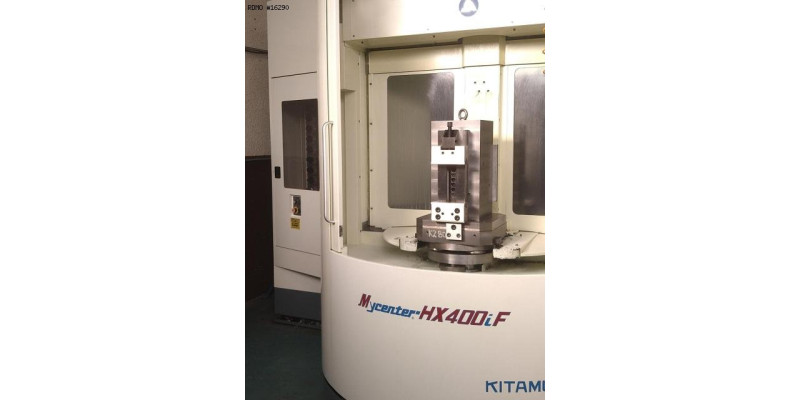

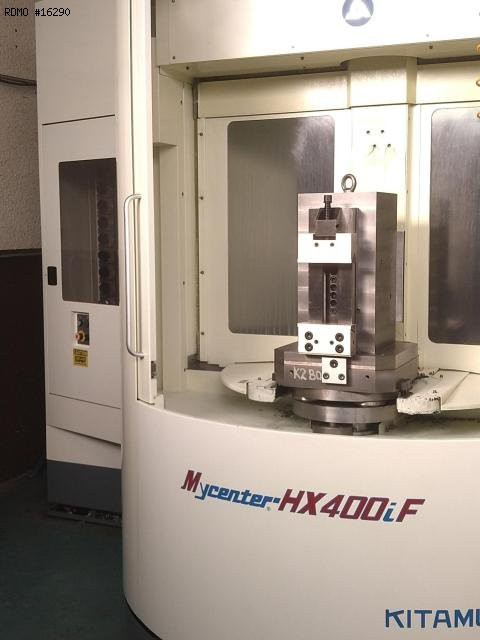

PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 400X400 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 500 [kg]
- Maximum workpiece diameter : 700 [mm]
- Maximum workpiece height : 960 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 45 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 4650X3300 [mm]
- Machine height : 2900 [mm]
- Machine weight : 17000 [kg]

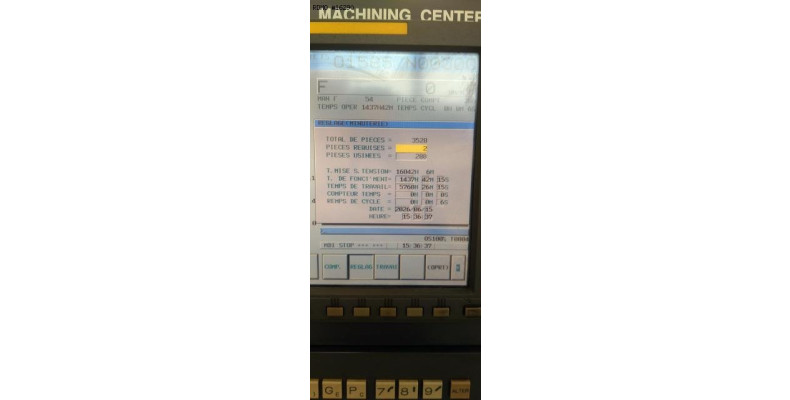

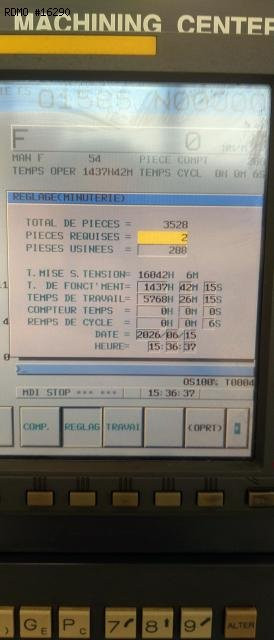

MACHINE HOURS
- Number of hours under power : 16042 [h]
- Number of working hours : 5768 [h]

Equipment

- CNC : Fanuc 16 iMB
- Interface : Ethernet / RS232 / USB / PCMCIA
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 70 [bars]
* Coolant through spindle
* With cabin washing
- Chips conveyor
- Spindle cooling unit
- Tool probe : Renishaw
- Workpiece probe : Renishaw
- Electric transformer
