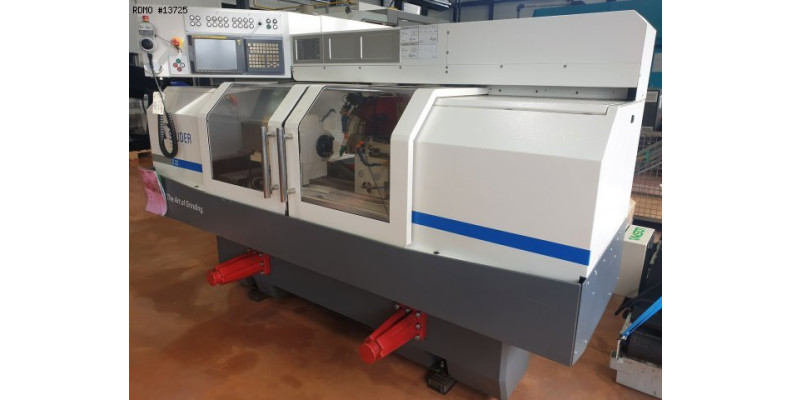

Brand: Studer
Model: S33 CNC
Year: 2008
Serial: 1027-0658
Brand: Studer
Model: S33 CNC
Year: 2008
Serial: 1027-0658

Caracteristics & Equipment

Caracteristics
- distance between centers : 650 [mm] - centers height : 175 [mm] - strokes (X/Z) : 285 / 800 [mm] - table orientation : 0 - 8,5 [°] GRINDING WHEEL HOLDER HEADSTOCK - grinding wheels dimensions : 500 x 63 x 203,2 [mm] - peripheral speed : 50 [m/sec] - power : 7,5 [kW] - manual orientation on stops : 0 and 30 [°] PART HOLDER HEADSTOCK - taper : CM5 - speeds : 1 - 1500 [Rpm] - power : 3 [kW] - boring : 30 [mm] - indexing precision axis C : +/- 0,5 [°] TAILSTOCK - taper : CM4 - quill diameter : 50 [mm] - quill stroke : 35 [mm] ELECTRICAL SUPPLY - voltage : 400 [V] - frequency : 50 [Hz] - machine weight : 5.300 [kg] - cutting hours : 9800 [h]
Equipment

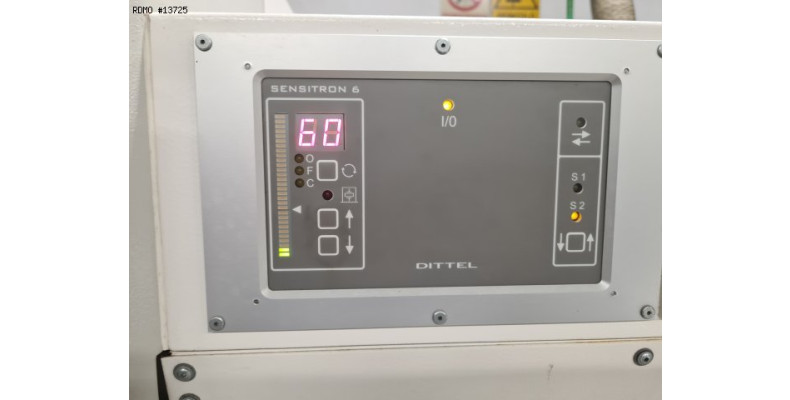

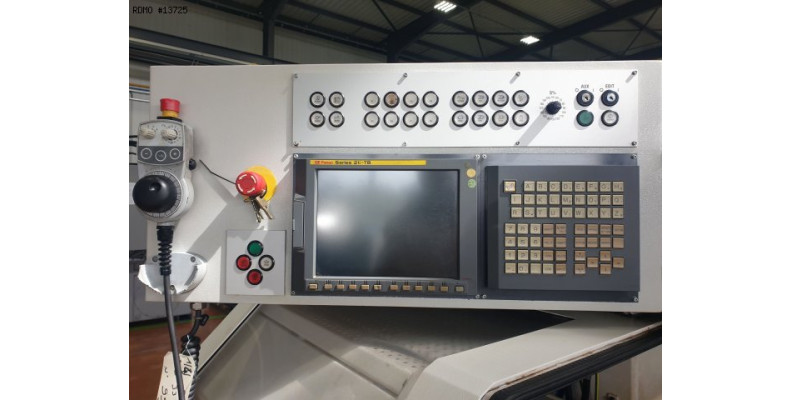

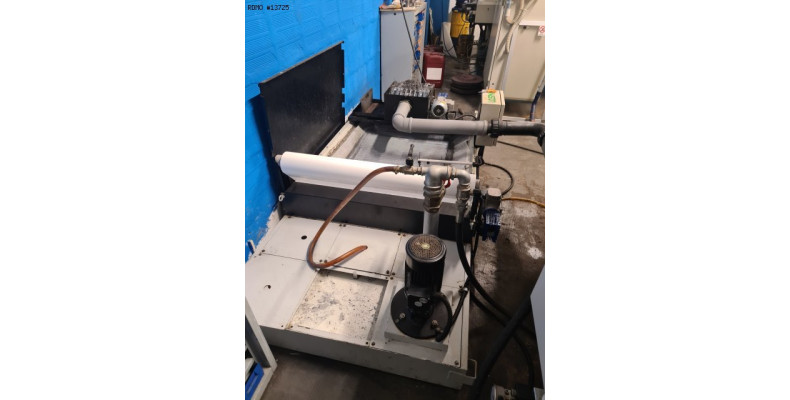

- control CNC FANUC 2li-TB - option Studer Release D with pictogramming - constant programmable cutting speed - electronic deported crank handle - direct measuring rules on X and Z - pneumatic assistance on part-holder headstock and tail stock - part holder headstock with fine concentricity adjustment - tailstock with fine concentricity adjustment - hydraulic recoil of the tailstock quill - touch detector SENSITRON 6 - coolant tank 375 l * with paper filter and magnetic pre-filtering - length positioning device Marposs T25G - fixed dressing on part holder headstock
