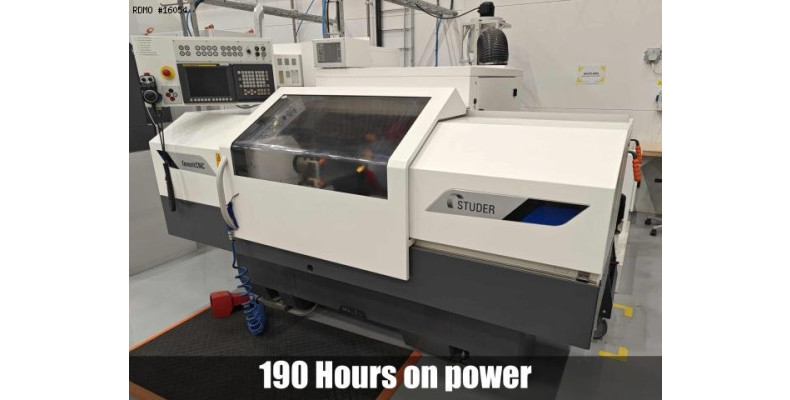

STUDER Favorit CNC

Name: Cylindrical grinder cnc STUDER Favorit CNC
Brand: STUDER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

16054

PDF datasheet to download:

Brand: STUDER

Model: Favorit CNC

Year: 2022

Serial: 1042-0679

16054

STUDER Favorit CNC

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: STUDER

Model: Favorit CNC

Year: 2022

Serial: 1042-0679

Ask Price

Caracteristics

- Distance between centers : 650 [mm]
- center height : 175 [mm]
- Max. part weight between centers : 80 [kg]
- X/Z stroke : 285 / 800 [mm]
- Axis X programmable feed speed : 0.001-10000 [mm/min]
- Resolution : 0.0001 [mm]
- Axis Z programmable feed speed : 0.001-20000 [mm/min]
- Resolution : 0.0001 [mm]
- Table orientation : 0 - 8.5 [°]

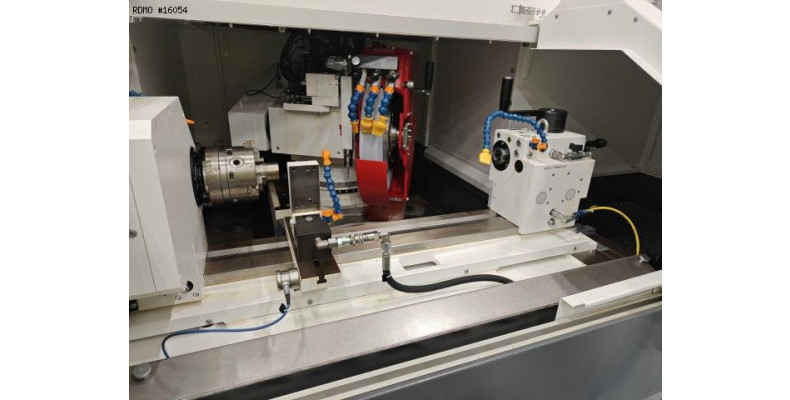

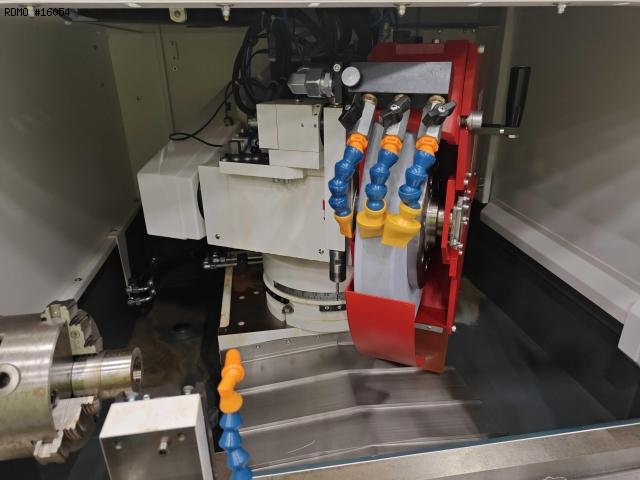

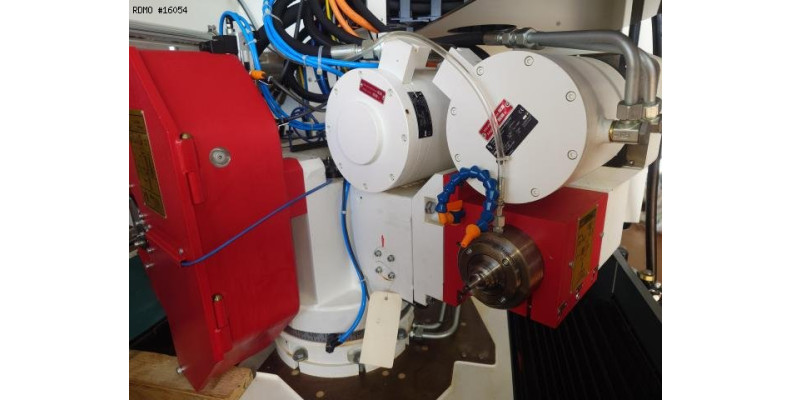

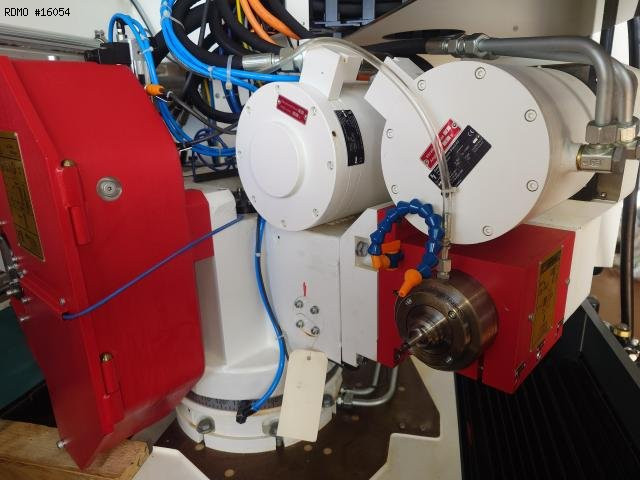

GRINDING WHEEL HOLDER HEADSTOCK

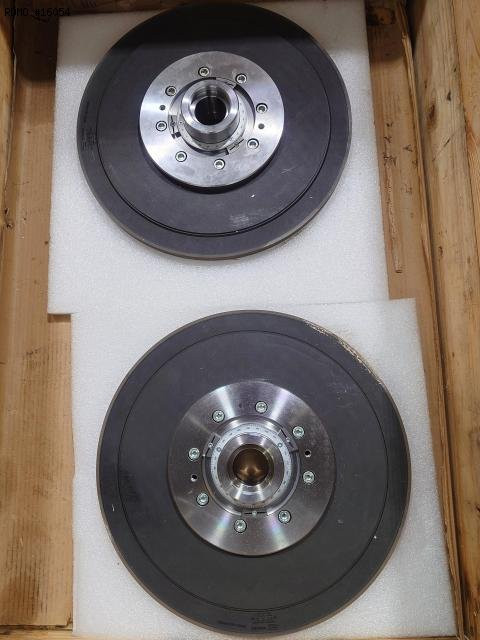

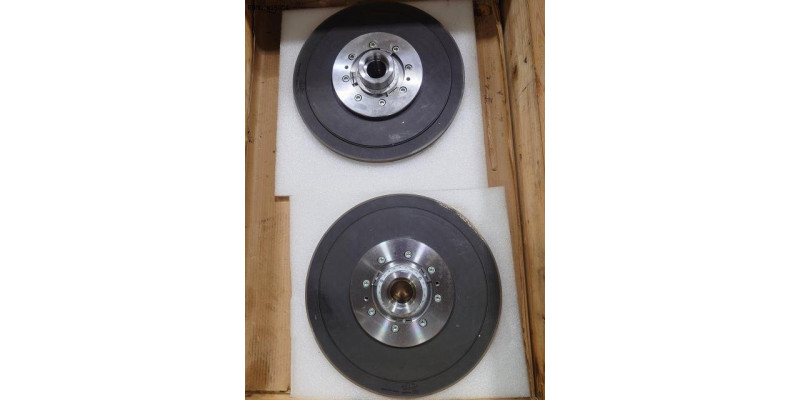

- T1 grinding wheel dimensions : 500 x 63 x 203,2 [mm]
- Speed : 50 [m/s]
- Power : 9 [kW]
- Manual orientation : -15 / +195 [°]
- Indexing precision : 2.5 [°]

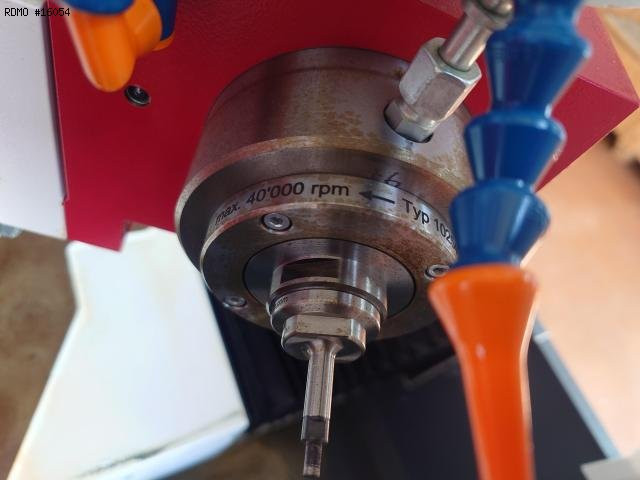

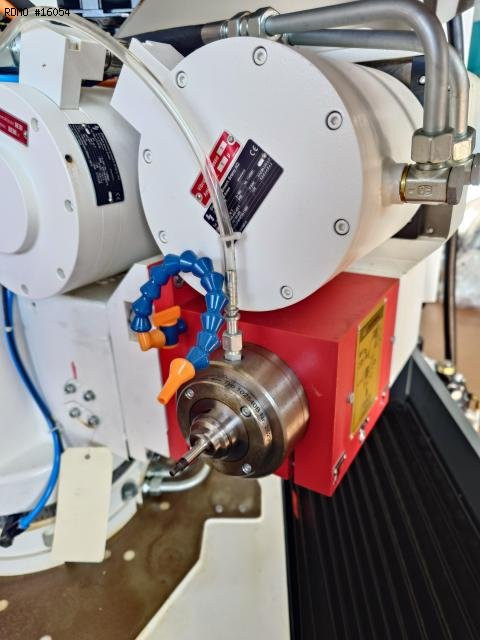

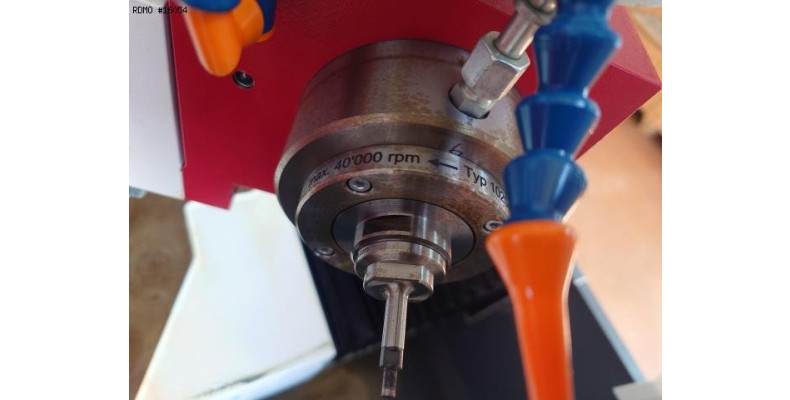

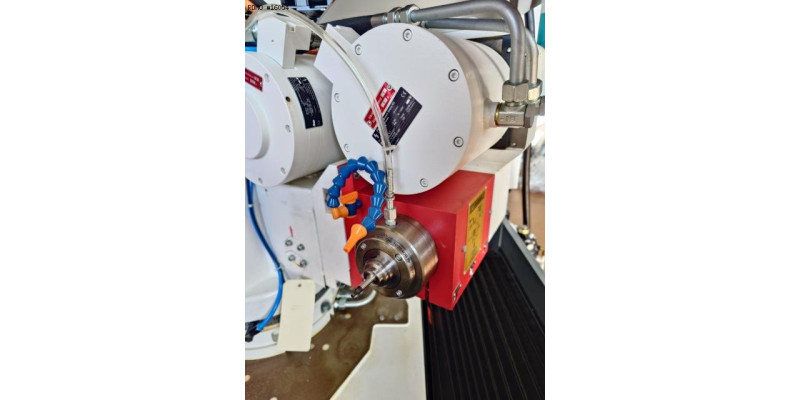

- Internal grinding : 40.000 [rpm]
- Power : 3 [kW]

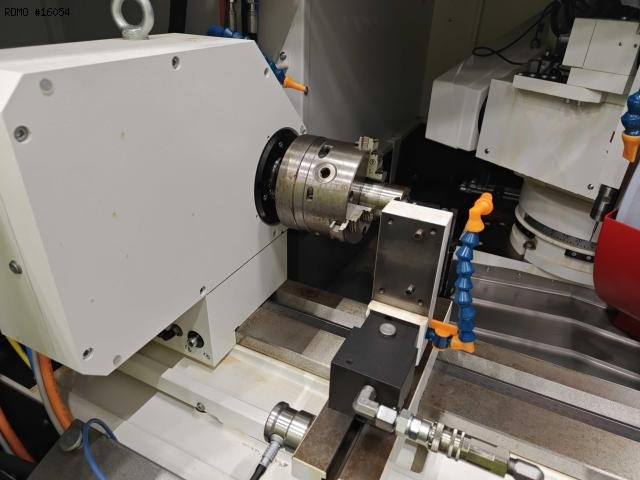

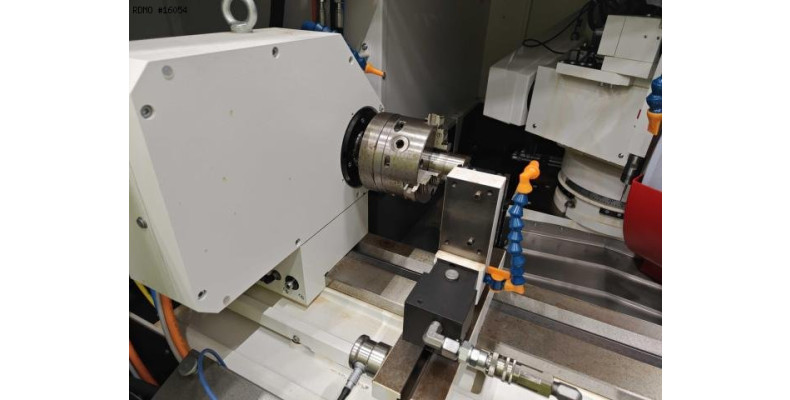

PART-HOLDER HEADSTOCK
- Type of cone : CM5
- Speed : 1 - 1500 [rpm]
- Power : 1.8 [kW]
- Boring : 30 [mm]
- C axis indexing precision : +/- 0,5 [°]

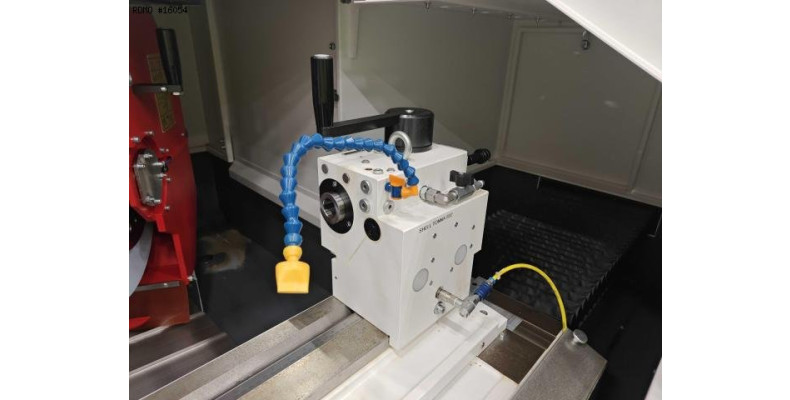

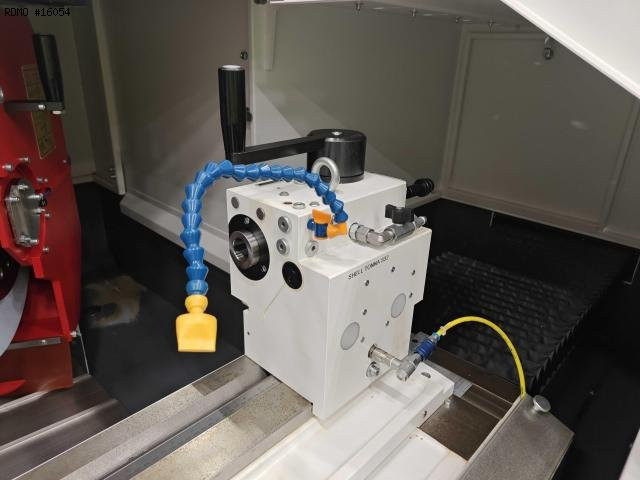

- TAILSTOCK
- Type of cone : CM4
- Quill diameter : 50 [mm]
- Quill stroke : 35 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 20 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.670 x 2.050 [mm]
- Machine height : 1.900 [mm]
- Machine weight : 4000 [kg]
MACHINE HOURS

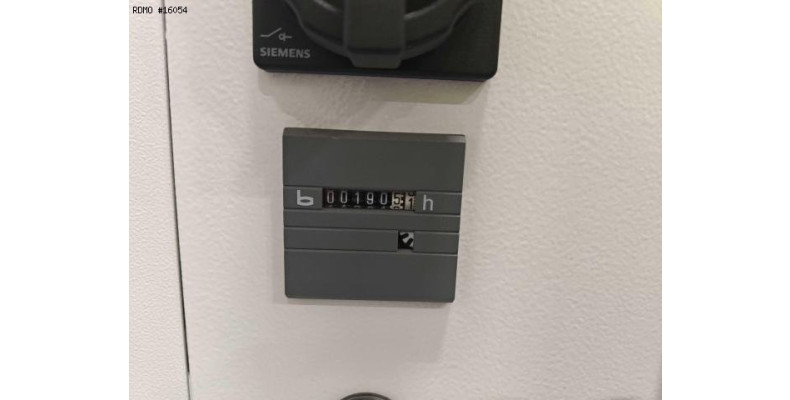

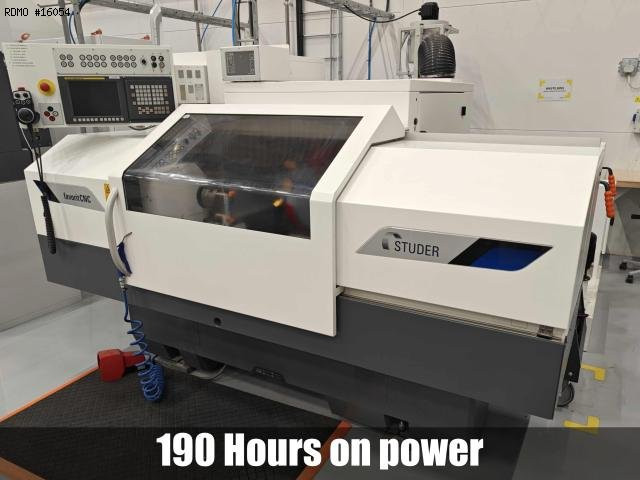

- Number of hours under power : 190 [h]

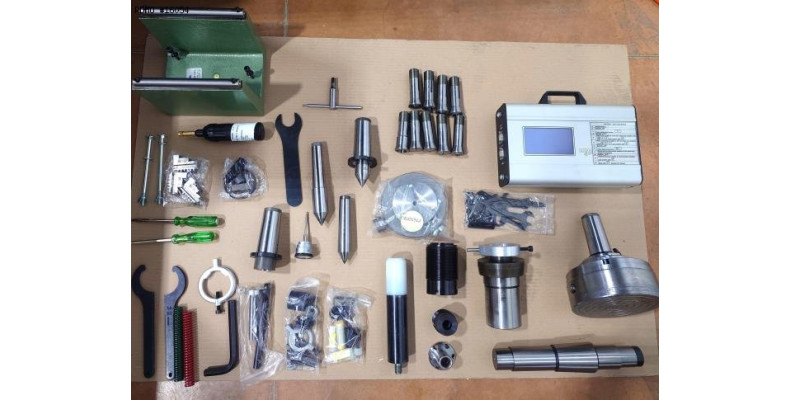

Equipment

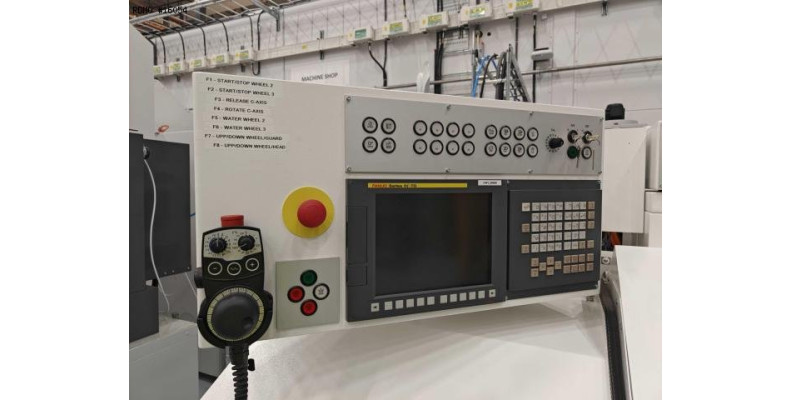

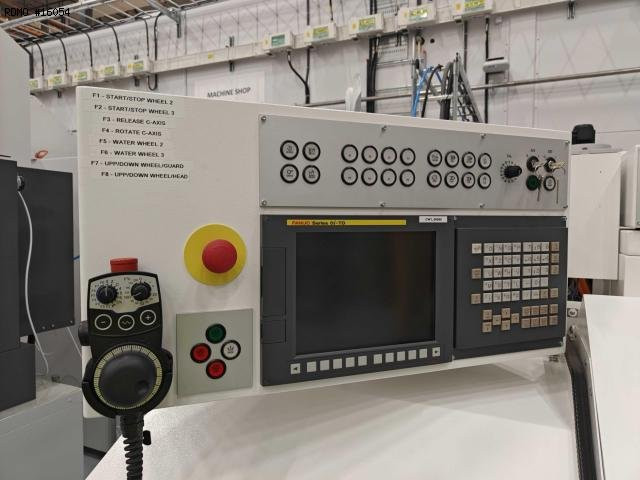

- CNC : FANUC Oi-TD

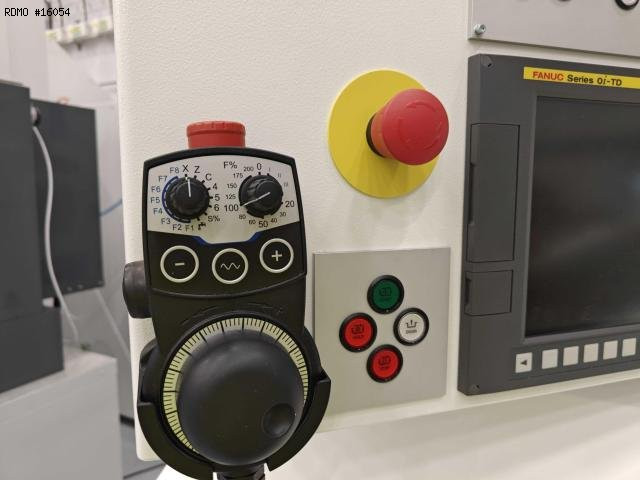

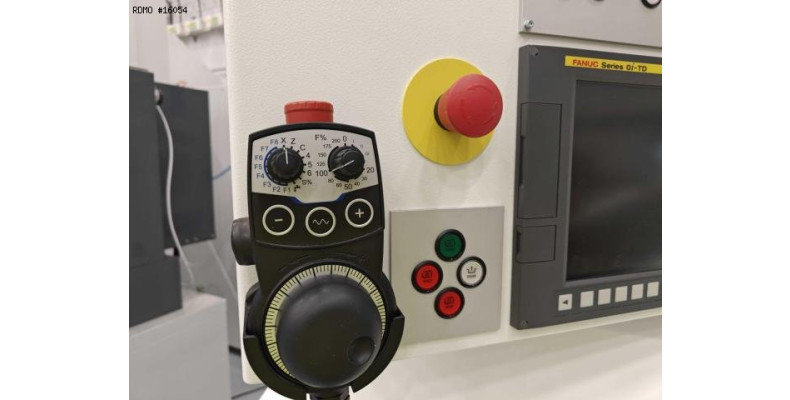

- Electronic handwheel
- 3 colors status lamp

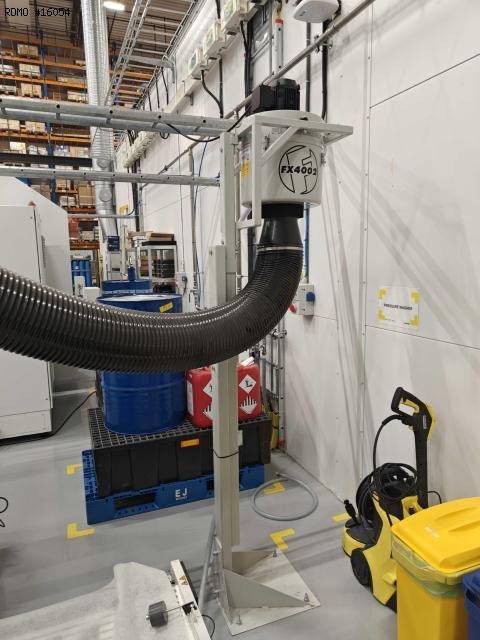

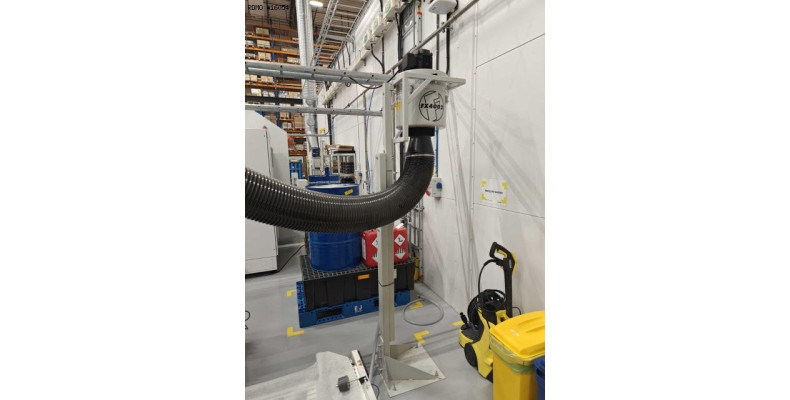

- Oil mist extractor
- Linear scales on axes X/Z

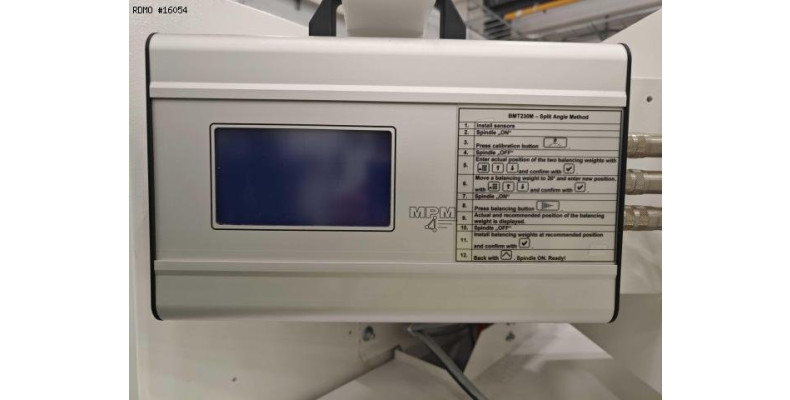

- Dynamic wheel balancing : MPM

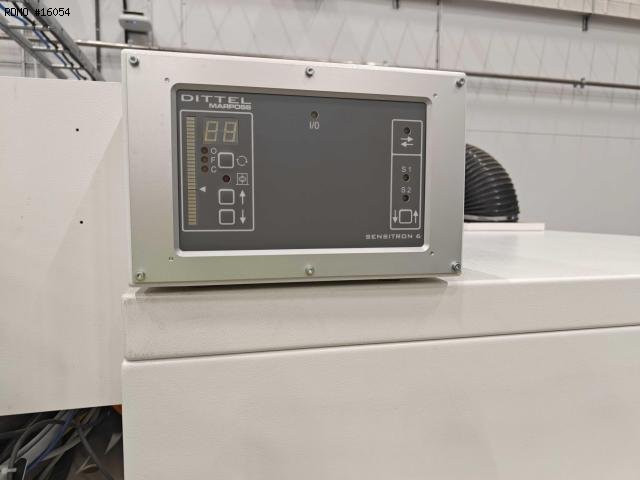

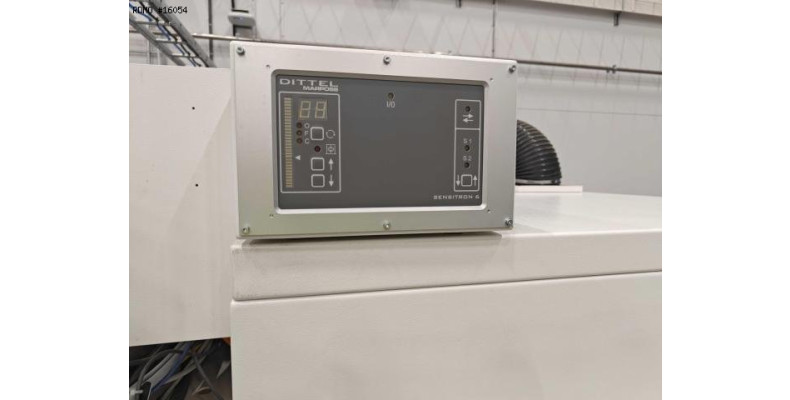

- Automatic contact detection : SENSITRON 6
- Fixed dressing device
- Workpiece probe

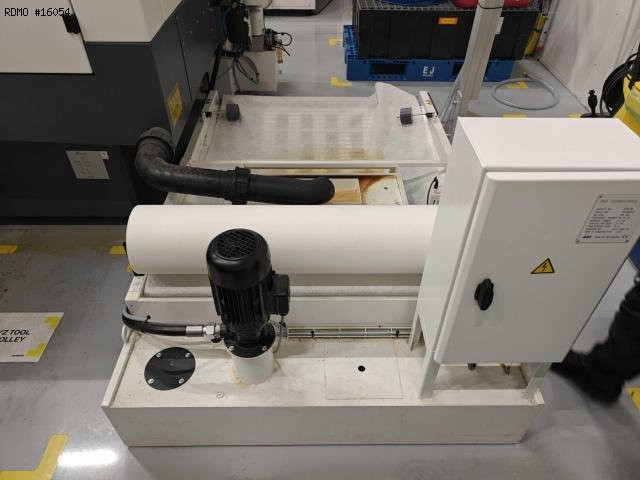

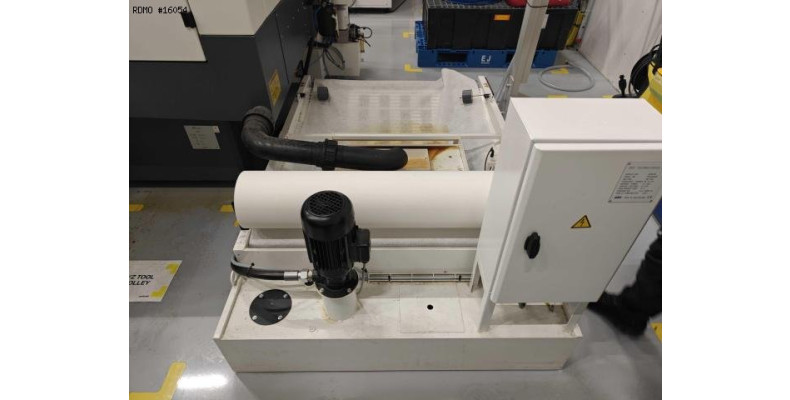

- Coolant tank : 375 [l]
* with paper filtering unit
