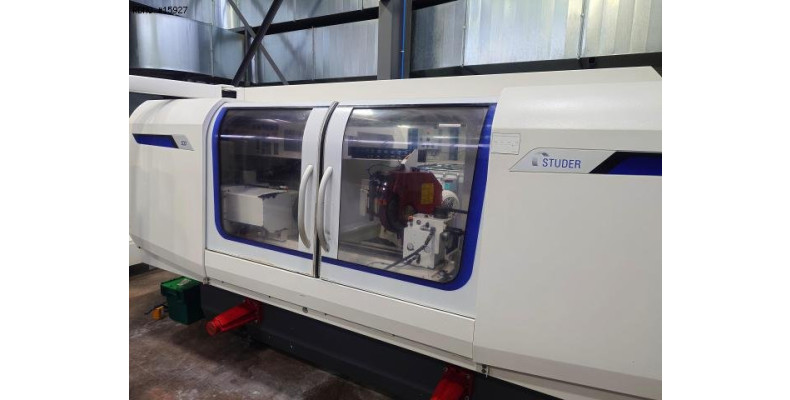

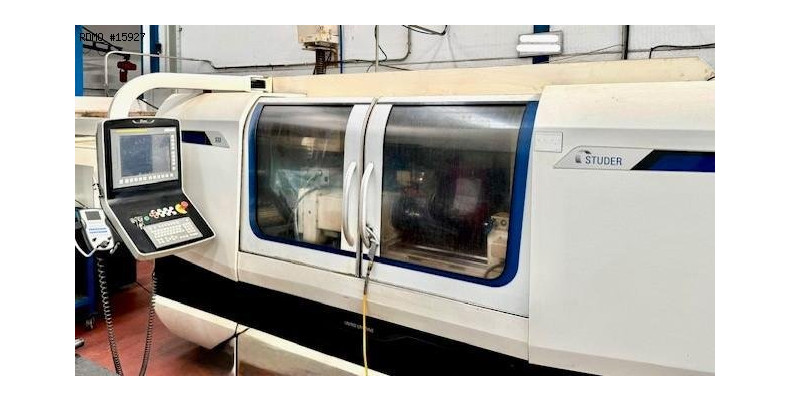

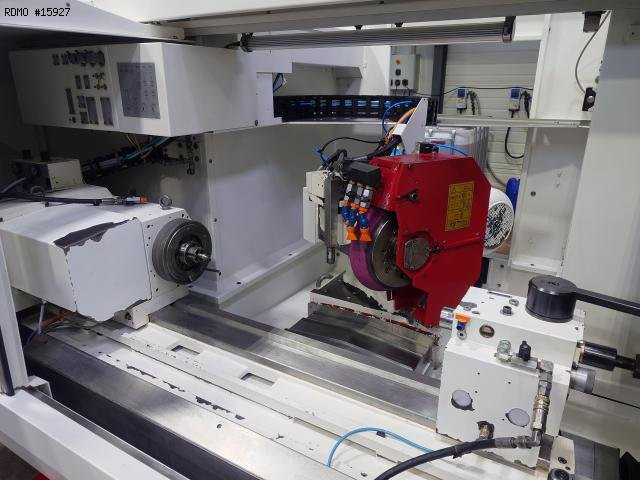

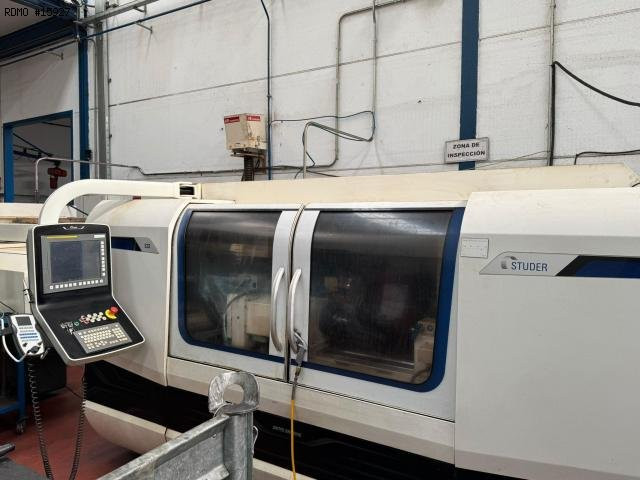

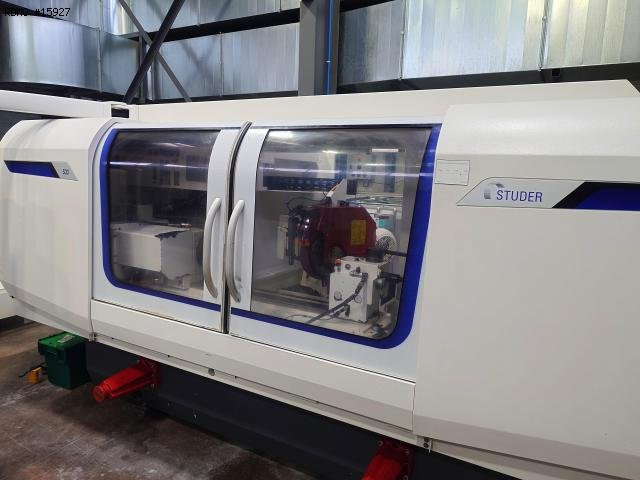

STUDER S33 CNC 2 axis

Name: Cylindrical grinder cnc STUDER S33 CNC 2 axes
Brand: STUDER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

15927

PDF datasheet to download:

Brand: STUDER

Model: S33 CNC

Year: 2016

Serial: 1027-1399

15927

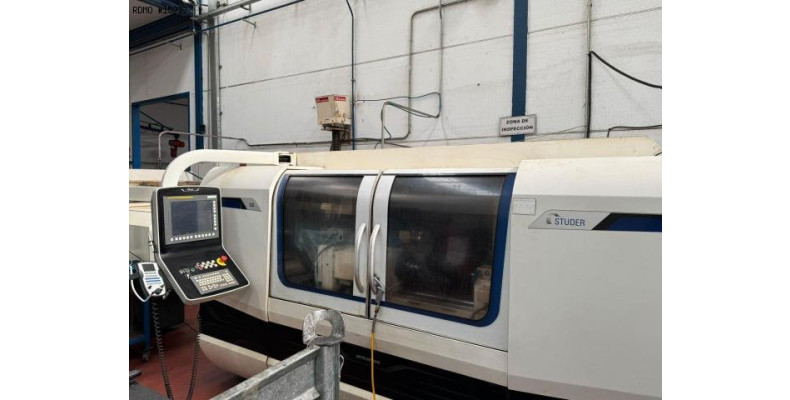

STUDER S33 CNC 2 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

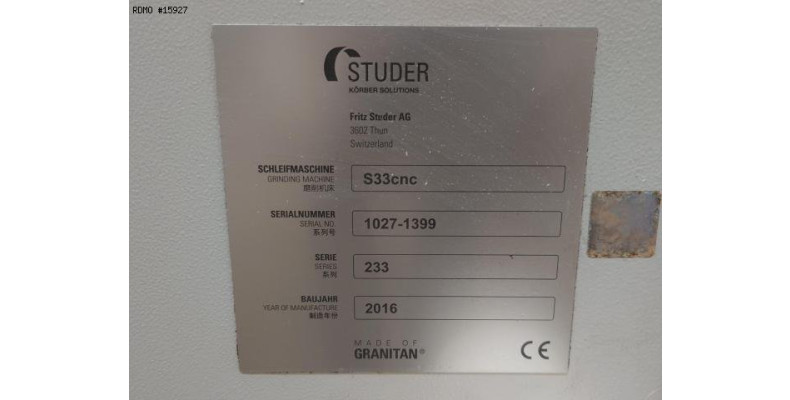

Brand: STUDER

Model: S33 CNC

Year: 2016

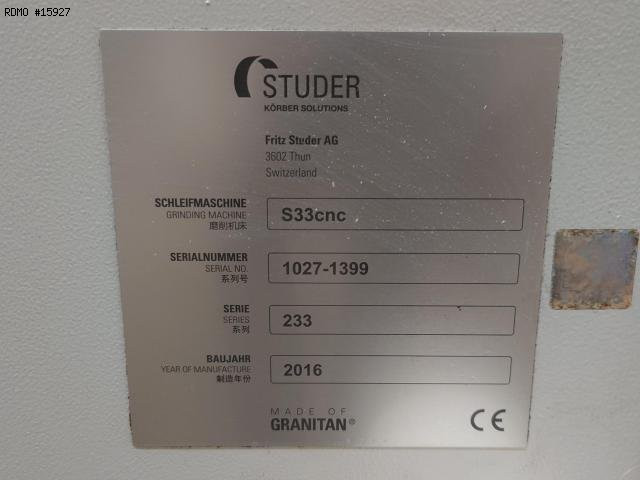

Serial: 1027-1399

Ask Price

Caracteristics

- Distance between centers : 1000 [mm]
- center height : 175 [mm]
- X/Z stroke : 285/1150 [mm]
- Axis X programmable feed speed : 0.001-10000 [mm/min]
- Resolution : 0.0001 [mm]
- Axis Z programmable feed speed : 0.001-20000 [mm/min]
- Resolution : 0.0001 [mm]

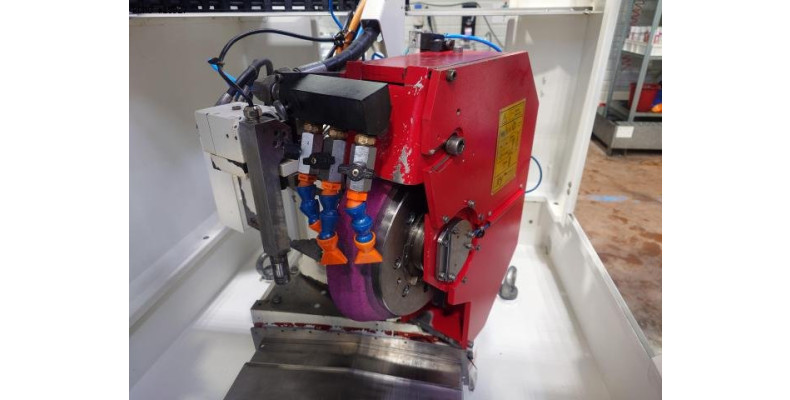

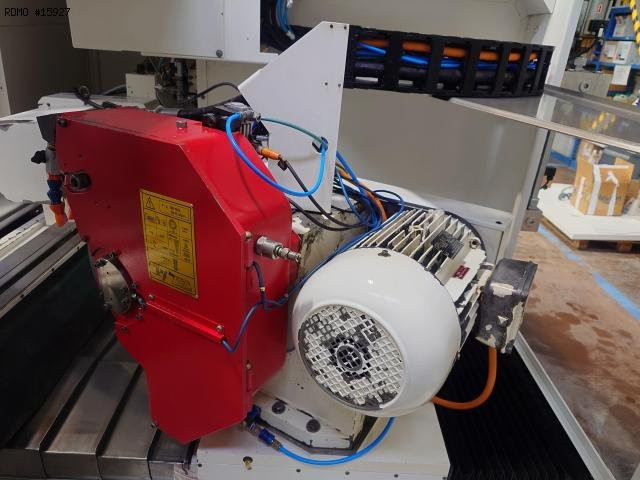

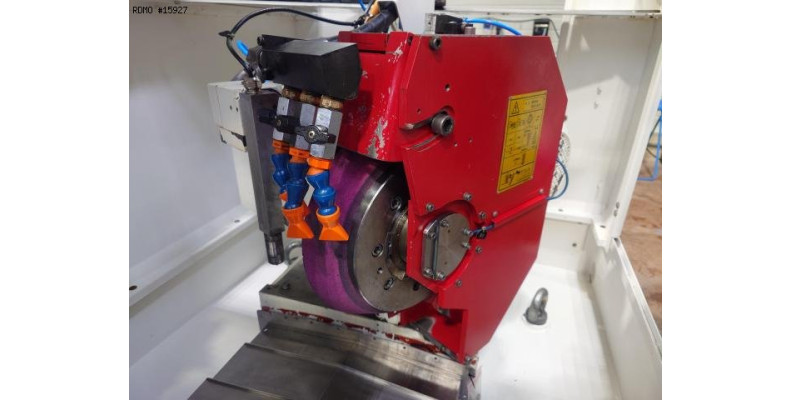

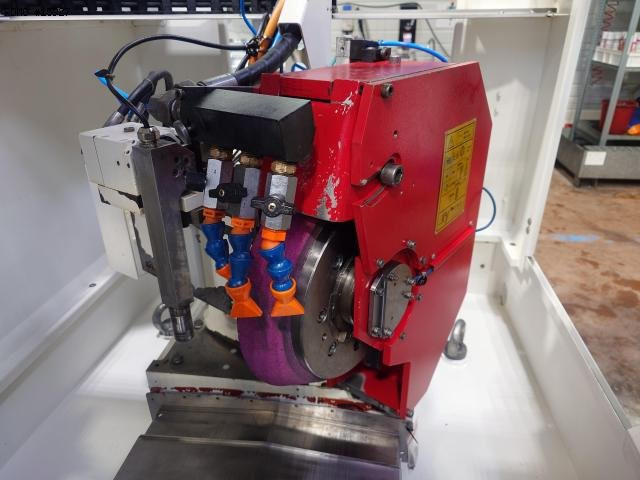

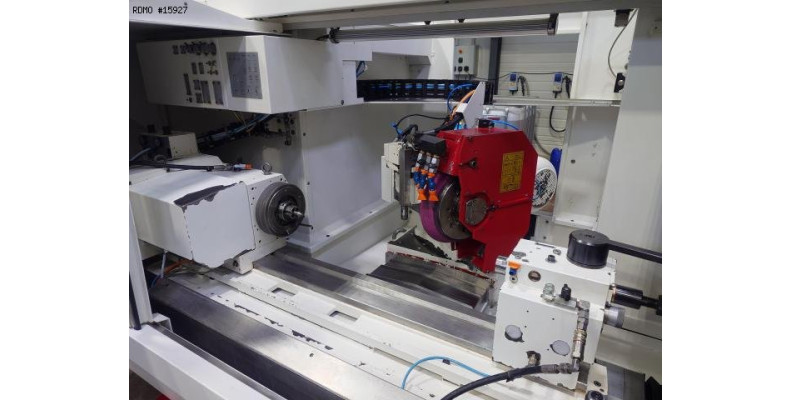

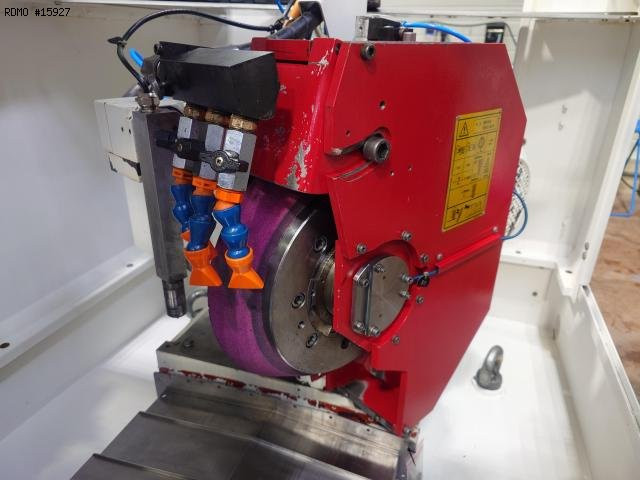

GRINDING WHEEL HOLDER HEADSTOCK
- Orientation : 0/30 [°]

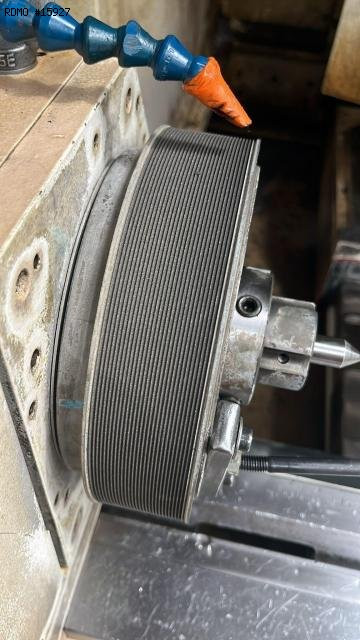

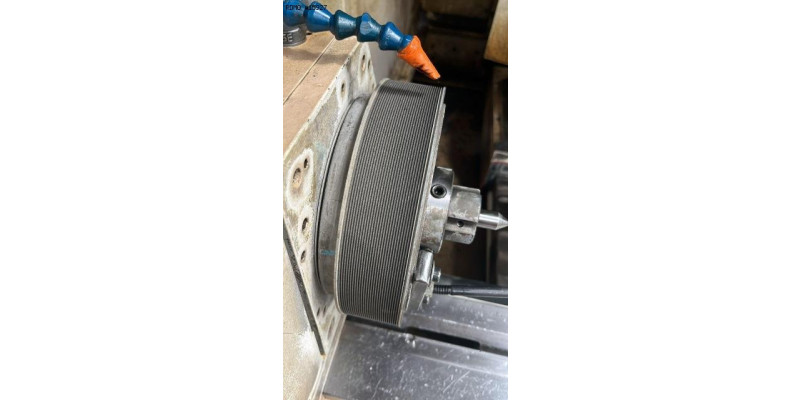

* Grinding wheel dimensions : 500x63 [mm]

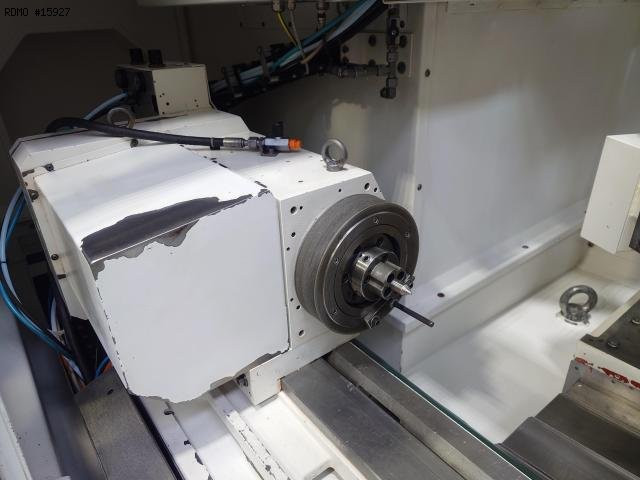

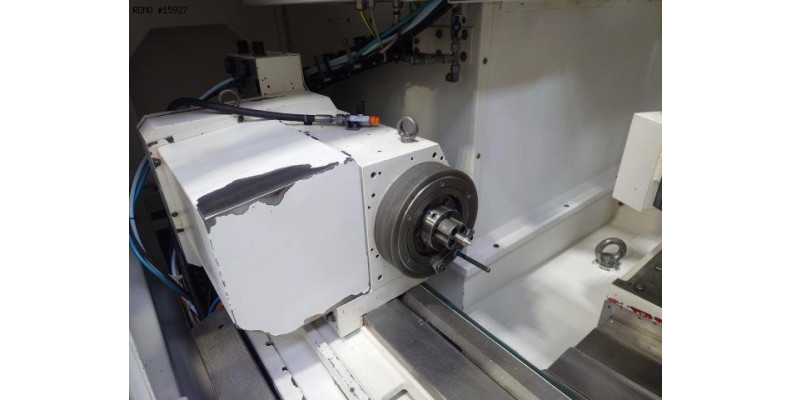

PART-HOLDER HEADSTOCK
- Type of cone : ISO50

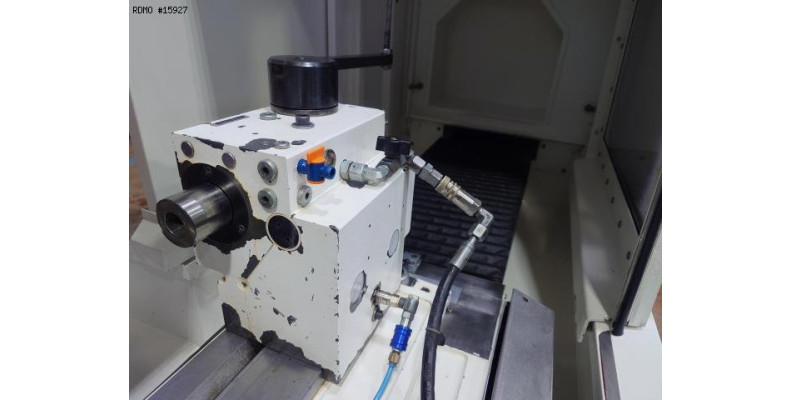

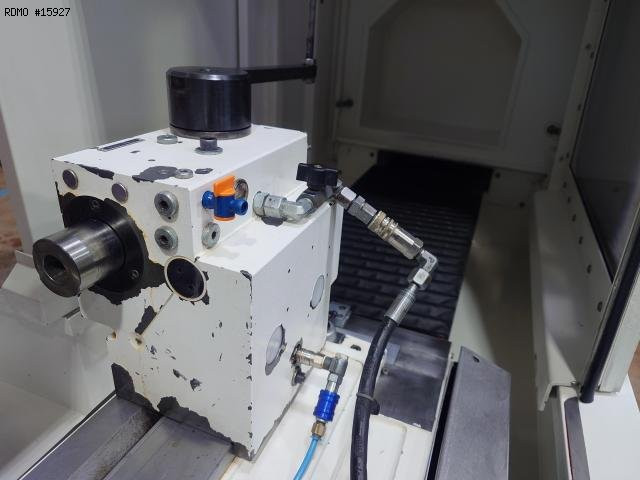

- TAILSTOCK
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS

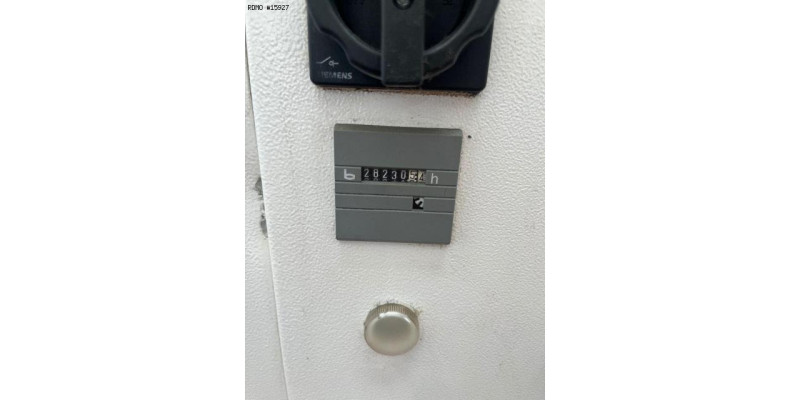

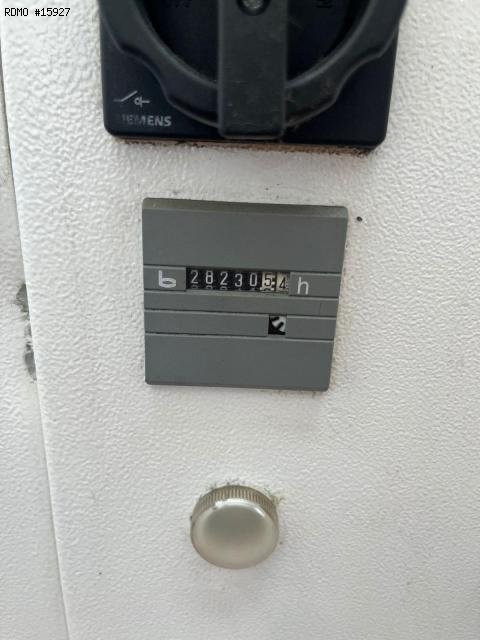

- Number of hours under power : 28230 [h]

Equipment

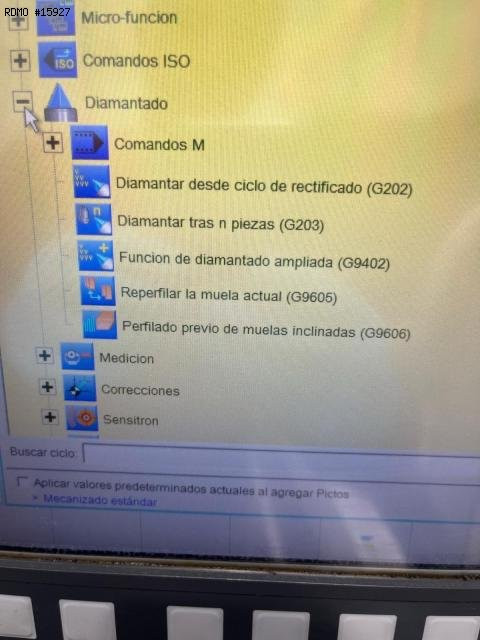

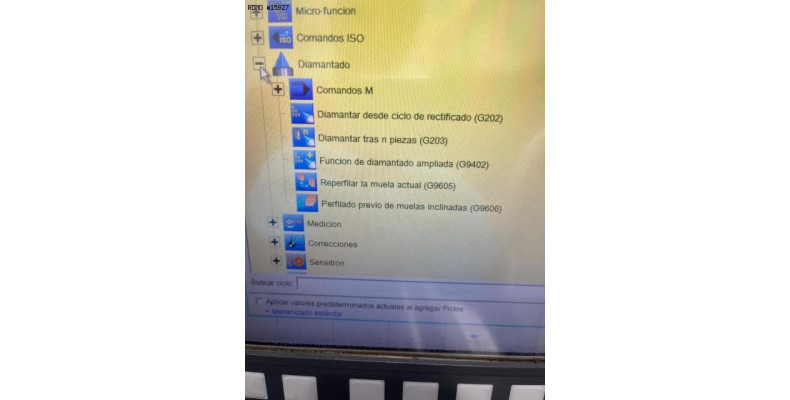

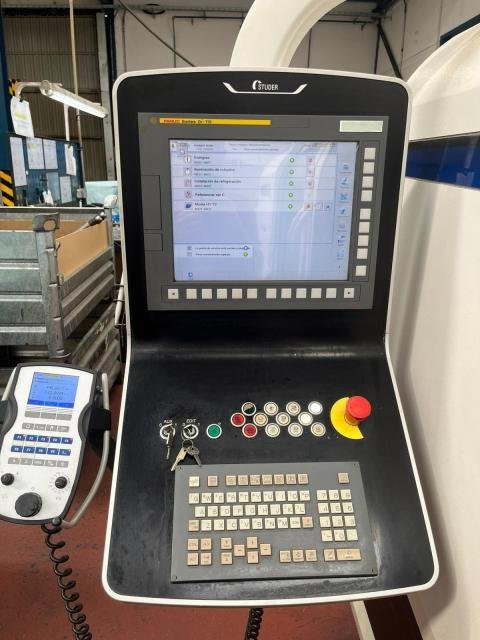

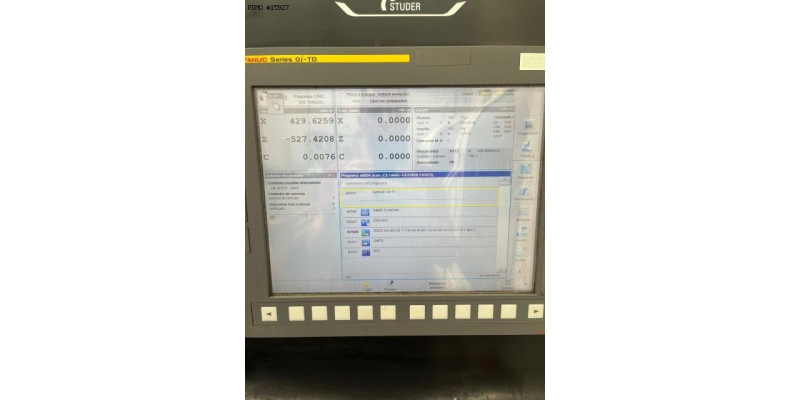

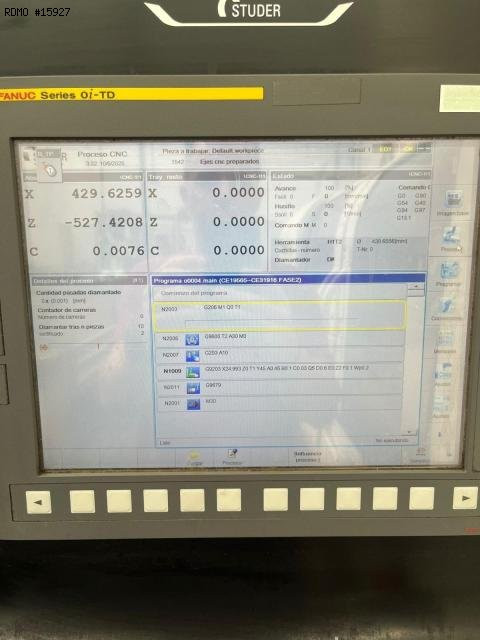

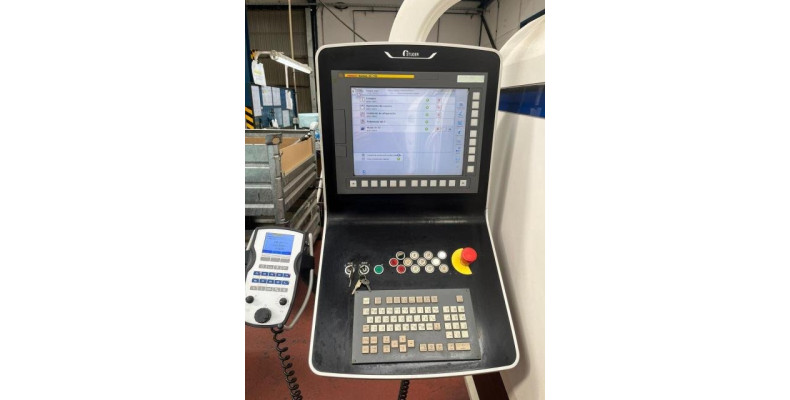

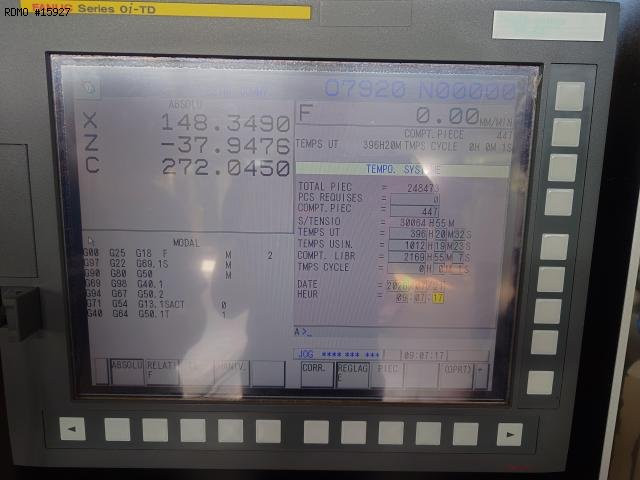

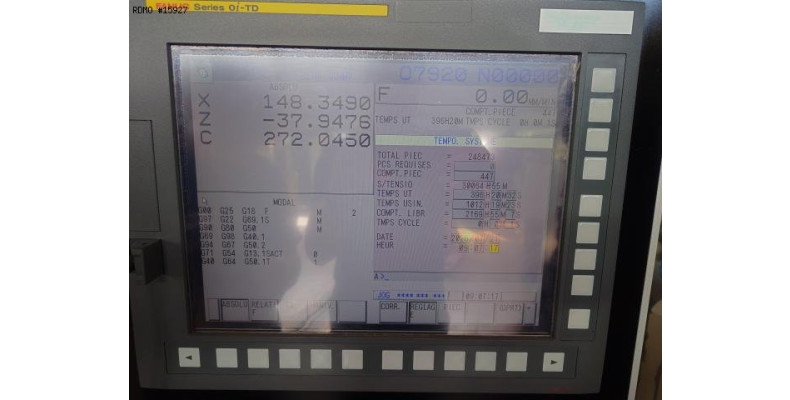

- CNC : FANUC Oi-TD
- Electronic handwheel

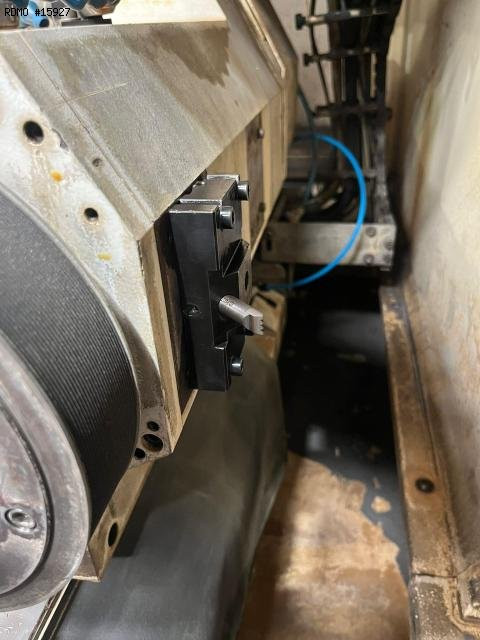

- Automatic diamond device
- Coolant tank
* with paper filtering unit
