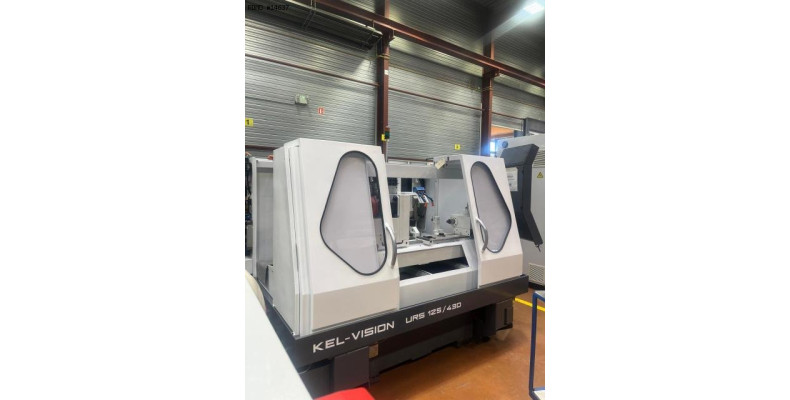

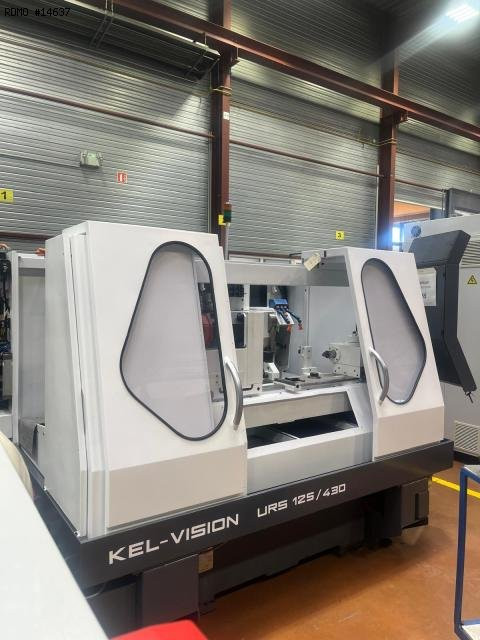

KELLENBERGER KEL-VISION URS 125/430

Name: Cylindrical grinder cnc KELLENBERGER KEL-VISION URS 125/430
Brand: KELLENBERGER
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

14637

PDF datasheet to download:

Brand: KELLENBERGER

Model: KEL-VISION URS 125/430

Year: 2003

Serial: 665095

14637

KELLENBERGER KEL-VISION URS 125/430

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: KELLENBERGER

Model: KEL-VISION URS 125/430

Year: 2003

Serial: 665095

Ask Price

Caracteristics

- centers height : 125 [mm]
- max grinding length : 430 [mm]
- max part diameter : 249 [mm]
- max part weight : 100 [kg]
- grinding wheel size : Ø400 x 63 x 127 [mm]
- part holder headstock spindle speed : 8 - 800 [rpm]
- max stroke X, Z : 320 , 650 [mm]
- floor space : 2500 x 2000 [mm]
- weight : 4700 [kg]

Equipment

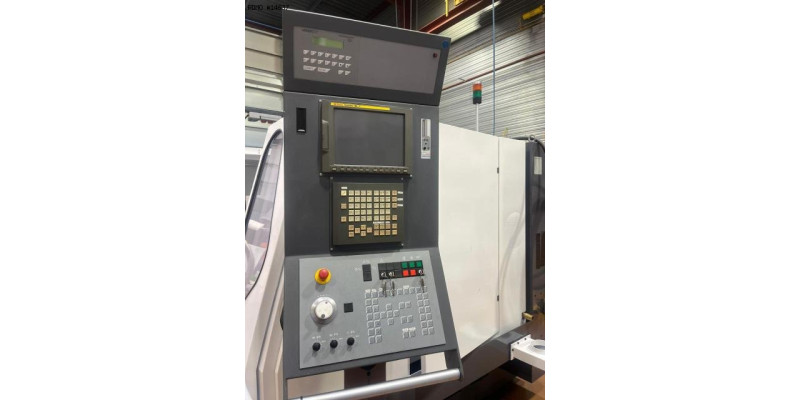

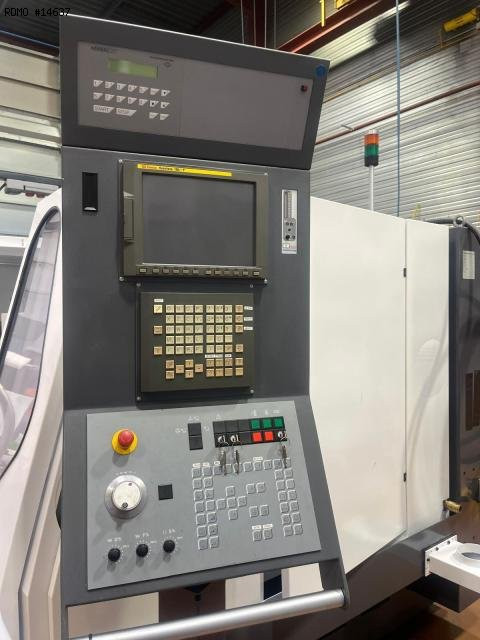

- CN FANUC 18iTA

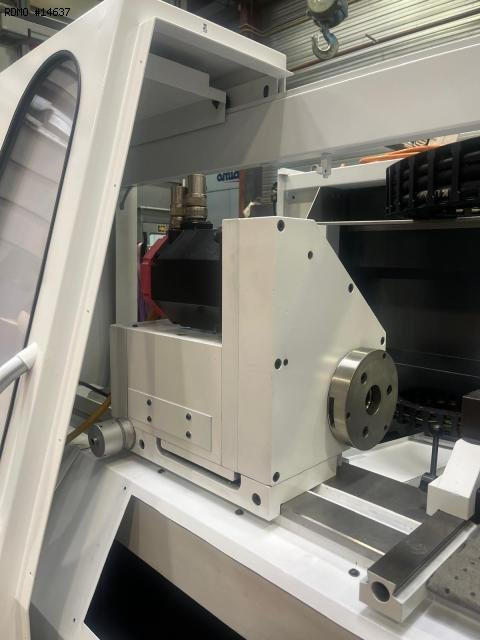

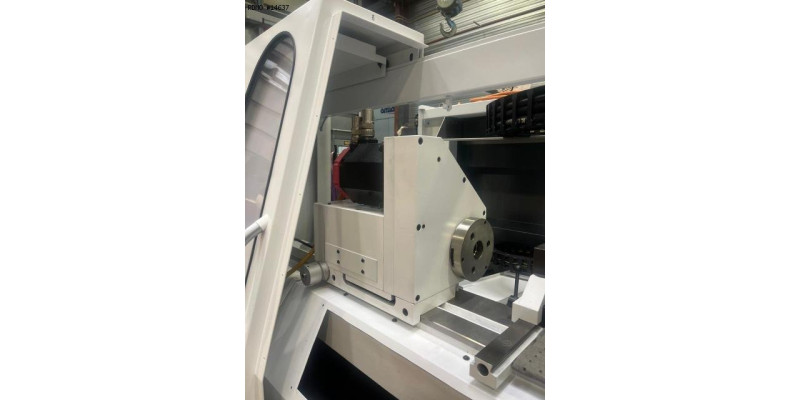

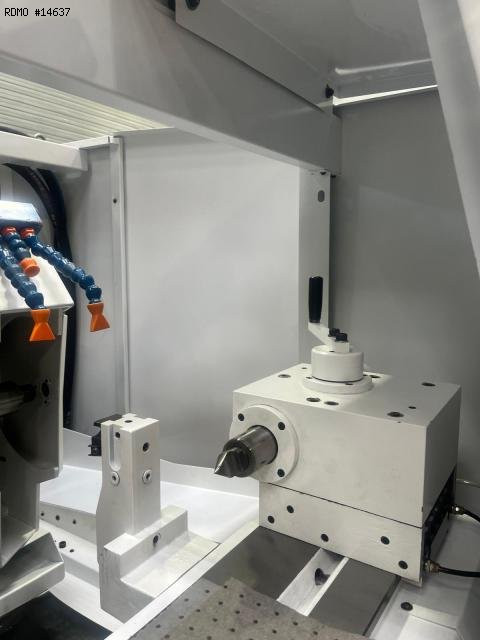

- tailstock with fine adjustment

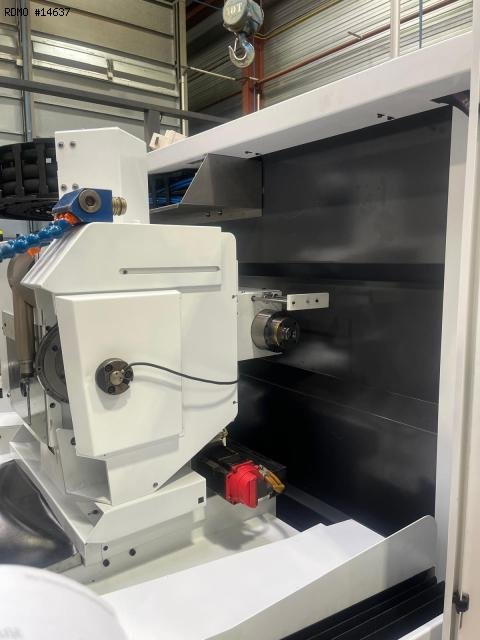

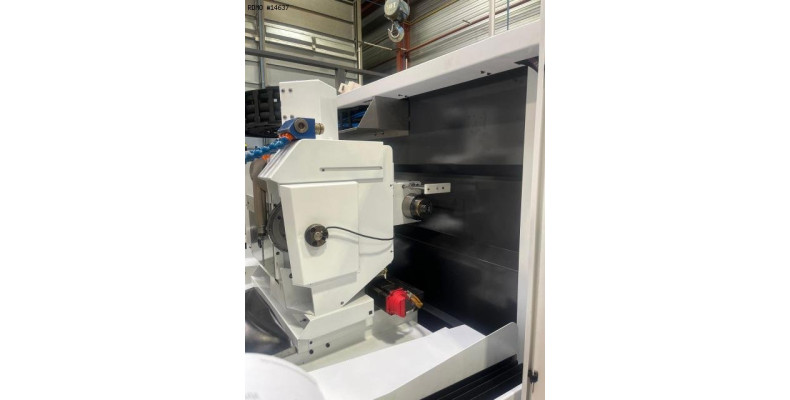

- grinding head type URS
- manual grinding head orientation each 0.1 degrees
- inside grinding device with spindles Ø120 mm
FISCHER type MFZ-1090 90000 Rpm and et type MFV-1230 12000-30000 Rpm
- various grinding wheel flanges
- grinding wheel extractor

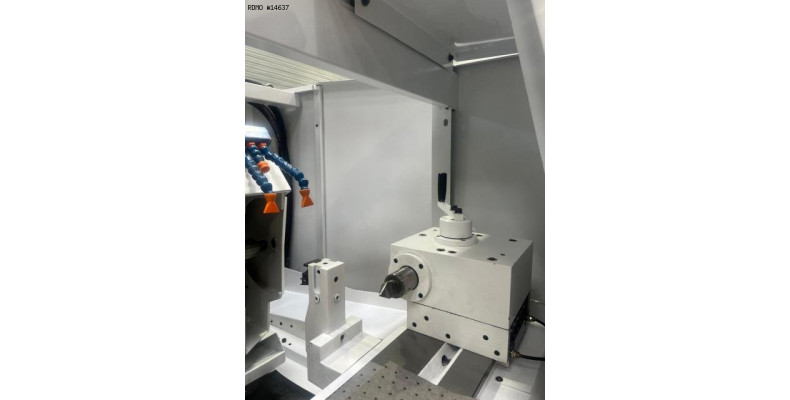

- 2 diamond dressing devices for inside and external grinding wheels
- active flagging device MARPOSS Kel-pos
- tool-measuring system Kel-set
- Kel set system
- 3 jaws chuck
