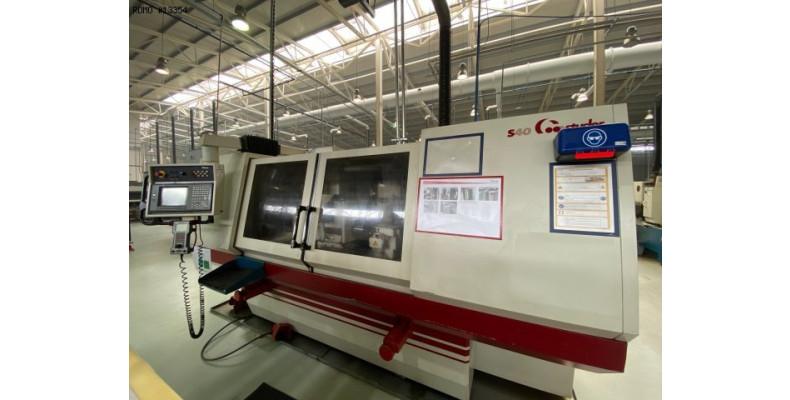

STUDER S 40 CNC 4 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

13354

PDF datasheet to download:

Brand: STUDER

Model: S 40 CNC

Year: 1998

Serial: 011.0303.90.051

13354

STUDER S 40 CNC 4 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: STUDER

Model: S 40 CNC

Year: 1998

Serial: 011.0303.90.051

Ask Price

Caracteristics

- distance between centers : 1000 [mm]
- centers height : 175 [mm]
- strokes (Z/X) : 1050 x 275 [mm]
- max. feeds (Z/X) : 10 x 5 [m/min]
- grinding wheelhead type : 2 external, 1 internal
- left external grinding wheel dimension : 500 x 63 x 127 [mm]
- right grinding wheel dimension : 400 x 63 x 127 [mm]
- grinding wheel motor power : 7,5 [kW]
- rotation speed : 1670 - 2110 [Rpm]
- grinding wheelhead orientation : -15 to +225 [°]
- resolution : 0.001 [°]
- workhead tapper : MT5
- workhead rotation speed : 1 - 1027 [Rpm]
- workhead power : 0,785 [kW]
- tail stock : MT3
- quill stroke : 35 [mm]
- weight : 7000 [kg]
- hours under power : 47.959 [h]

Equipment

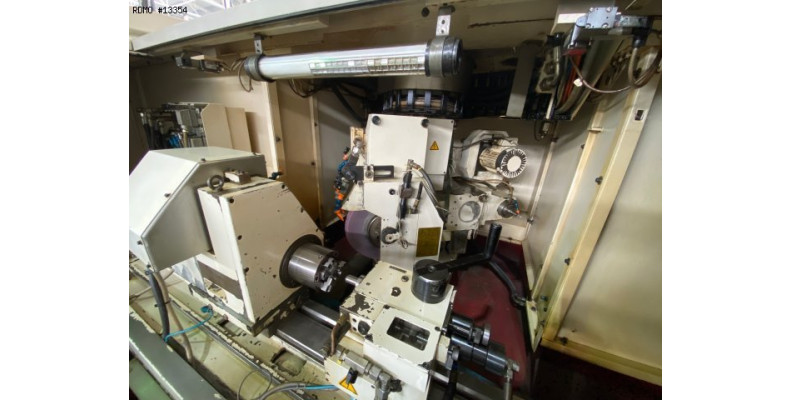

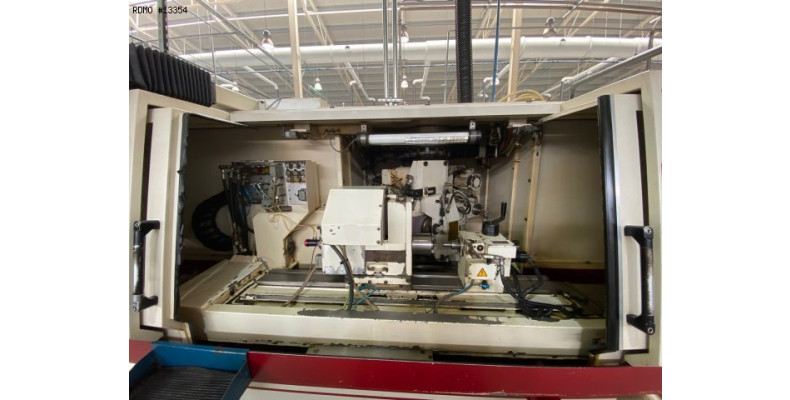

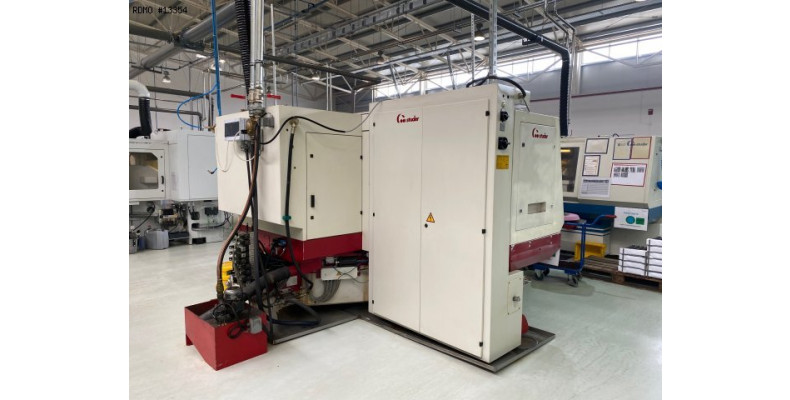

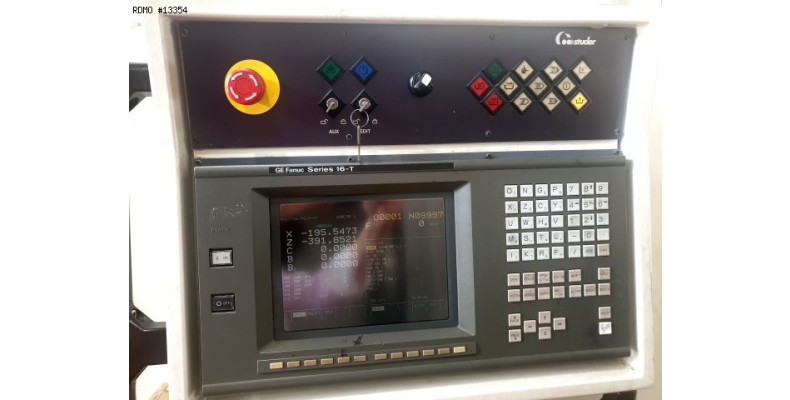

- control CNC FANUC 16 TB
- programming through Pictogramming
- Release B version B275
- deported electronic handwheel
- 2 grinding wheels left-right internal at
180 [°]
- B axis for indexing of the grinding wheelhead every
0,001 [°]
- high precision C axis for part indexing and form
grinding
- tail stock with fine concentricity adjustment
- sensitron
- upper table swiveling fine adjustment
- control pedal
- lenght positioning device MARPOSS E32R with sensor T25G
- measuring scales HEIDENHAIN on X/Z
- coolant tank with pump
- 1 grinding wheel holder flange
- 1 grinding wheel
- 1 dry center
- 1 electro-spindle : 40.000 [Rpm]
- tail stock hydraulic retract through pedal
