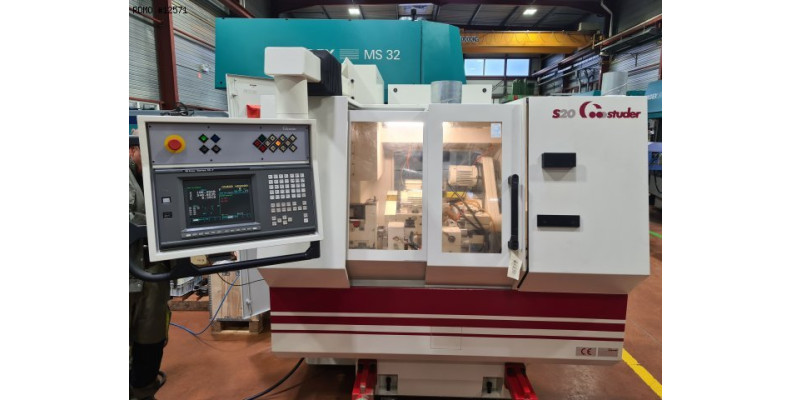

Studer S 20 CNC 2 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

12571

PDF datasheet to download:

Brand: Studer

Model: S 20 CNC

Year: 1996

Serial: 021.0101.90.025

12571

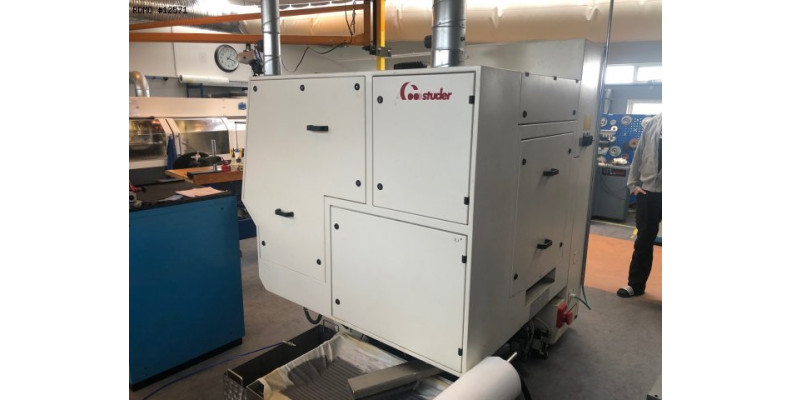

Studer S 20 CNC 2 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: Studer

Model: S 20 CNC

Year: 1996

Serial: 021.0101.90.025

Ask Price

Caracteristics

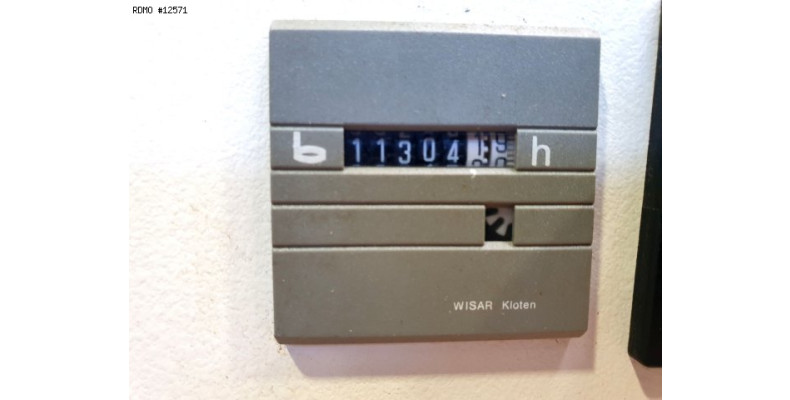

- distance between centers : 400 [mm] - center height : 100 [mm] - grinding length : 400 [mm] - table swivel range : 15° - wheelhead power : 8 [kW] - grinding wheels size : 350 x 30 x 127 [mm] - grinding wheel cutting speed : 30 [m/s] - swing speed : 1600 /1975 / 2200 [rpm] - wheelhead swivel range : 30° - workhead fitting taper : Morse 4 - workhead swing speed : 30 - 1200 [rpm] - workhead swivel range : 0 - 90° - tailstock fitting taper : Morse 2 - travel of barrel tailstock : 20 [mm] - dimensions : 3400 x 3450 x 1500 [mm] - weight : 1900 [kg - Hours under power : 11403

Equipment

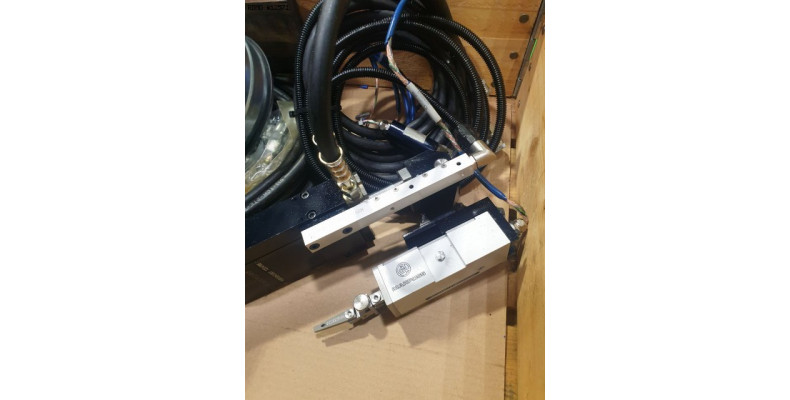

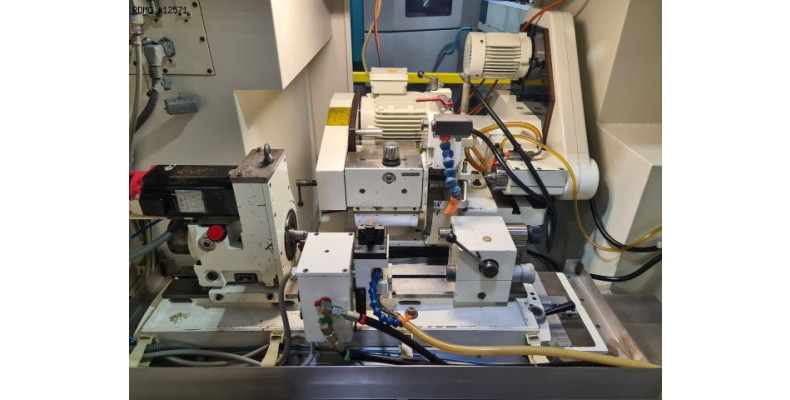

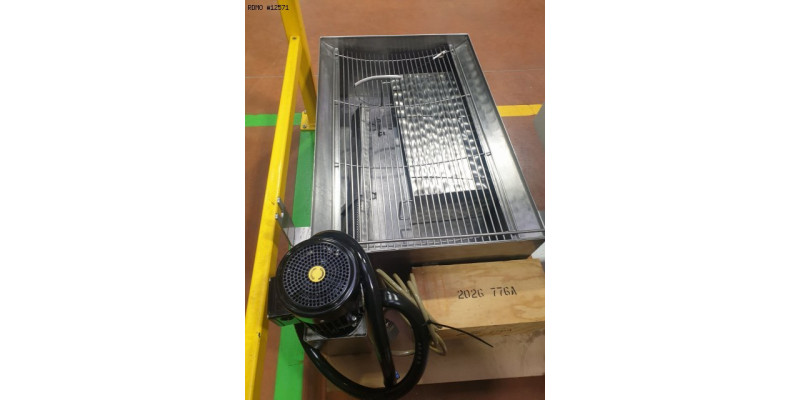

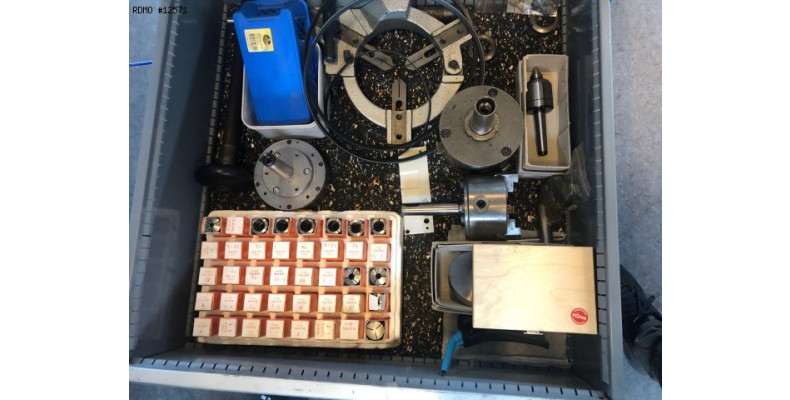

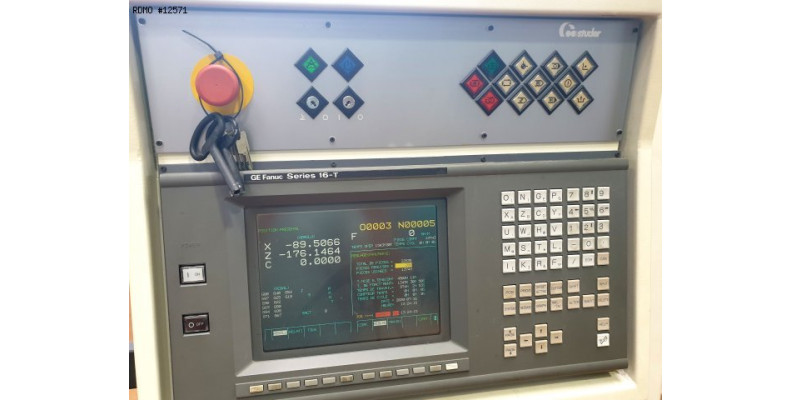

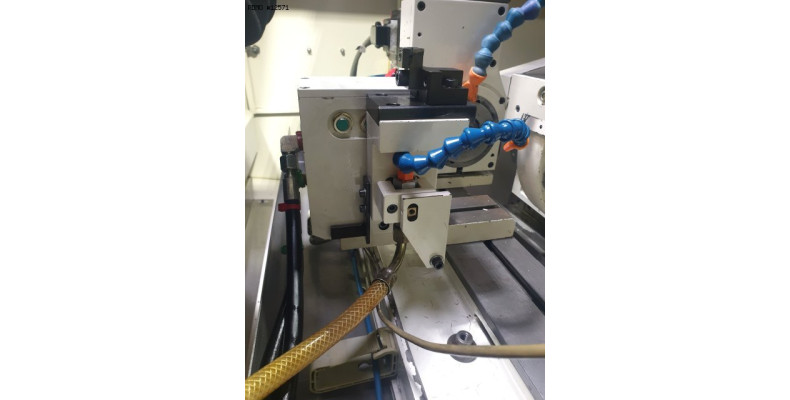

- CNC FANUC 16T - 2 work pieces heads - Tailstock - Sensitron - Length positionning system MARPOSS - 1 set of collets Schaublin W20 - 2 three jaws chucks - Magnet chuck - 3 steady rest - 1 fixe dressing device for OD - 1 retractable dressing devise for ID - ID grinding device - 1 ID grinding spindle 64000 [rpm] - 6 flanshes - Cooling tank with pump
