- Distance between centers : 650 [mm]
- Max. grinding diameter : 200 [mm]
LINEAR AXES
- Grinding length : 800 [mm]
- Travels X x Z : 415 X 950 [mm]
GRINDING WHEEL HOLDER HEADSTOCK
- Grinding wheel holder headstock power : 7.5 [kW]
- External grinding wheel dimensions : 610 x 254 [mm]
- Max. grinding wheel width : 125 [mm]
- Rotation speed : 2700 [Rpm]
- Axis B precision : 0.0001 [°]

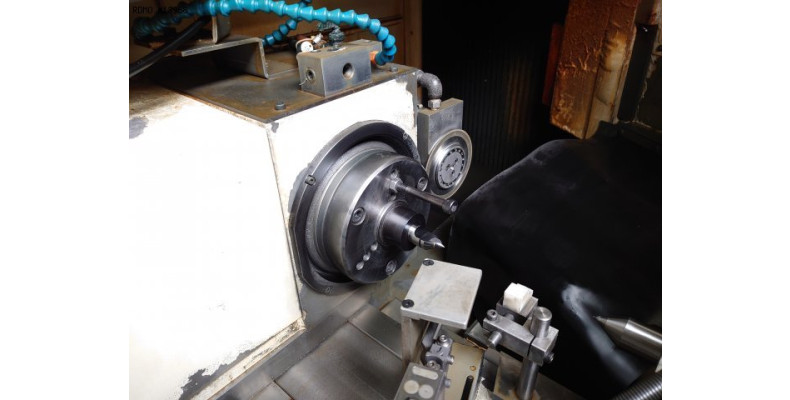

PART HOLDER HEADSTOCK
- Max. part weight : 50 [kg]
- Axis C indexing precision : 0.0001 [°]
- Power : 2 [kW]
- Rotation speed : 650 [Rpm]
ELECTRICAL SUPPLY
- Supply voltage : 380 [V]
- Power : 34.3 [kVA]
FLOOR SPACE
- Machine weight : 5300 [kg]
Equipment

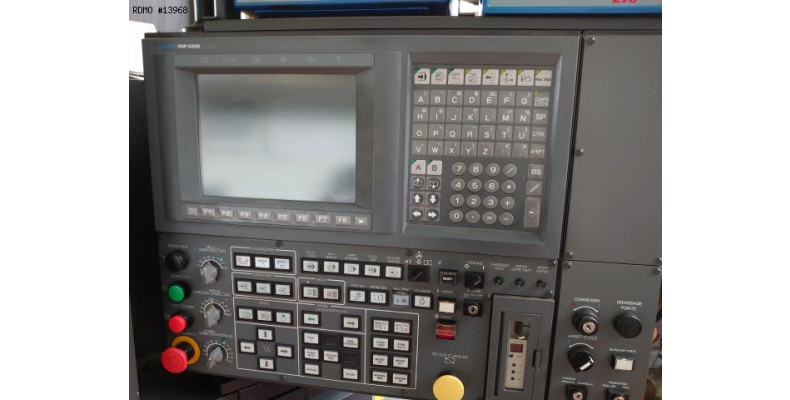

- Control CNC Okuma OSP-U20G
- Chip conveyor

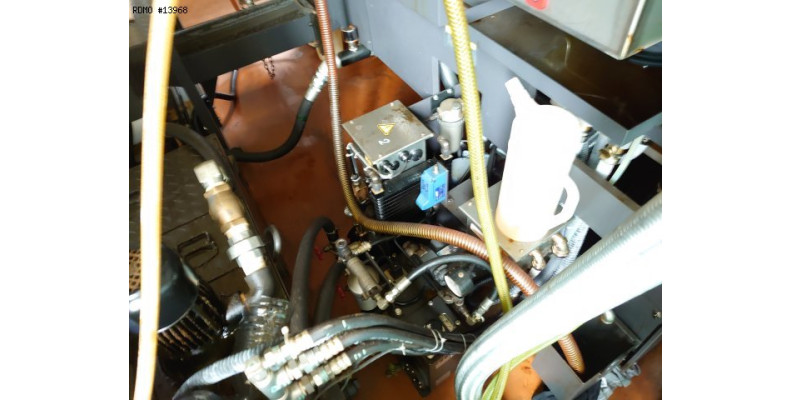

- Coolant tank :
* with high pressure pump

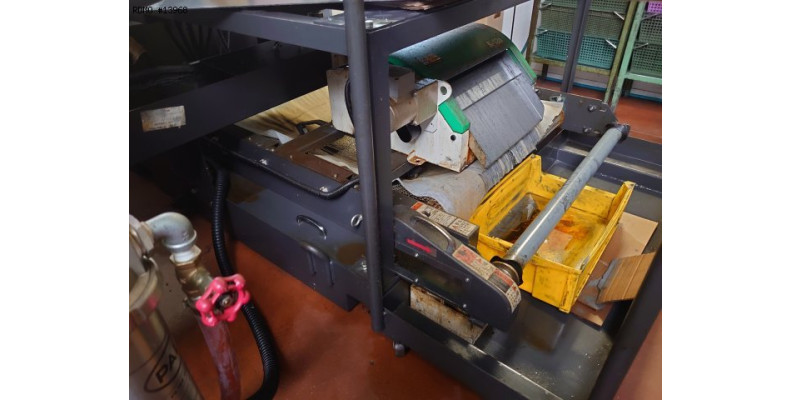

* paper filtration

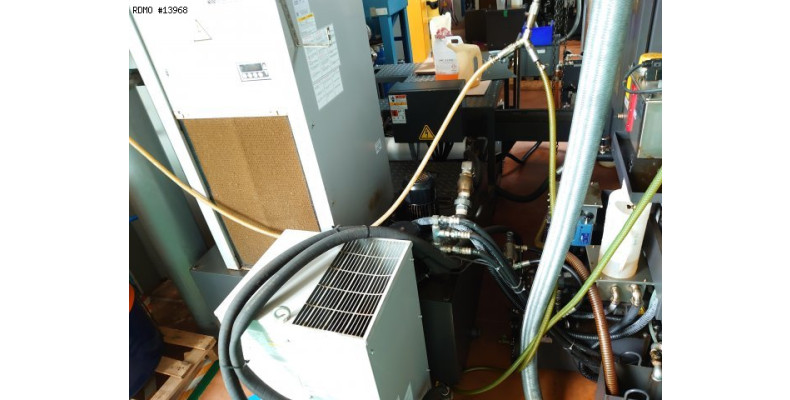

- Cooling unit

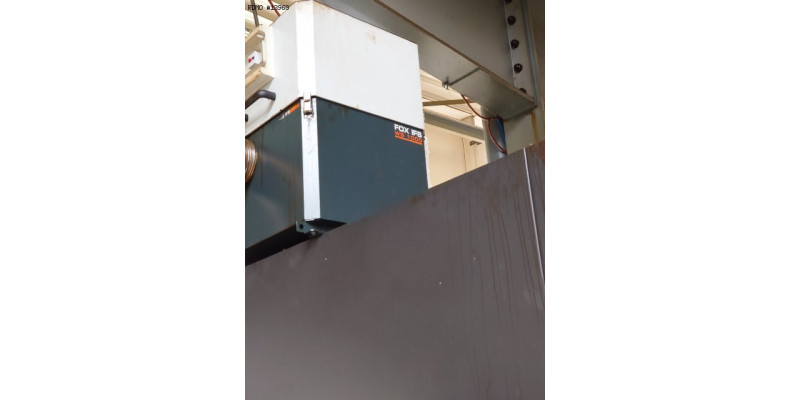

- Oil mist aspiration : LNS FOX IFS WS1000
- Diamond grinding device
This machine tool is sold. We offer equivalent models at the bottom of page.
