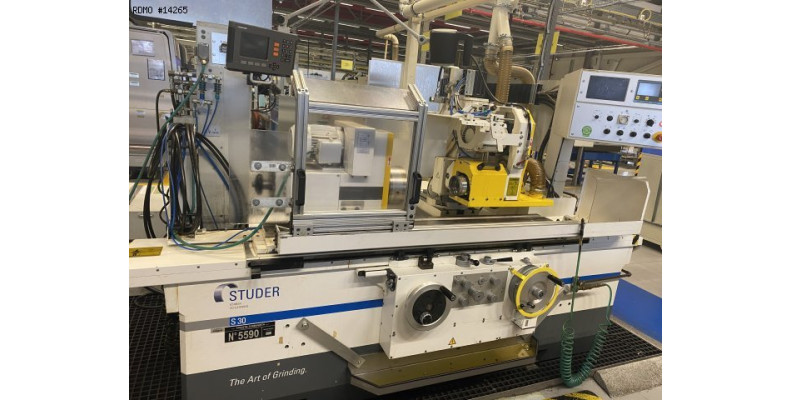

Studer S30-1

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: Studer

Model: S30-1

Year: 2008

Serial: Série 104 N° 019.3870

Ask Price

Caracteristics

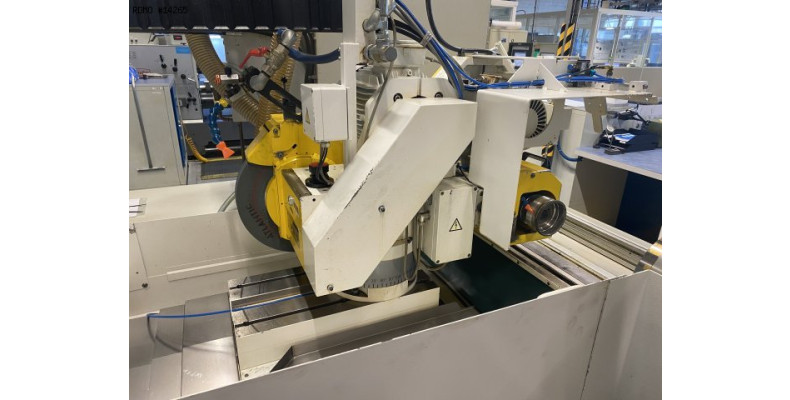

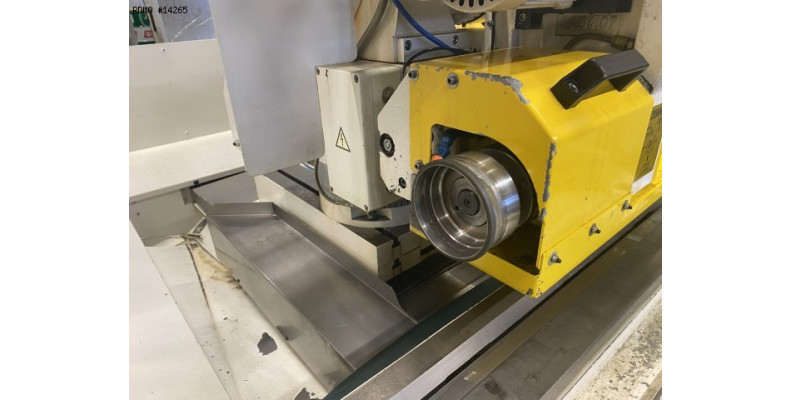

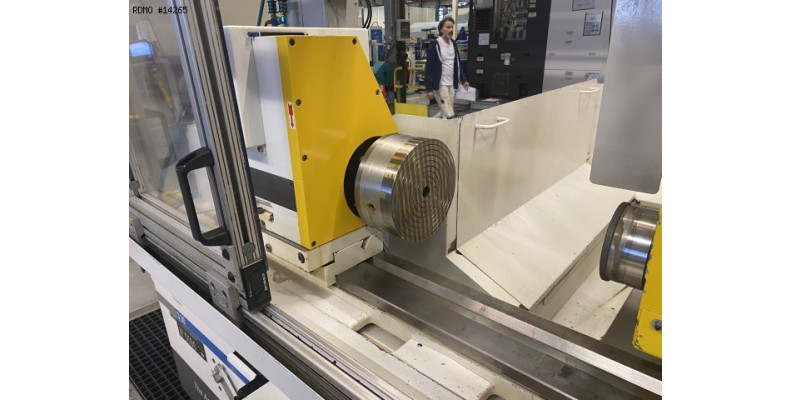

- distance between tips : 1000 [mm] - tip height : 175 [mm] - table orientation : 8.5 [°] WHEELHEAD - grinding wheel holder headstock orientation : 0 - 180 [°] - grinding wheel holder headstock indexing precision : 5 [°] - grinding wheel dimensions : 400 x 63 x 203 [mm] - cutting speed : 35 [m/sec] - headstock power : 7.5 [kW] WORKHEAD - maximum workpiece weight : 130 [kg] - table orientation : 10 [°] - headstock rotation speed : 35-520 [rpm] POWER SUPPLY - power supply voltage : 380 [V] - installed power : 50 [Hz] WEIGHT - weight : 3000 [kg] MACHINE HOURS - Working hours :

Equipment

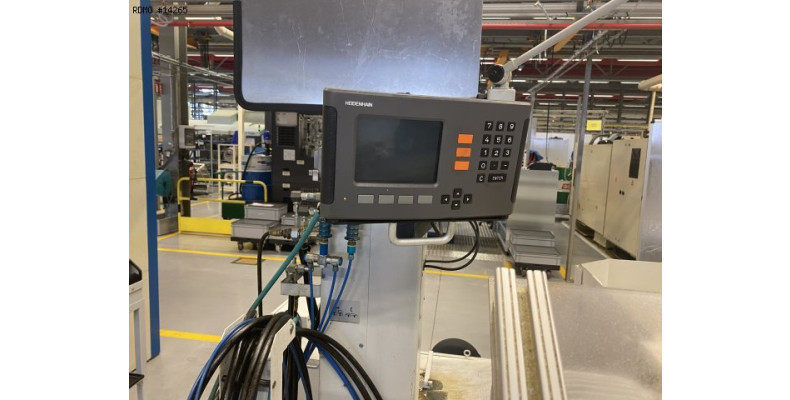

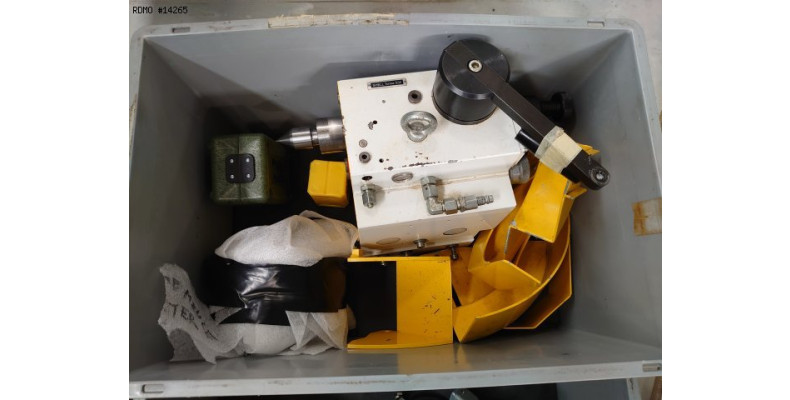

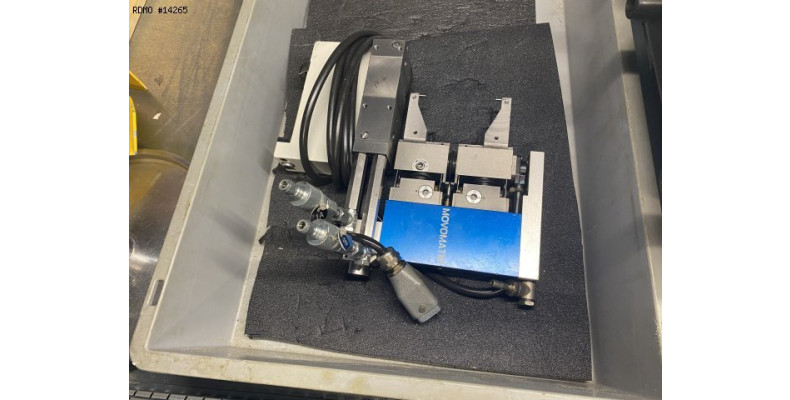

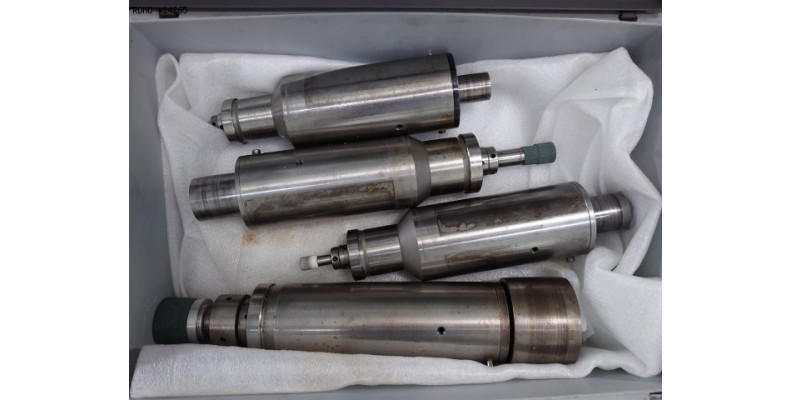

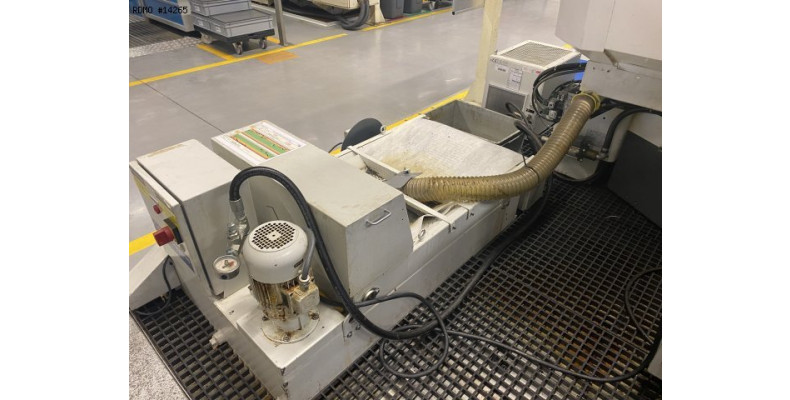

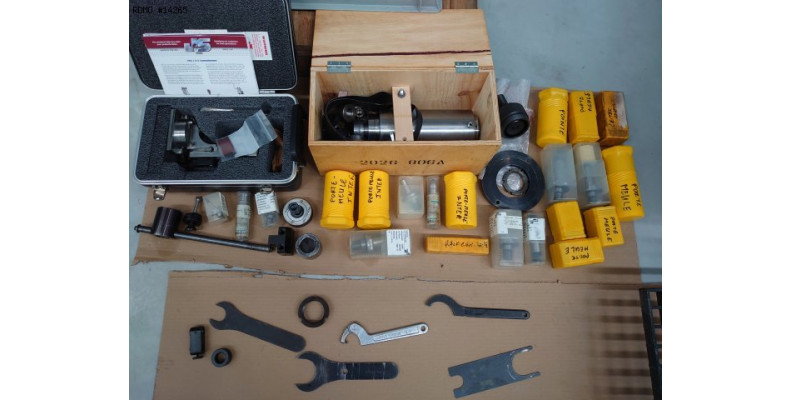

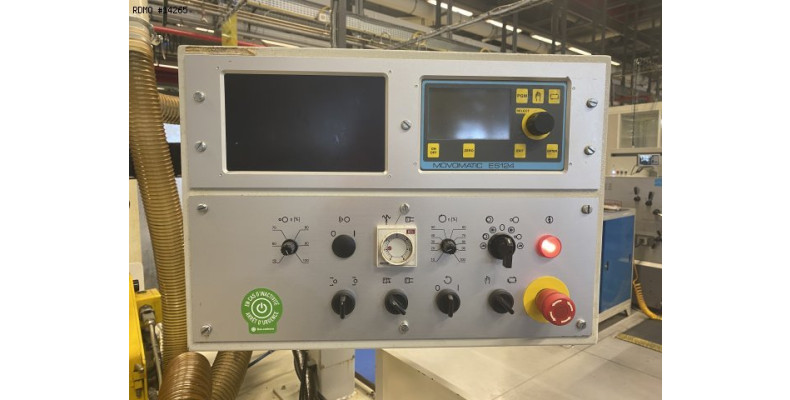

- Sensitron 6 - 6 internal grinding spindles: 11,000 - 20,000 - 22,000 - 28,000 - 40,000 x2 [rpm] - 1 measuring head MOVOMATIC ES124 for the diameter - 1 tailstock - 1 diamond grinding device for internal wheel - 1 diamond grinding device for external wheel - 1 radius grinding device - 1 display 2 axes HEIDENHAIN - lubricating tank with paper filtration - Set of grinding wheel holders and grinding wheels
