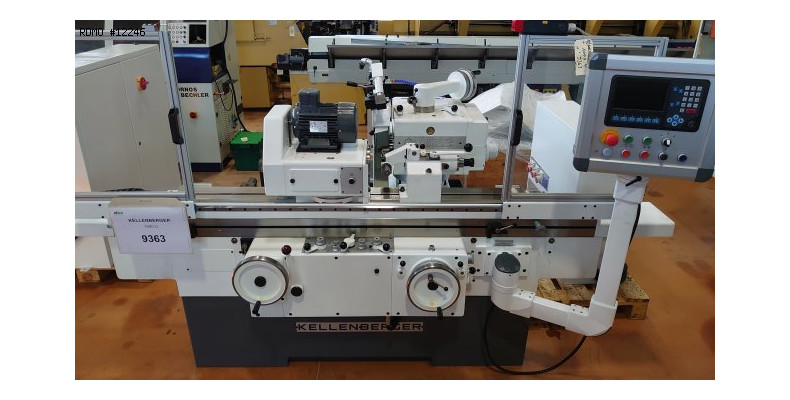

Brand: Kellenberger
Model: 1000 U
Year:
Serial: 1408/451
Brand: Kellenberger
Model: 1000 U
Year:
Serial: 1408/451

Caracteristics & Equipment

Caracteristics

- distance between centers : 1 000 [mm]
- centers height : 125 [mm]
- table orientation : 9 [°]

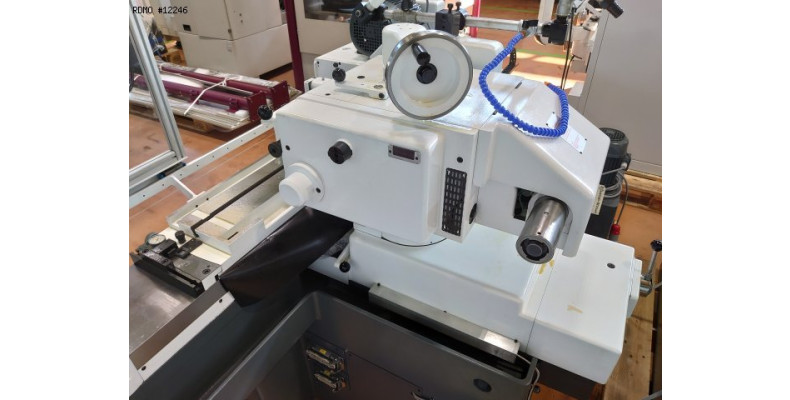

- universal grinding wheel holder headstock
- left grinding wheel dimensions : 400 x 50 x 127 [mm]
- right grinding wheel dimensions : 225 x 20 x 76,2 [mm]
- motor power : 3 [kW]
- spindle speed : 1500 / 1700 / 2200
- orientation of grinding wheel holder headstock : 270 [°] (3 x 90°)
- boring for internal spindle : 90 [mm]
- orientation of part holder headstock : 180 [°]
- spindle speed : 20 - 400 [Rpm]
- spindle internal cone : Morse 5
- motor power : 0,9 [kW]
- counter headstock internal cone : Morse 4
- counter headstock sleeve stroke : 30 [mm]
- dimensions : 2860 x 1680 x 1670 [mm]
- weight : 2 500 [kg]
Equipment

- automatic cycle work (rough part, finishing and reverse)
- tail stock
- sinus ruler for part holder headstock
- head UR : 2 external and 1 internal grinding wheel

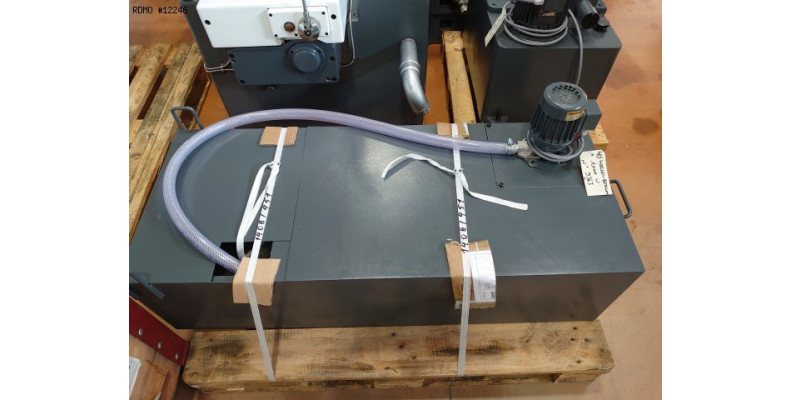

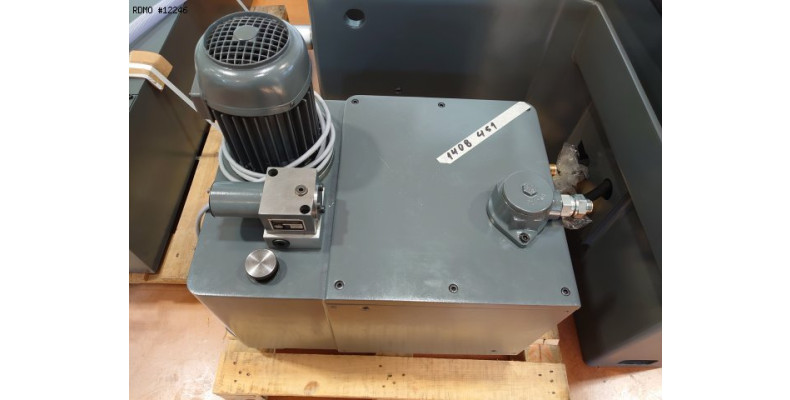

- lubricating tank with pump
- 1 internal grinding spindle SFJ UJ70 : 14.000 [rpm]
- 1 fixed diamond grinding device holder on tail stock
- 1 chuck 3 jaws
- 1 magnetic chuck
- 1 set of driving tocs
- 2 rests 2 points
- spacer to increase centre height to 175 mm
- various grinding wheel holders
- various grinding wheels
