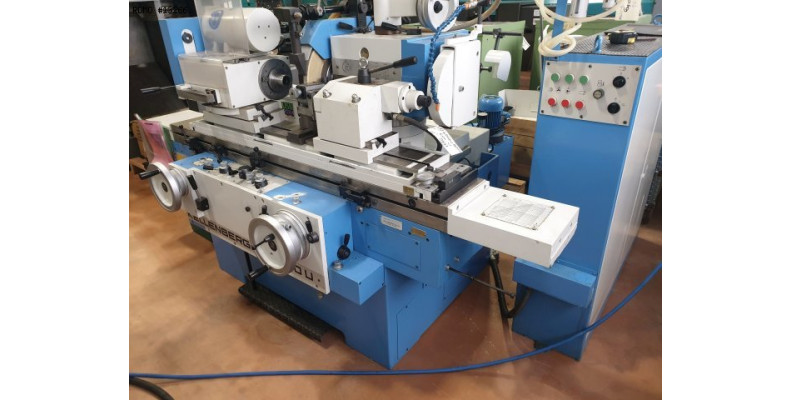

Kellenberger 600U

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

13266

PDF datasheet to download:

Brand: Kellenberger

Model: 600U

Year:

Serial: 32462-2456

13266

Kellenberger 600U

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: Kellenberger

Model: 600U

Year:

Serial: 32462-2456

Ask Price

Caracteristics

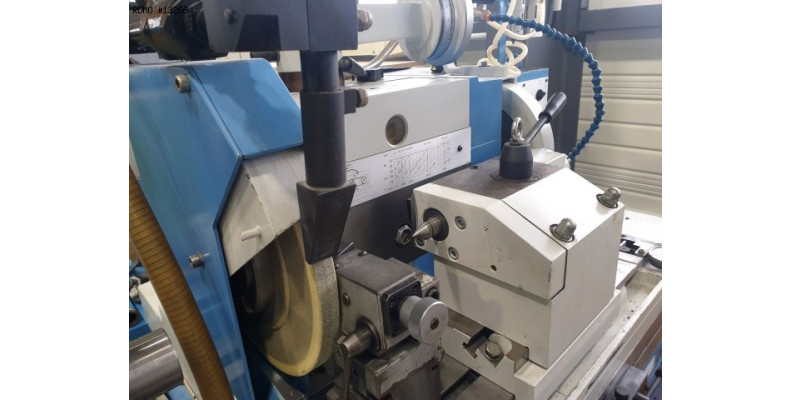

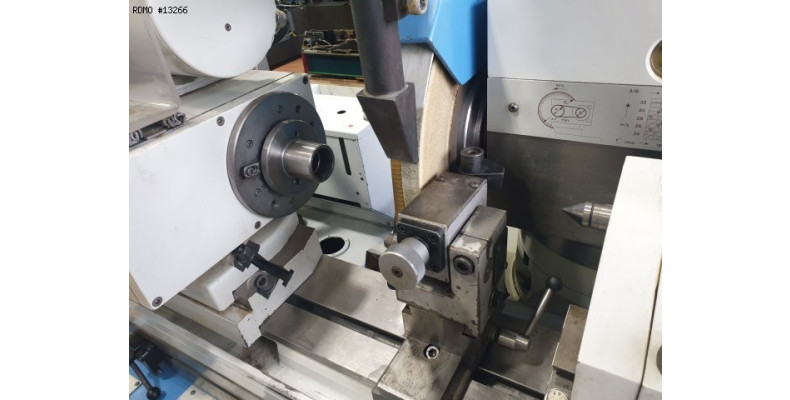

- distance between centres : 600 [mm] - center height : 175 [mm] - table orientation : 11 [°] UNIVERSAL WHEELHEAD - left wheel size : 400 x 50 x 127 [mm] - right wheel size : 225 x 20 x 76,2 [mm] - motor power : 3 [kW] - spindle speeds : 1500 / 1700 / 2200 [rpm] - orientation : 270 [°] WORKHEAD - orientation : 360 [°] - speeds : 20 - 400 [rpm] - attachment : Morse 5 - motor power : 0,9 [kW] TAILSTOCK - attachment : CM4 - quill stroke : 30 [mm] DIMENSIONS - floor space : 2580 x 1680 [mm] - height : 1670 [mm] - weight : 2200 [kg]

Equipment

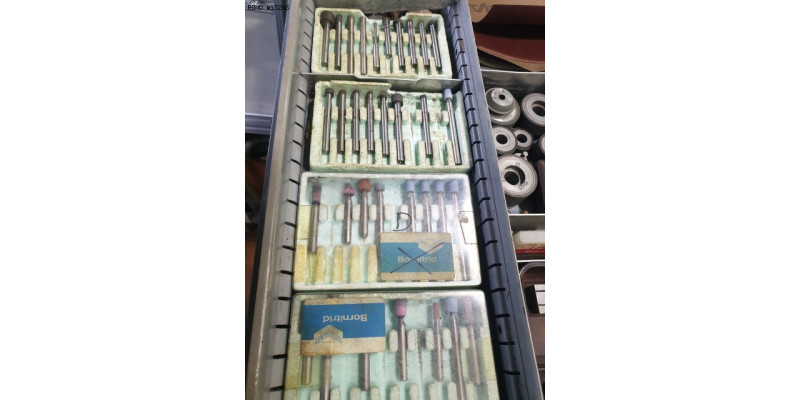

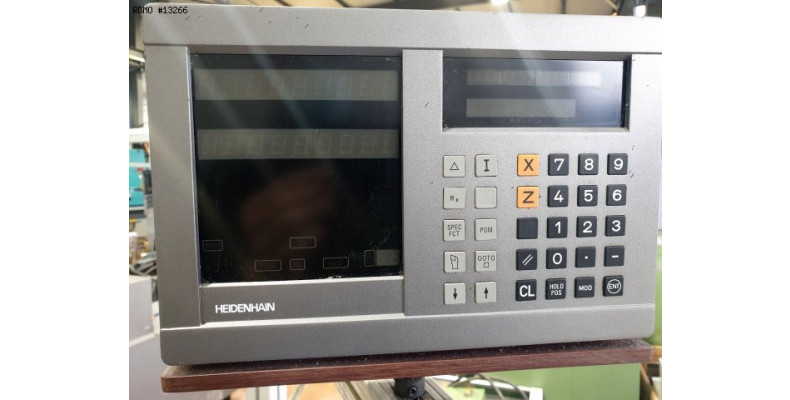

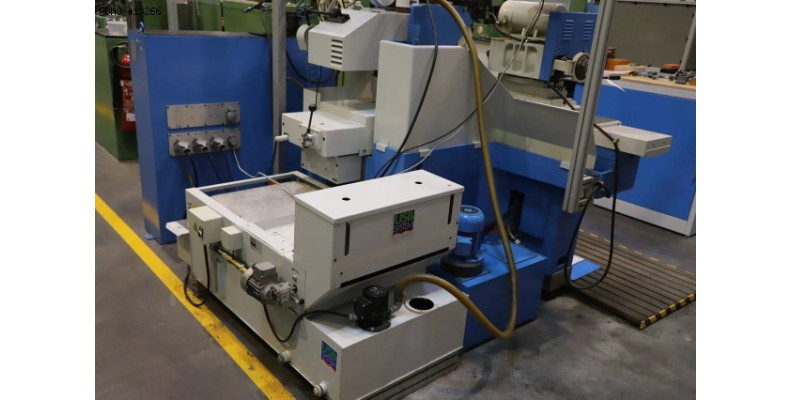

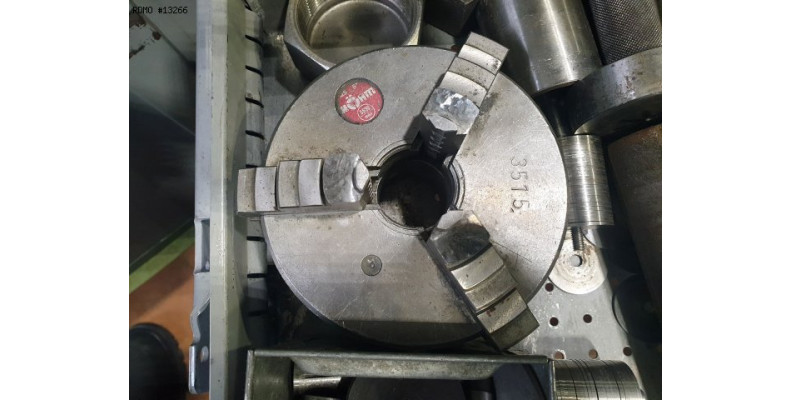

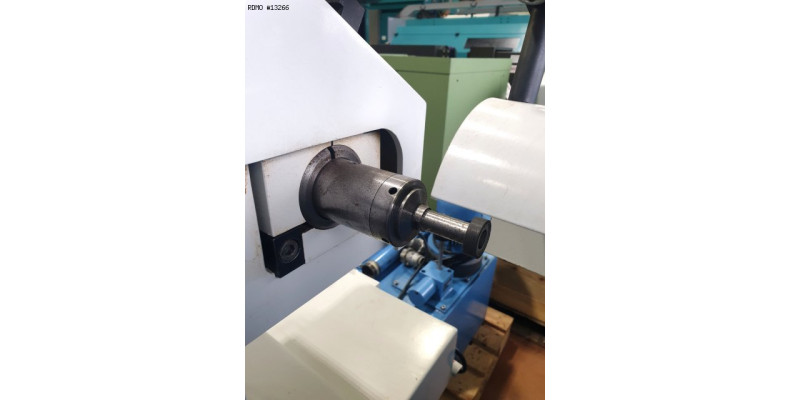

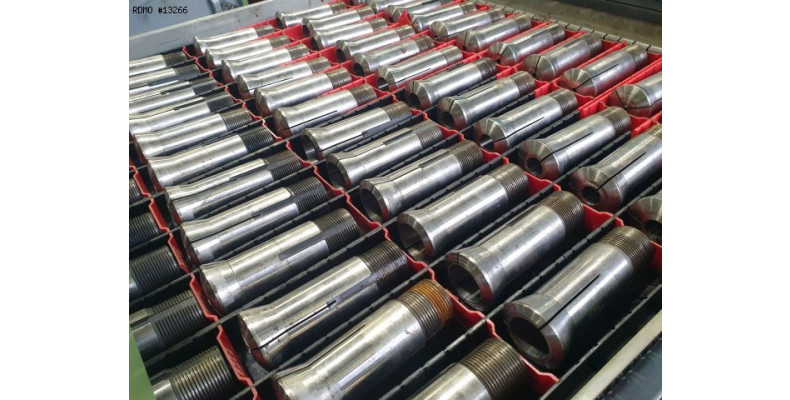

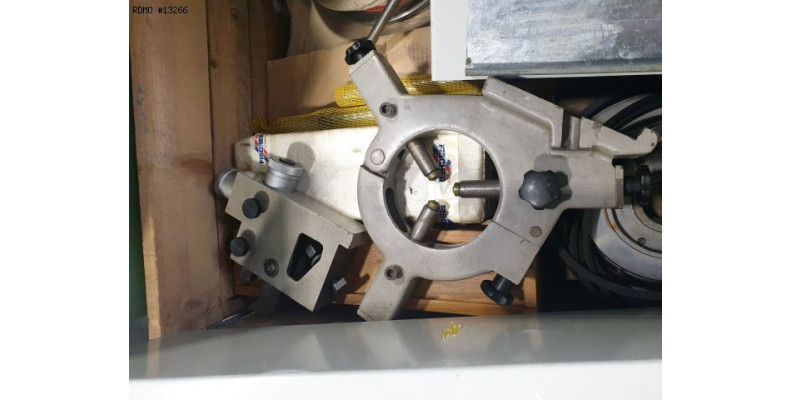

- 2 axes display HEIDENHAIN - tailstock with hydraulic recoil through pedal - 1 internal grinding spindle Fischer UJ-50x250 : 23.000 [rpm] - retractable wheel dresser upon table - coolant tank with pump - paper filtering unit : USB SYSTEM - 1 chuck 3 jaws : Ø 125 [mm] - 2 collets chucks, with fast & manual clamping - collets collection - 1 steady rest 3 points - 2 steady rests 2 points - balancing shaft - set of external and internal wheels - set of external and internal wheels-holders
