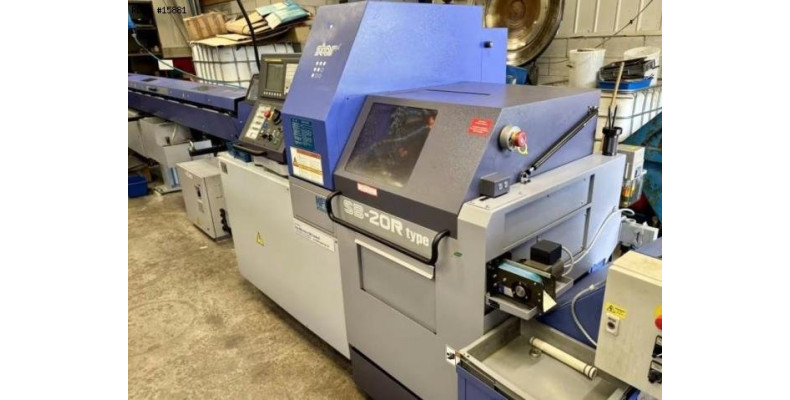

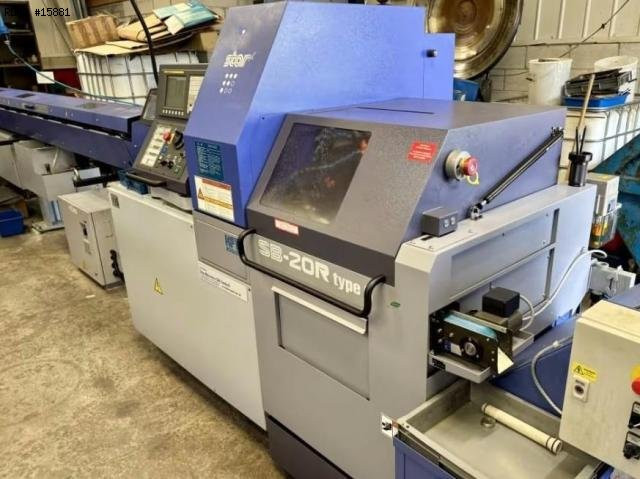

STAR SB-20R Type G 7 axis

Name: Swiss-type cnc lathe STAR SB-20R Type G 7 axes
Brand: STAR
Availability: InStock

Turning Swiss-type cnc lathe

15881

PDF datasheet to download:

Brand: STAR

Model: SB-20R Type G

Year: 2022

Serial: 11291

15881

STAR SB-20R Type G 7 axis

Turning Swiss-type cnc lathe

PDF datasheet to download:

Brand: STAR

Model: SB-20R Type G

Year: 2022

Serial: 11291

Ask Price

Caracteristics

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Z stroke : 205 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2/3.7 [kW]
- C axis indexing precision : 0.0001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 9000 [rpm]
- Spindle power : 0.55/1.1 [kW]
- C axis indexing precision : 0.0001 [°]

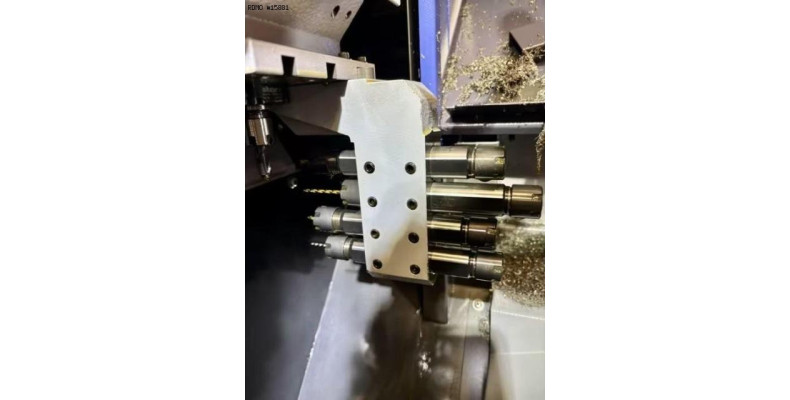

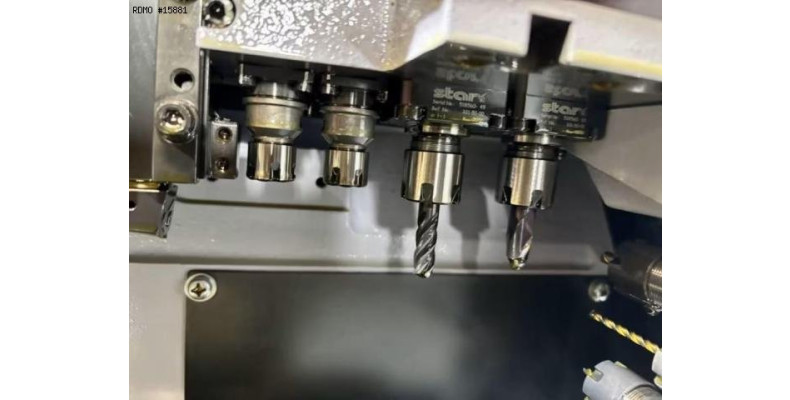

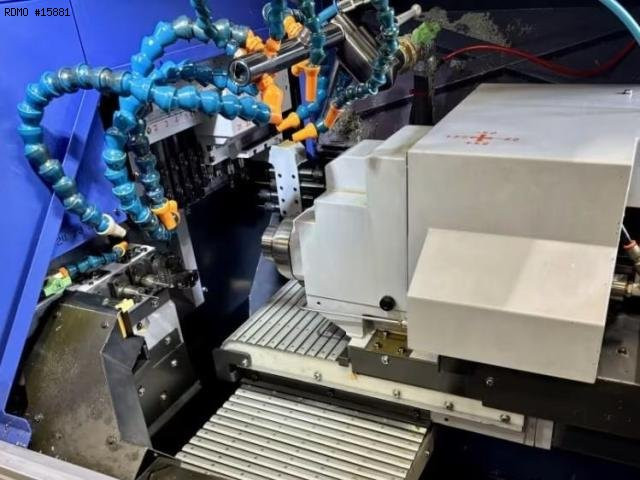

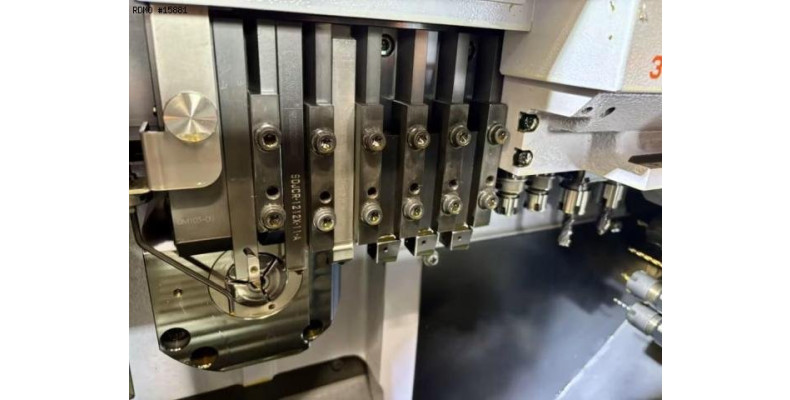

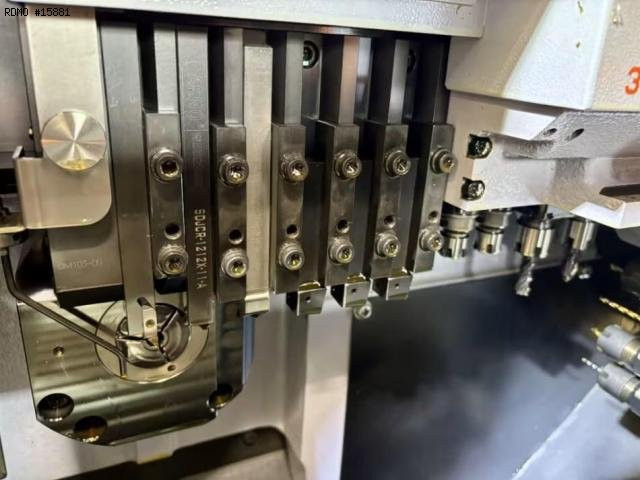

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- Live tools power : 0.75 [kW]

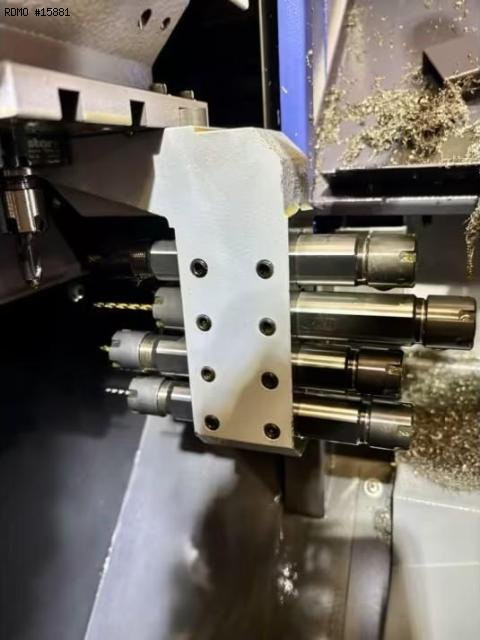

END ATTACHMENT
- Number of positions : 4

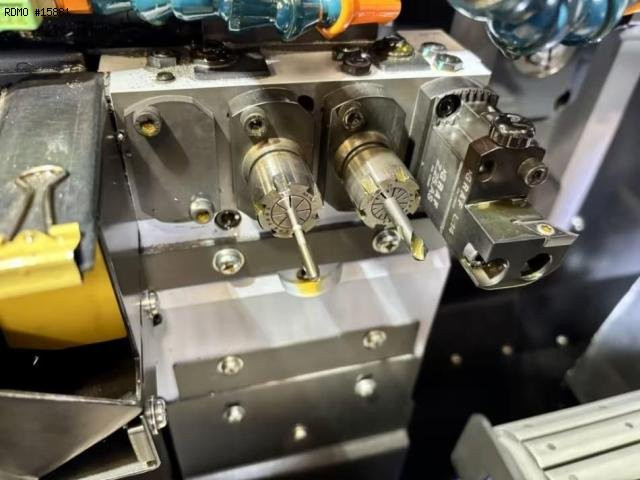

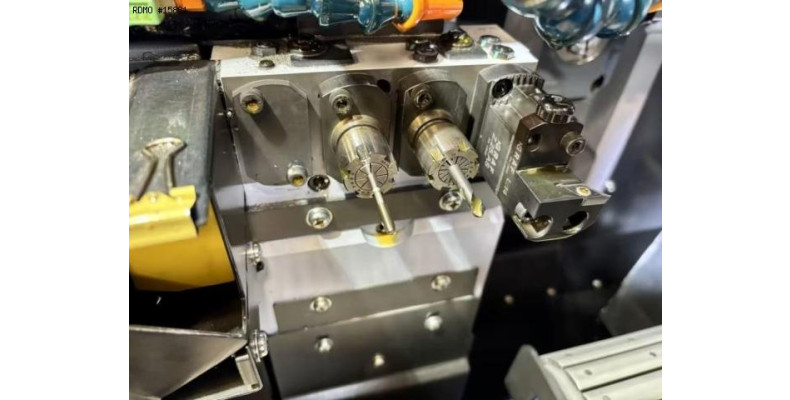

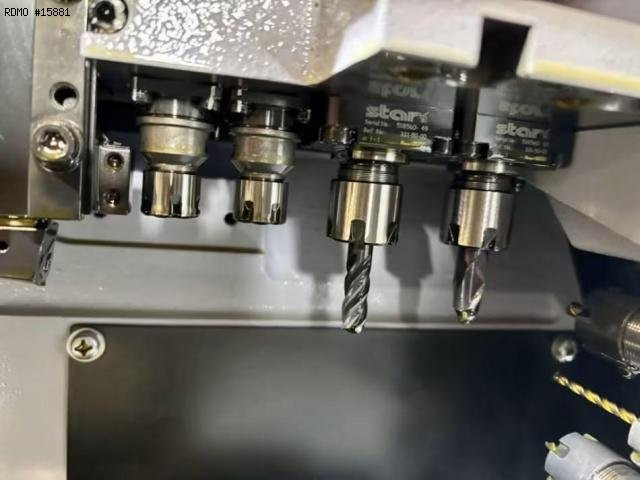

SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 3.7 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.070 x 1.177 [mm]
- Machine height : 1.760 [mm]
- Machine weight : 1750 [kg]

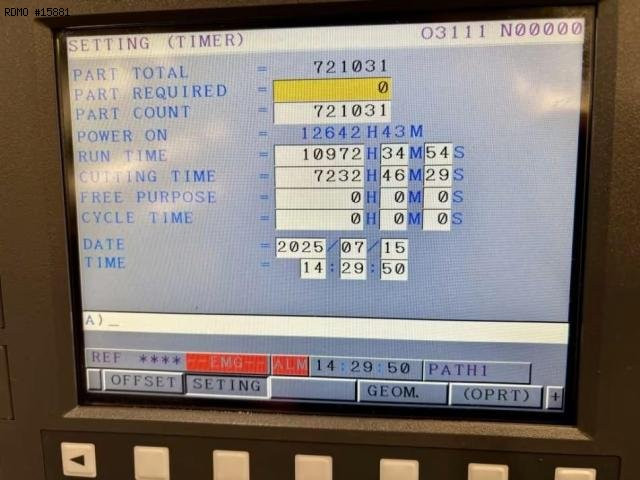

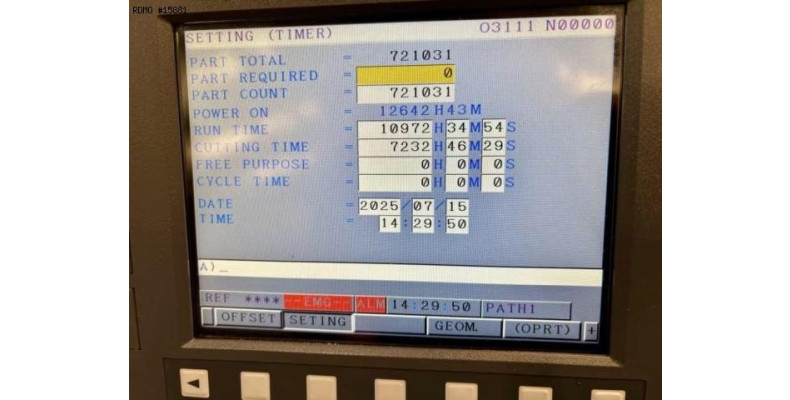

MACHINE HOURS
- Number of hours under power : 12642 [h]
- Number of working hours : 10972 [h]

Equipment

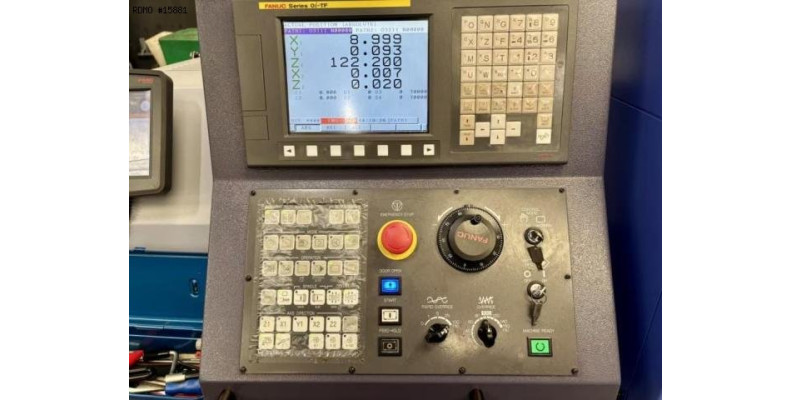

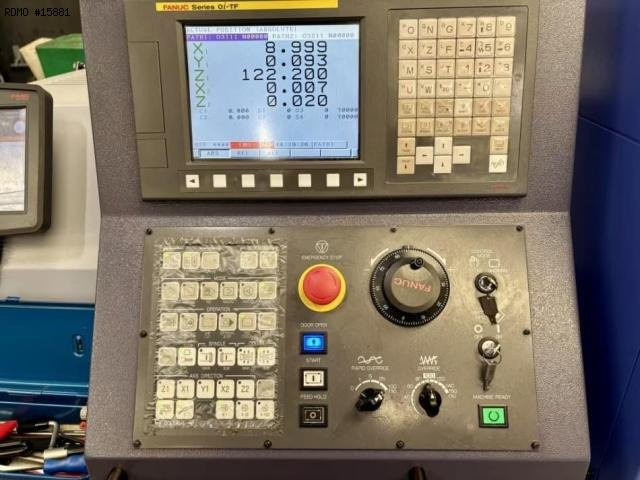

- CNC : Fanuc series Oi-TF
- 3 colors status lamp

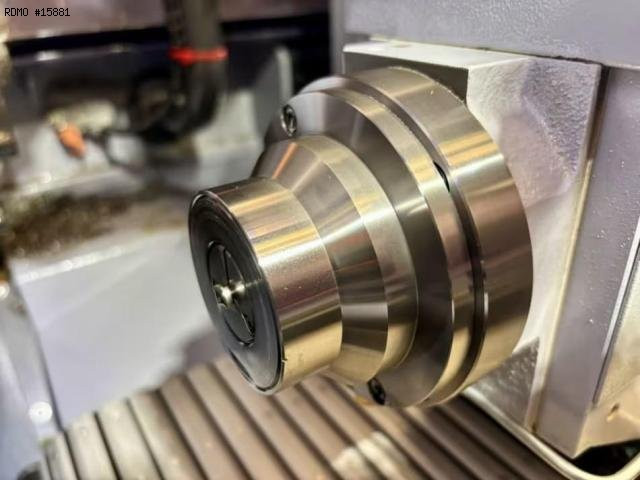

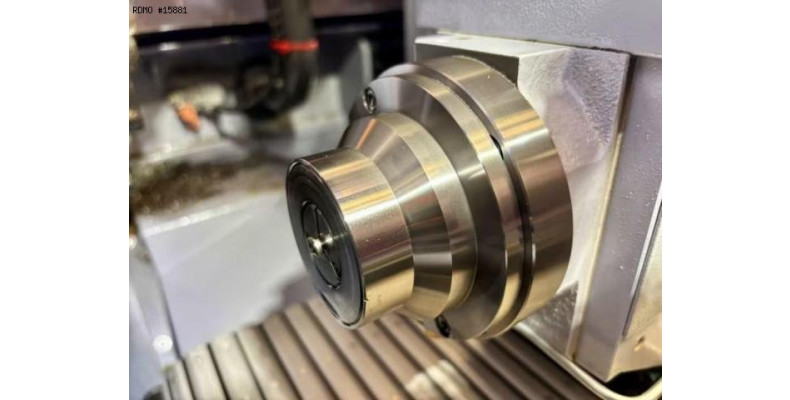

- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank

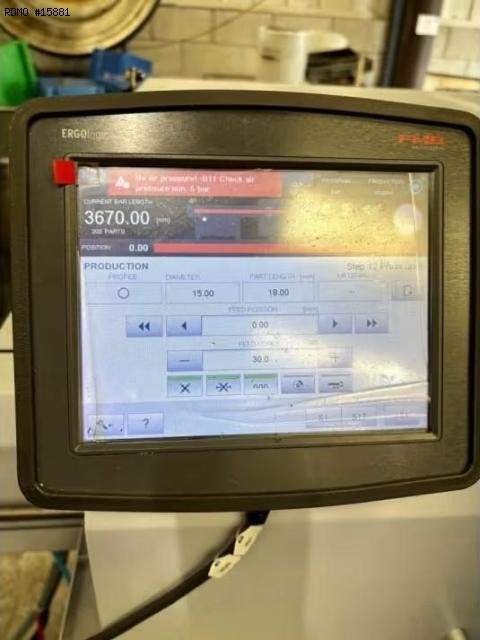

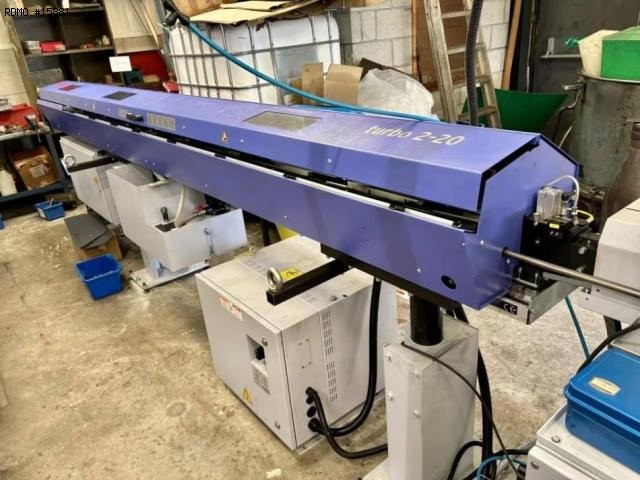

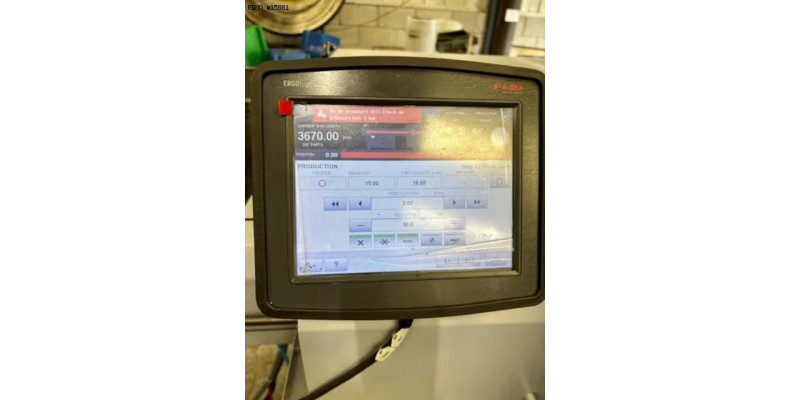

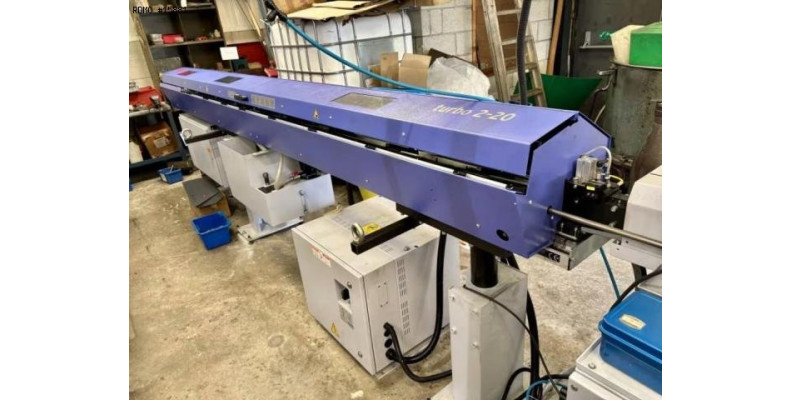

- Bar loader : FMB TURBO 2-20 / 3200 A

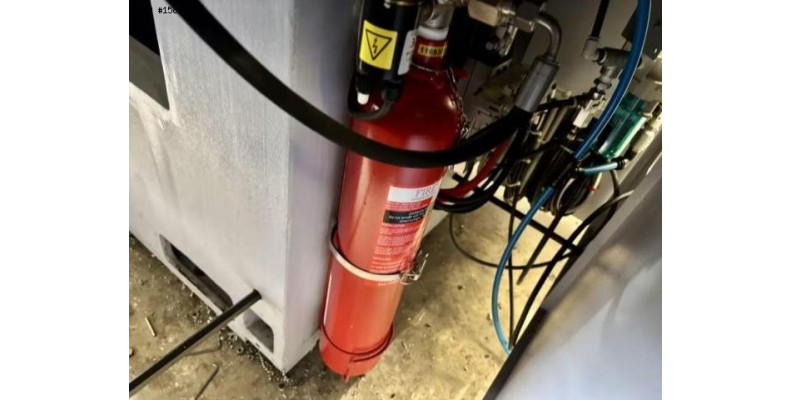

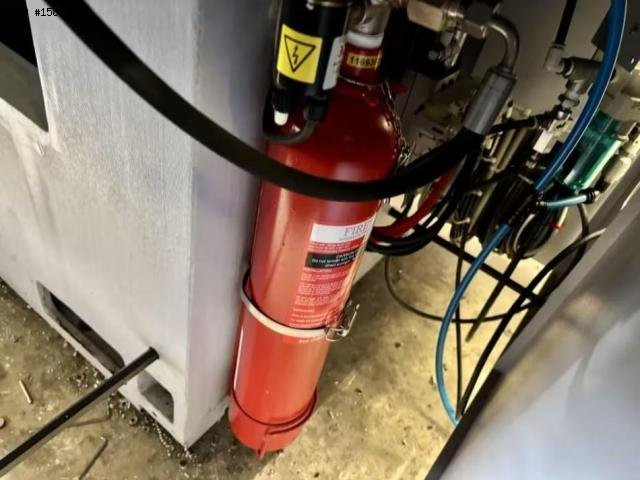

- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
