- Number of spindles : 6
- Number of counter-spindles : 1
SPINDLES
- Max. bar diameter : 40 [mm]
- Spindle speeds : 7000 [rpm]
- Spindle power : 13/24 [kW]
NUMERICAL AXES

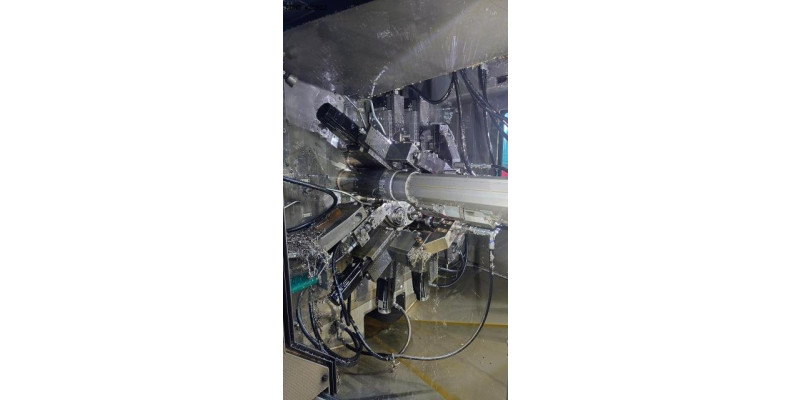

- Slide unit 1.1 : X and Z axes controlled by NC
- Slide unit 1.2 : X and Z axes controlled by NC
- Slide unit 2.1 : X and Z axes controlled by NC
- Slide unit 2.2 : X and Z axes controlled by NC
- Slide unit 3.1 : X and Z axes controlled by NC
- Slide unit 3.2 : X and Z axes controlled by NC
- Slide unit 4.1 : X and Z axes controlled by NC
- Slide unit 4.2 : X and Z axes controlled by NC
- Slide unit 5.1 : X and Z axes controlled by NC
- Slide unit 5.2 : X and Z axes controlled by NC
- Slide unit 6.1 : Z axis controlled by NC
- Slide unit 6.2 : X and Z axes controlled by NC
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 77 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3329 x 2032 [mm]
- Machine height : 2654 [mm]
- Machine weight : 7100 [kg]
MACHINE HOURS
- Number of working hours : 47580 [h]
Equipment

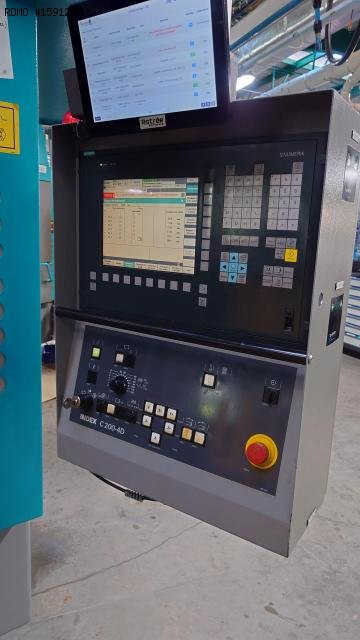

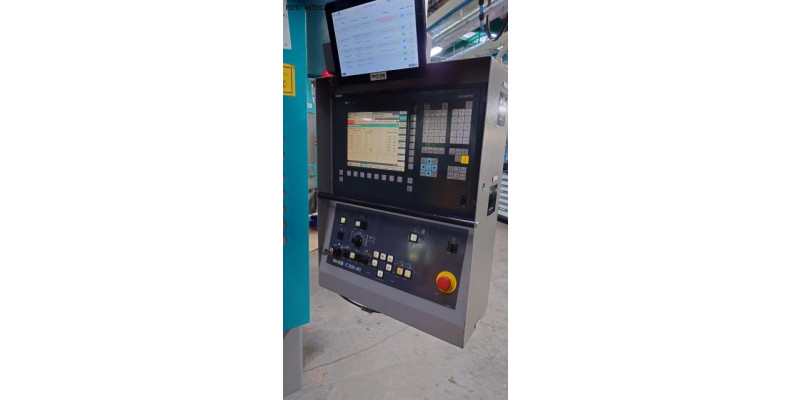

- CNC : Siemens 840D (Powerline)
- Double NCU
- 2 NC control panels
- Cutting force monitoring: ARTIS
- Chips conveyor
- Coolant tank
* with high-pressure pump : 40 [bars]

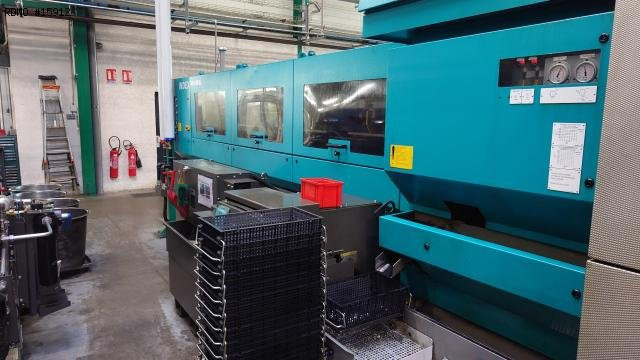

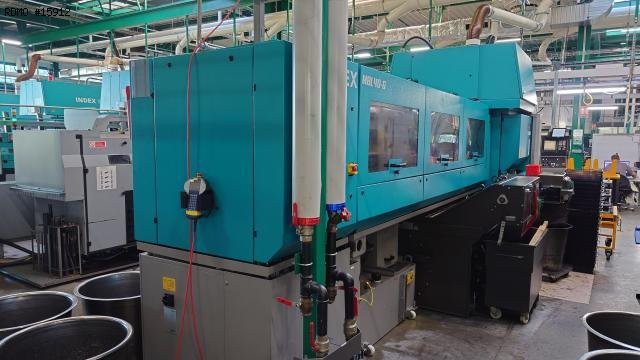

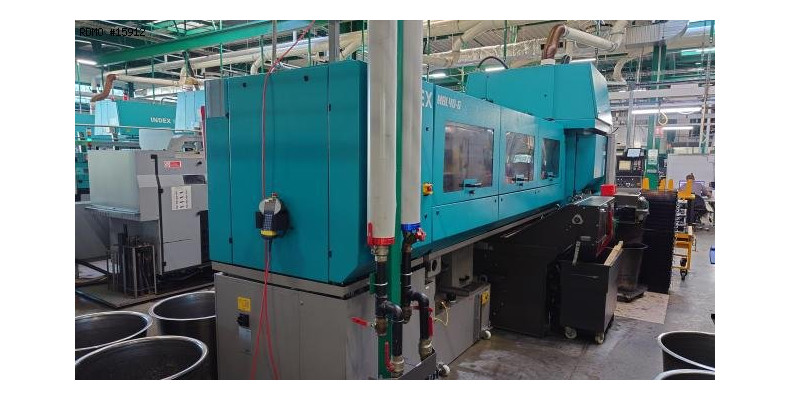

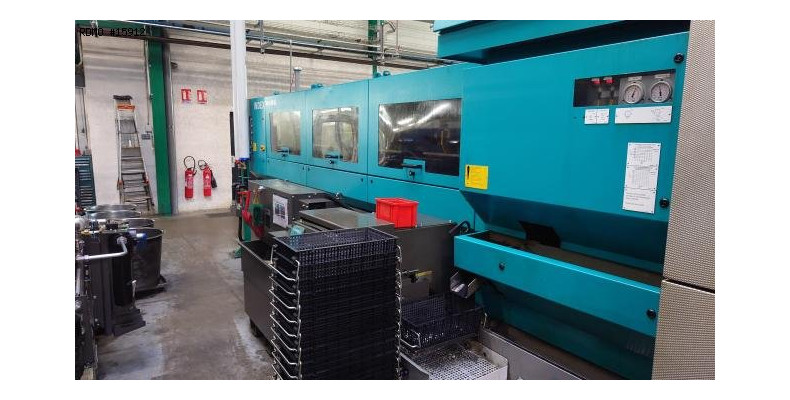

- Bar loader : Index MBL 40-6
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
