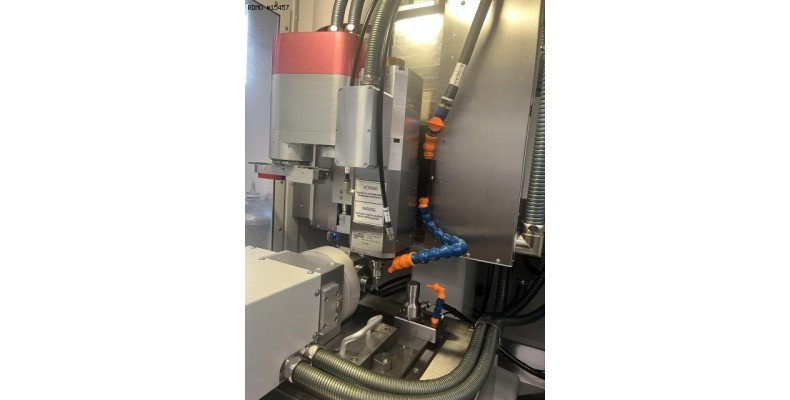

PRIMACON PFM 24 NGD 5 axis

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : HSK E-25
- Spindle power : 3.9 [kW]
- Spindle speeds : 40000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 240/240/240 [mm]
- Rapid traverses rates (X/Y/Z) : 12 [m/min]
A ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]
B ROTARY AXIS
- Travel : +30 / -120 [°]
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 80
- Tool exchange time : 5 [sec]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 7.7 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1.900 x 1.600 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 1000 [kg]
MACHINE HOURS
- Number of working hours : 12191 [h]

- CNC : HEIDENHAIN TNC 640
- Electronic handwheel
- Coolant tank
- Spindle cooling unit
