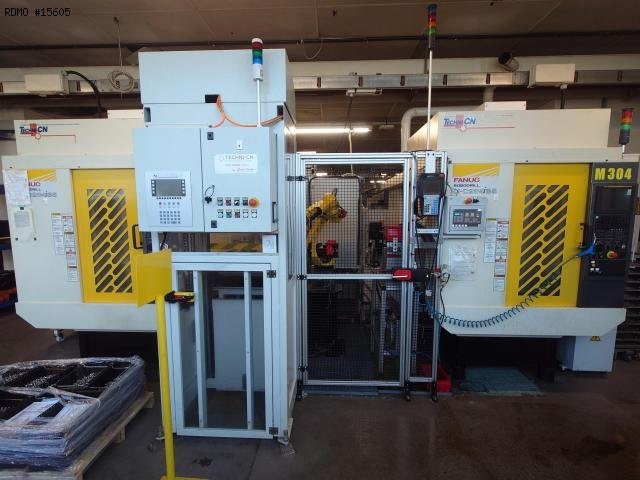

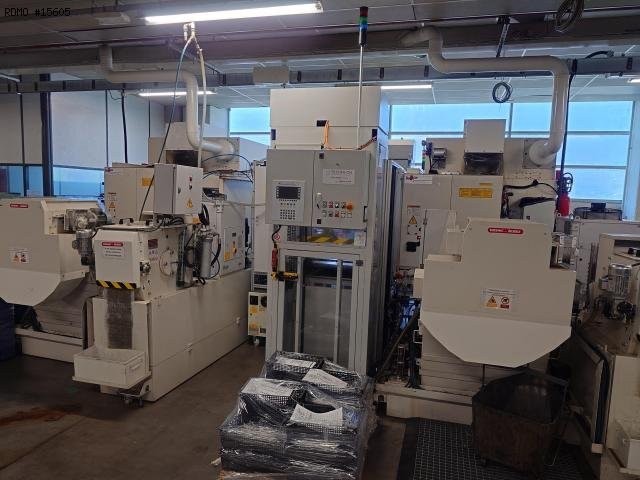

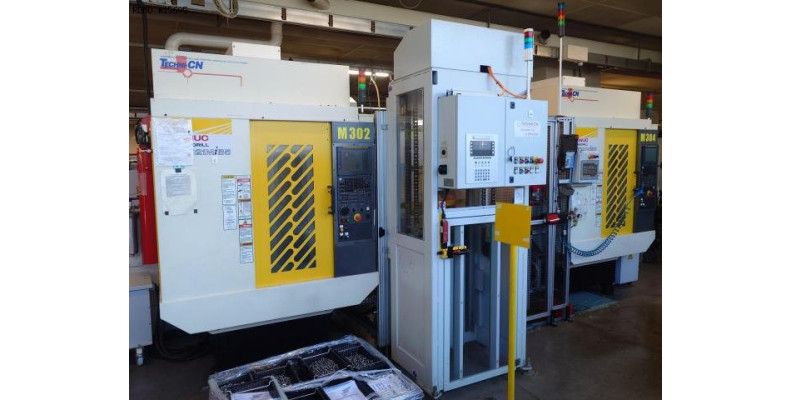

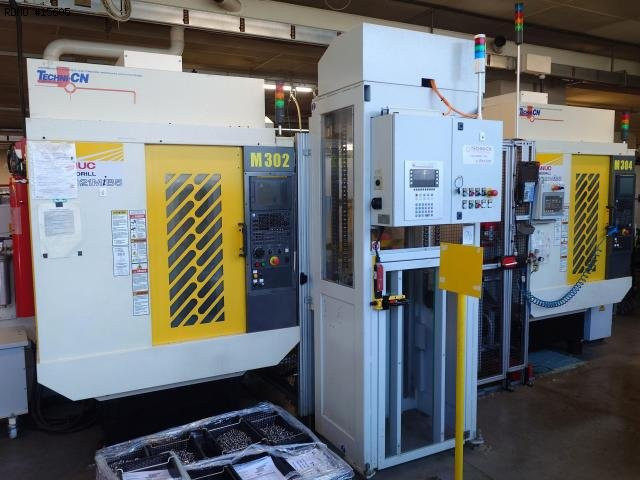

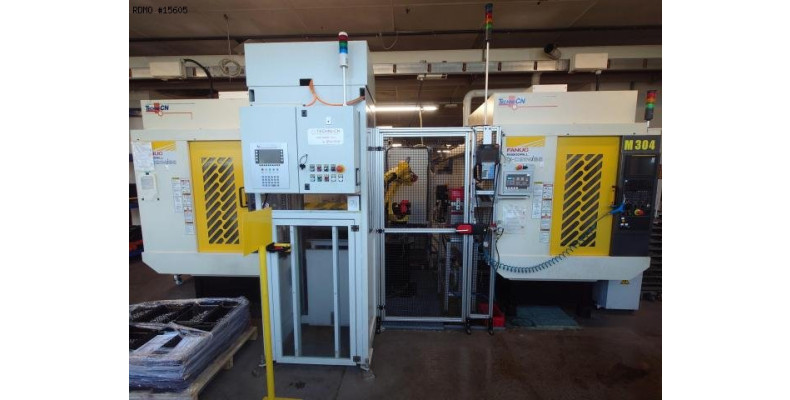

FANUC 2 x ROBODRILL ALPHA-D21MiB5 + Robot M-10iA 5 axis

Brand: FANUC
Model: 2 x ROBODRILL ALPHA-D21MiB5 + Robot M-10iA
Year: 2018
Serial: P187ZG823 + P187ZG824
15605
FANUC 2 x ROBODRILL ALPHA-D21MiB5 + Robot M-10iA 5 axis
Brand: FANUC
Model: 2 x ROBODRILL ALPHA-D21MiB5 + Robot M-10iA
Year: 2018
Serial: P187ZG823 + P187ZG824

Caracteristics & Equipment

Caracteristics
- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BBT 30 (Big-Plus)
- Spindle power : 12 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/400/330 [mm]
- Rapid traverses rates (X/Y/Z) : 54 [mm/min]
- Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min]

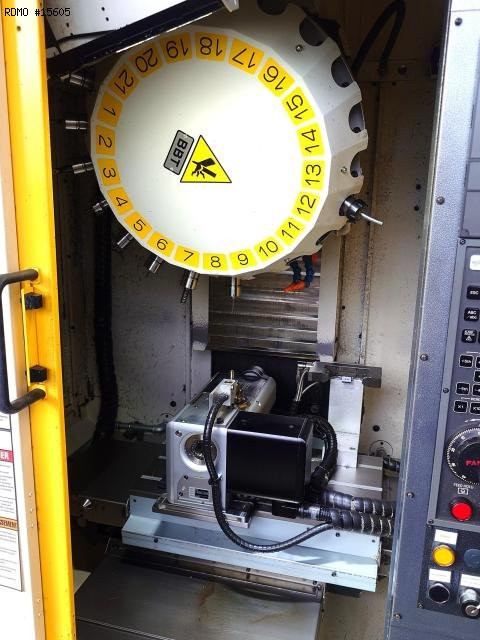

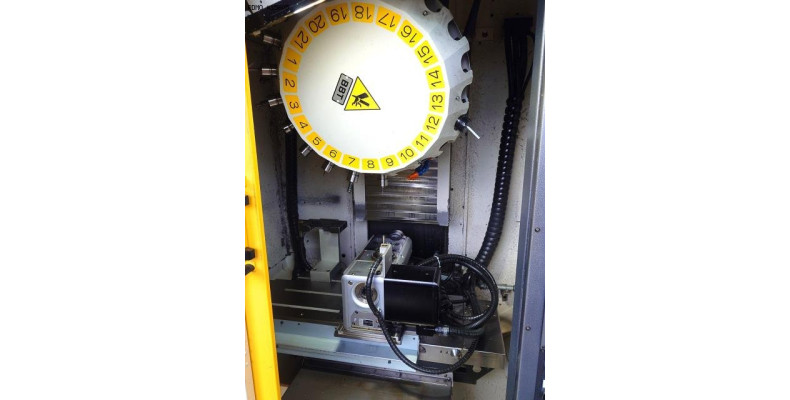

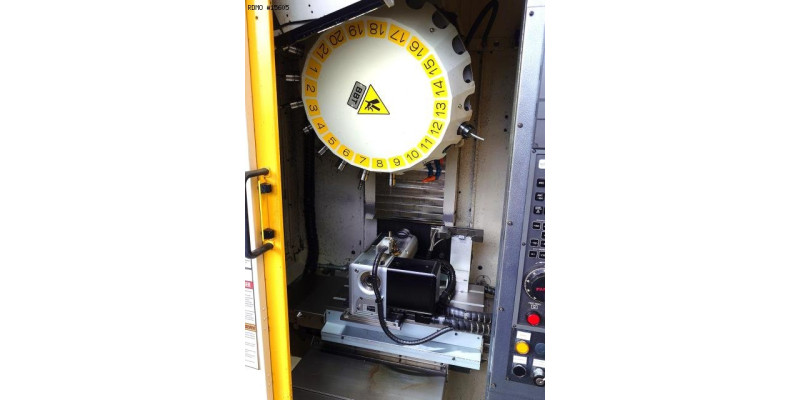

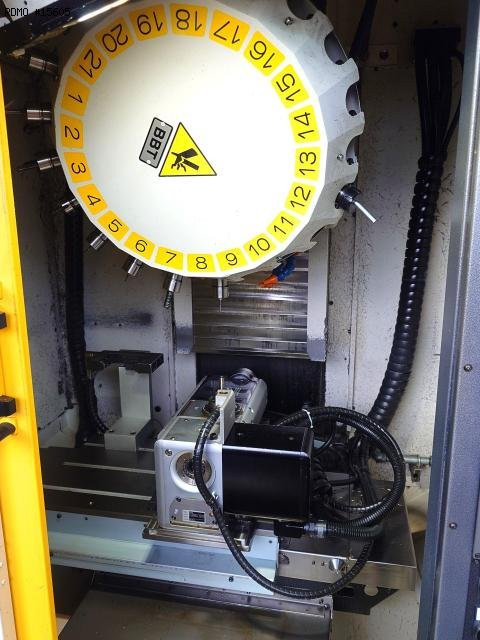

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 250 - 580 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1565 x 2027 [mm]
- Machine height : 2325 [mm]
- Machine weight : 2200 [kg]

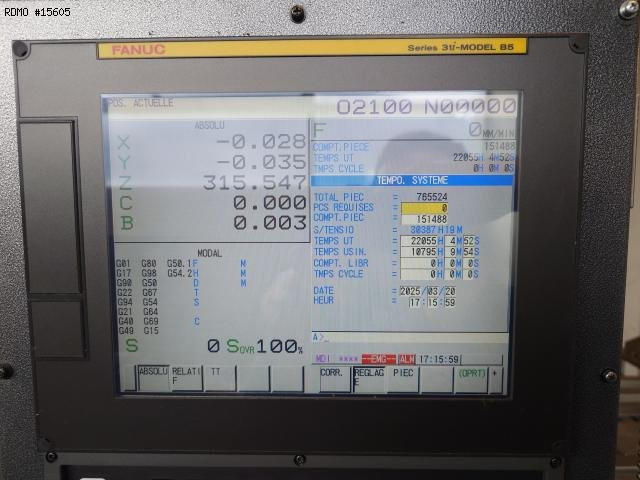

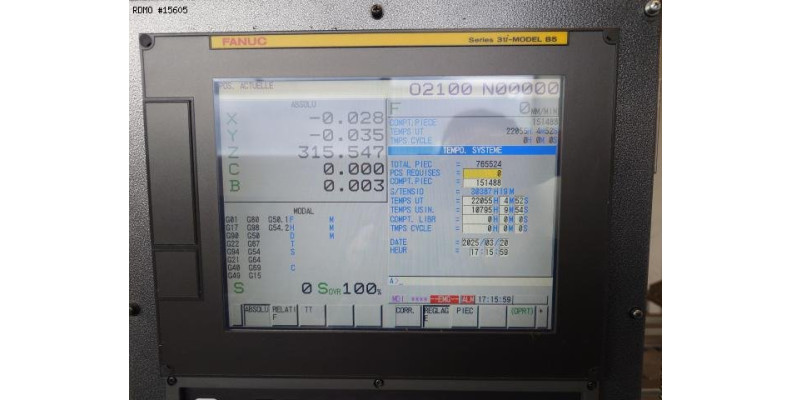

MACHINE HOURS
- Machine 1 : Number of hours under power : 30.387 [h]
- Machine 2 : Number of hours under power : 29.548 [h]
- Machine 1 : Number of working hours : 10.795 [h]
- Machine 2 : Number of working hours : 10.006 [h]
Equipment

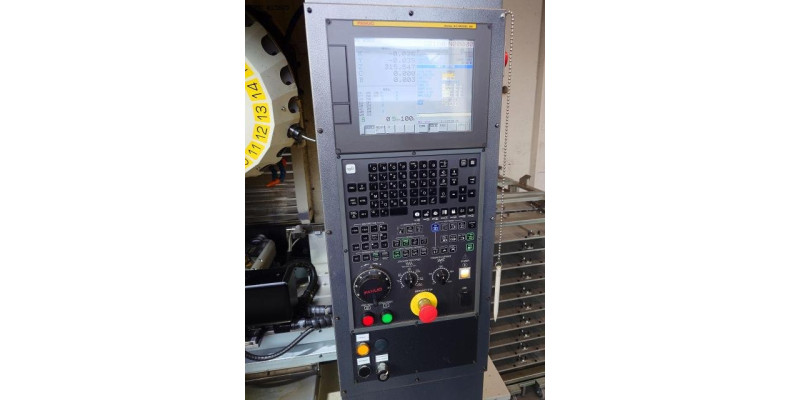

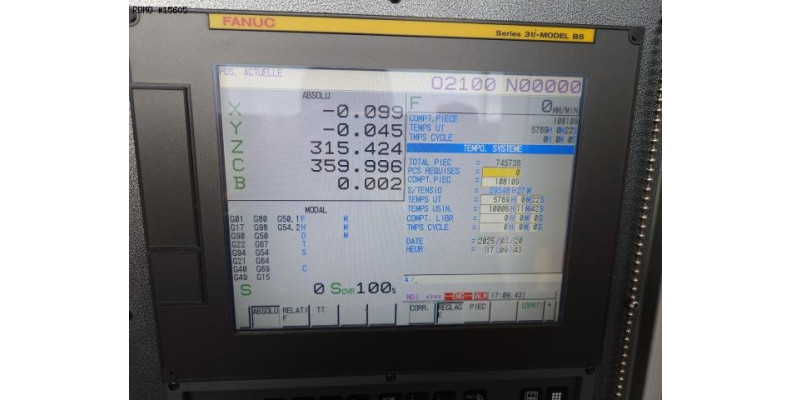

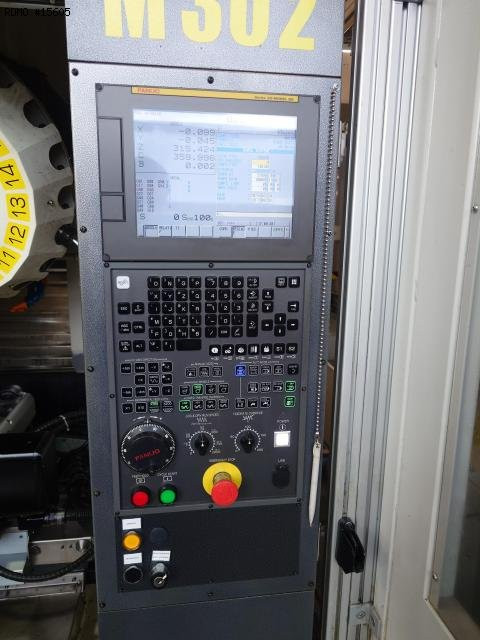

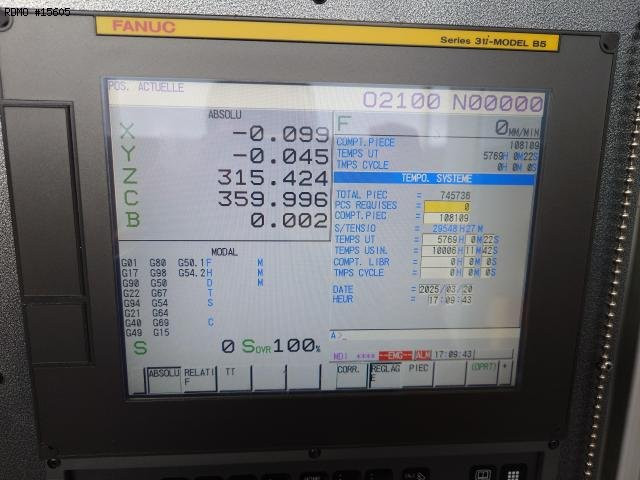

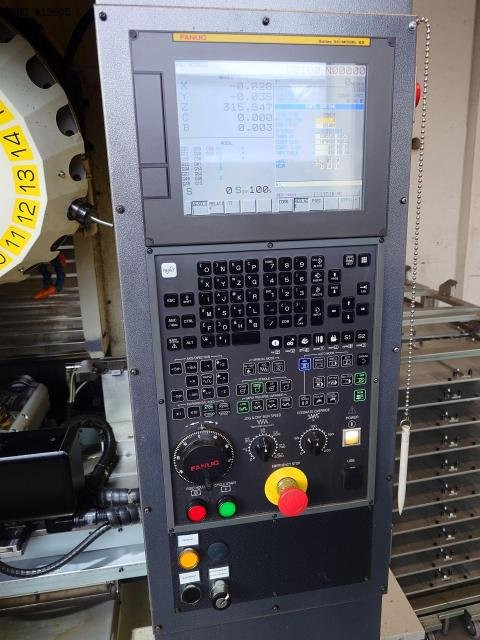

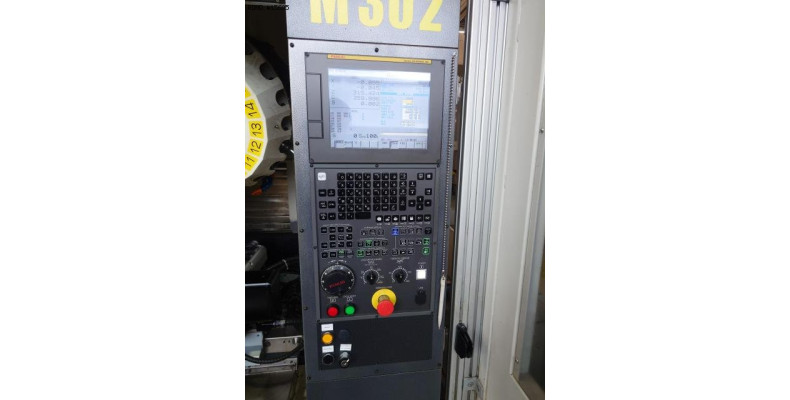

- CNC : Fanuc 31i-Model B5
- 3 colors status lamp

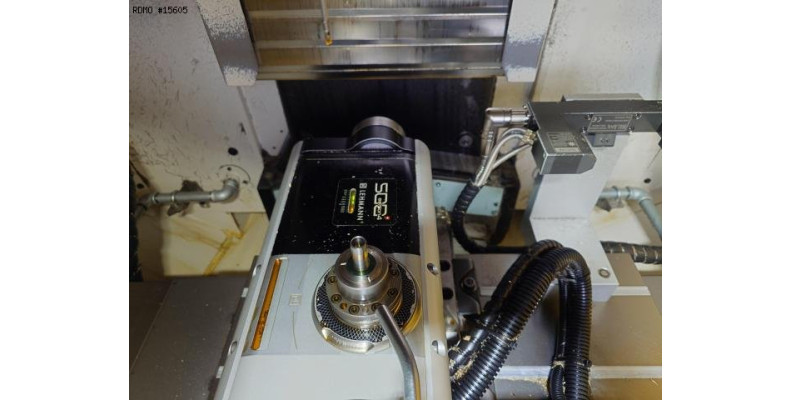

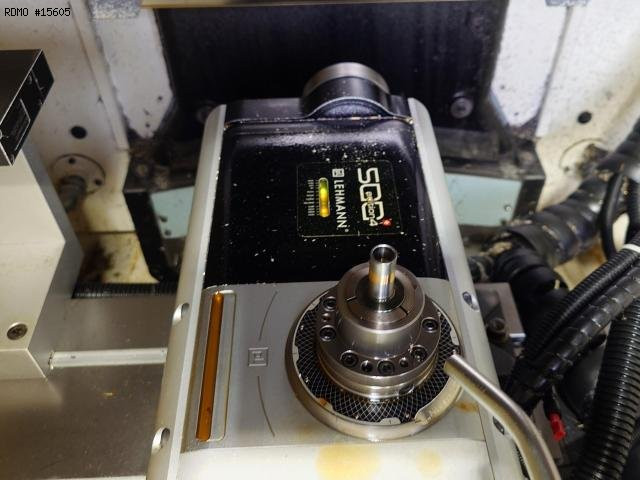

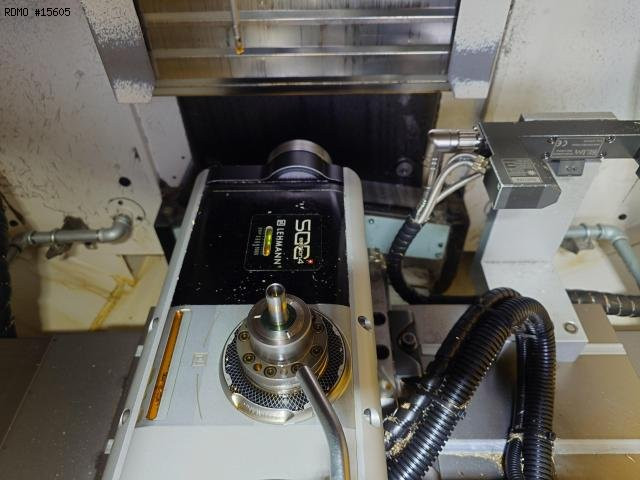

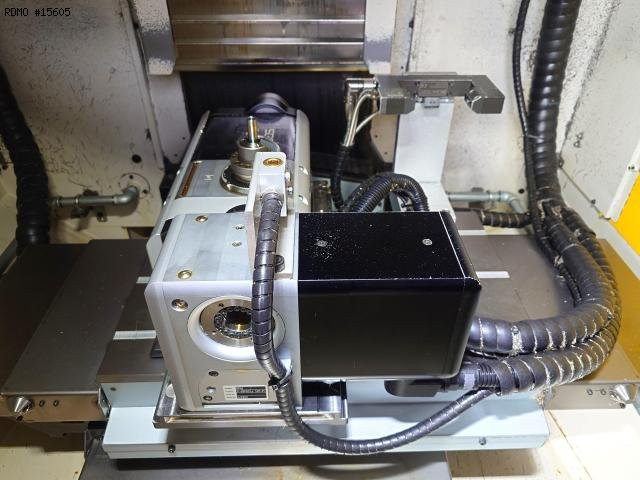

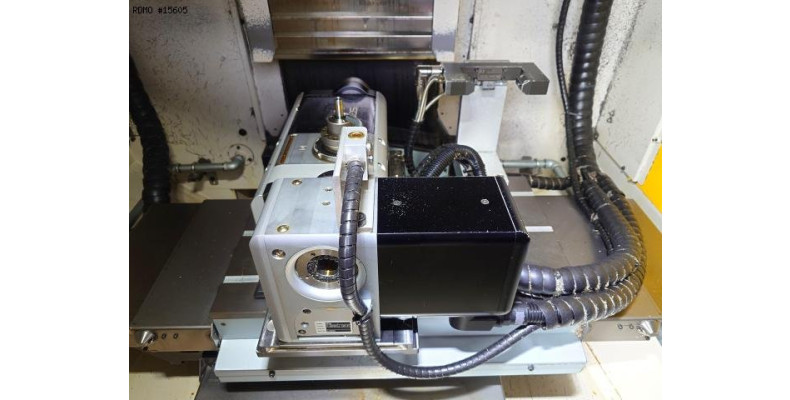

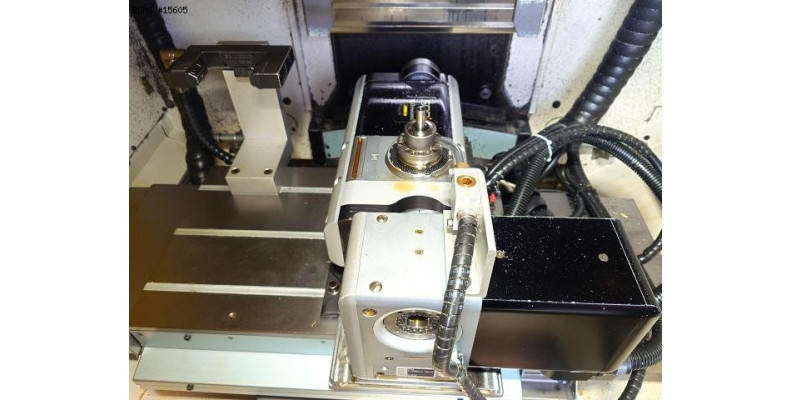

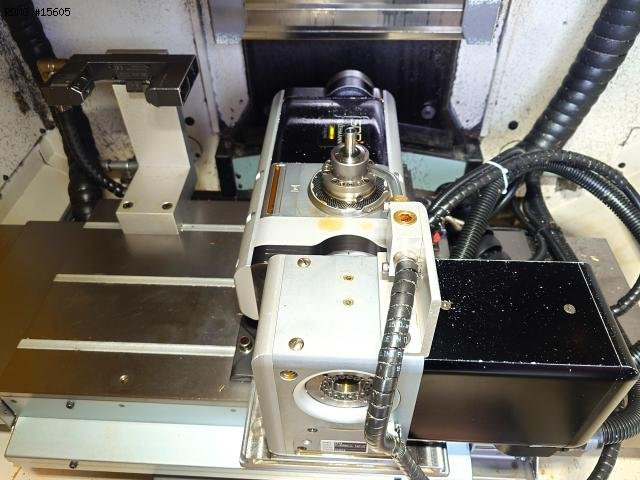

- Type of divisor : 4e axe CNC intégré

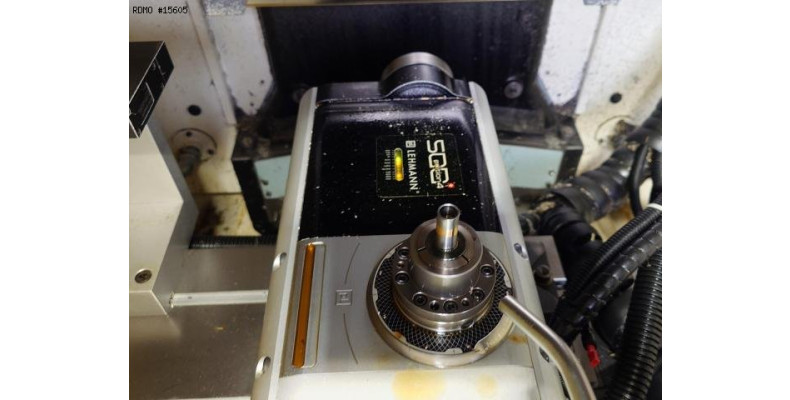

* manufacturer : LEHMANN
* model : Serie 500 Edition 4

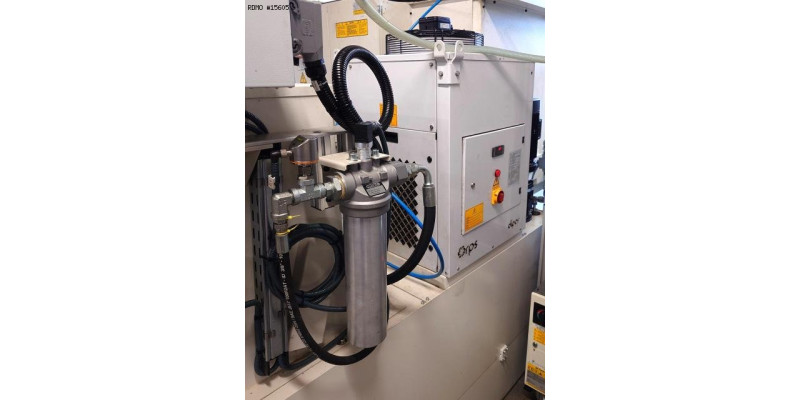

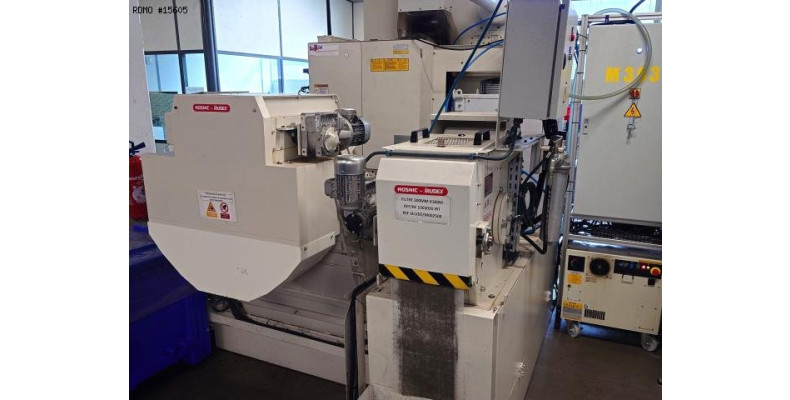

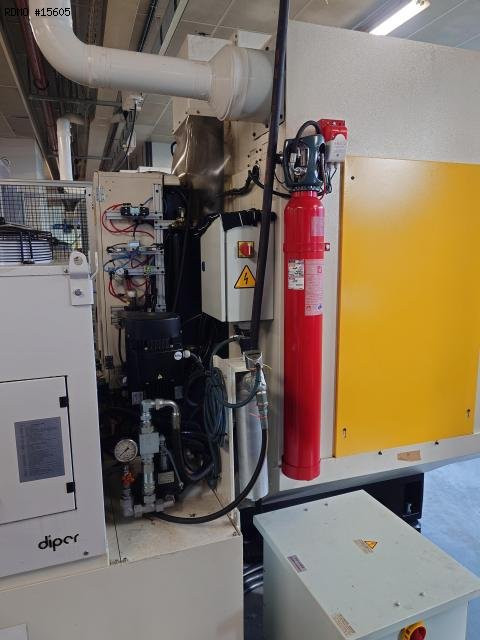

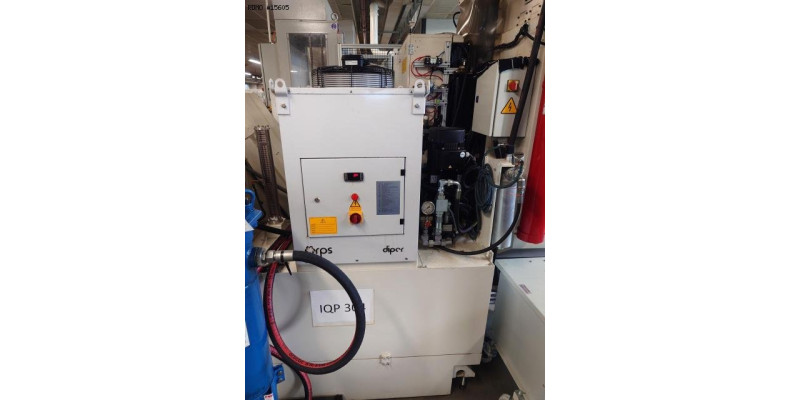

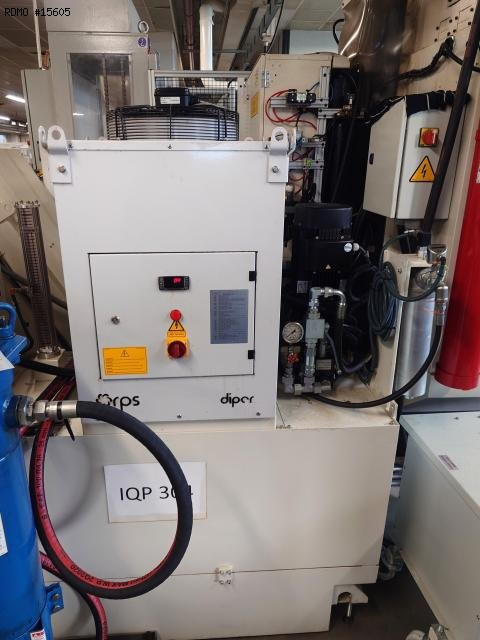

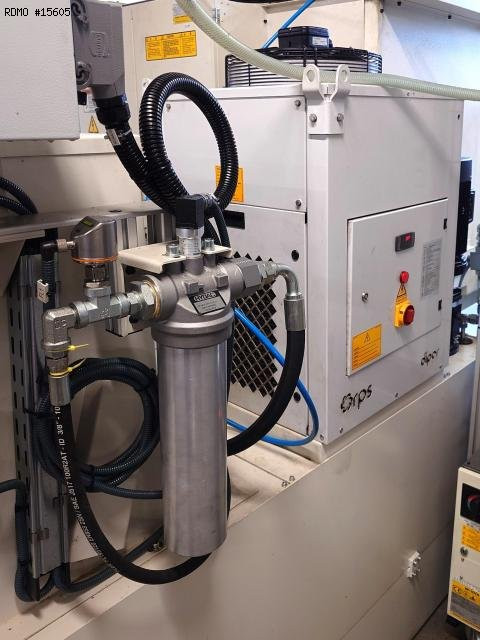

- Coolant tank
* with high-pressure pump

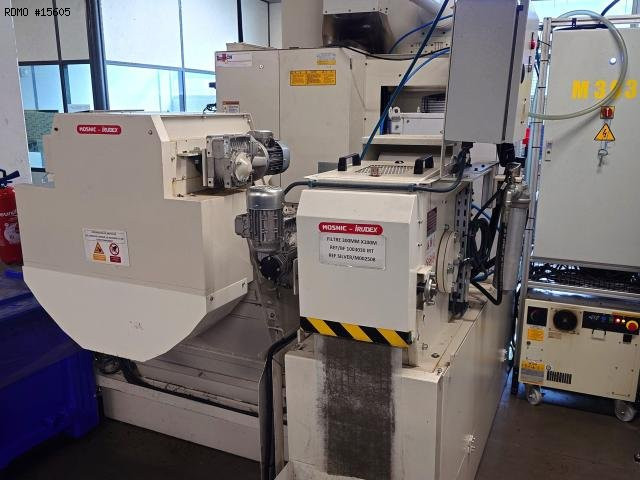

* with paper filtering unit
* with cooling unit for coolant
- Coolant through spindle

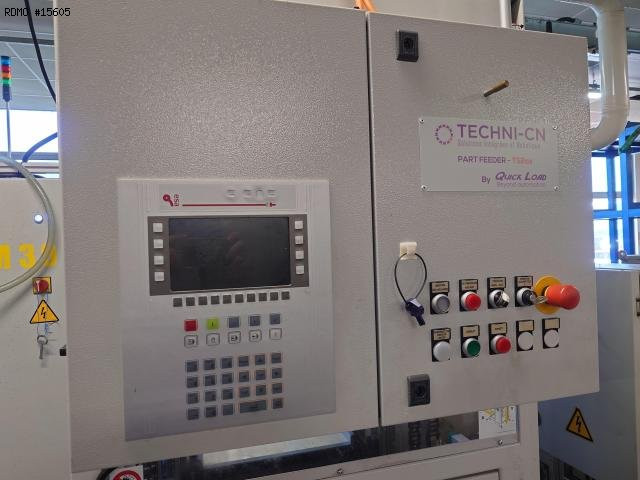

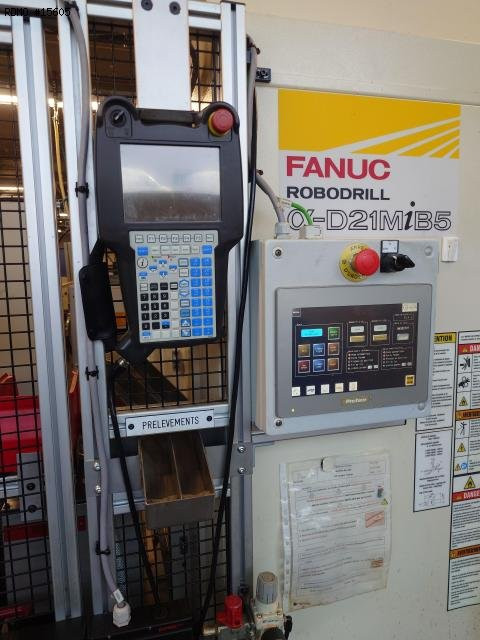

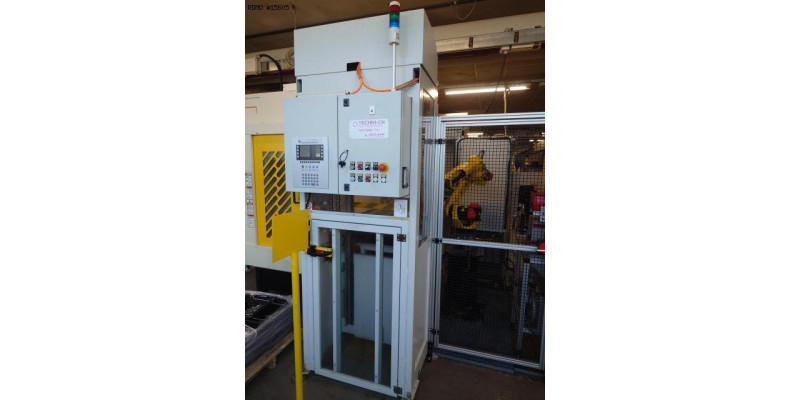

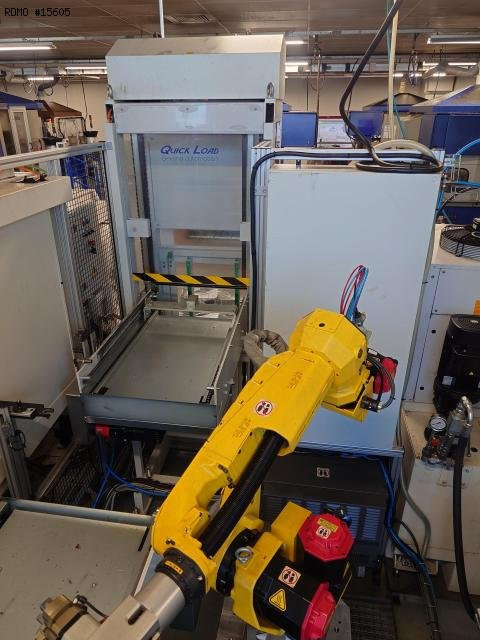

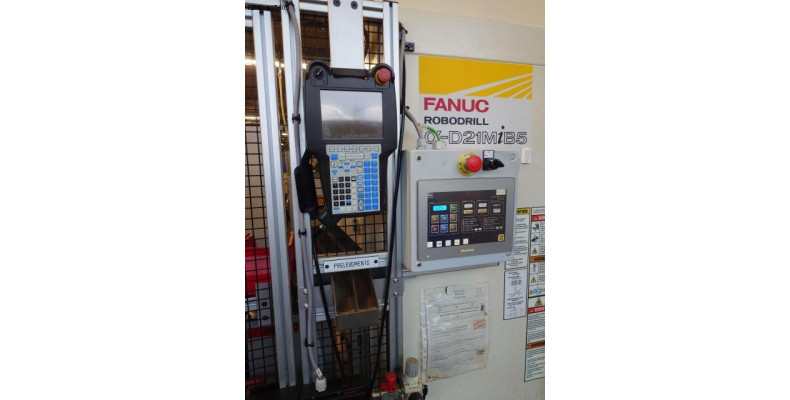

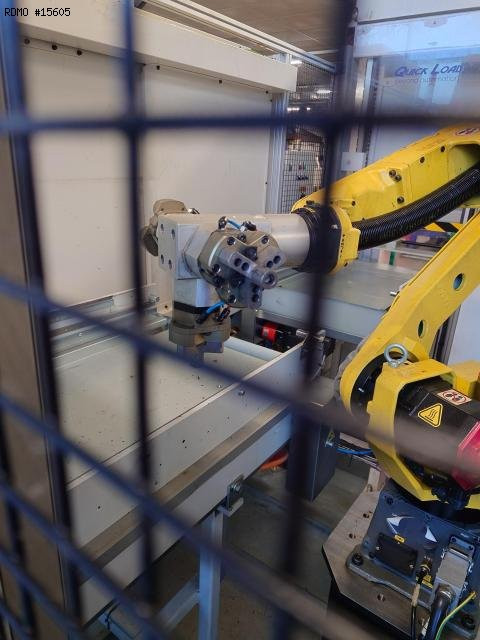

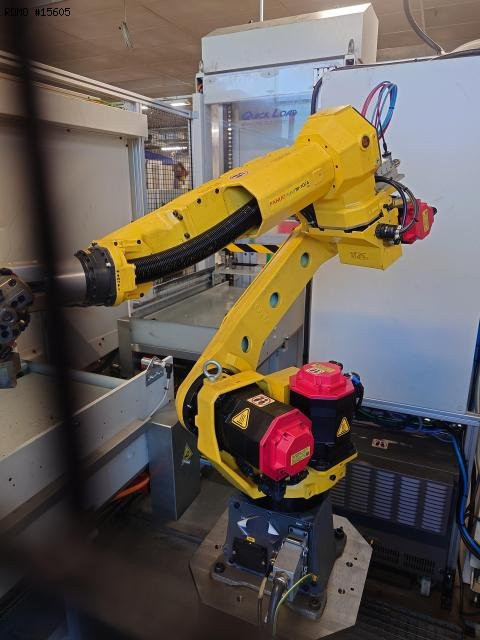

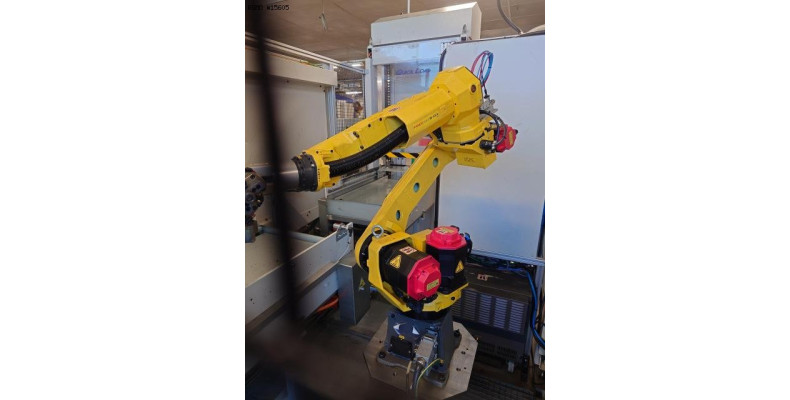

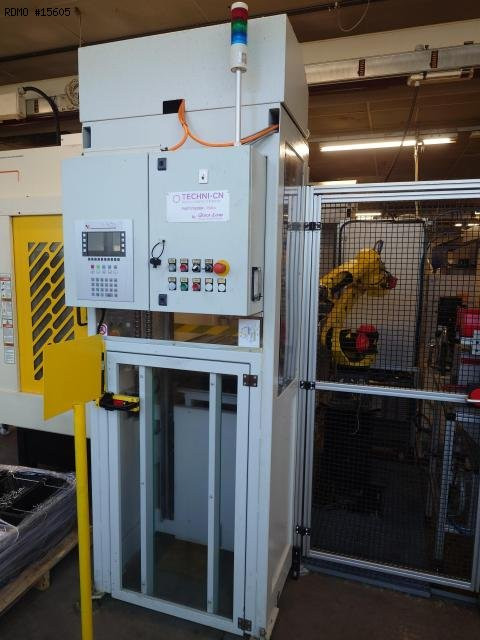

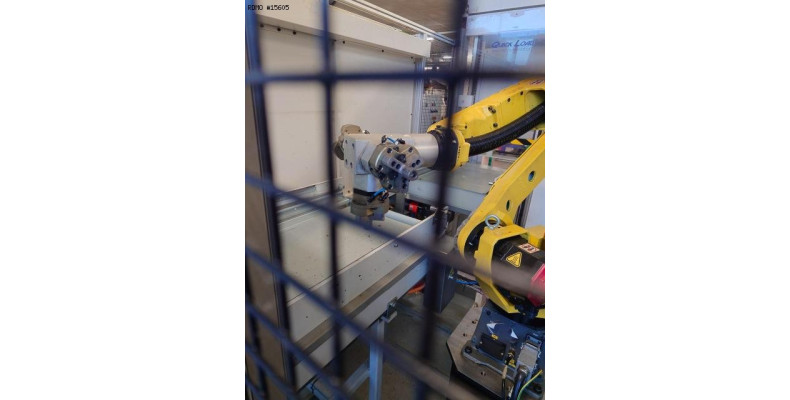

- Workpiece loading / unloading robot

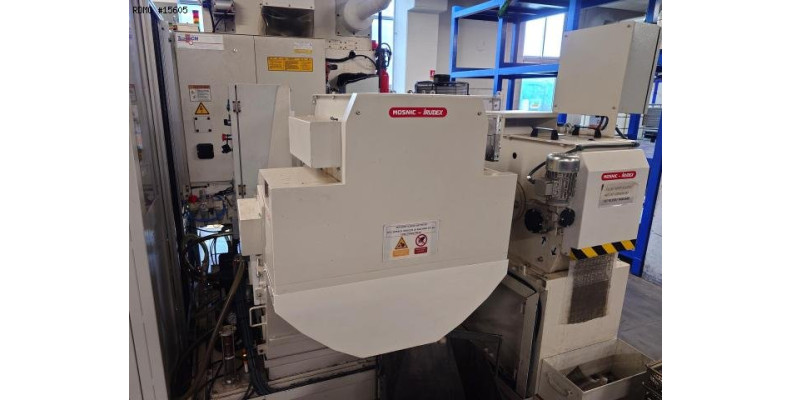

- Chips conveyor : ARRIERE

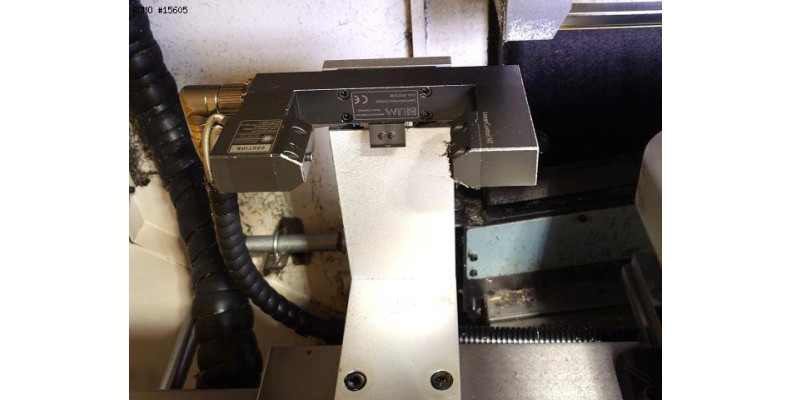

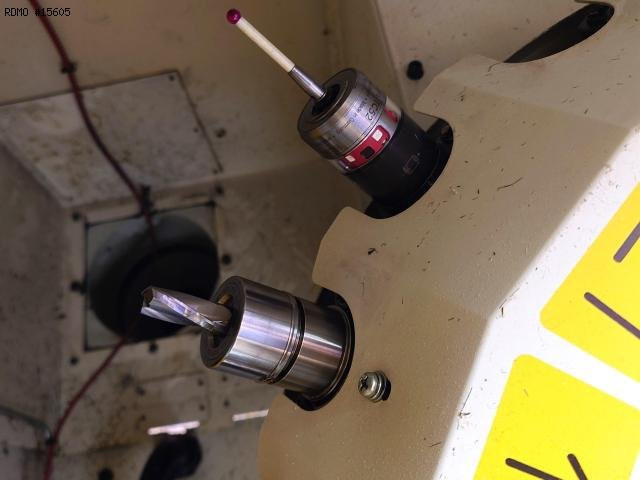

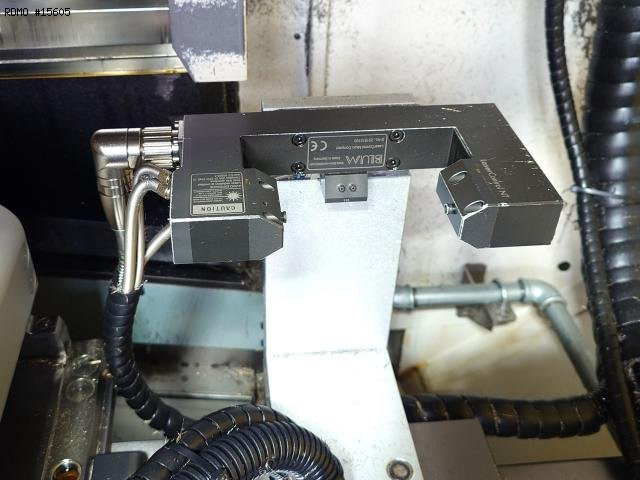

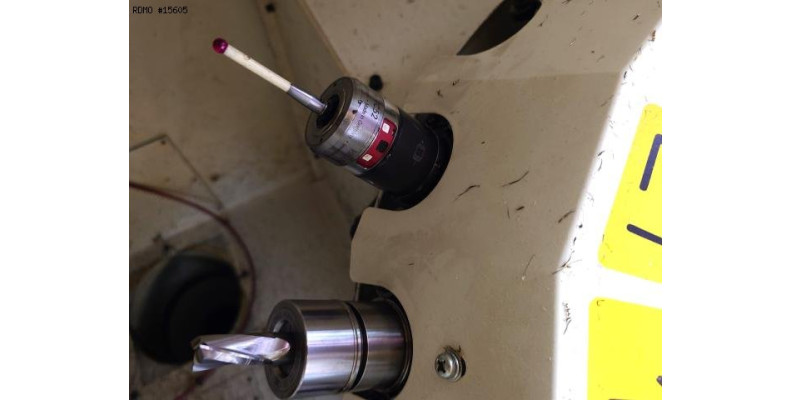

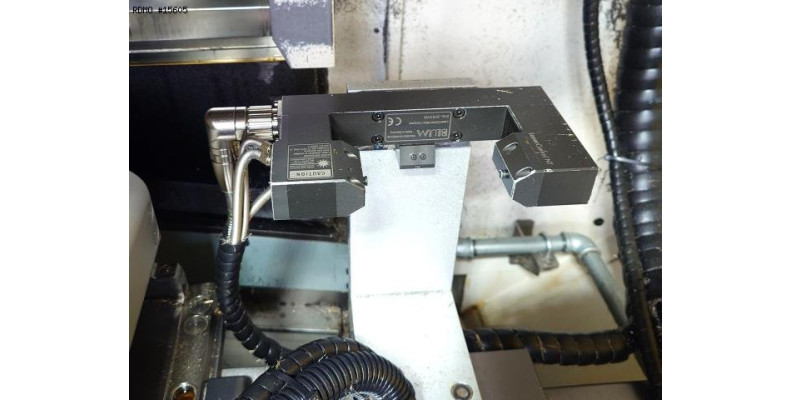

- Tool probe : BLUM

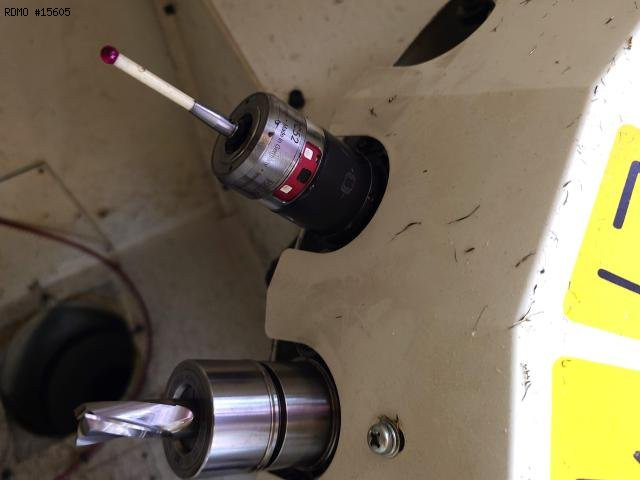

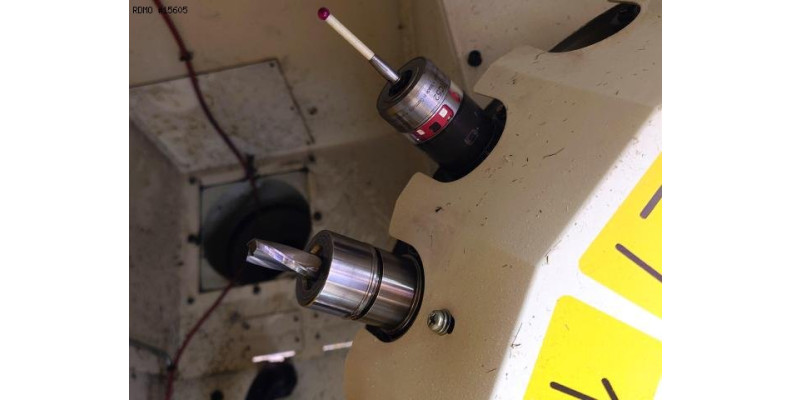

- Workpiece probe : BLUM

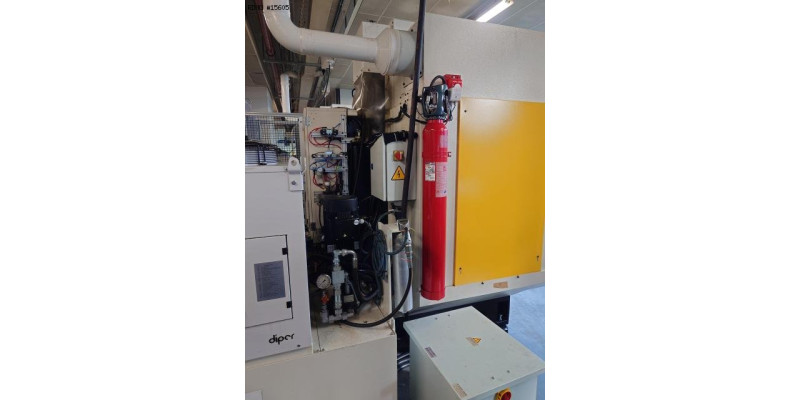

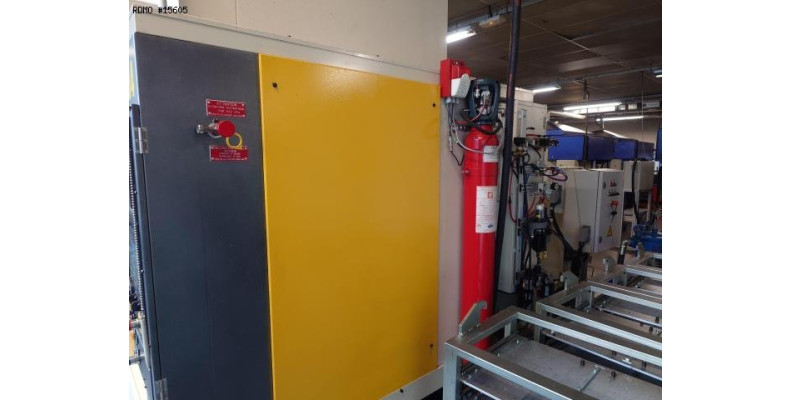

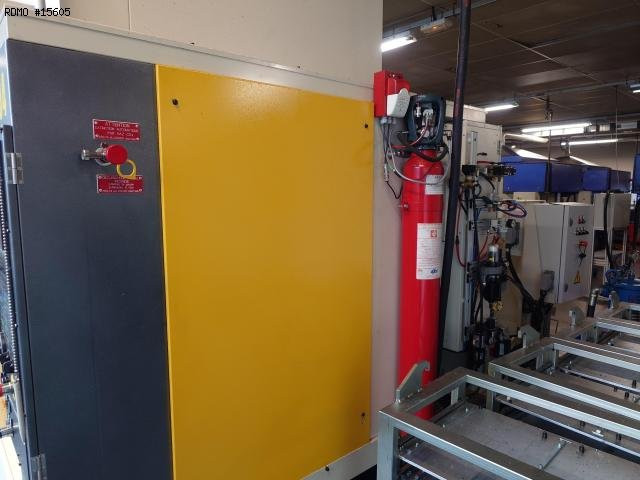

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

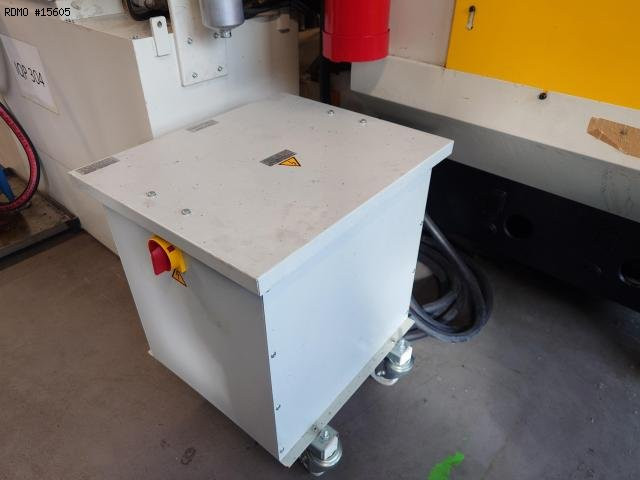

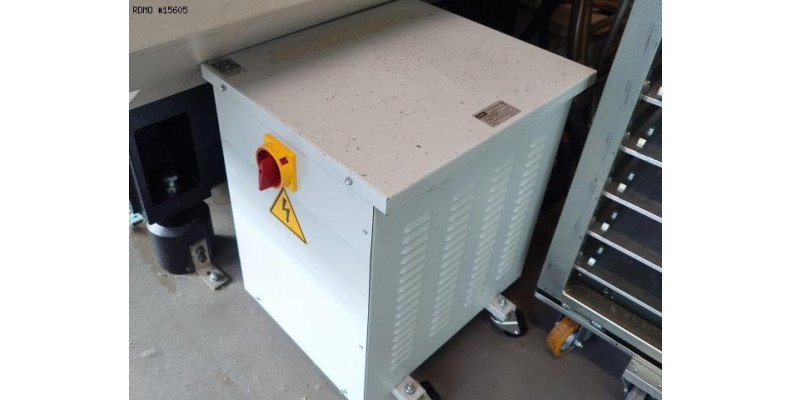

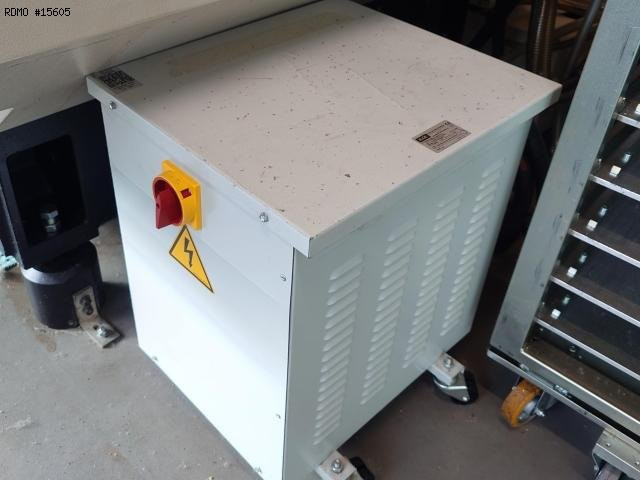

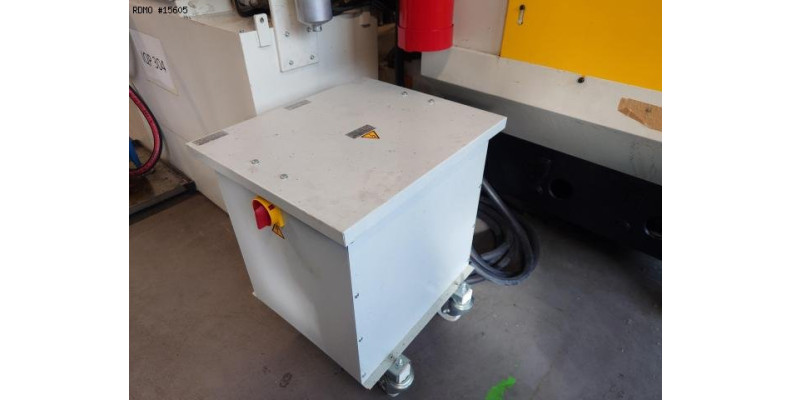

- Electric transformer
