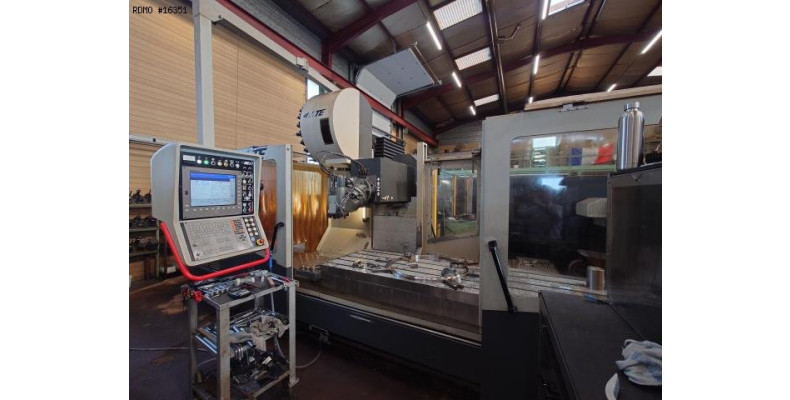

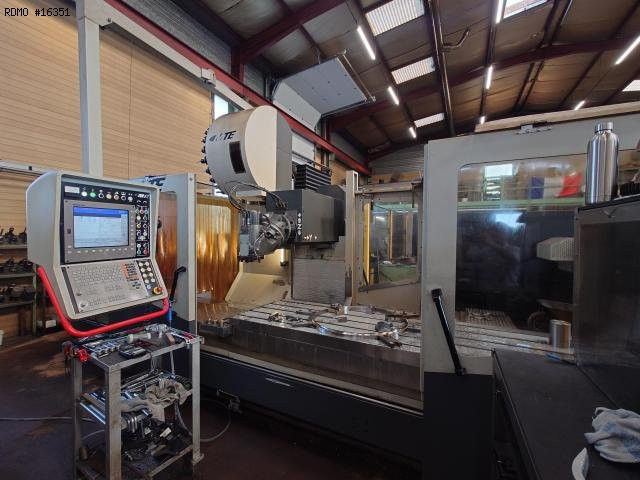

MTE K25 3 axis

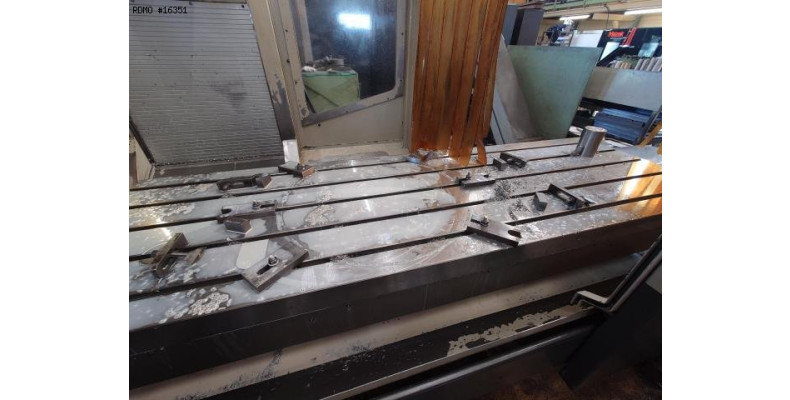

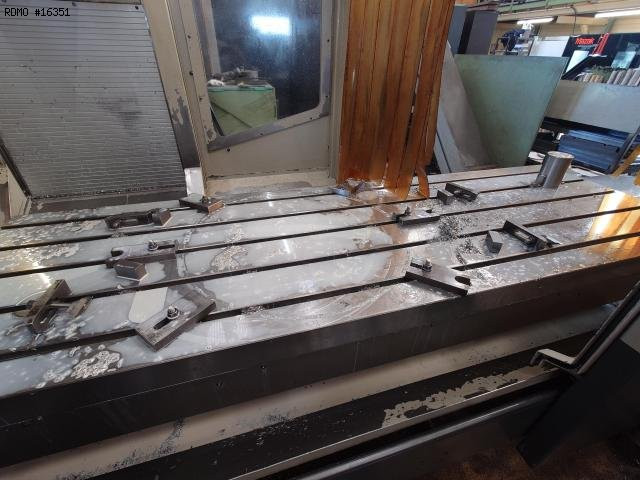

TABLE
- Table dimensions : 2700/850 [mm]
- Maximum weight upon table : 6000 [kg]
- Travels on X/Y/Z axes : 2500/1000/1100 [mm]
- Rapid traverses rates (X/Y/Z) : 15 [mm/min]

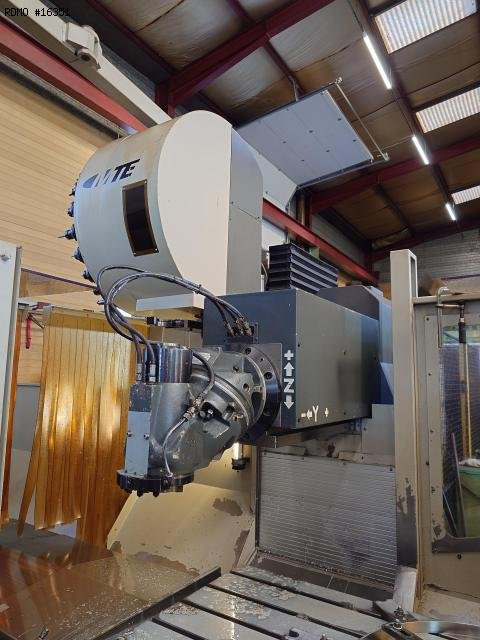

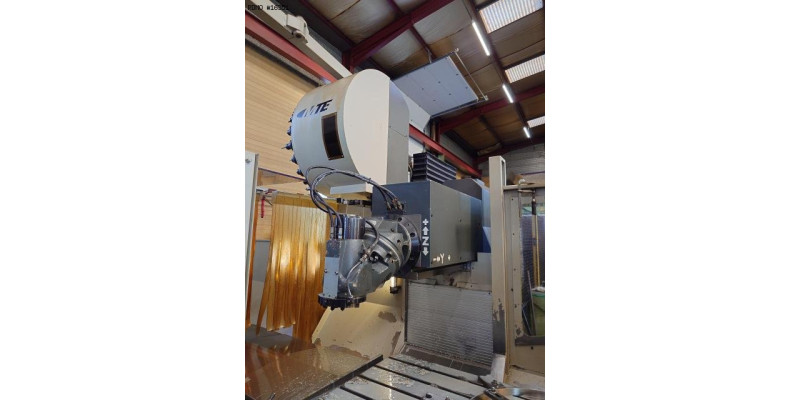

MILLING HEAD
Manual head
MILLING SPINDLE
- Tool holder type : ISO50
* Spindle speeds : 3000 [rpm]
* Spindle power : 25 [kW]

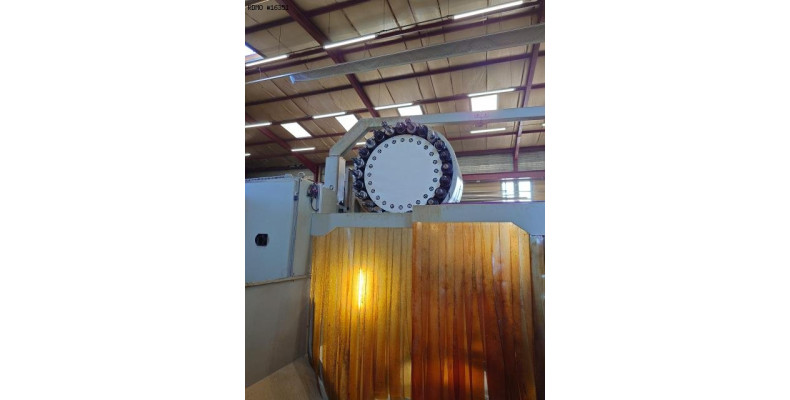

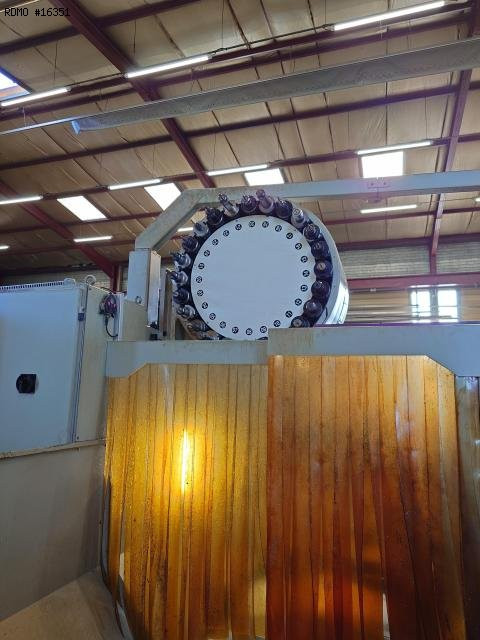

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 24
WEIGHT & DIMENSIONS
- Machine floor space : 6820/3800 [mm]
- Machine height : 2870 [mm]
- Machine weight : 12500 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 38 [kW]

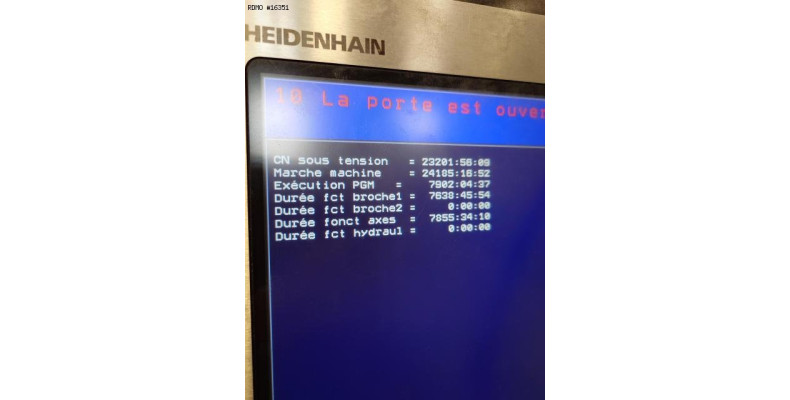

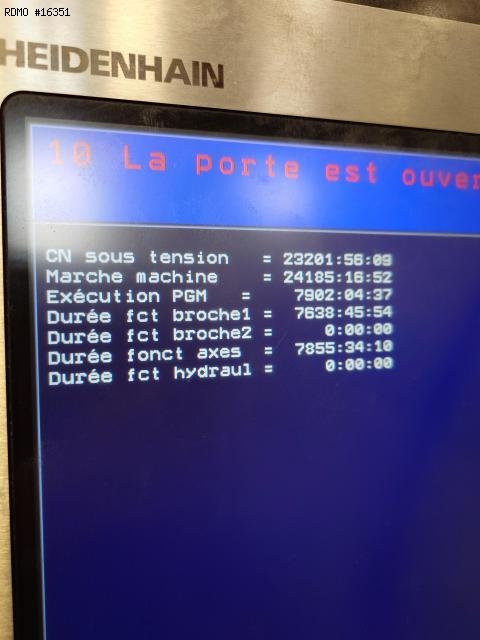

MACHINE HOURS
- Number of hours under power : 23201 [h]
- Number of working hours : 7902 [h]
- Number of spindle hours : 7638 [h]

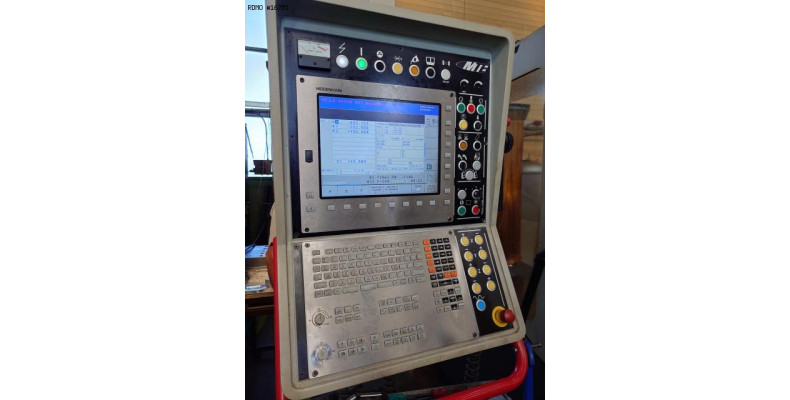

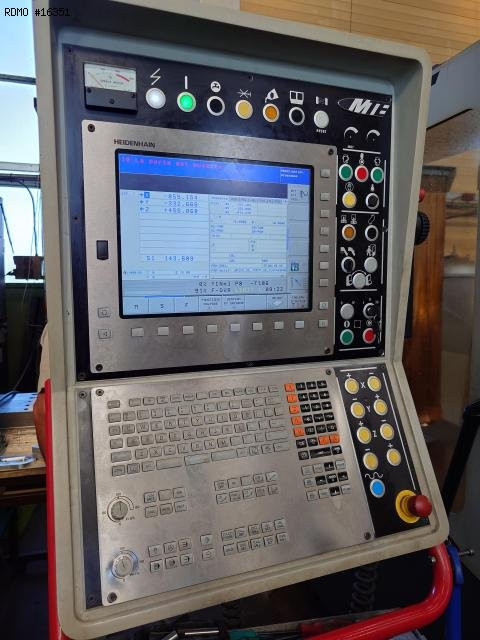

- CNC : Heidenhain iTNC530
Interface : RS232/RJ45/USB
- Interactive programming

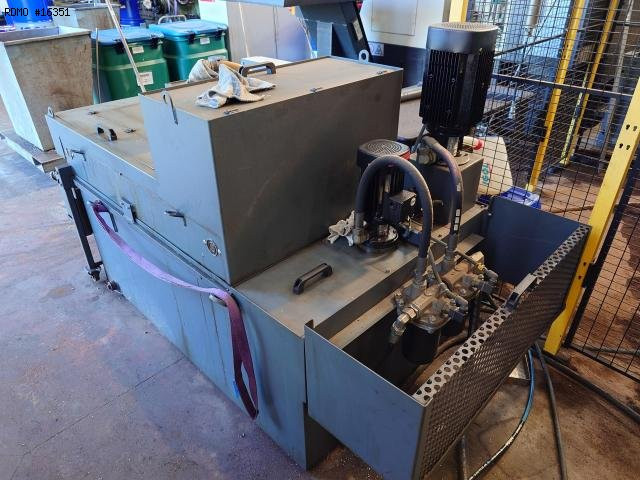

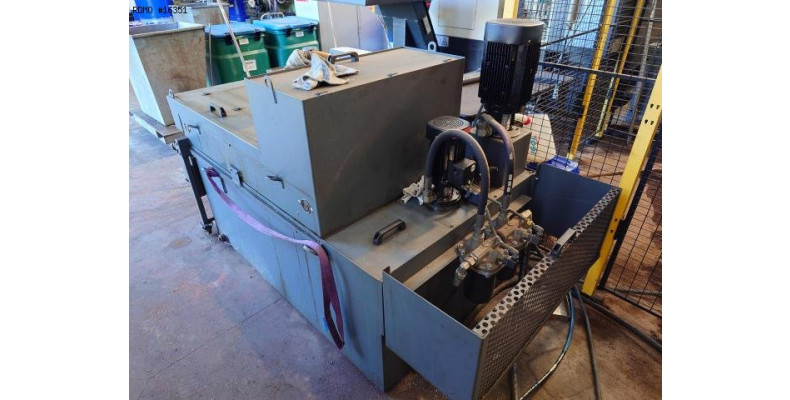

- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle
- Chips conveyor
