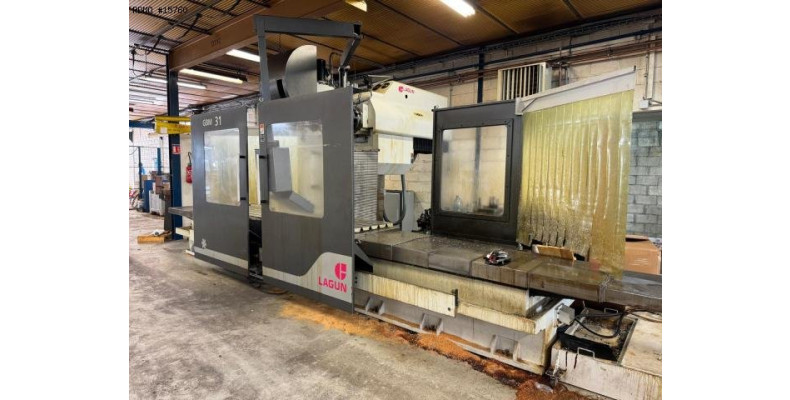

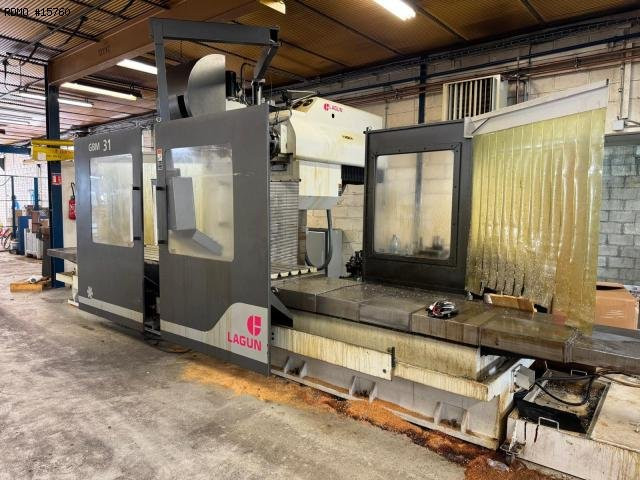

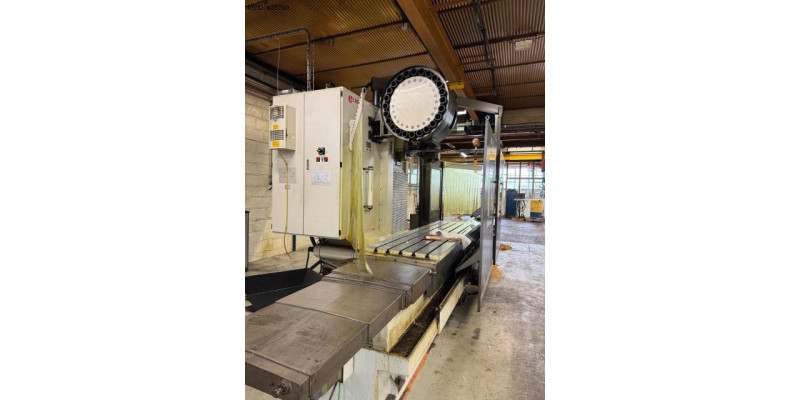

LAGUN GBM 31 3 axis

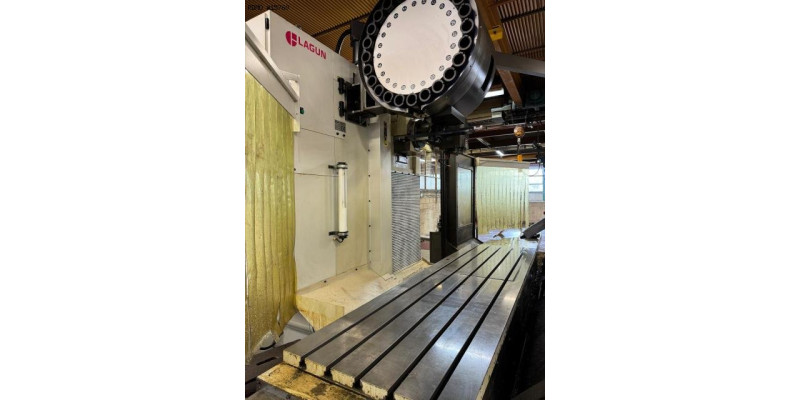

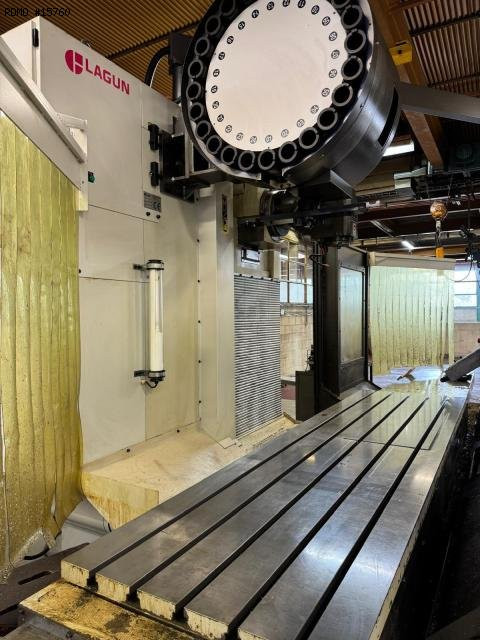

TABLE
- Table dimensions : 3100/800 [mm]
- Maximum weight upon table : 7000 [kg]
- Travels on X/Y/Z axes : 3000/1000/1200 [mm]
- Rapid traverses rates (X/Y/Z) : 15000/15000/15000 [mm/min]
MILLING HEAD
Manual head
MILLING SPINDLE
- Tool holder type : ISO50
* Spindle speeds : 4000 [rpm]
* Spindle power : 27 [kW]

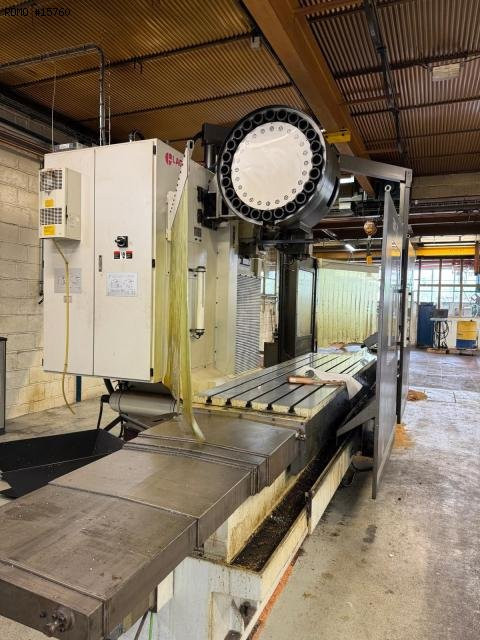

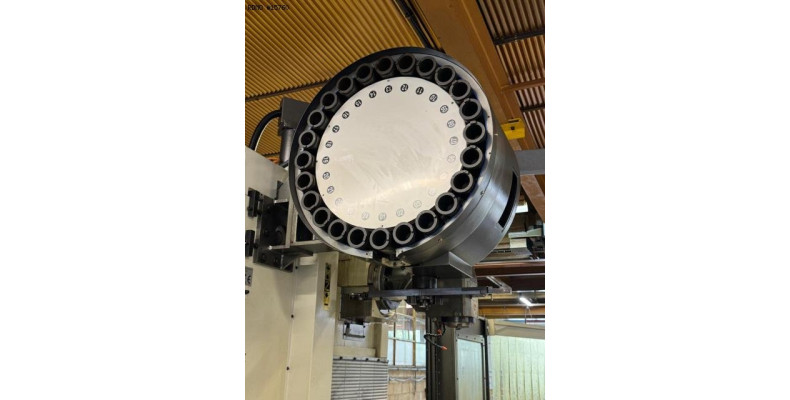

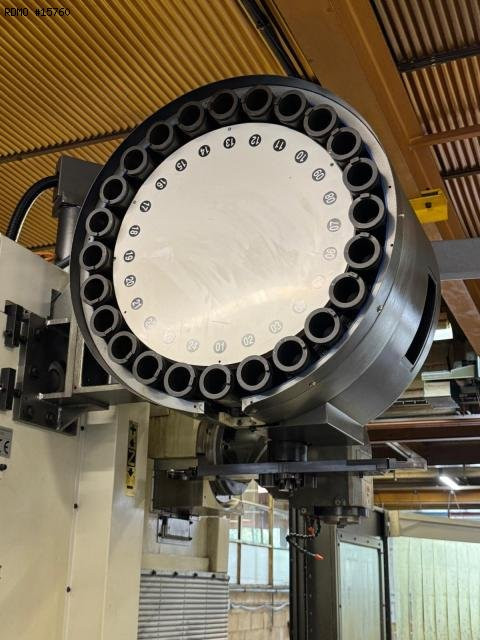

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 24
WEIGHT & DIMENSIONS
- Machine floor space : 7913/5043 [mm]
- Machine height : 3440 [mm]
- Machine weight : 13410 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 38 [kW]

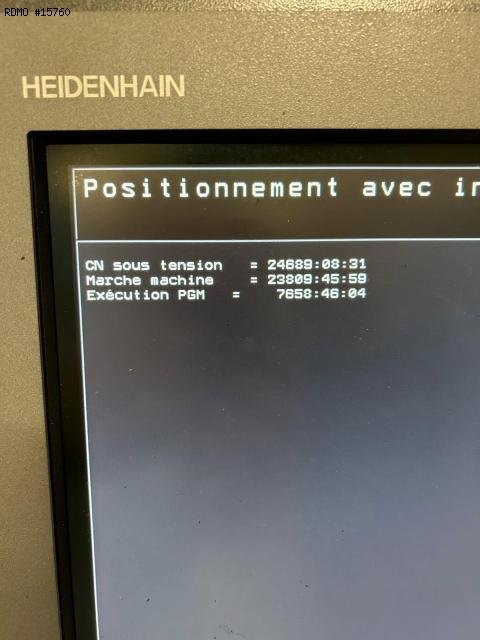

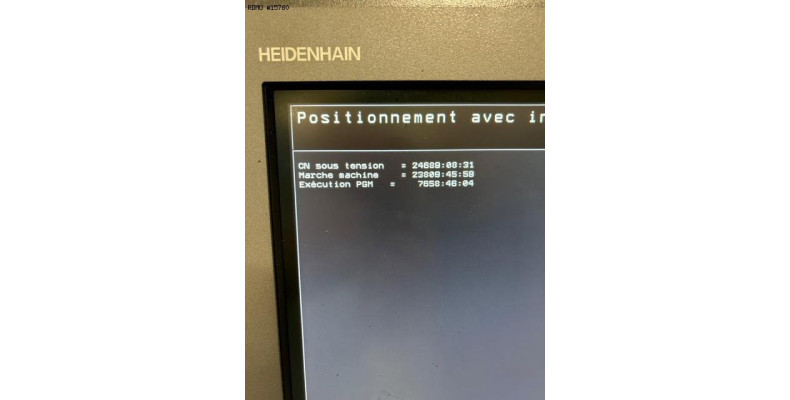

MACHINE HOURS
- Number of hours under power : 24689 [h]
- Number of working hours : 23809 [h]
- Number of spindle hours : 7658 [h]

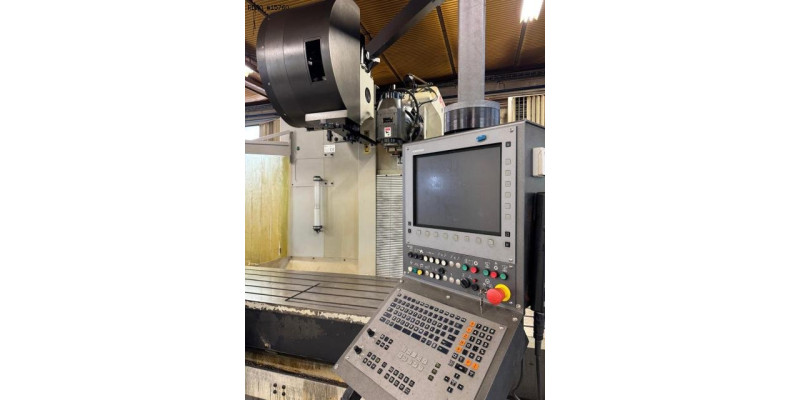

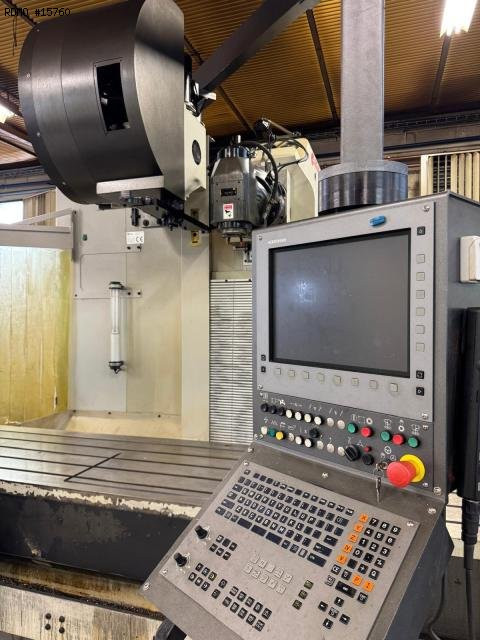

- CNC : Heidenhain iTNC530
- Electronic handwheel
Interface : RS232/RJ45/USB
- Interactive programming
- Coolant tank
- Tool-holders
