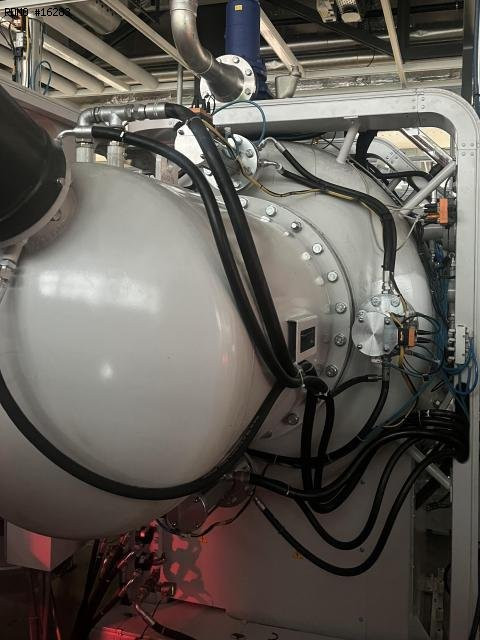

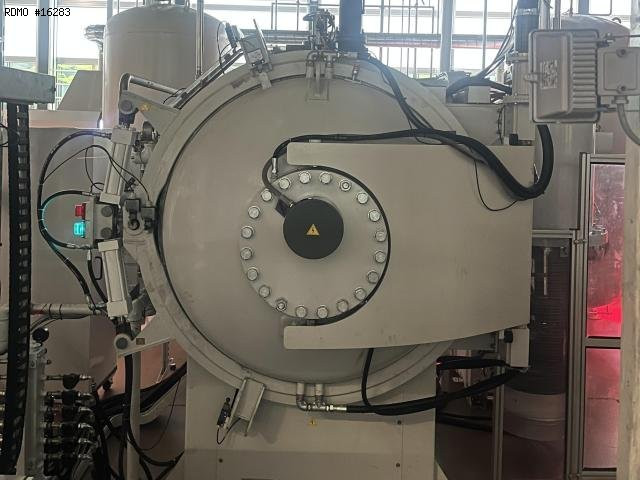

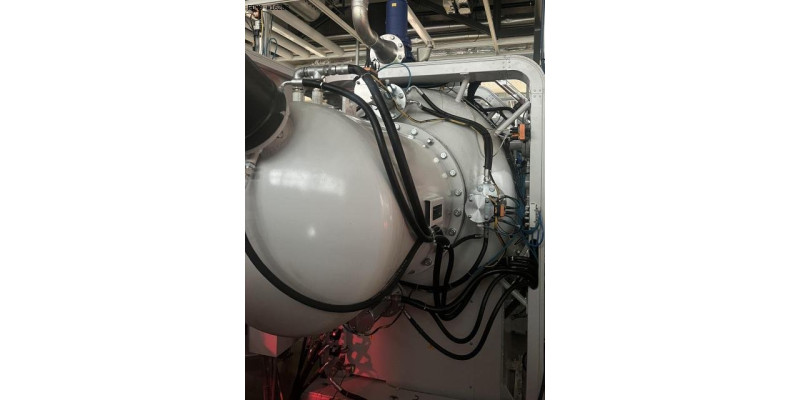

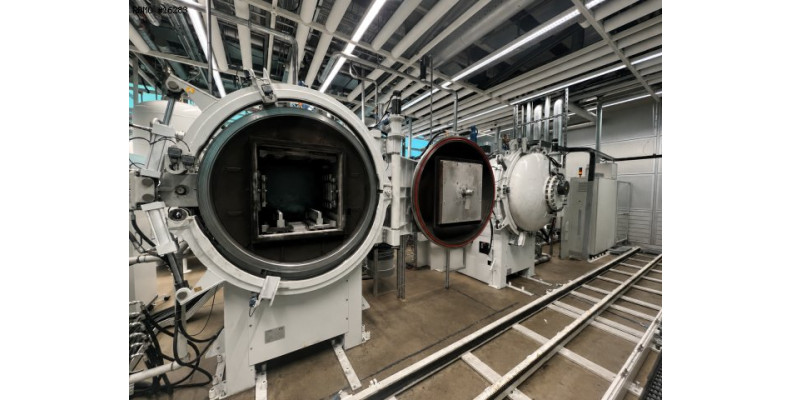

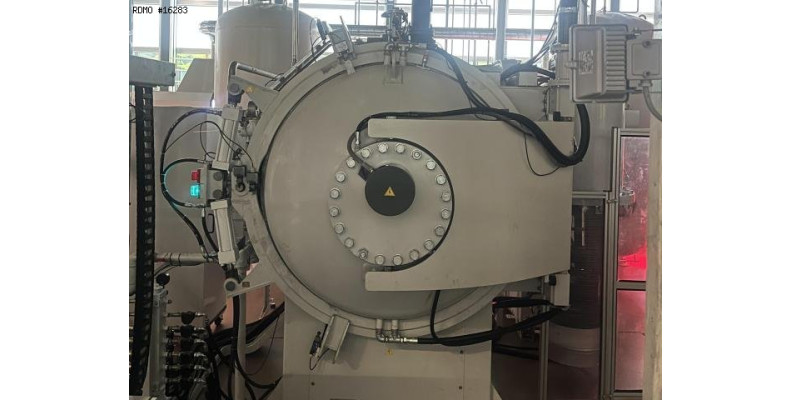

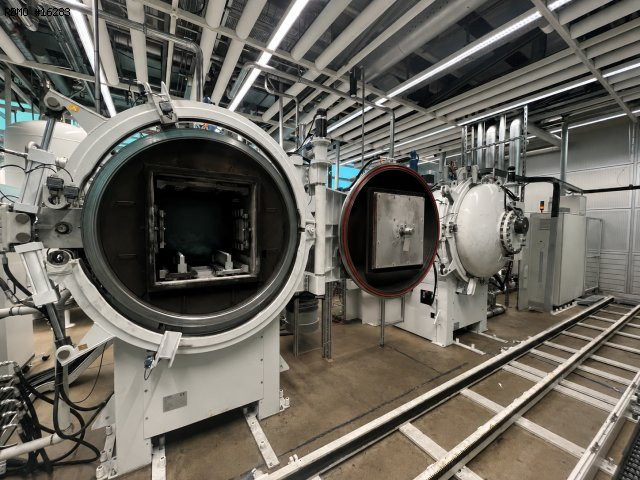

TAV Lot de 2 cellules de traitement thermique automatisées sous vide TPHF 40/45/60 HP

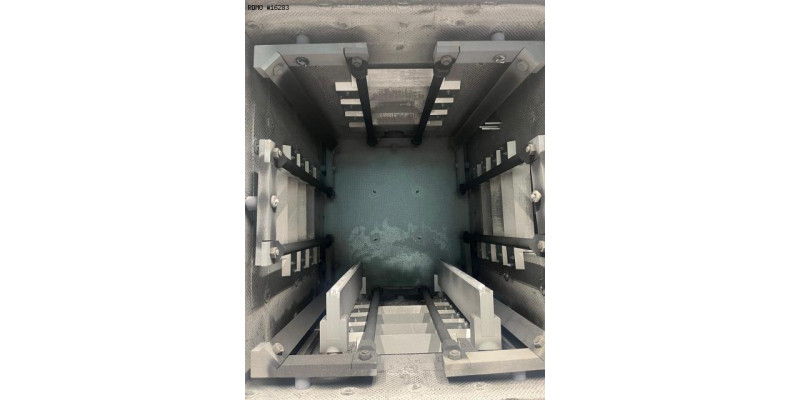

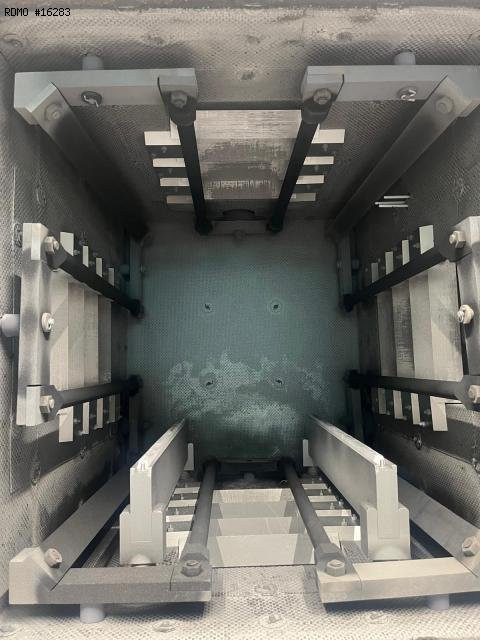

- Useful dimensions : 400 x 450 x 600 [mm]
- Volume of the heating chamber : 96 [dm3]
- Max. load : 250 [kg]
- Max. temperature : 1400 [°C]
- Max. operating temperature : 260 - 1350 [°C]
- Maximum convection heating temperature : 750 [°C]
- Heating time from 50°C to 1250°C : 60 [min]
- Chamber cooling time from 1200°C to 200°C : 2 [min]

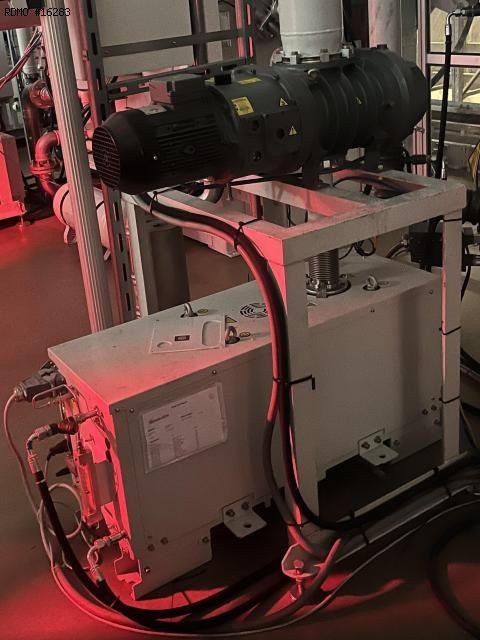

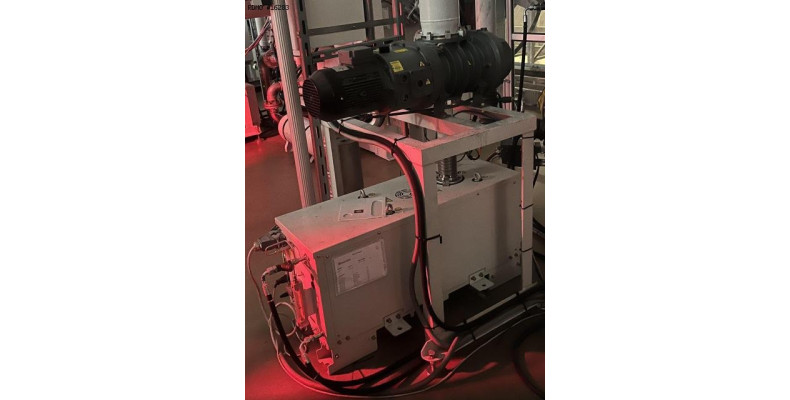

PUMP UNIT
- Mechanical primary pump : Drystar GV160
* Pumping speed : 160 [m3/h]
* Power : 7.5 [kW]
- Roots-type pump : Edwards EH1200
* Pumping speed : 500 [m3/h]
* Power : 3 [kW]

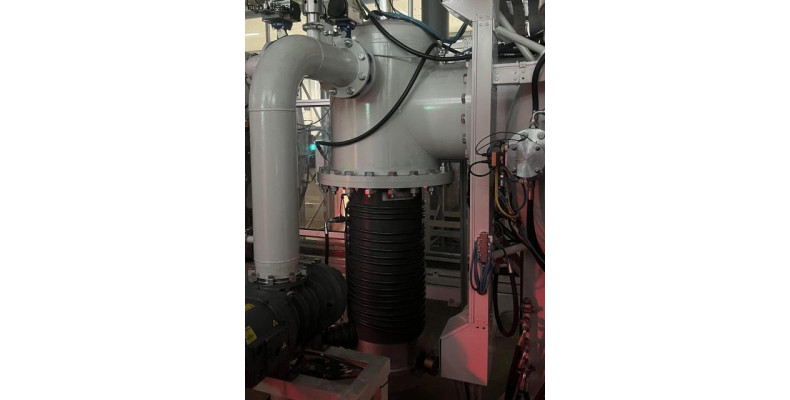

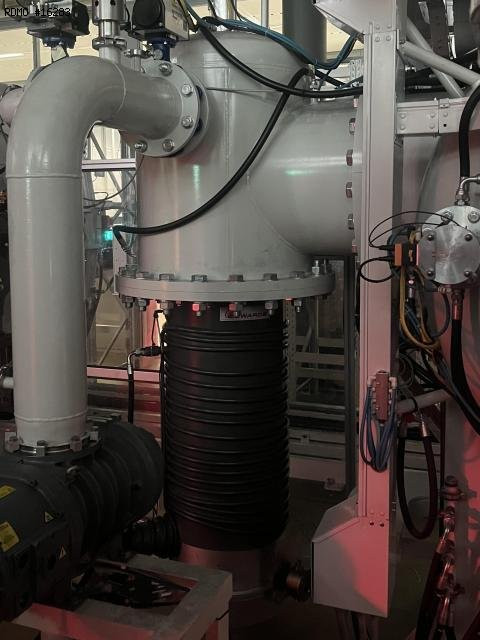

- Diffusion pump : Edwards HT16B
* Pumping speed : 6.500 [l/s]
* Power : 9 [kW]
GAS
- Cooling gas : Argon or Nitrogen
- Power : 90 [kW]
Water
- Min. / max. pressure (inlet) : 2.5 / 3.0 [bars]
- Min. / max. pressure (outlet) : 0 / 0.5
- Flow rate for heat exchanger during cooling phase : 400 [lpm]
- Furnace chamber flow rate : 200 [lpm]
- Max. inlet temperature : 30 [°C]
- Max. inlet temperature (DP) : 25 [°C]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 120 [kVA]
WEIGHT & DIMENSIONS

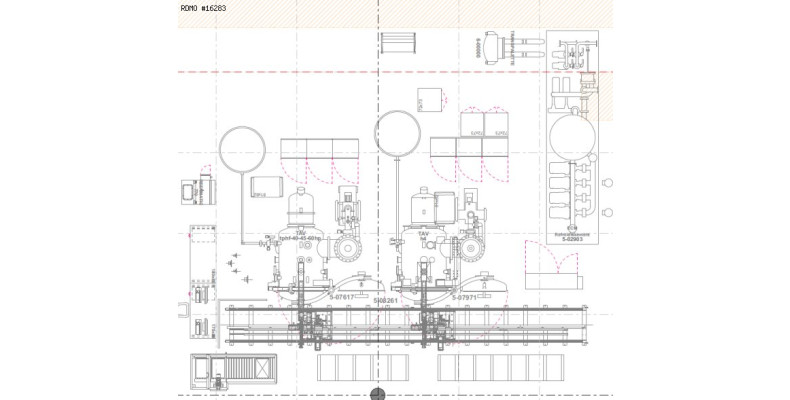

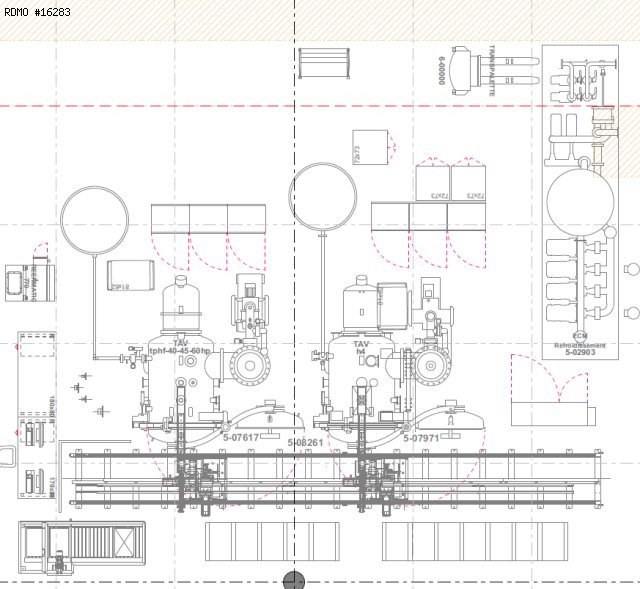

- Machine floor space : 4.682 x 4.356 [mm]
- Machine height : 3.242 [mm]
- Machine weight : 5000 [kg]
- Vacuum level : 10-5
- Cooling pressure level : 11.5 bar abs

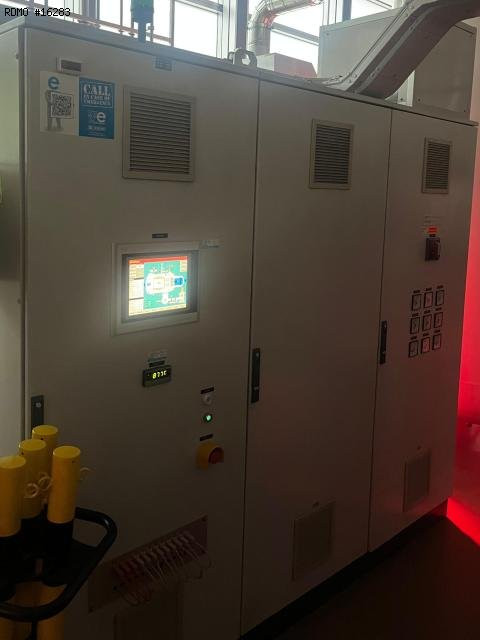

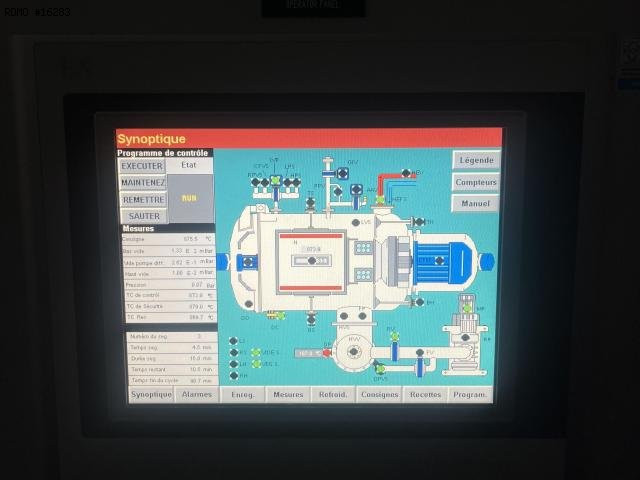

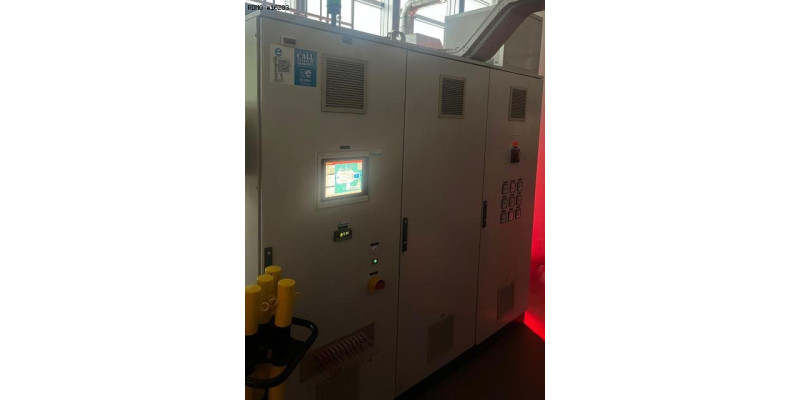

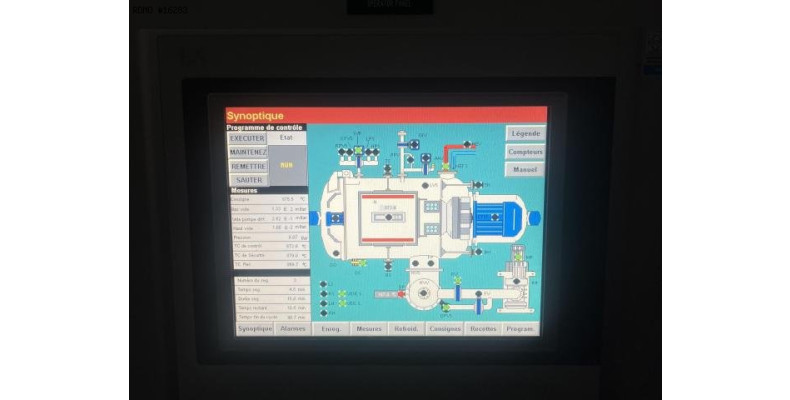

- CNC : Siemens S7

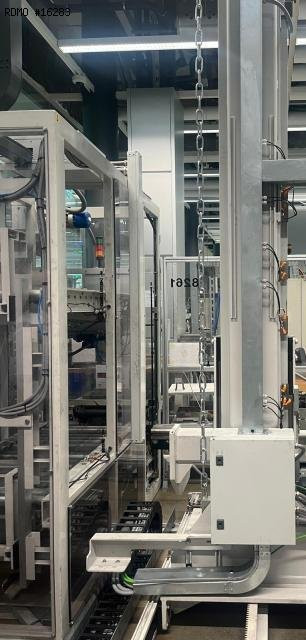

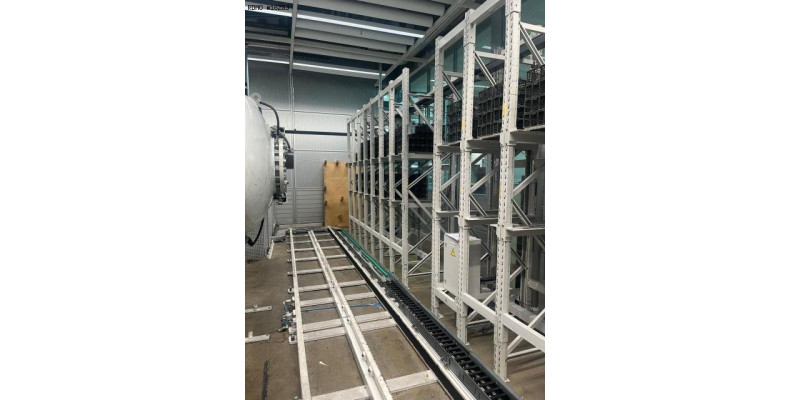

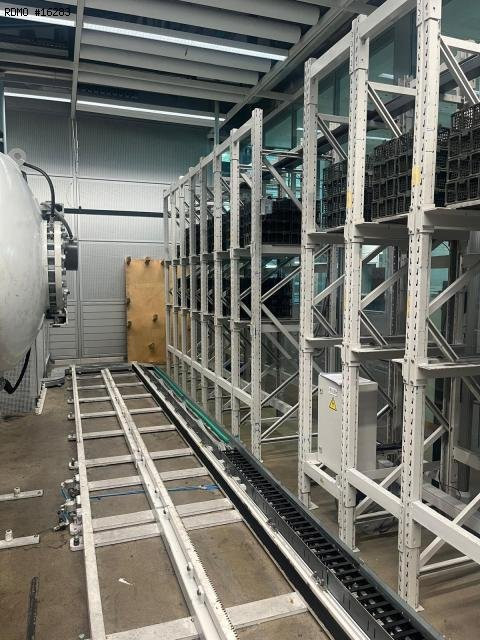

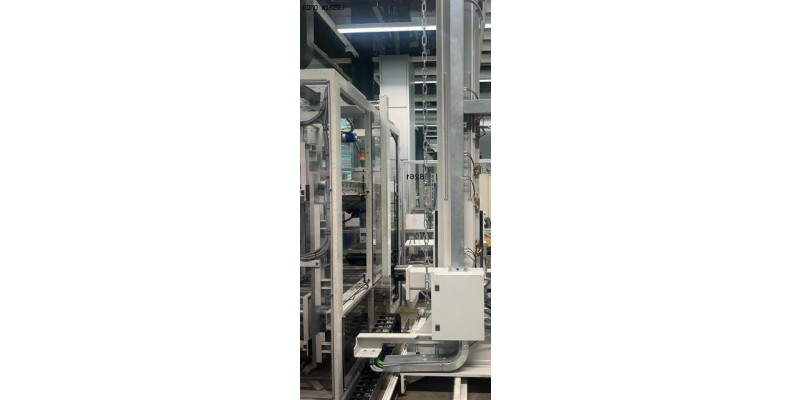

- Robot de chargement automatique

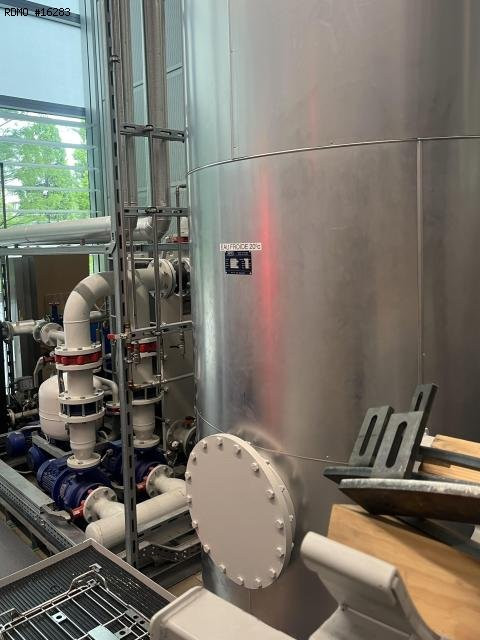

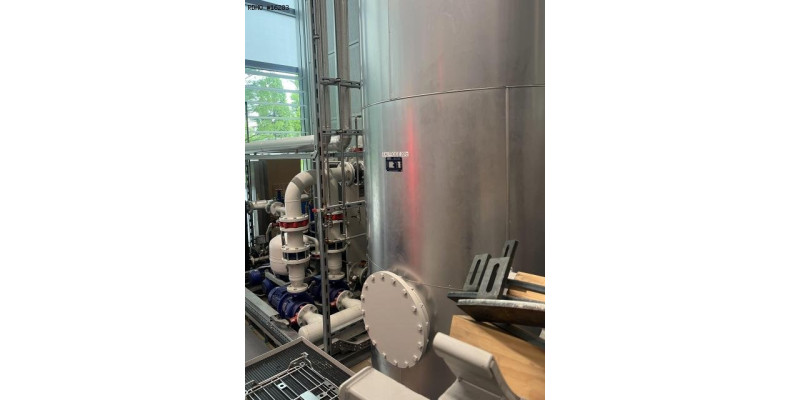

- Centrale de refroidissement

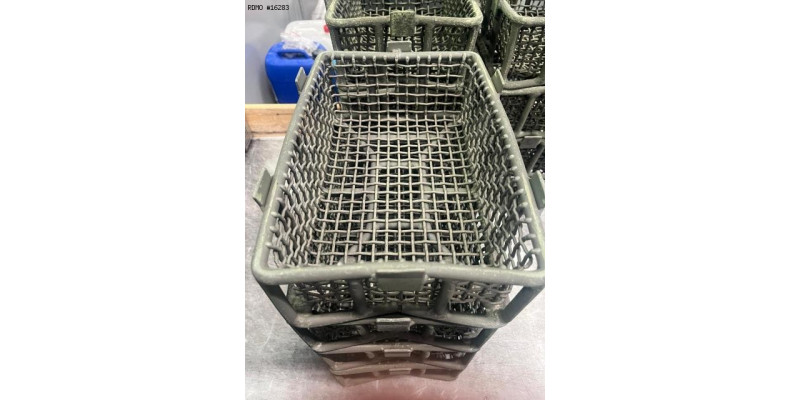

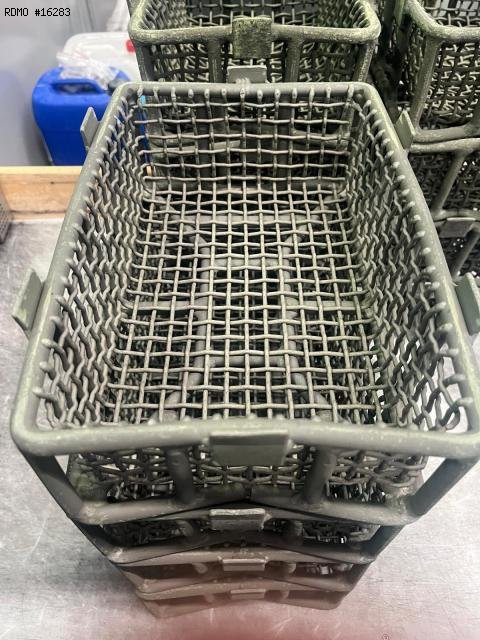

- 100 paniers
