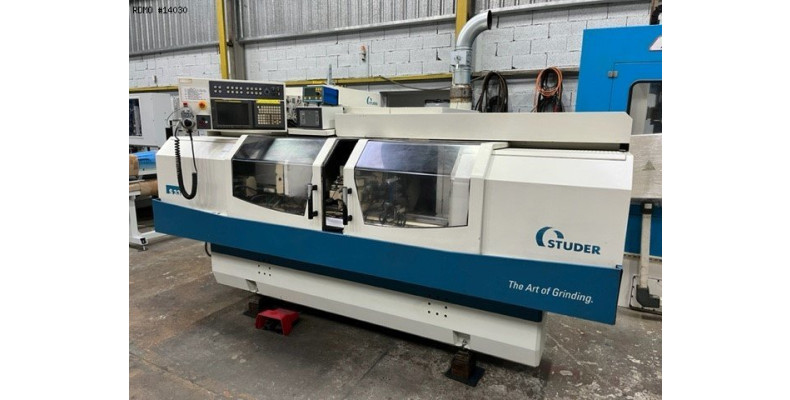

Studer S 33 CNC 3 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

14030

PDF datasheet to download:

Brand: Studer

Model: S 33 CNC

Year: 2005

Serial: 12067

14030

Studer S 33 CNC 3 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: Studer

Model: S 33 CNC

Year: 2005

Serial: 12067

Ask Price

Caracteristics

- distance between centers : 1000 [mm] - centers height : 175 [mm] - strokes (X/Z) : 285 / 1150 [mm] - table orientation : 0 - 8,5 [°] GRINDING WHEEL HOLDER HEADSTOCK - grinding wheels dimensions : 500 x 63 x 203,2 [mm] - peripheral speed : 50 [m/sec] - power : 7,5 [kW] PART HOLDER HEADSTOCK - taper : CM5 - speeds : 1 - 1500 [Rpm] - power : 3 [kW] - bore : 30 [mm] - indexing precision axis C : +/- 0,5 [°] - Max. workpiece weight : 120 [kg] TAILSTOCK - taper : CM4 - quill diameter : 50 [mm] - quill stroke : 35 [mm] ELECTRICAL SUPPLY - voltage : 400 [V] - frequency : 50 [Hz] WEIGHT & DIMENSIONS - Machine floor space : 3.500 x 3.000 [mm] - Machine height : 2.000 [mm] - Machine weight : 5.300 [kg] MACHINE HOURS - Number of hours under power : 70.129 [h]

Equipment

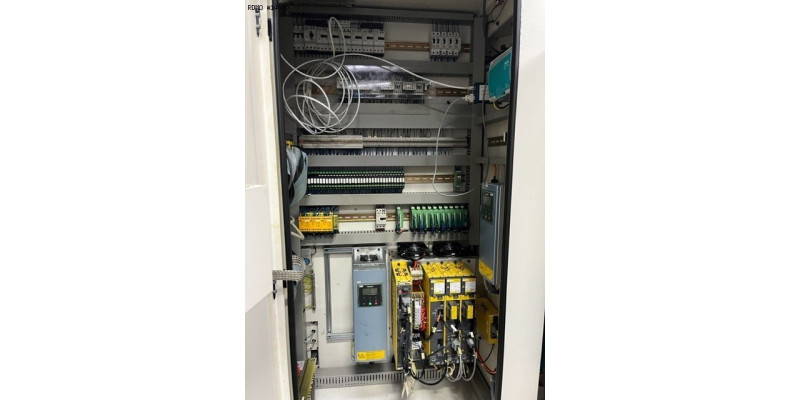

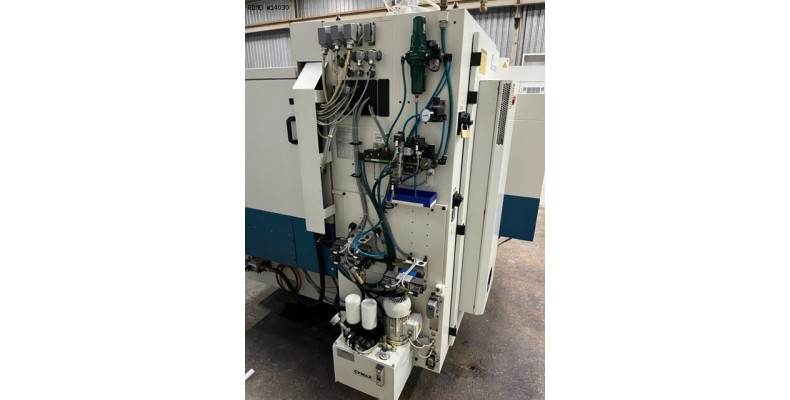

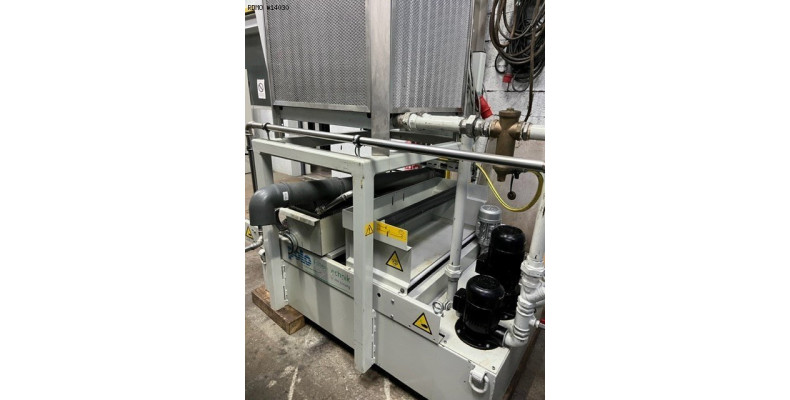

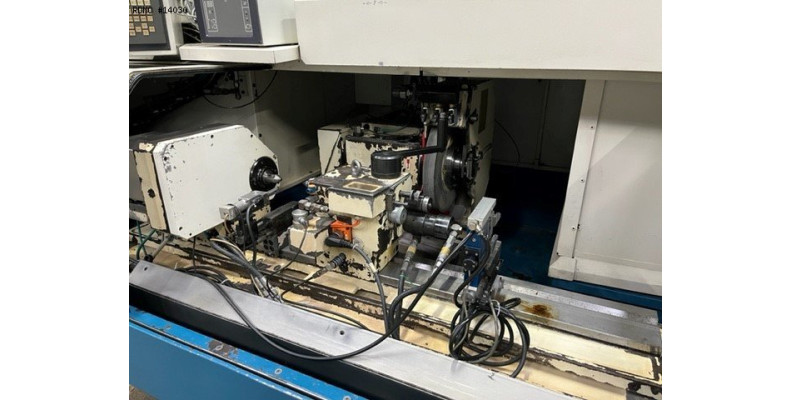

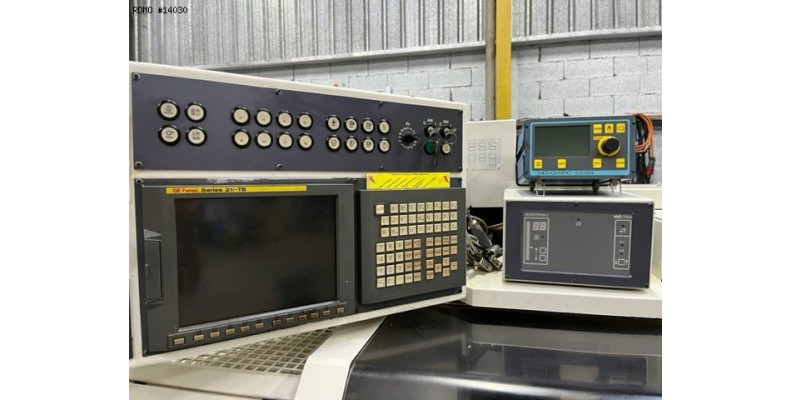

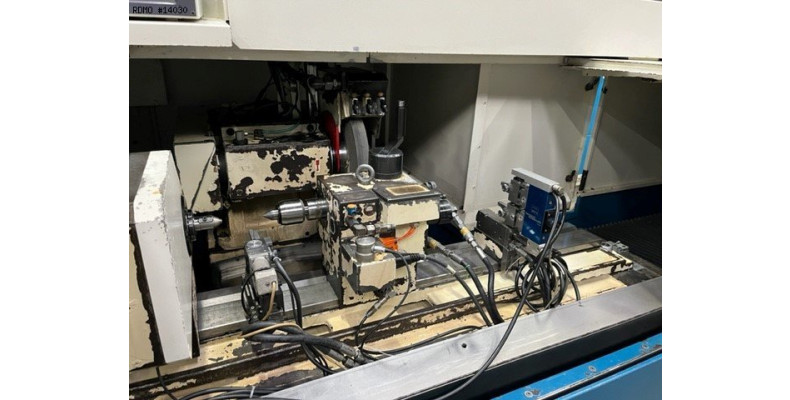

- CNC control FANUC 21i-TB - remote electronic handwheel - programmable constant cutting speed - direct measurement rules on X and Z - tailstock with fine concentricity adjustment - hydraulic tailstock quill recoil - pneumatic assistance on headstock and tailstock - MOVOMATIC diameter measuring device - SENSITRON 2 contact detection - Positioning system - MPM dynamic wheel balancing - fixed dressing on workpiece headstock - coolant tank
