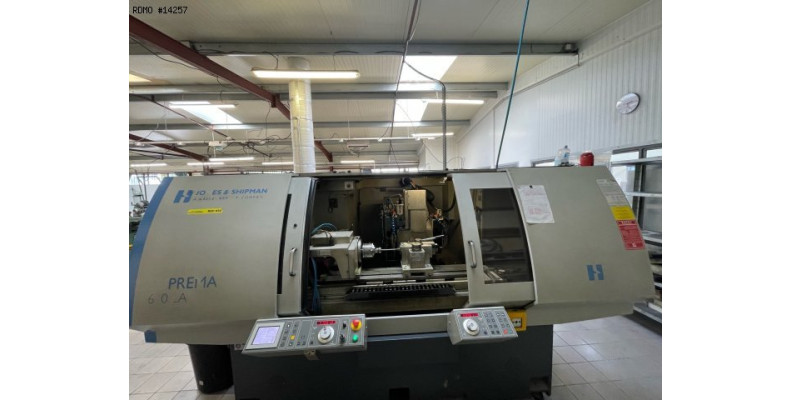

Caracteristics

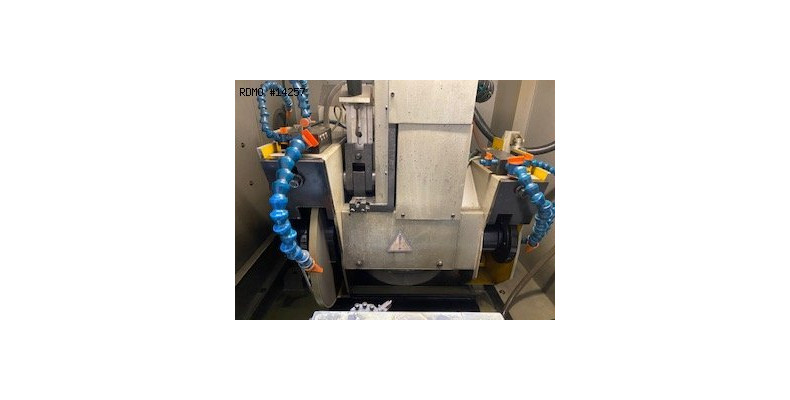

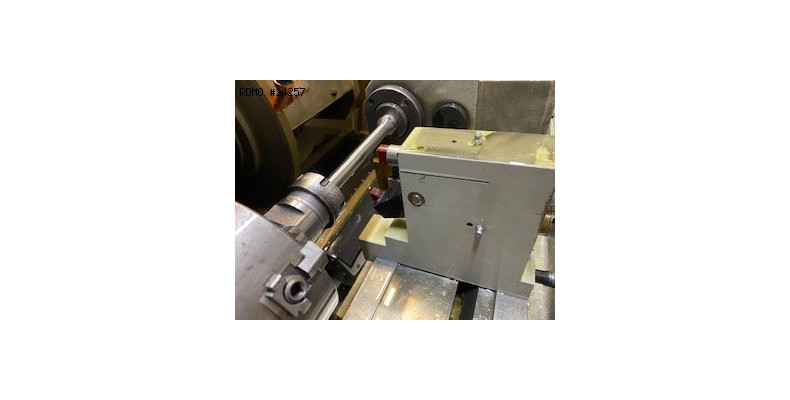

TECHNICAL CHARACTERISTICS - Number of axles: 3 - Distance between points: 650 [mm] - Peak height: 160 [mm] LINEAR AXES - Stroke X x Z: 260 / 750 [mm] WHEEL HOLDER WITH 2 LEFT / RIGHT WHEELS Then 1 INSIDE - Manual pivoting of the grinding wheel headstock: -190 / +45 [°] - Indexing accuracy: 0.01 [°] - Outer grinding wheel dimensions G: 350 x 50 x 127 [mm] - External grinding wheel dimensions D: 300 x 25 x 127 [mm] - External wheel speeds: 1773 / 2069 / 2400 [rpm] - External grinding wheel motor power: 4 [kW] - Inter wheel dimensions: 10-20 / 25-40 / 50-63 [mm] - Inter grinding wheel speed: 29000 / 16500 / 10500 [rpm] - Power: 2.2 [KW] HEADSTOCK - Maximum machinable diameter: 300 [mm] - Admitted weight between centers: 100 [kg] - Workpiece headstock speeds: 0 to 660 [rpm] - Workpiece headstock cone: CM5 - Workpiece headstock pivoting: -15 to +90 [°] COUNTER HEADSTOCK - Tailstock taper: CM3 - Tailstock quill stroke: 30 [mm] - Table swivel: -18 to +16 [°] DIMENSIONS - Floor area: 2,750 x 2,110 [mm] - Height: 2,280 [mm] - Weight: 5000 [kg]

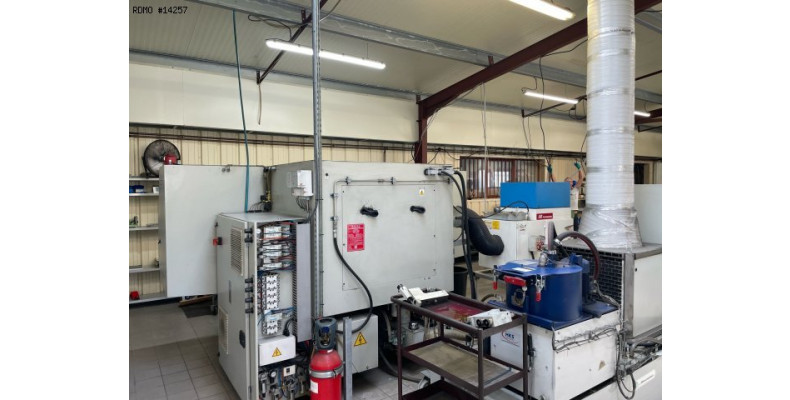

Equipment
- Easy CNC by FANUC learning - 2 electronic cranks - Interface: RS232 / RJ45 - Direct measurement rules on: X/Z - Visualization of swivel angle, precision 0.01° - Part length probe (Z0) - Advanced against - Automatic wheel cutting - Central lubrication - Paper filtration - Washing gun - Integral casing with 2 doors - Automatic centralized lubrication - Dust extraction - Telescope - Collet chuck with manual clamping
