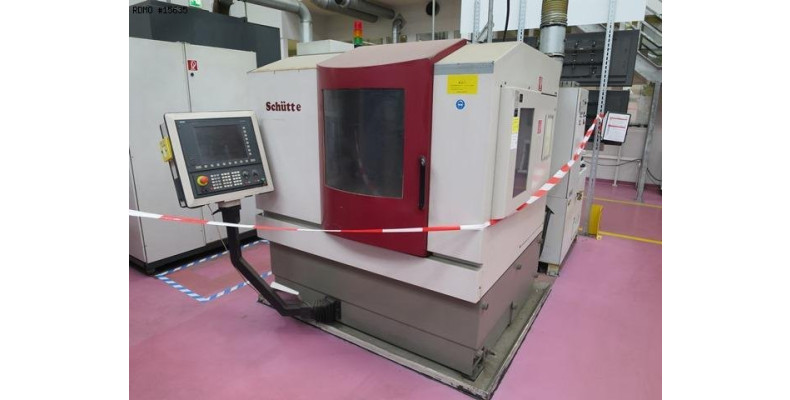

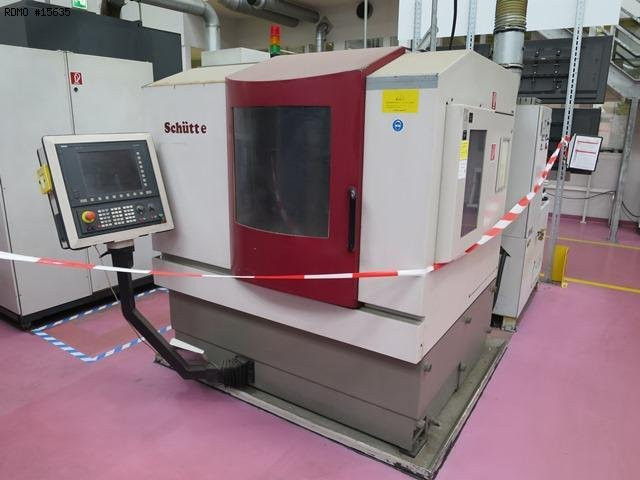

SCHÜTTE WU305 5 axis

Name: Cnc sharpening machine SCHÜTTE WU305 5 axes
Brand: SCHÜTTE
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

15635

PDF datasheet to download:

Brand: SCHÜTTE

Model: WU305

Year: 2003

Serial: Serie:11 Nr.:10

15635

SCHÜTTE WU305 5 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

PDF datasheet to download:

Brand: SCHÜTTE

Model: WU305

Year: 2003

Serial: Serie:11 Nr.:10

Ask Price

Caracteristics

- Number of axes : 5
LINEAR AXES
- X stroke : 400 [mm]
- Y stroke : 250 [mm]
- Z stroke : 250 [mm]
- Rapid traverse rate : 24 [m/min]
- Resolution : 0.0001 [°]

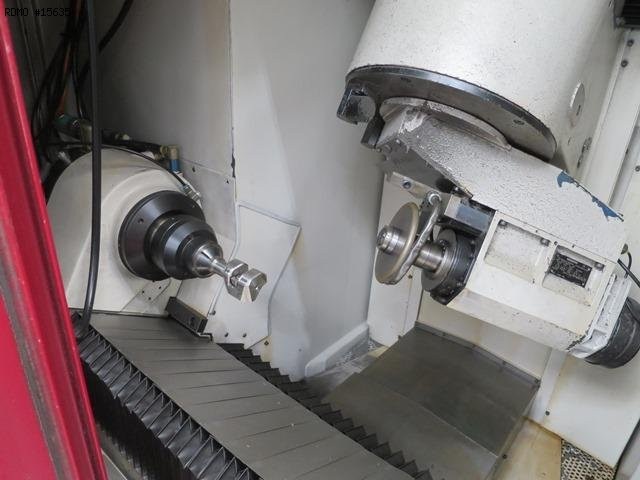

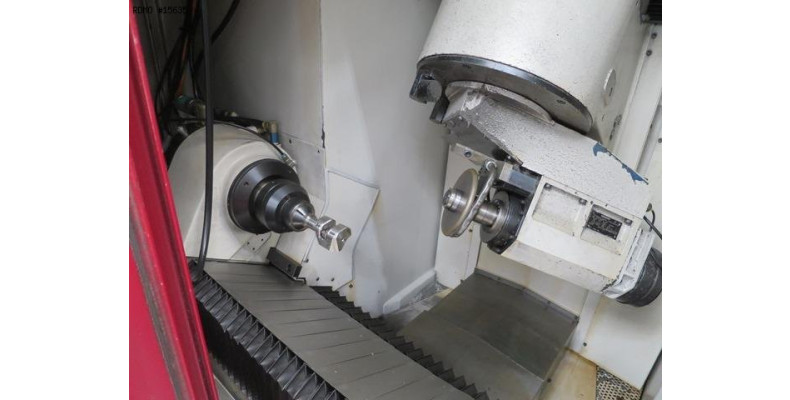

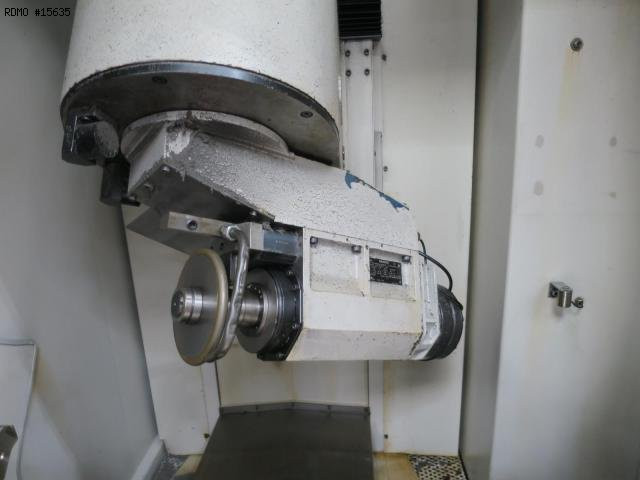

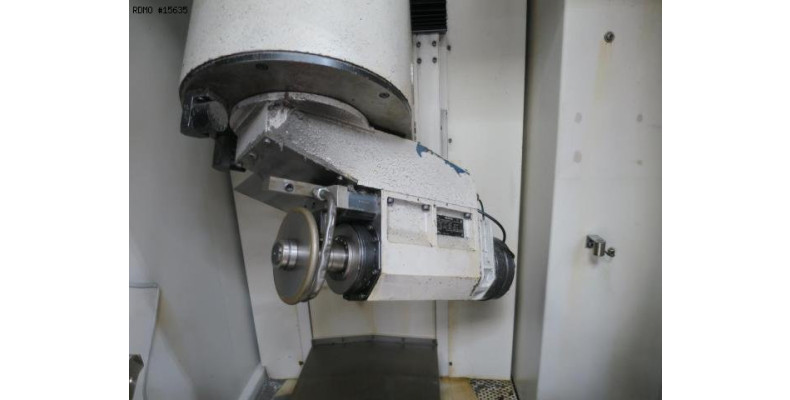

GRINDING WHEEL HOLDER HEADSTOCK VERTICAL
- C axis : 225 [°]
- angular resolution : 0.0002 [°]
- Spindle speeds : 12.000 [rpm]
- Tool type : HSK-50E
- Spindle power : 15 [kW]

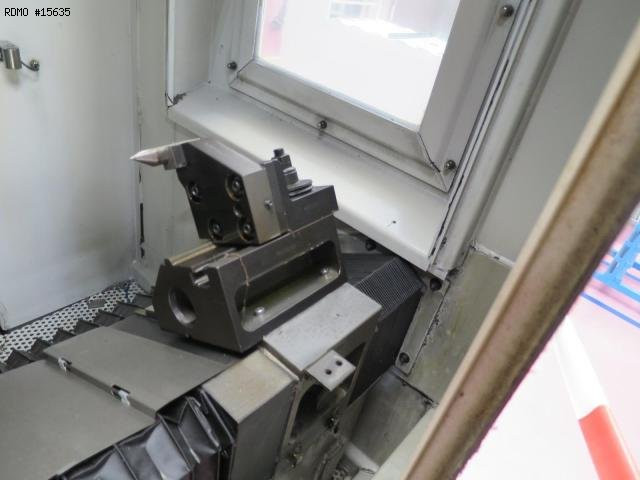

PART-HOLDER HEADSTOCK
- Rotational speed range (rotary axis) : 0 - +/-200 [rpm]
- Rotation speed range (universal rotary axis) : 0 - +/-2500 [rpm]
- angular resolution : 0.0001 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.050 x 2.100 [mm]
- Machine height : 1.960 [mm]
- Machine weight : 2800 [kg]

Equipment

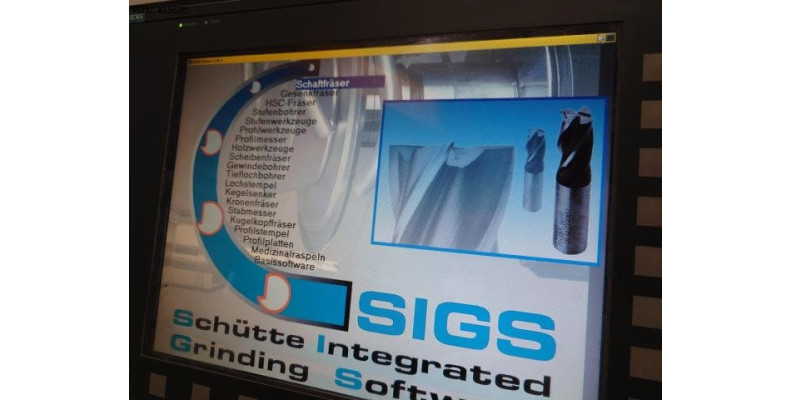

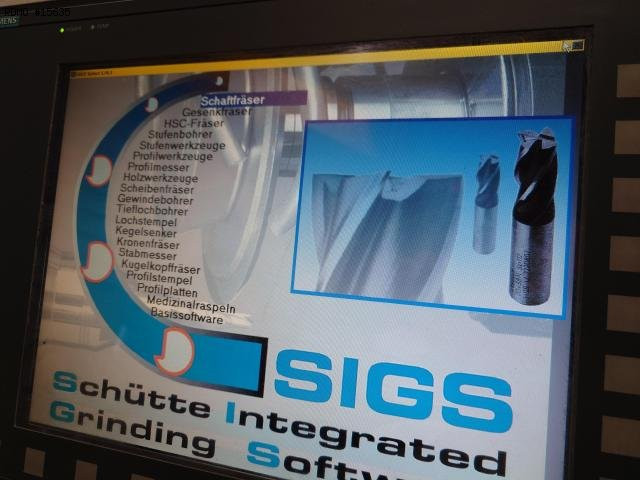

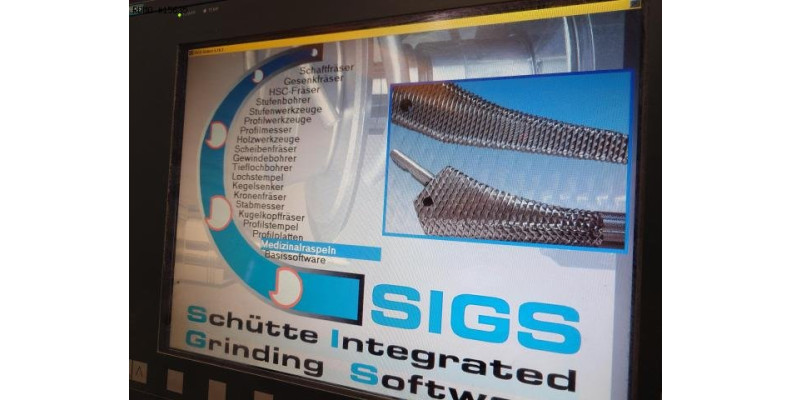

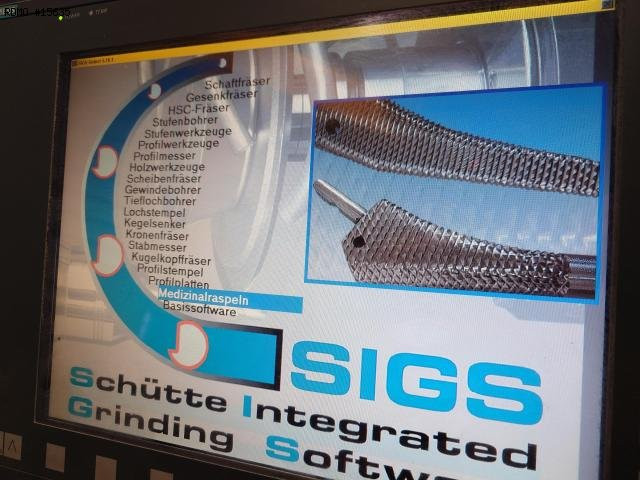

- CNC : SIEMENS SINUMERIK 840D

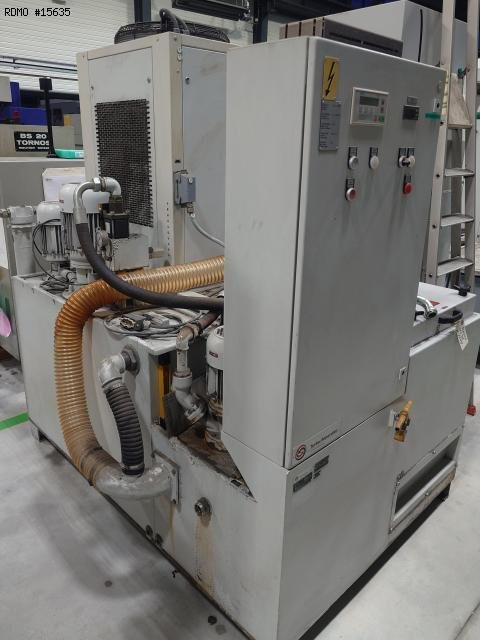

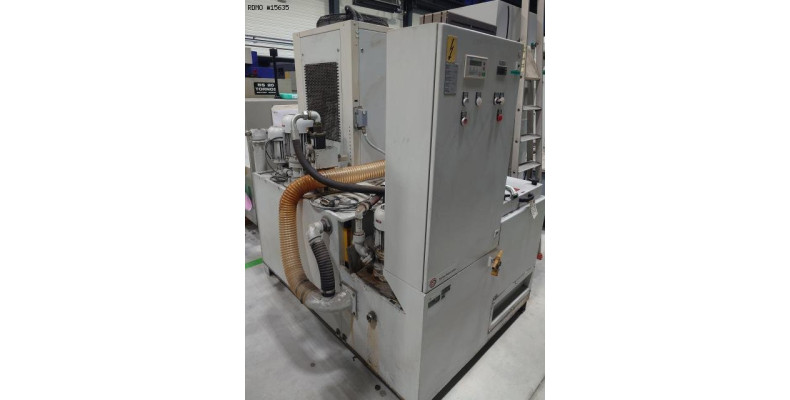

- Lubricating tank with pump
* with cooling unit for coolant

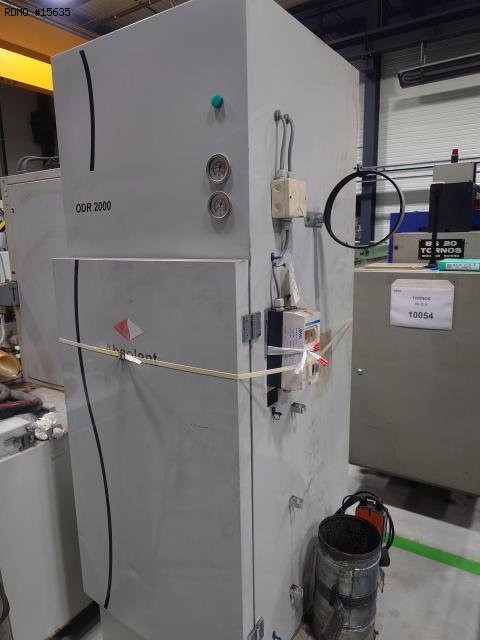

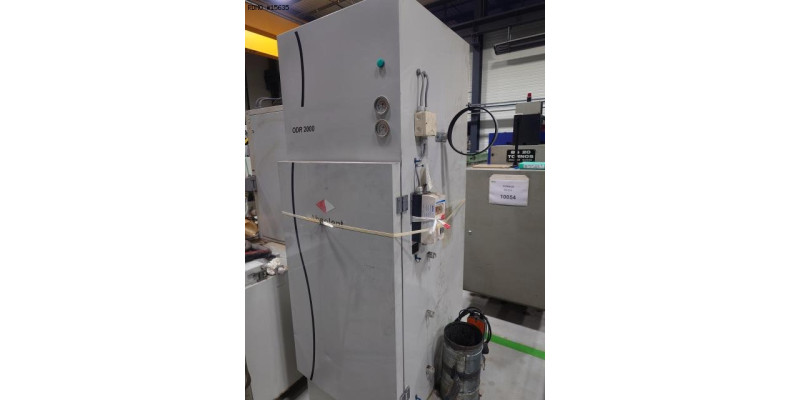

- Oil mist extractor : ABSOLENT ODR 2000
