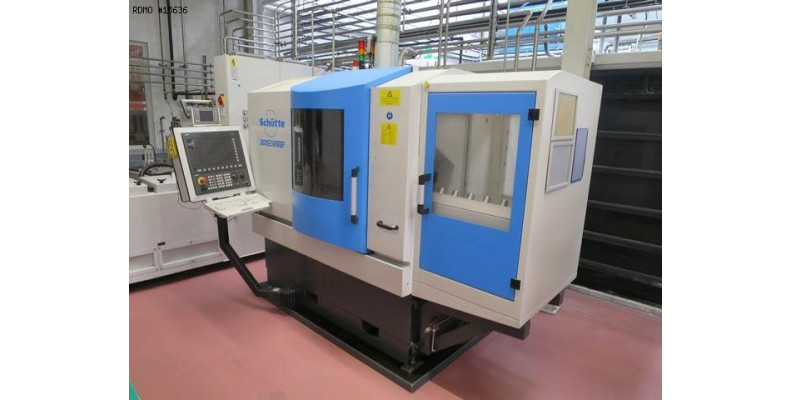

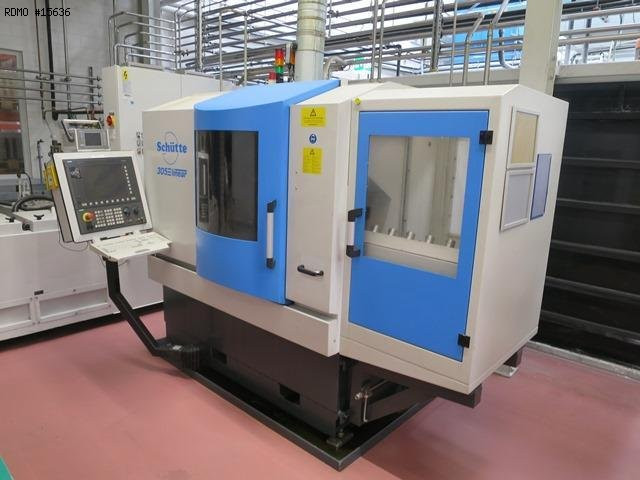

SCHÜTTE W305L 5 axis

Name: Cnc sharpening machine SCHÜTTE W305L 5 axes
Brand: SCHÜTTE
Availability: InStock

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

15636

PDF datasheet to download:

Brand: SCHÜTTE

Model: W305L

Year: 2008

Serial: Serie:15 Nr.:06

15636

SCHÜTTE W305L 5 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

PDF datasheet to download:

Brand: SCHÜTTE

Model: W305L

Year: 2008

Serial: Serie:15 Nr.:06

Ask Price

Caracteristics

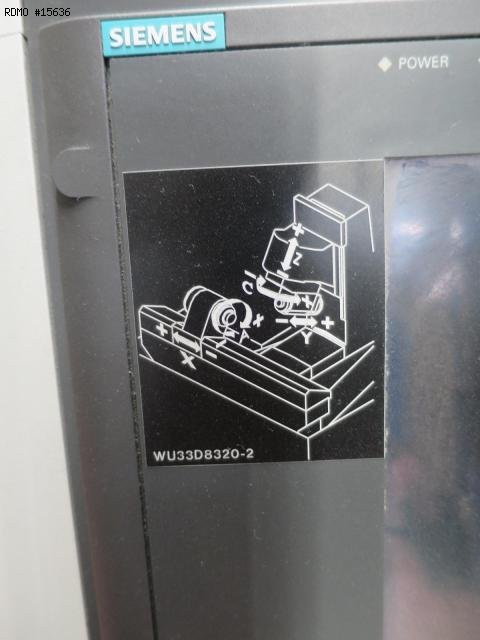

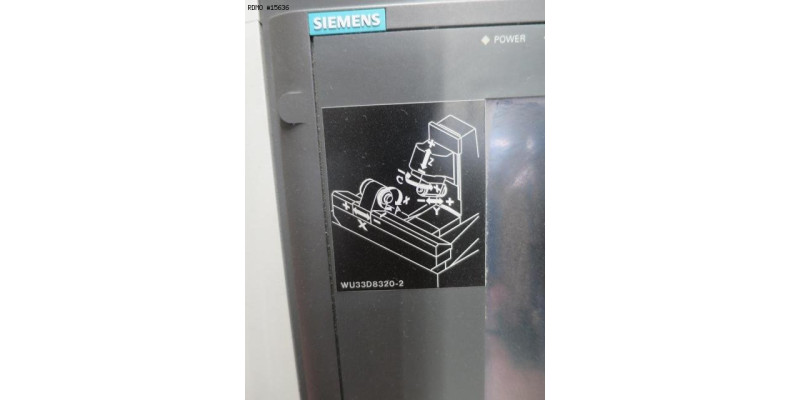

- Number of axes : 5
LINEAR AXES
- X stroke : 400 [mm]
- Y stroke : 250 [mm]
- Z stroke : 250 [mm]
- Rapid traverse rate : 24 [m/min]
- Resolution : 0.0001 [°]

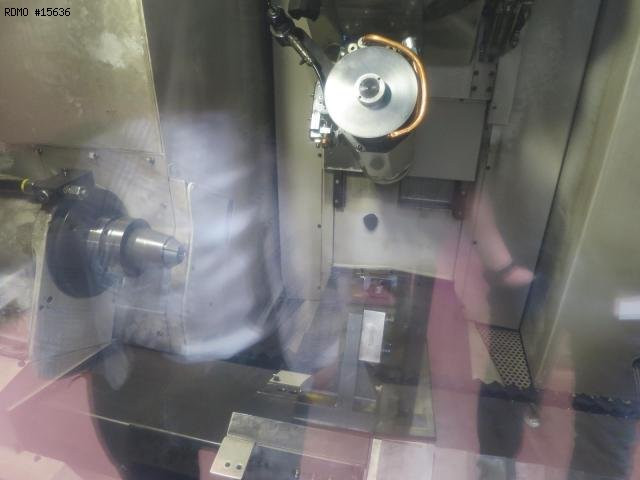

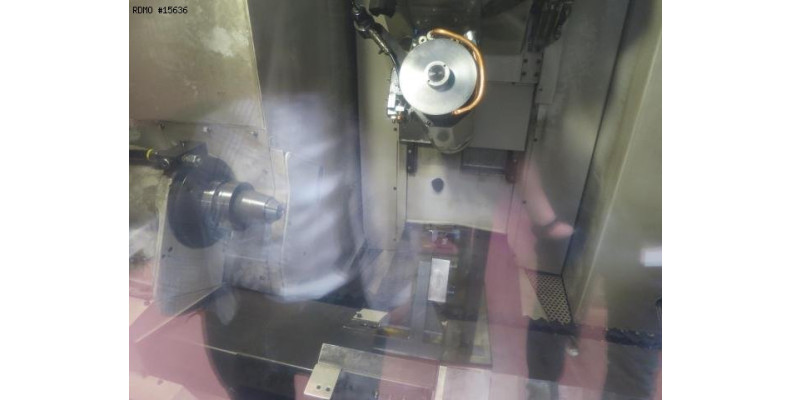

GRINDING WHEEL HOLDER HEADSTOCK VERTICAL
- C axis : 225 [°]
- angular resolution : 0.0002 [°]
- Spindle speeds : 12.000 [rpm]
- Tool type : HSK-50E
- Spindle power : 15 [kW]
PART-HOLDER HEADSTOCK
- Rotational speed range (rotary axis) : 0 - +/-200 [rpm]
- Rotation speed range (universal rotary axis) : 0 - +/-2500 [rpm]
- angular resolution : 0.0001 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1980 x 1750 [mm]
- Machine height : 1960 [mm]
- Machine weight : 2800 [kg]

Equipment

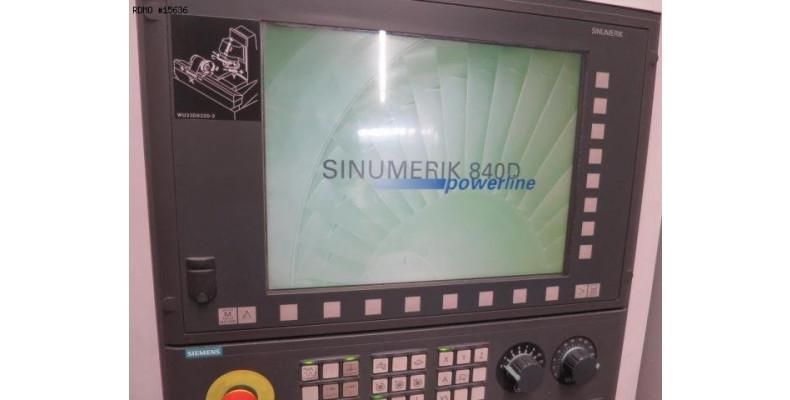

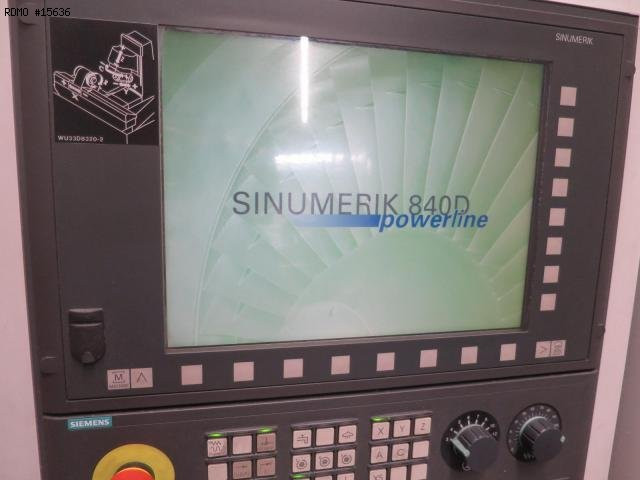

- CNC : SIEMENS SINUMERIK 840D

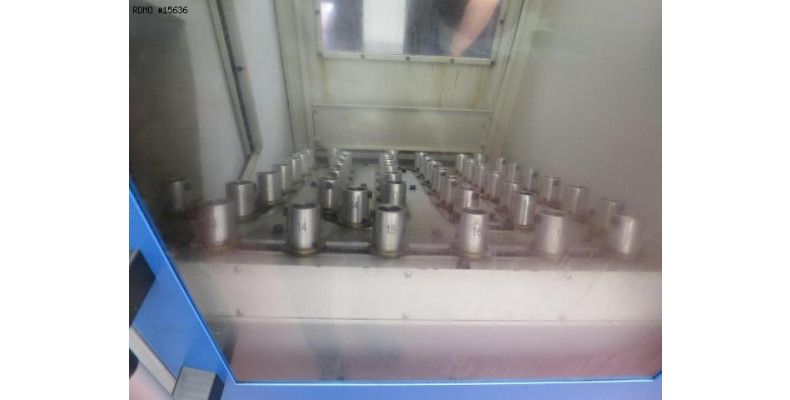

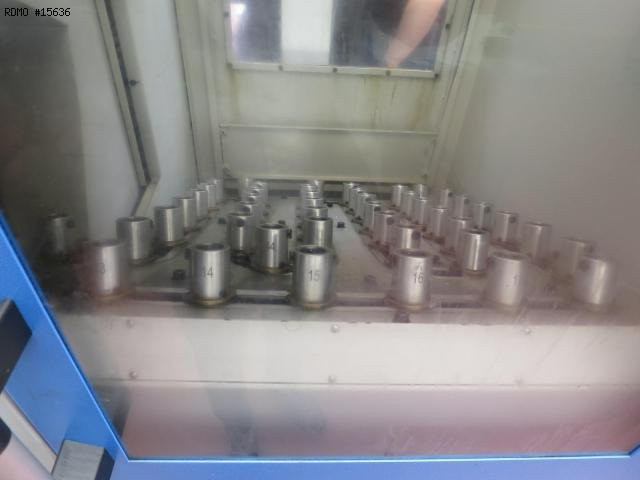

- Automatic loading and unloading system with 50 positions
