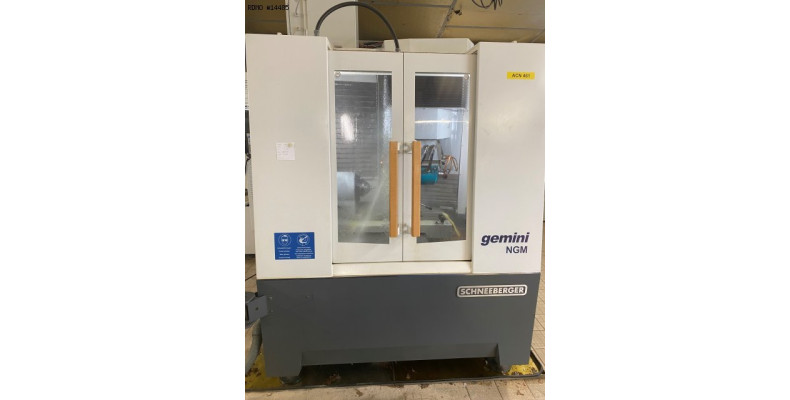

SCHNEEBERGER GEMINI NGM 5 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

14485

PDF datasheet to download:

Brand: SCHNEEBERGER

Model: GEMINI NGM

Year: 2019

Serial: 23591

14485

SCHNEEBERGER GEMINI NGM 5 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

PDF datasheet to download:

Brand: SCHNEEBERGER

Model: GEMINI NGM

Year: 2019

Serial: 23591

Ask Price

Caracteristics

Axes :
X: 500 mm longitudinal slide
Y : 400 mm cross slide
Z : 380 mm vertical column

A : ISO 50 tool holder, resolution 0.0001°.

C : 380° grinding head rotation, resolution 0.0001°.

Grinding head :
Electrospindle grinding head, HSK50 with 10Kw liquid cooler

Operating hours : 2700

Weight :
7,000 kg

Dimensions : 2090 x 2300 x 2050 (height)

Equipment

Control :

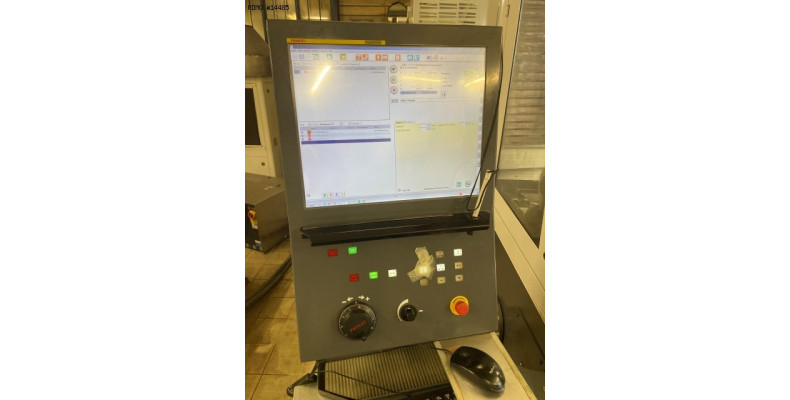

FANUC 31iB5, 5 controlled axes

19' TFT colour display with keyboard and touch screen, USB 3.0
ZENON coordinate probe
EasyProfile

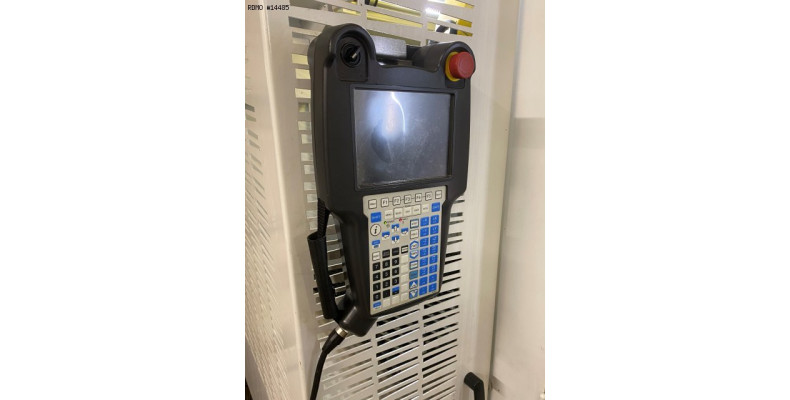

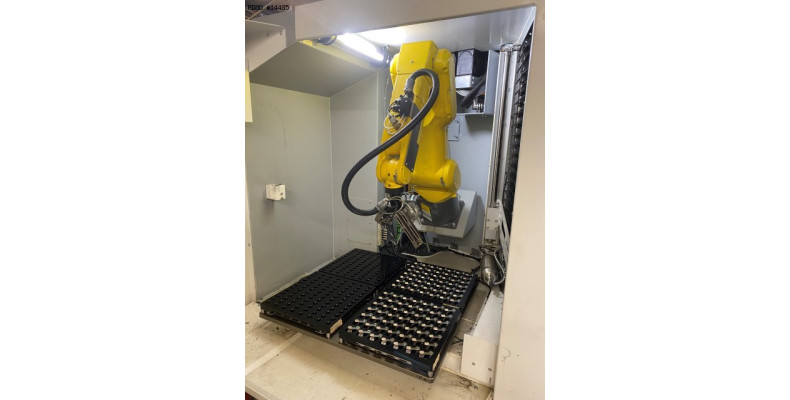

Fanuc robot loader, 4 pallets
Active cooling for control cabin
network connection
Remote diagnostics software
Hydraulic clamping
Hydraulic steady rest
Adapter for 60° V-shaped steady rest (d=5mm)
Automatic clamp W25
Wheel flange HSK50 Ø 20 mm L 85 mm and one in L 45 mm

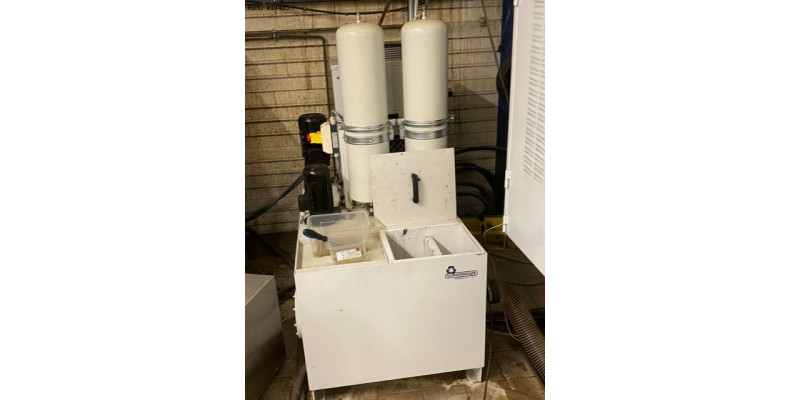

400-litre cartridge filtration system (1200 x 800 mm)
6 Kw temperature control
HP cooling pump
CO2 10Kg fire protection system
* NB: no guarantee of operation. To be checked by a qualified body of the buyer.
