AGATHON 150SL2

Grinding / sharpening / lapping / deburring / polishing Centerless grinder
13137
PDF datasheet to download:
Brand: AGATHON
Model: 150SL2
Year: 1984
Serial: 718450683
13137

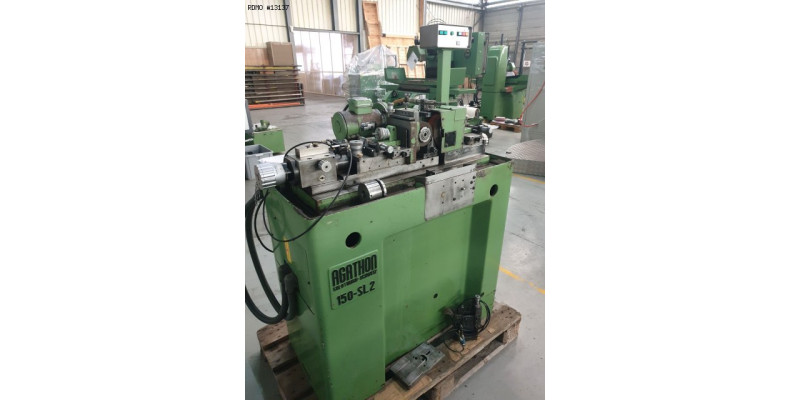

AGATHON 150SL2
PDF datasheet to download:
Brand: AGATHON
Model: 150SL2
Year: 1984
Serial: 718450683
Ask Price

Caracteristics & Equipment

Caracteristics
- grinding diameter : 0.1 – 10 [mm]
- total length : 10 [mm]
- working stroke : 0-10 [mm]
- working grinding wheel dimensions : 150 x 50 x 50 [mm]
- driving grinding wheel dimensions : 100 x 50 x 40 [mm]
- driving grinding wheel diameter : 100 [mm]
- working grinding wheel speed : 4500 [Rpm]
- driving grinding wheel speed : 20-50 [Rpm]
- power : 6 [kW]
- min. pressure : 5.6 [bar]
- dimensions : 1300 x 1100 [mm]
- weight : 700 [kg]

Datasheet

PDF datasheet to download:

Description
