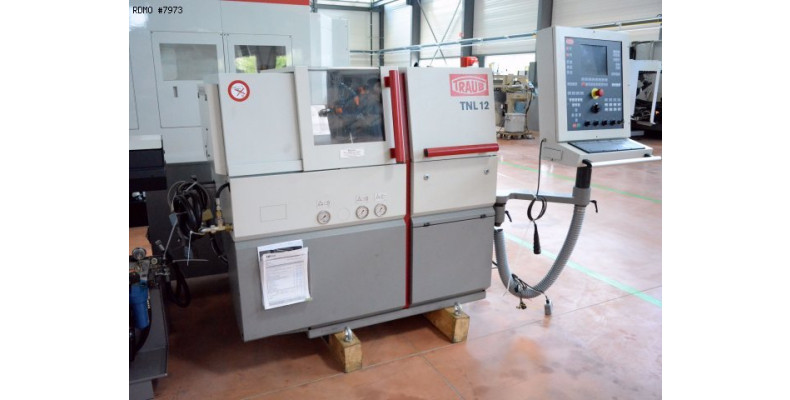

Traub TNL 12/7 9 axis

Turning Swiss-type cnc lathe
7973
PDF datasheet to download:
Brand: Traub
Model: TNL 12/7
Year: 2003
Serial: 529
7973
Traub TNL 12/7 9 axis
PDF datasheet to download:
Brand: Traub
Model: TNL 12/7
Year: 2003
Serial: 529
Ask Price

Caracteristics & Equipment

Caracteristics

- maxi bar diameter : 15 [mm]
- main headstock strokes (fixed/rotary sleeve) : 130/80 [mm]
- spindle power : 4 [kW]
- rotation speed : 12 000 [rpm]
- upper turret : 6 positions
- lower turret : 6 positions
- number of rotary positions on turret : 6
- sub-spindle maxi diameter : 15 [mm]
- sub-spindle rotation speed : 12 000 [rpm]
- size : 2850 x 110 x 1480 [mm]
Equipment

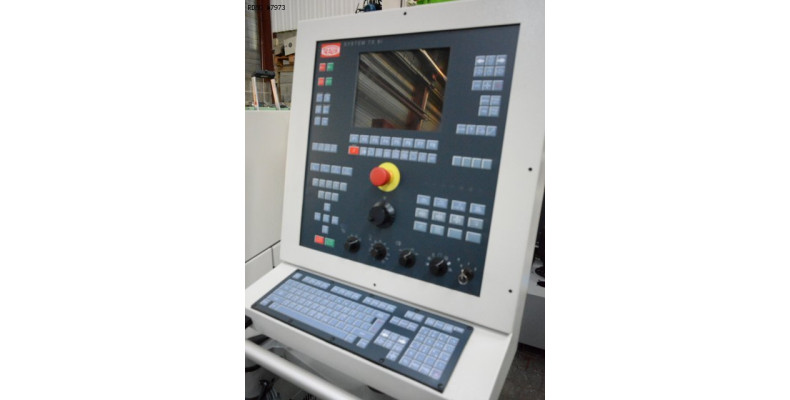

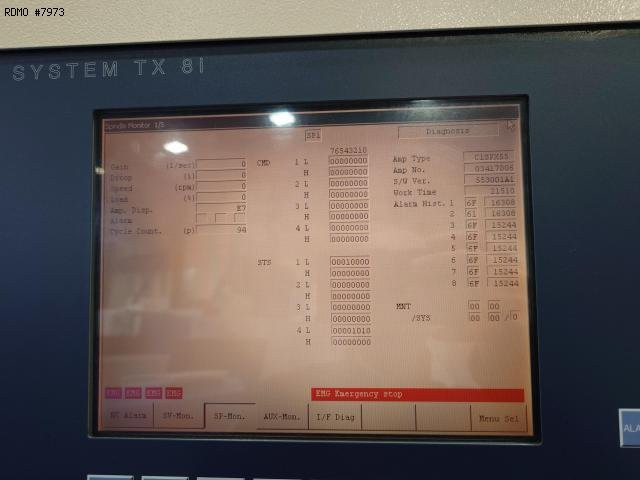

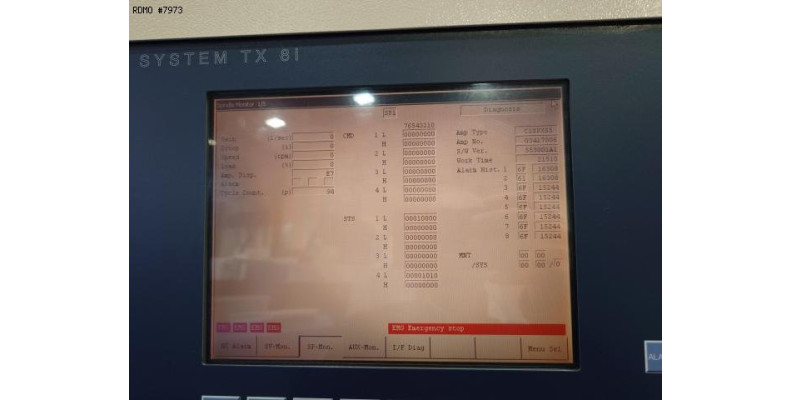

- CNC TRAUB TX 8i control

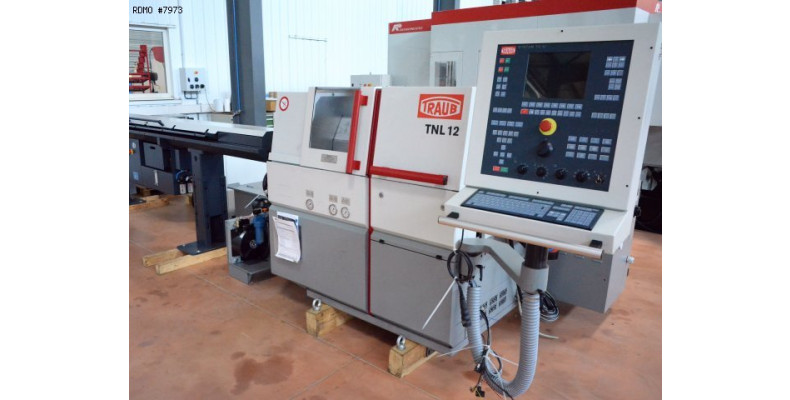

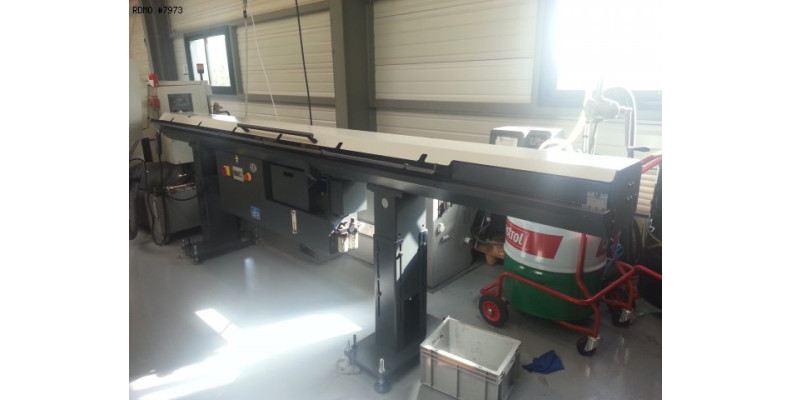

- bar feeder LNS Alpha ST 320
- oil mist extractor Donaldson
- C axis on main spindle and sub-spindle
- brake on main spindle and sub-spindle
- parts catcher with conveying strip

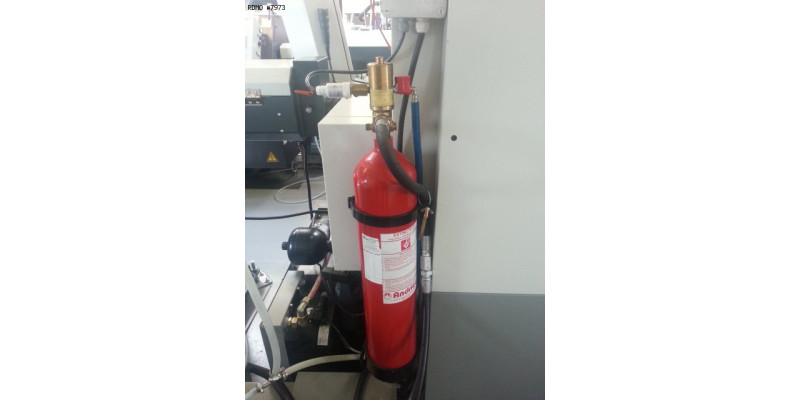

- anti fire device

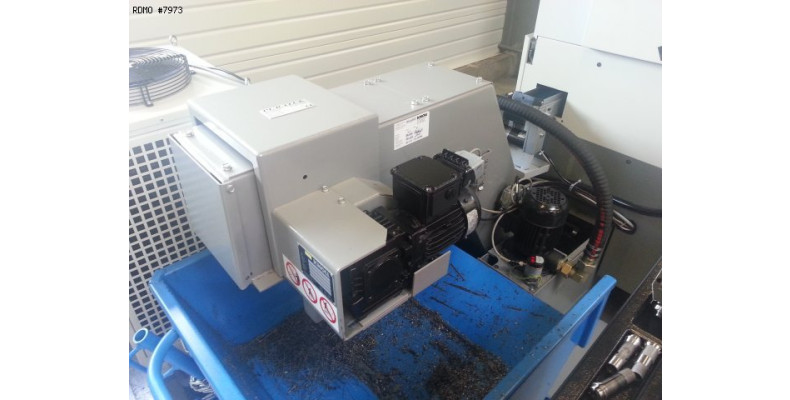

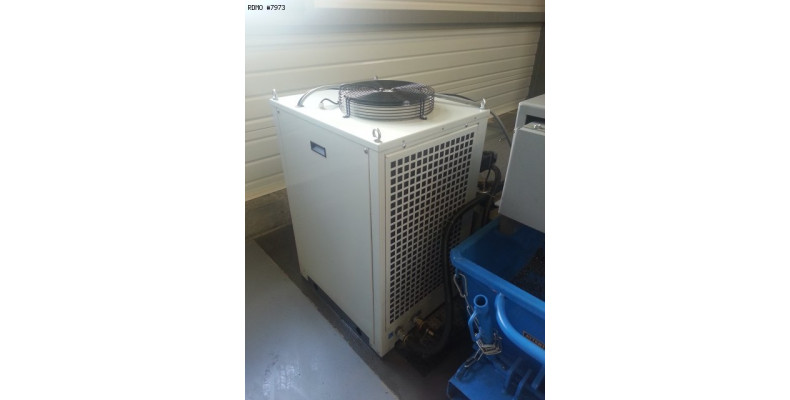

- lubricating tank with pump with cooling unit
- chip conveyor

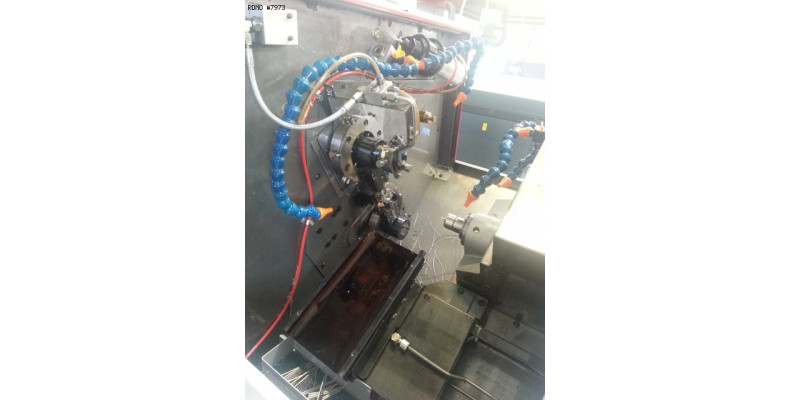

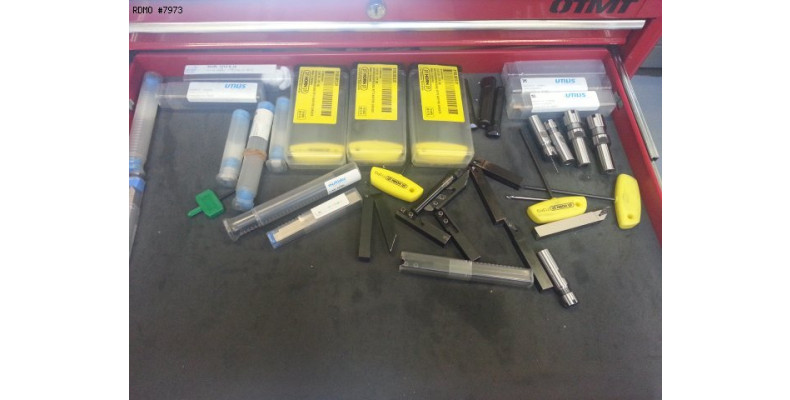

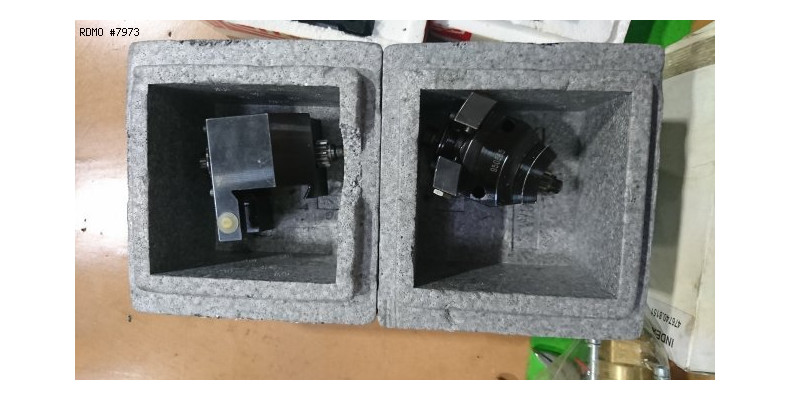

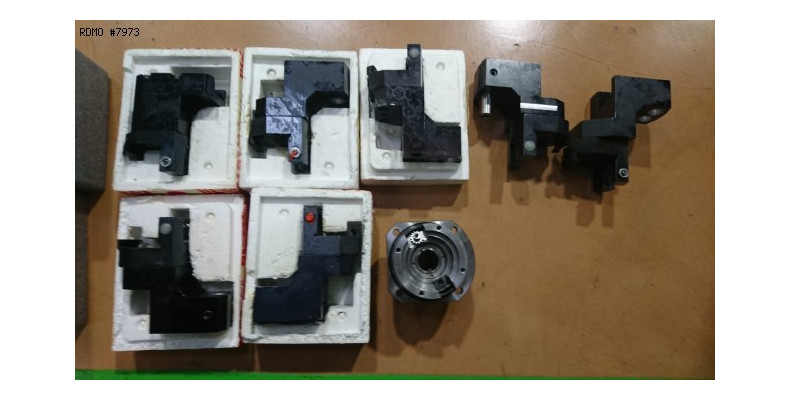

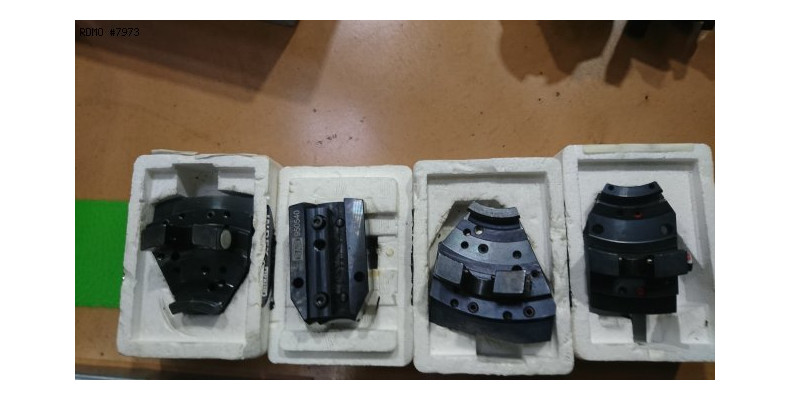

- various fixed and driven tool holders
