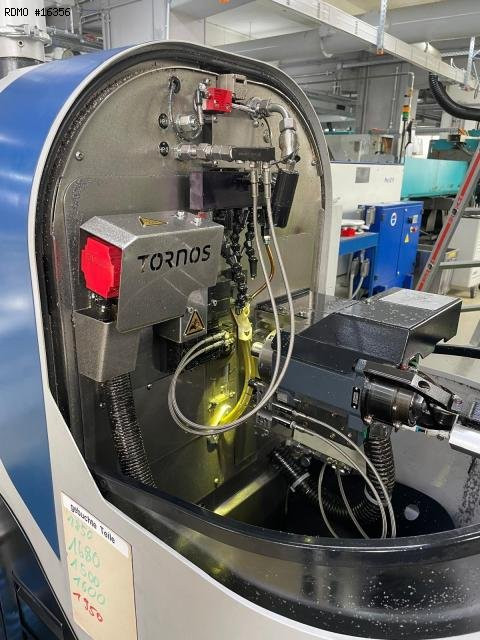

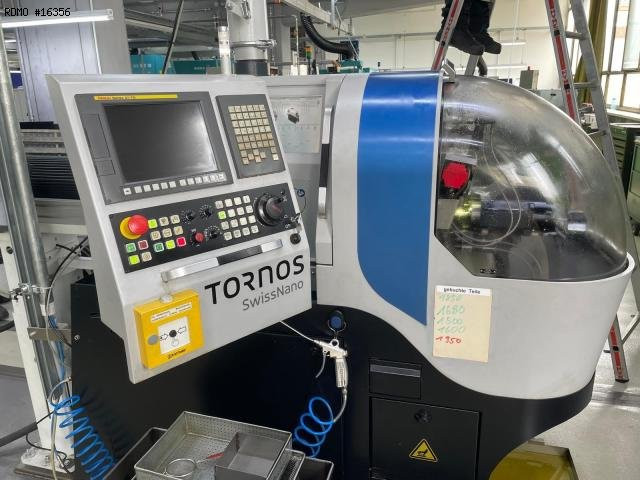

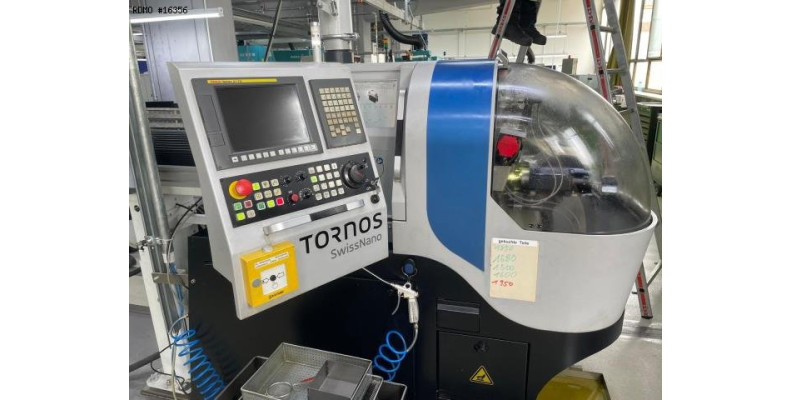

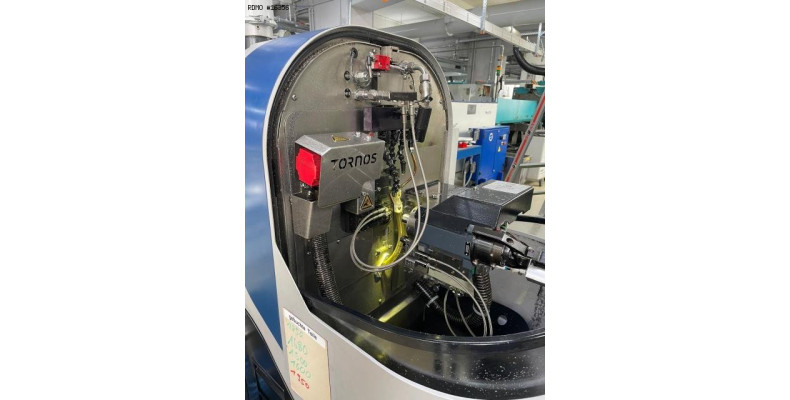

TORNOS SWISSNANO 4 8 axis

- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 4 [mm]
- Travel : 28 [mm]
- Spindle speeds : 16000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 4 [mm]
- Spindle speeds : 16000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 3
SECONDARY OPERATION
- Number of positions : 2
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1800/650 [mm]
- Machine height : 1575 [mm]
- Machine weight : 700 [kg]

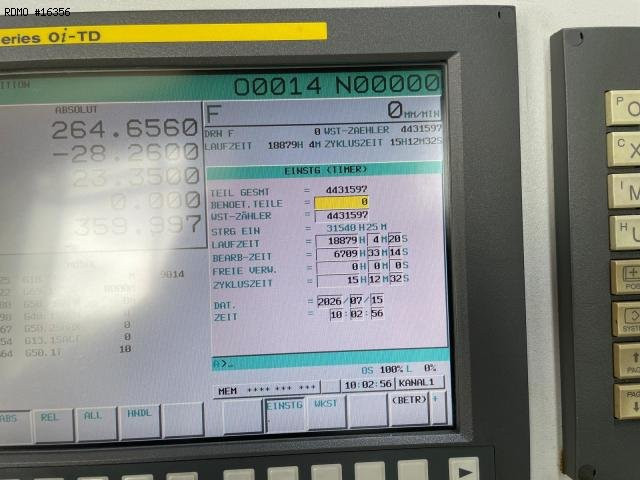

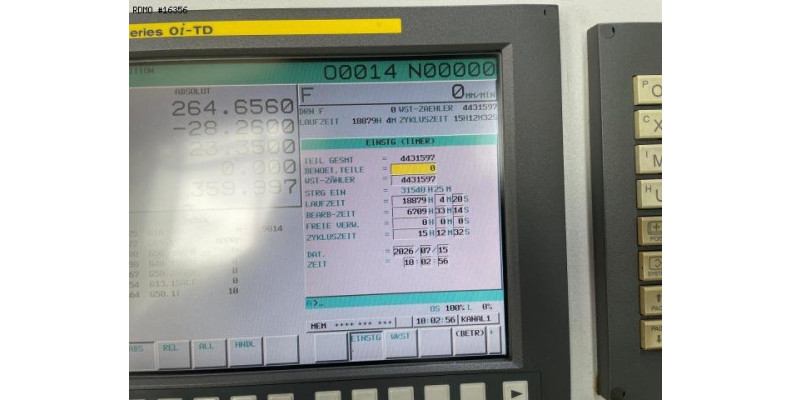

MACHINE HOURS
- Number of hours under power : 31540 [h]
- Number of working hours : 18879 [h]
- Number of spindle hours : 6709 [h]

- CNC : Fanuc Oi-TD
- Interface : Ethernet / RS232 / USB / PCMCIA
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank

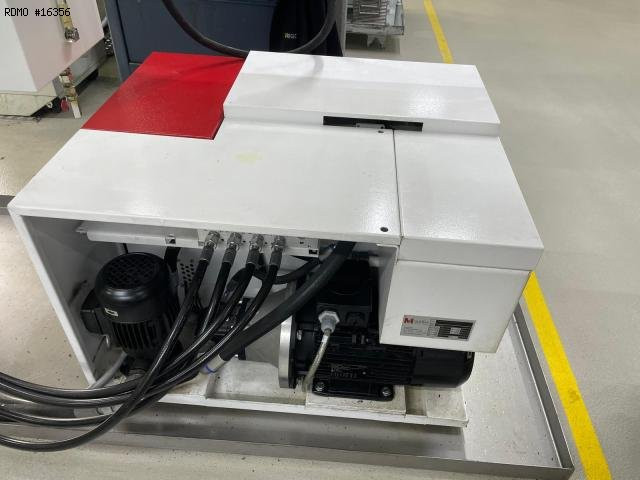

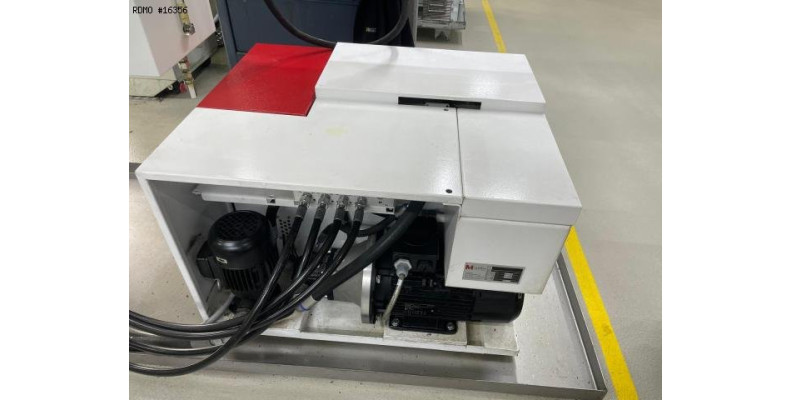

* with high-pressure pump : COMBILOOP CL1 (60) [bars]

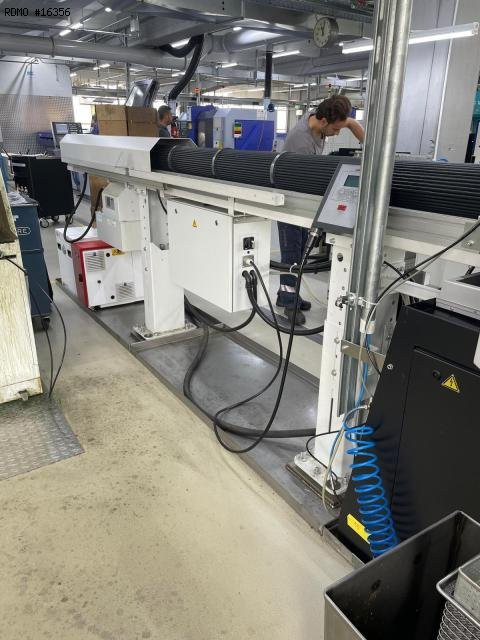

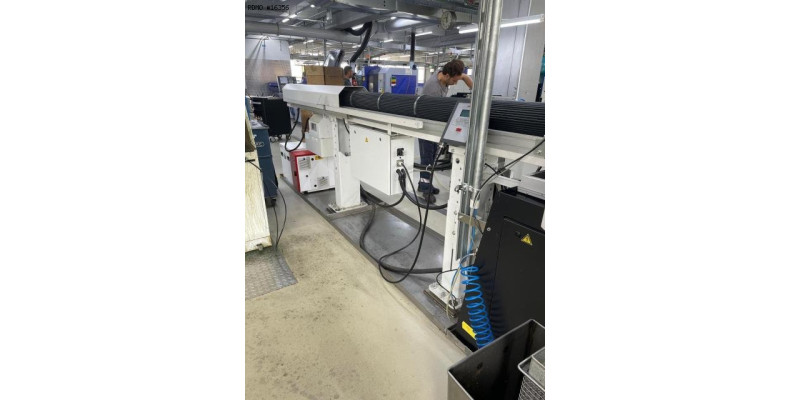

- Bar loader : LNS TRYTON
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
