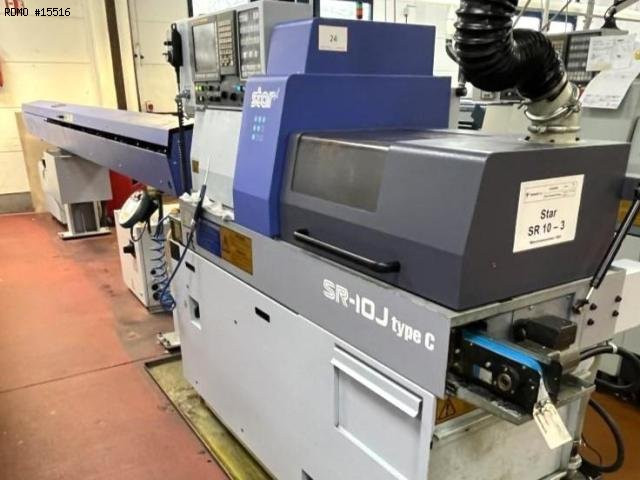

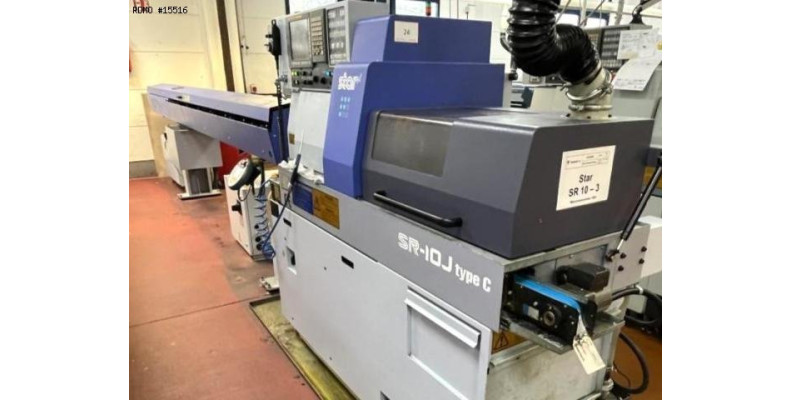

STAR SR-10J Type C 6 axis

- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 10 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 15.000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 10 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1.1 [kW]
- C axis indexing precision : 0.001 [°]

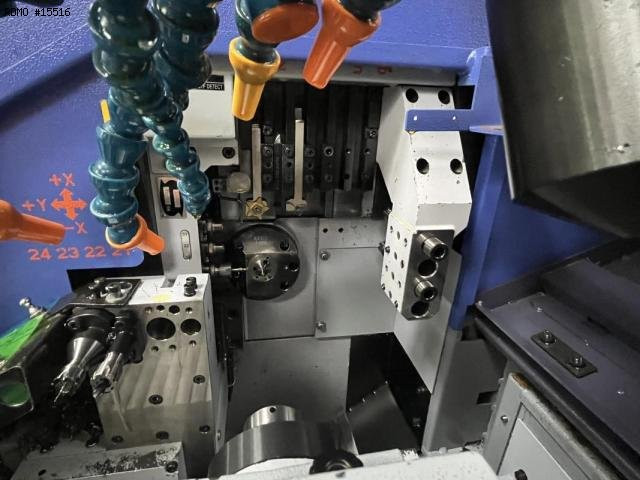

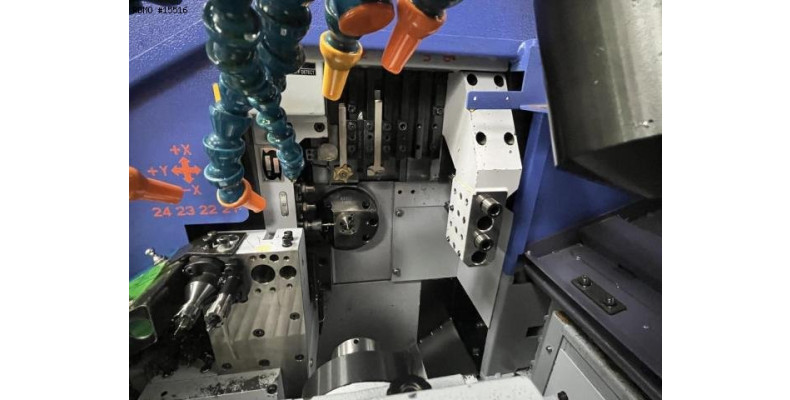

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 3
- Live tools speed : 10000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 3.1 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1865 x 775 [mm]
- Machine height : 1695 [mm]
- Machine weight : 1400 [kg]

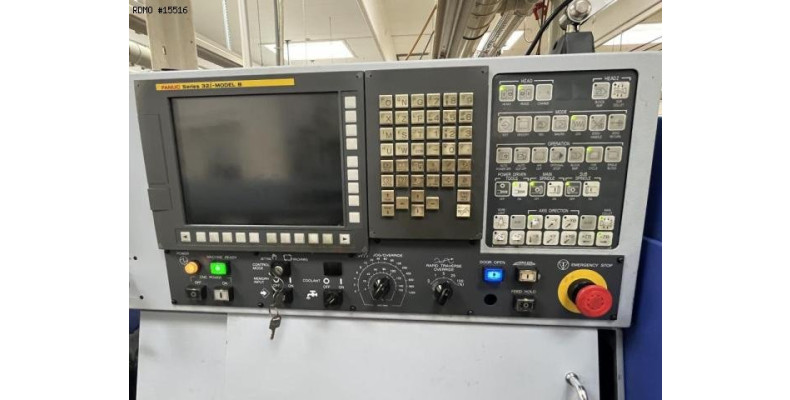

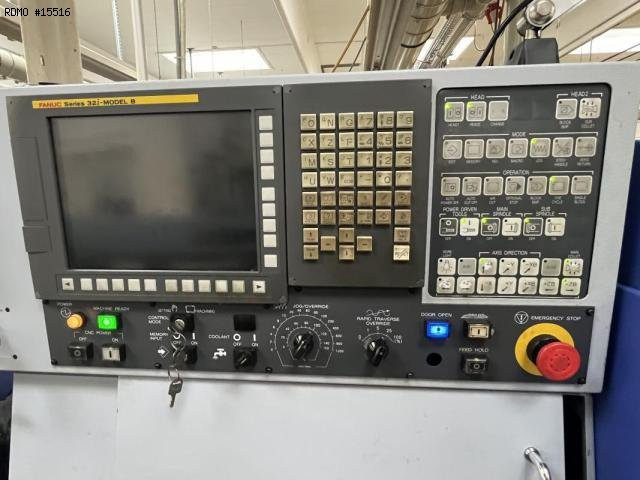

- CNC : Fanuc 32i Model B
- Interface : Ethernet / RS232
- Rotating guide bush
- Parts catcher

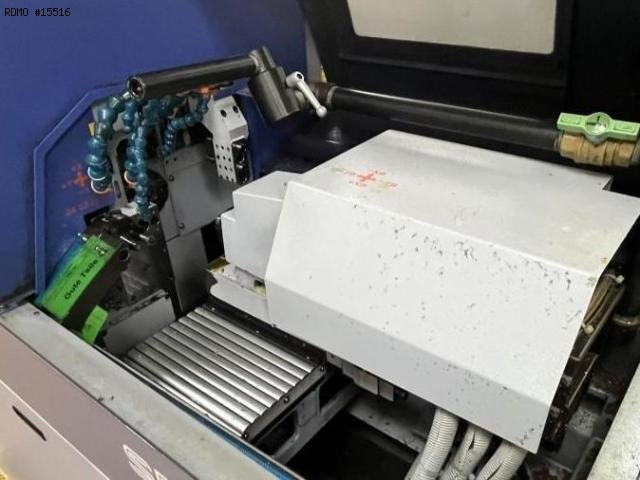

- Parts conveying strip
- Ejection of workpiece
- Coolant tank

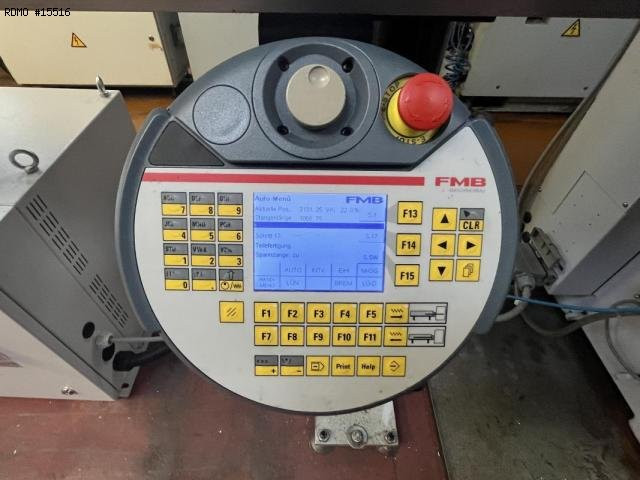

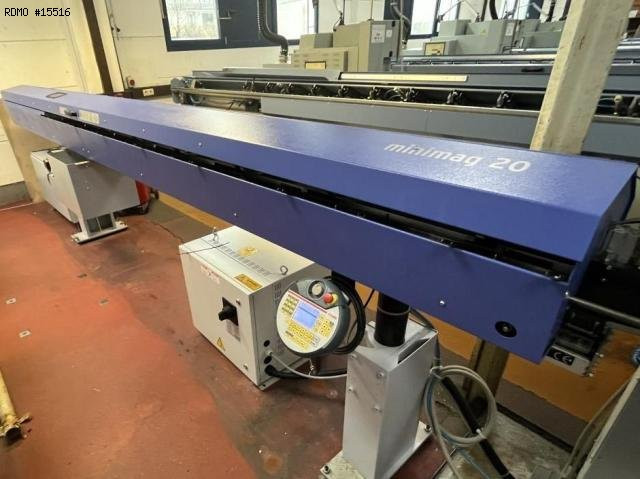

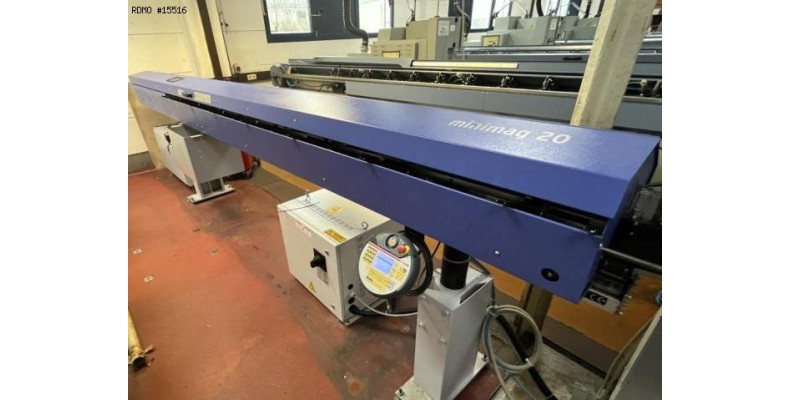

- Bar loader : FMB MINIMAG 20 / 3200A
