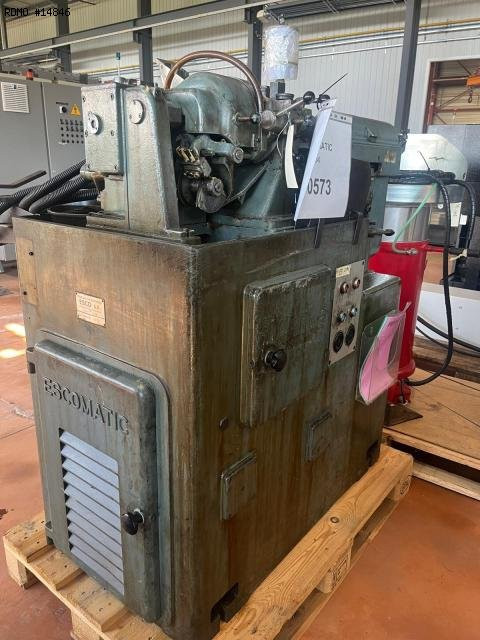

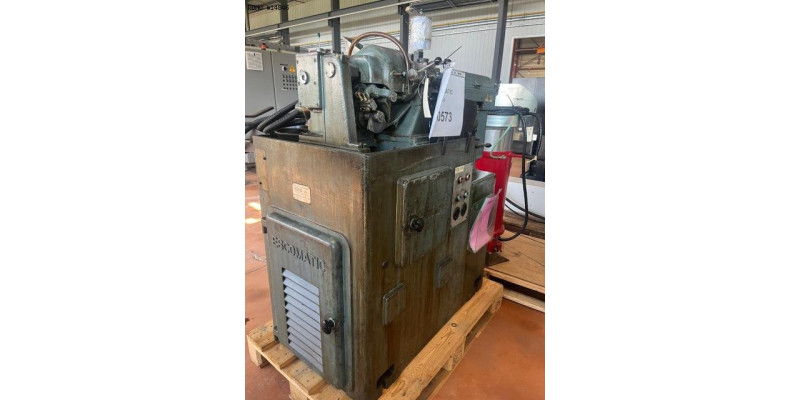

ESCOMATIC D4

- Maximum workpiece diameter : 4 [mm]
- Number of tools : 2
- Feed system, standard lever, 2:1 ratio : 24 [mm]
- Production with turret indexing : 1.25–31.5 [parts/min]
- Production without turret indexing : 1.25 - 63 [parts/min]
- Toolholder Spindle Speed : 4000 or 6000 [rpm]
- Maximum clamping diameter of the drill chuck : 3 [mm]
- Maximum drilling depth : 15 [mm]
- Maximum Ø of the counter-gripper : 4 [mm]
- Drilling speeds : 3000 / 5000 / 8000 / 12000 [rpm]
- Turret indexing time : 0.33 [sec]
POWER SUPPLY
- Supply voltage : 220 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1100 x 680 [mm]
- Machine height : 1600 [mm]
- Machine weight : 870 [kg]
