GILDEMEISTER GM 16 AC

Name: Multispindle lathe GILDEMEISTER GM 16 AC
Brand: GILDEMEISTER
Availability: InStock

Turning Multispindle lathe

15632

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 16 AC

Year: 1997

Serial: 5301/0109

15632

GILDEMEISTER GM 16 AC

Turning Multispindle lathe

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 16 AC

Year: 1997

Serial: 5301/0109

Ask Price

Caracteristics

- Number of spindles : 6
- Crosses slides, in position : 1,2,4,5
- Max. travel of transverse slides : 28 [mm]
- Max. travel of crossed slides : 45 [mm]
- Max. travel of front spindles : 63 [mm]
SPINDLES
- Max. bar diameter : 16 [mm]
- Spindle speeds : 400 - 6000 [rpm]
- Spindle power : 15 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 43 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.800 x 1.100 [mm]
- Machine height : 2.300 [mm]
- Machine weight : 4200 [kg]

Equipment

- Double mechanical cut and return slide, in position : 6
- Rotary front spindles, in position : 1,2,3,5
- Parts catcher
- Parts conveying strip
- Bar waste chute
- Chips conveyor

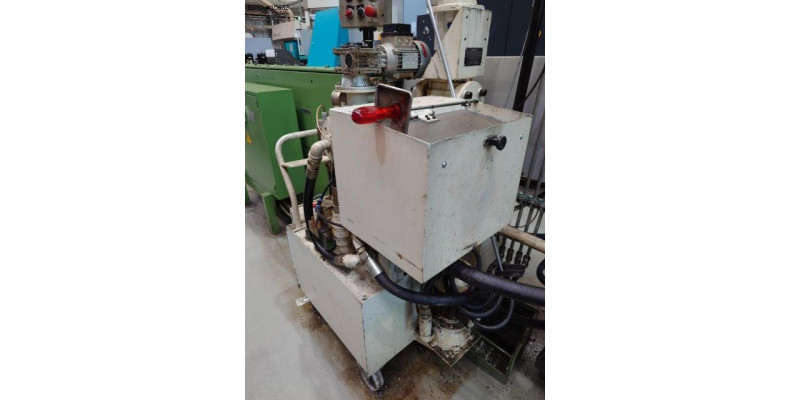

- Coolant tank

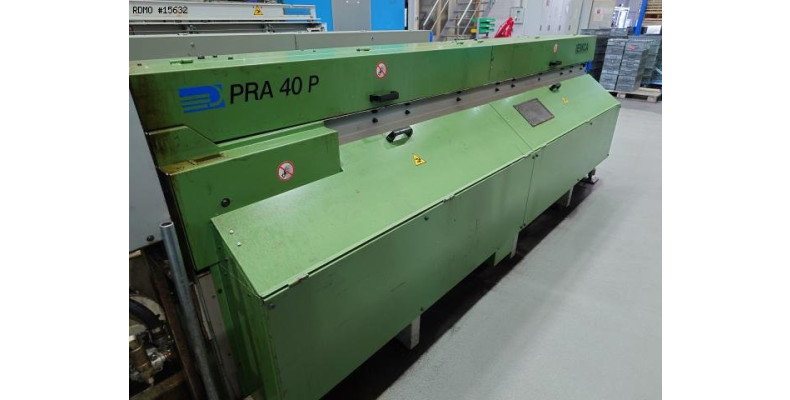

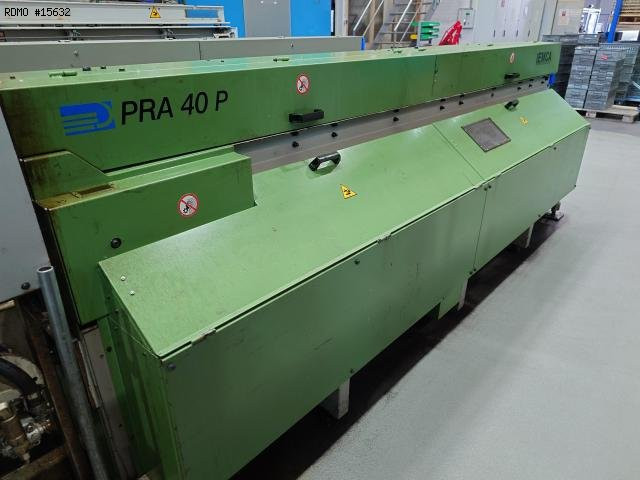

- Bar loader : Iemca PRA 40/31/P
- Bar holder and stand
- Bar holder housing
