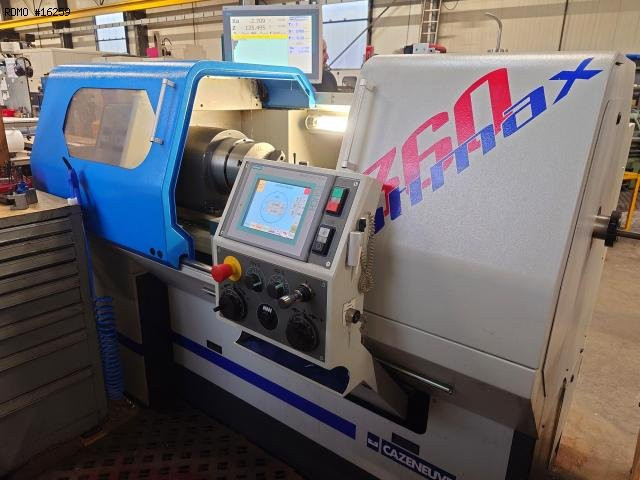

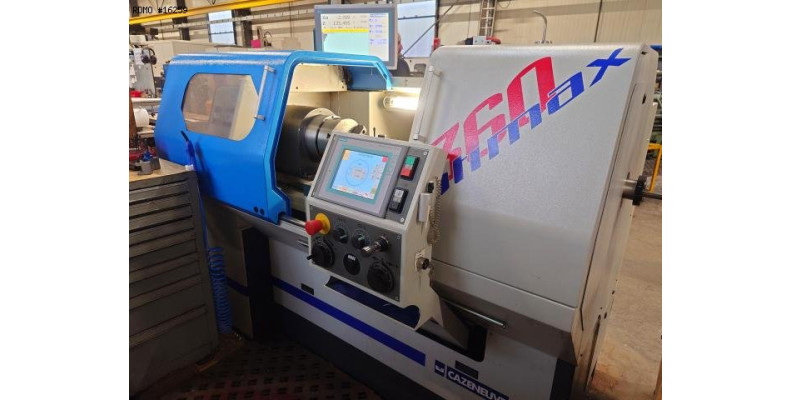

CAZENEUVE OPTIMAX 360

Name: CNC Teach-in Lathe CAZENEUVE OPTIMAX 360
Brand: CAZENEUVE
Availability: InStock

Turning CNC Teach-in Lathe

16259

PDF datasheet to download:

Brand: CAZENEUVE

Model: OPTIMAX 360

Year: 2013

Serial: 5240

16259

CAZENEUVE OPTIMAX 360

Turning CNC Teach-in Lathe

PDF datasheet to download:

Brand: CAZENEUVE

Model: OPTIMAX 360

Year: 2013

Serial: 5240

Ask Price

Caracteristics

- Distance between centers : 700 [mm]
- Max. diameter on bench : 380 [mm]
- Machining diameter between centers : 200 [mm]
- X/Z stroke : 180 / 610 [mm]
MAIN SPINDLE
- Spindle nose : A1-6"
- Spindle passage : 54 [mm]
- Spindle speeds : 0 - 3000 [rpm]
- Spindle power : 11 [kW]

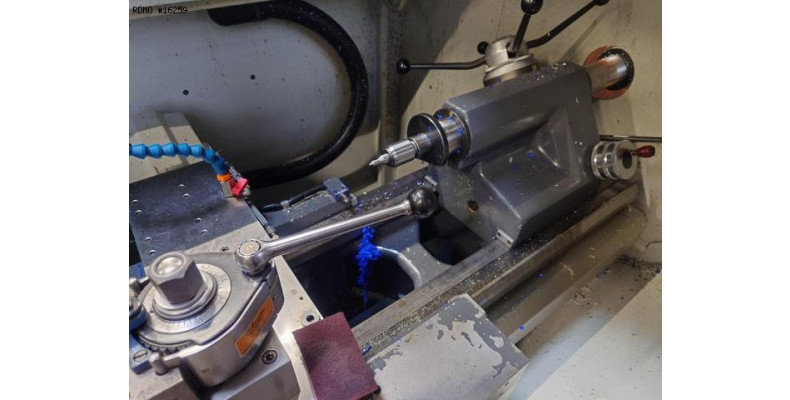

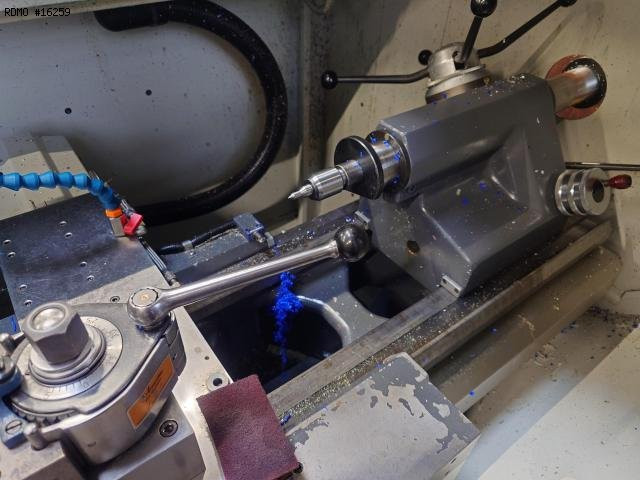

- TAILSTOCK
- Type of cone : CM4
- Quill diameter : 60 [mm]
- Quill stroke : 140 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1.950 x 1.320 [mm]
- Machine height : 1.820 [mm]
- Machine weight : 2.000 [kg]

Equipment

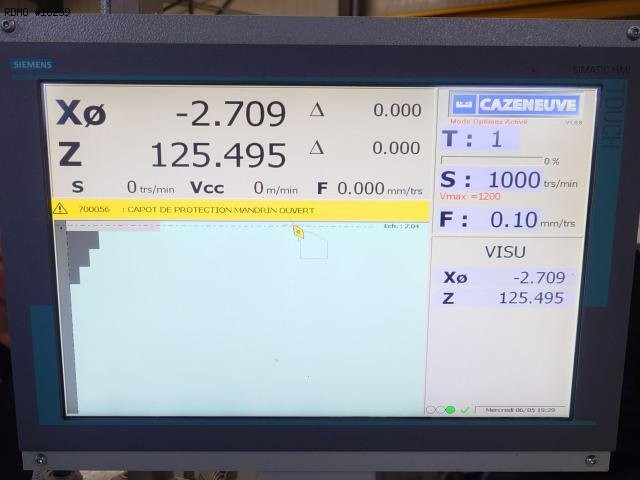

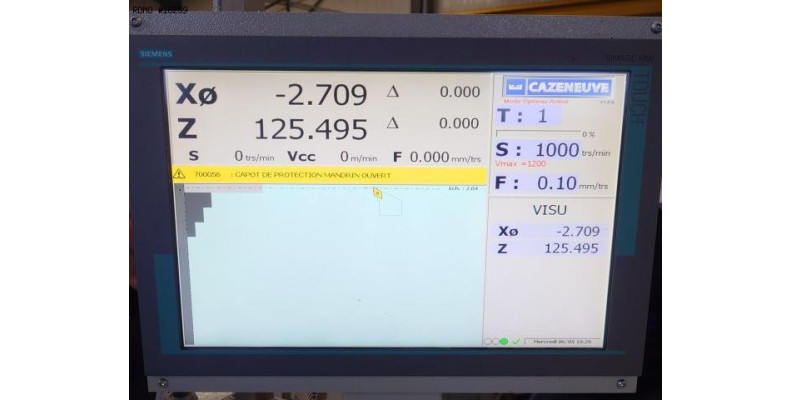

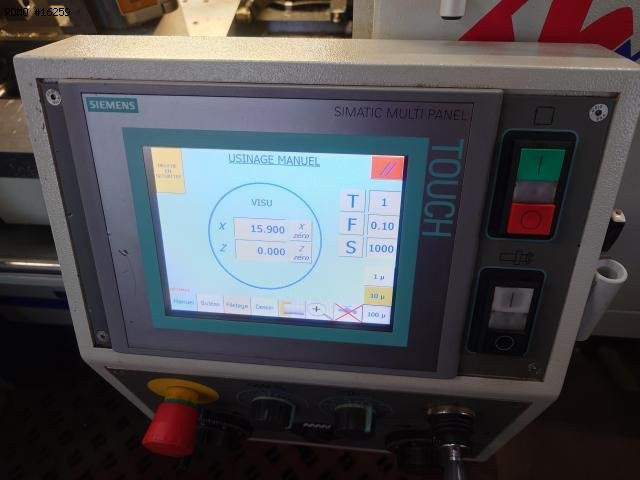

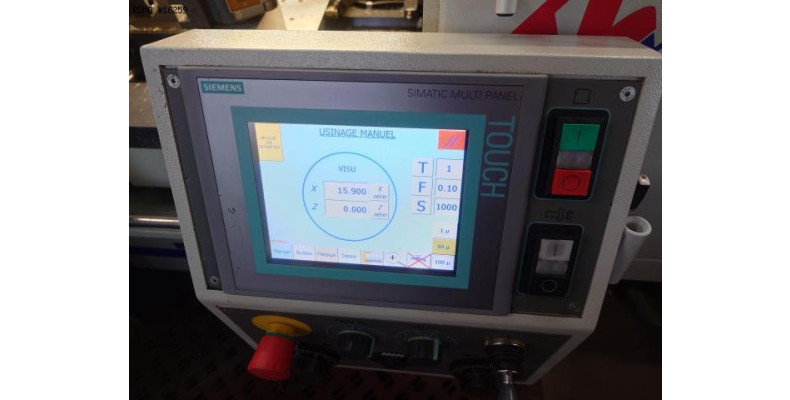

- SIEMENS Conversational CNC
- LCD control screen

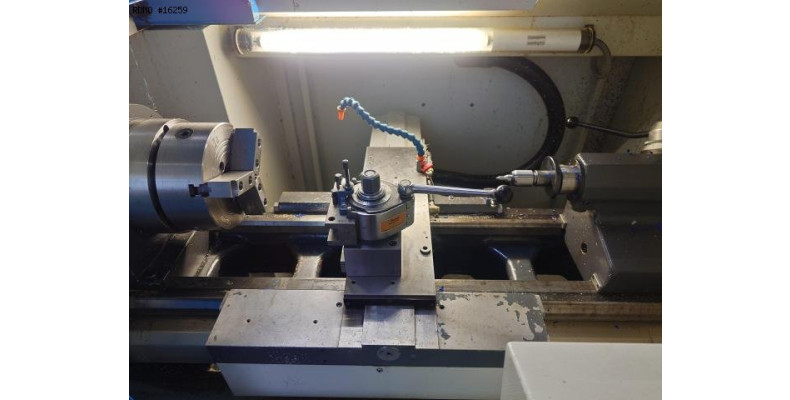

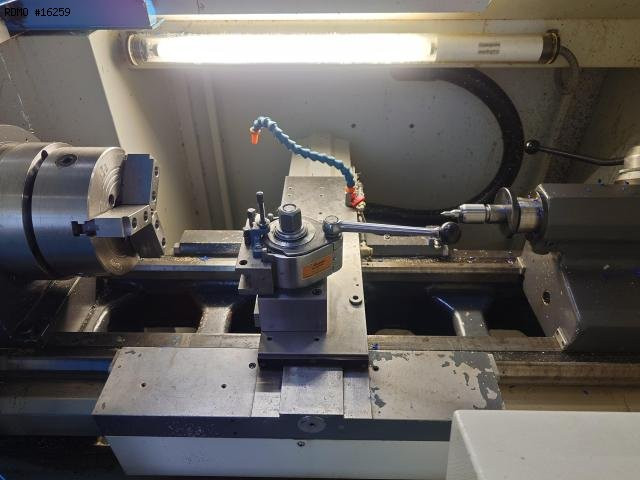

- Multifix Quick-Change Turret
- Coolant tank

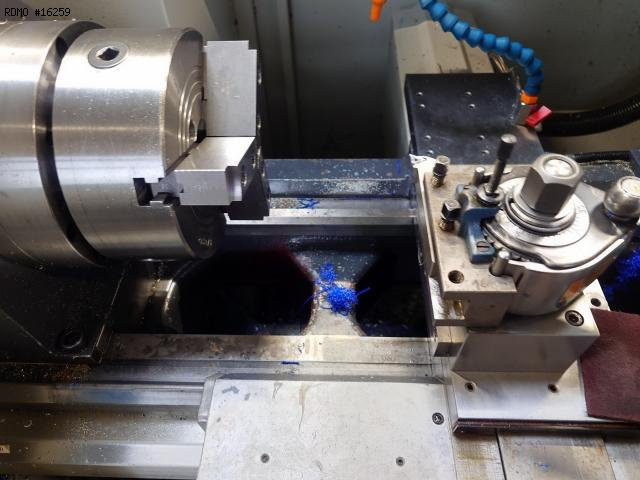

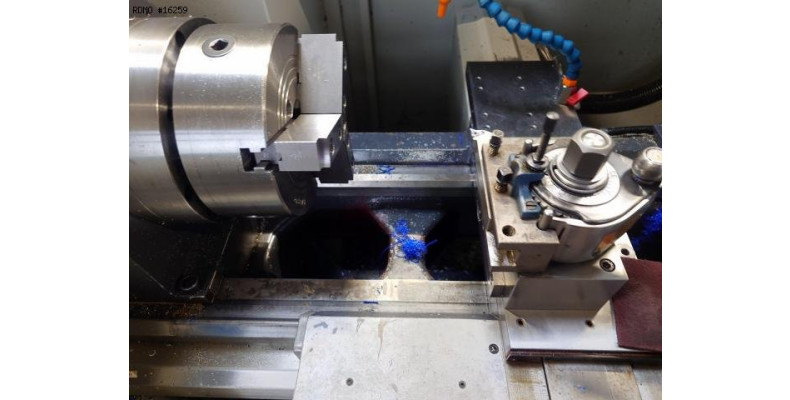

- Chuck 3 jaws
