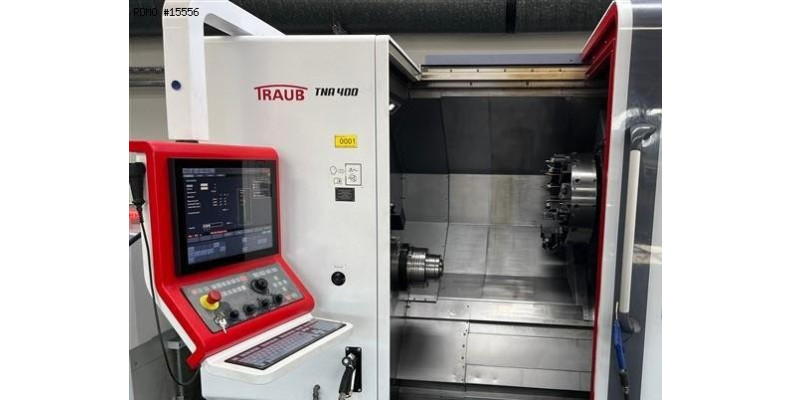

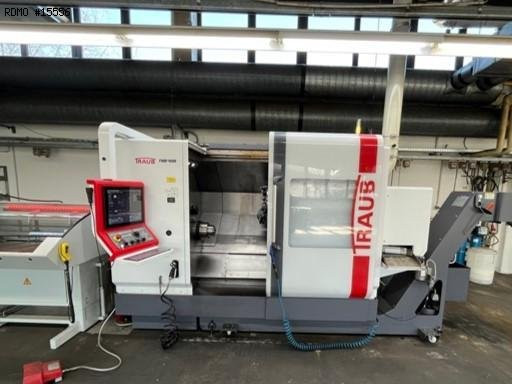

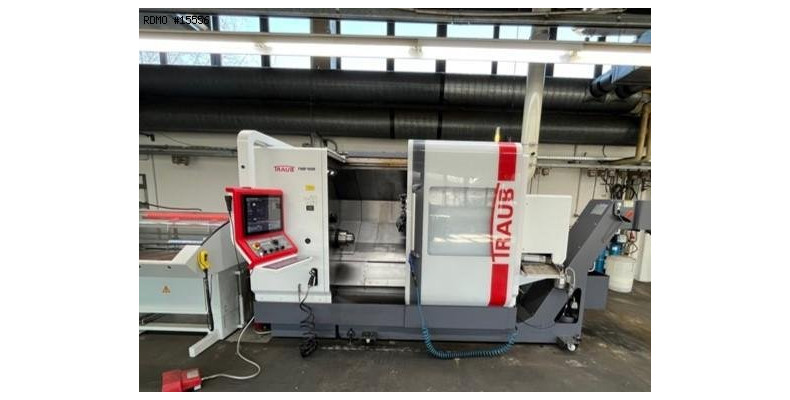

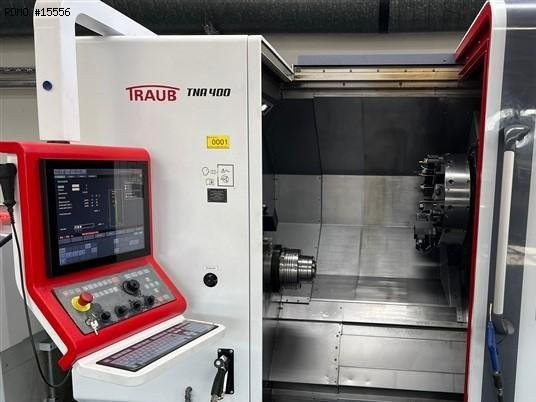

TRAUB TNA 400 4 axis

- Number of axes : 4

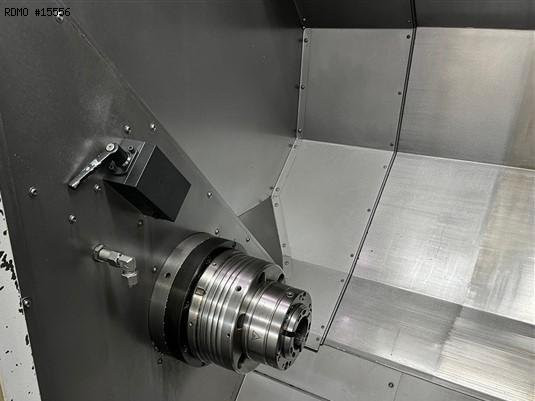

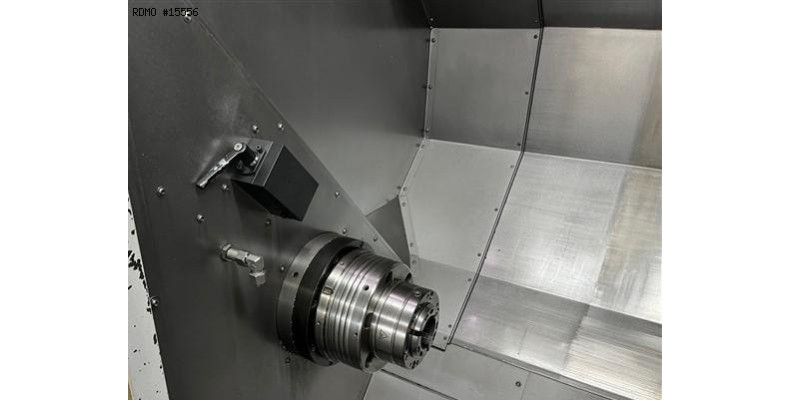

MAIN SPINDLE
- Spindle power : 18.5 / 24 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 82 [mm]
- Max. machining length : 750 [mm]
- Max. chuck diameter : 315 [mm]
- C axis indexing precision : 0.001 [°]
- TAILSTOCK
- Tailstock type : Numérique
- Tailstock stroke : 990 [mm]

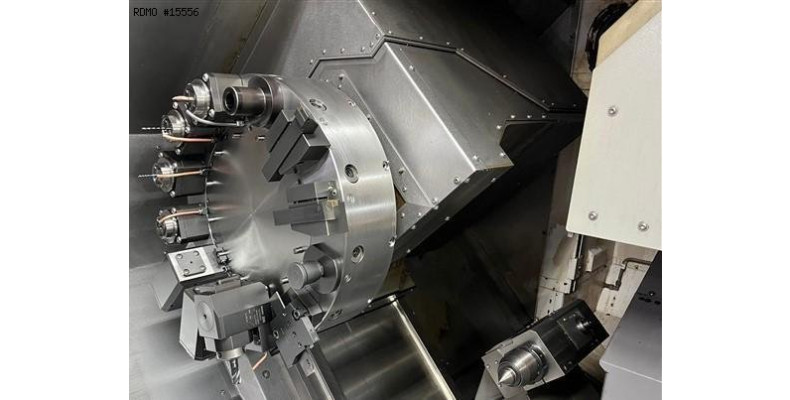

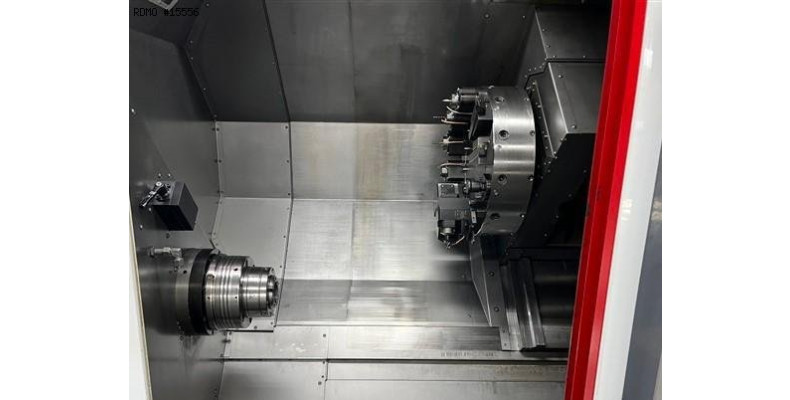

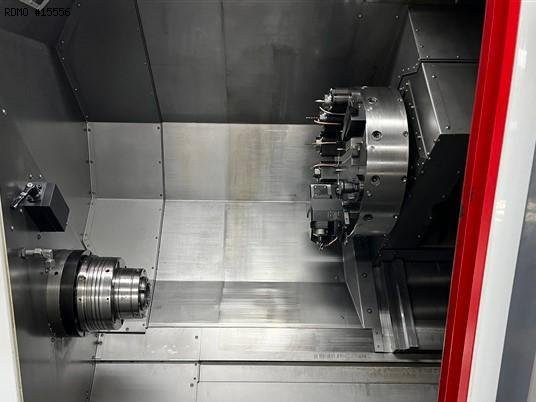

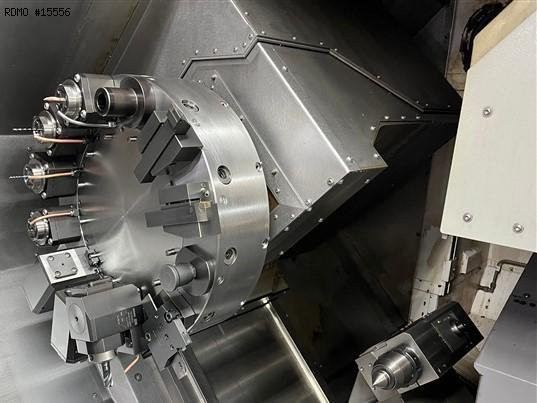

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- Tool type : VDI 40
- Live tools speed : 5400 [rpm]
- Live tools power : 10.5 [kW]
- X/Z stroke : 335 / 750 [mm]
- Y stroke : +/- 60 [mm]
- Rapid traverses rates (X/Y/Z) : 40 / 20 / 40 [m/min]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 40 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3.250 x 1.900 [mm]
- Machine height : 2.290 [mm]
- Machine weight : 7800 [kg]

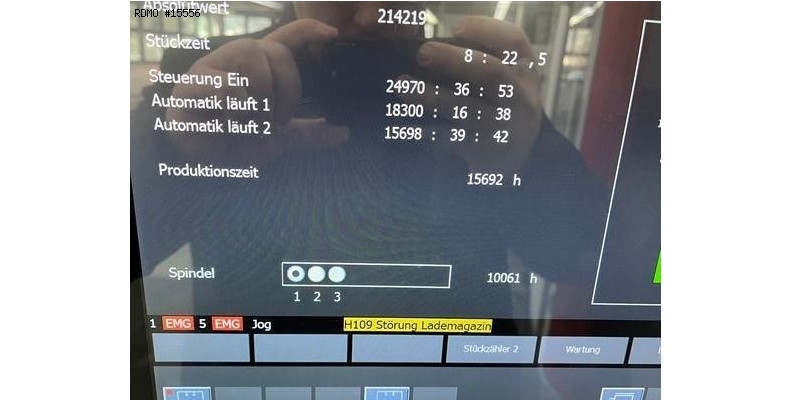

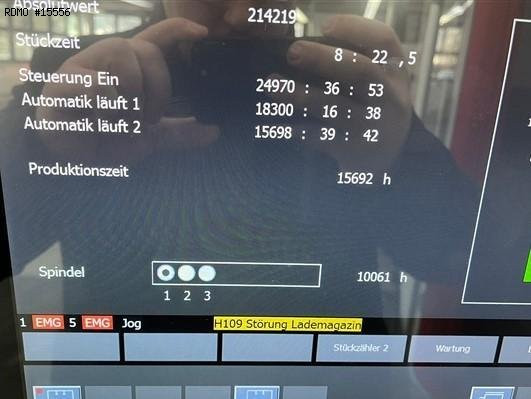

MACHINE HOURS
- Number of working hours : 15.692 [h]
- Number of spindle hours : 10.061 [h]

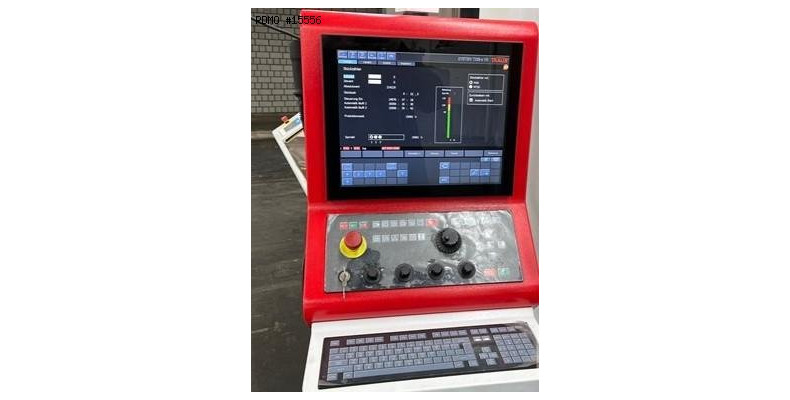

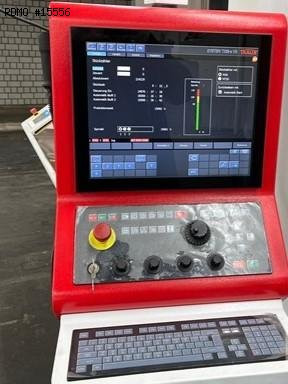

- CNC : TRAUB TX8i-s V8
- 3 colors status lamp
- Coolant tank

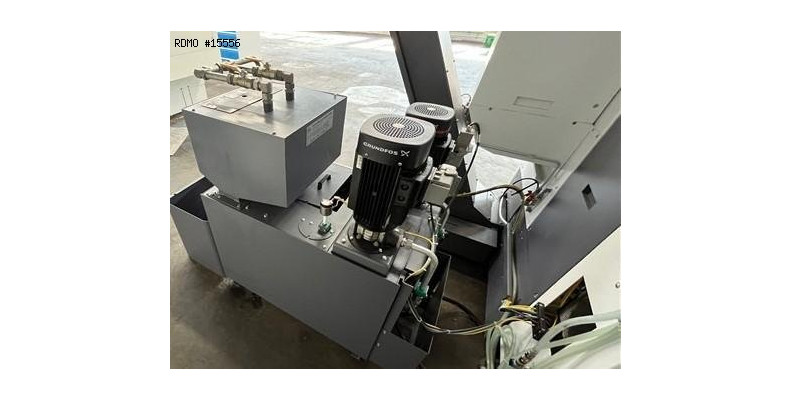

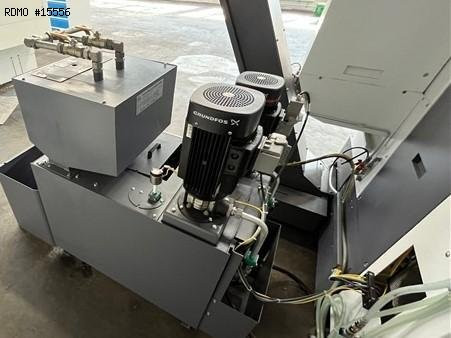

* with high-pressure pump

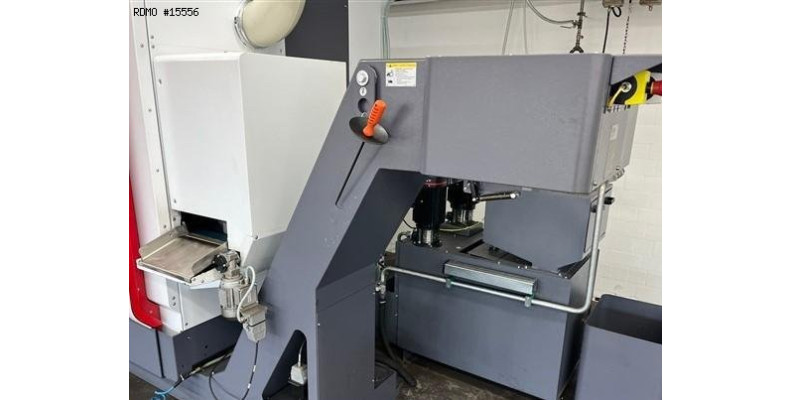

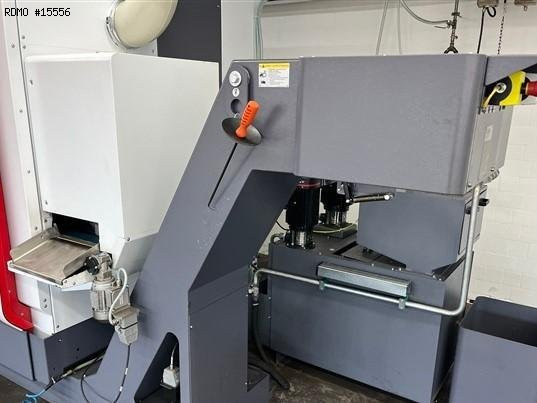

- Chips conveyor
- Parts catcher
- Parts conveying strip

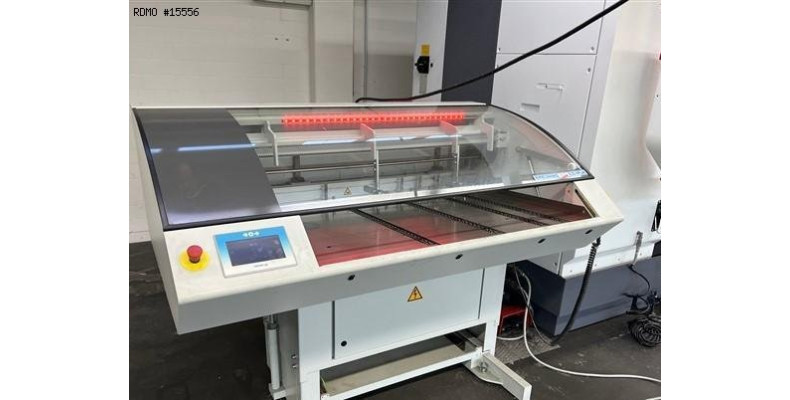

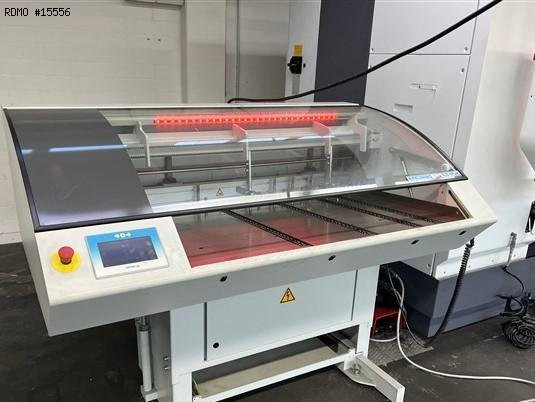

- Bar loader : BREUNING IRCO ILS MUK-10012-III
