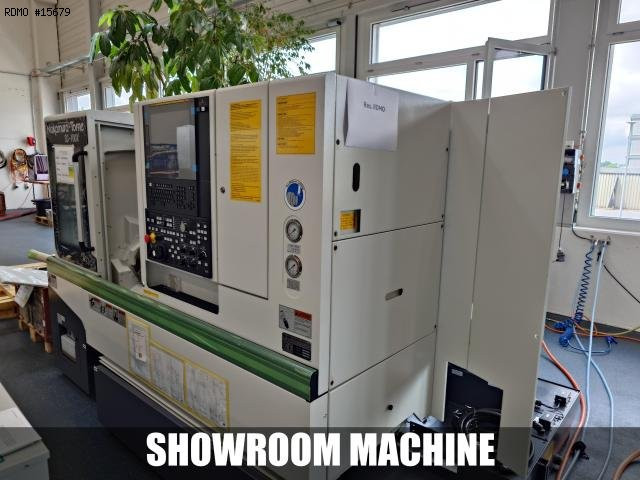

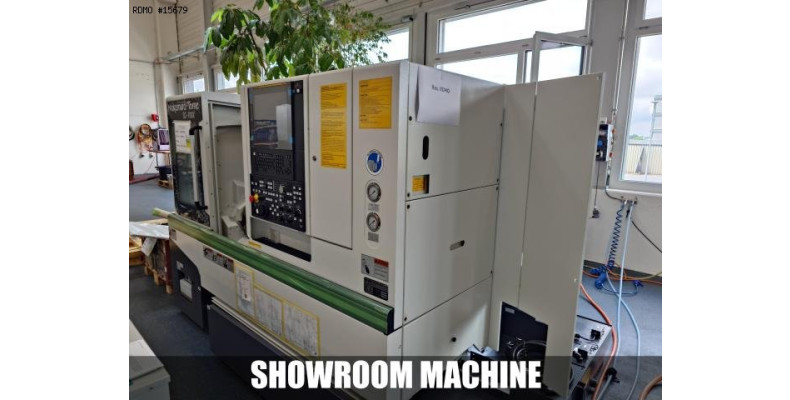

NAKAMURA SC-100X2 7 axis

- Number of axes : 7
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5"
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 195 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5"
- Spindle power : 7.5 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0.001 [°]
TRAVELS
- Z stroke : 400 [mm]
- X stroke : 150 [mm]
- Rapid traverse rate : 36 [m/min]
- Spindle / counter-spindle distance : 600 [mm]

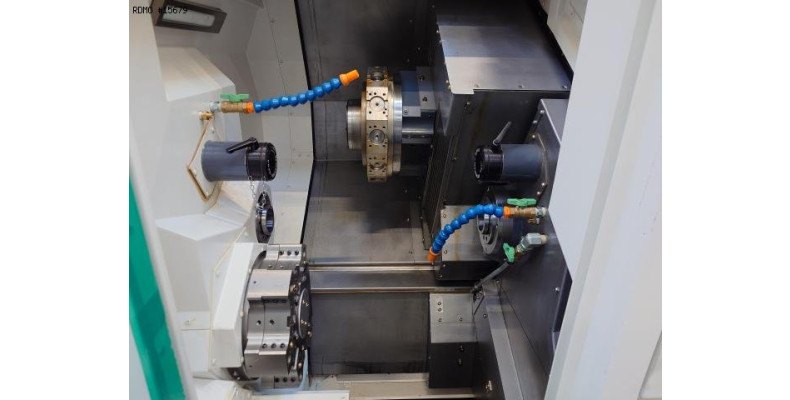

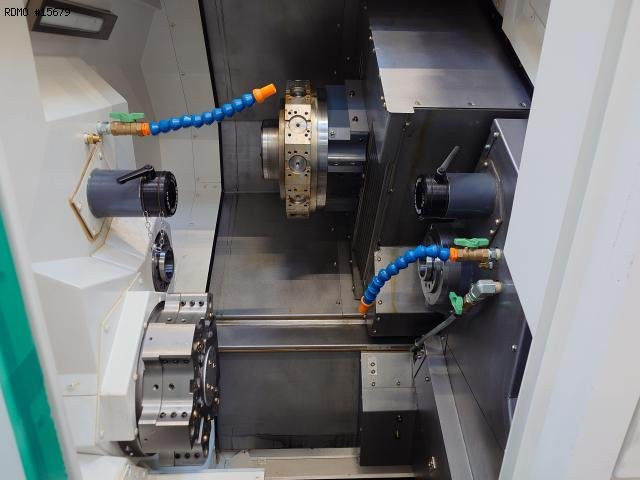

TURRET 1
- Number of positions : 24
- Number of motorized positions : 12
- X/Z stroke : 400/150 [mm]
- Y stroke : +/- 40 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7.1 [kW]
TURRET 2
- Number of positions : 9
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3072X1974 [mm]
- Machine height : 1799 [mm]
- Machine weight : 6500 [kg]

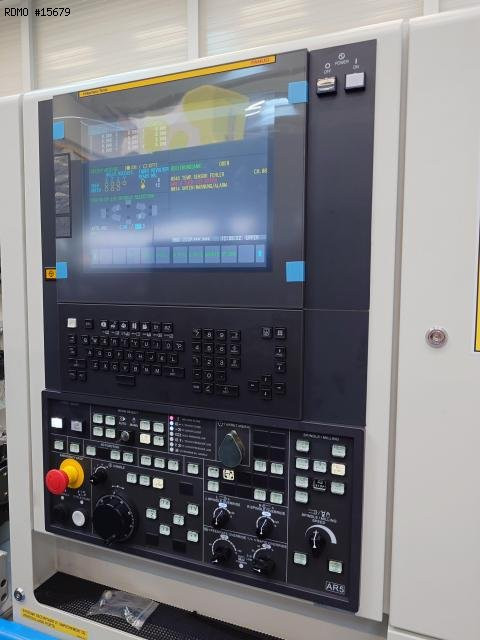

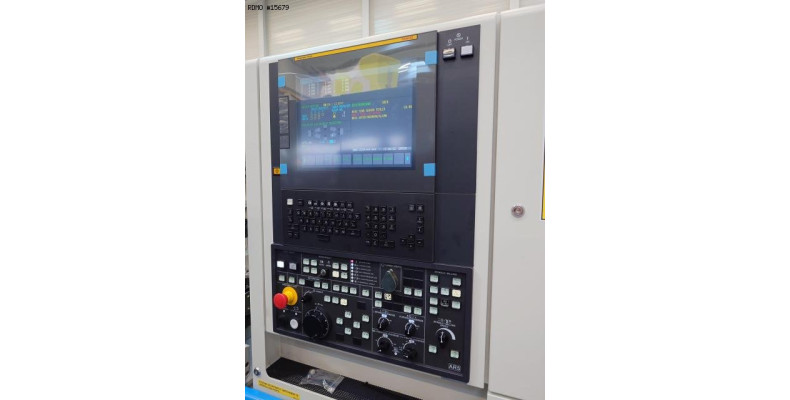

- CNC : Fanuc 0i-TF PLUS
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming

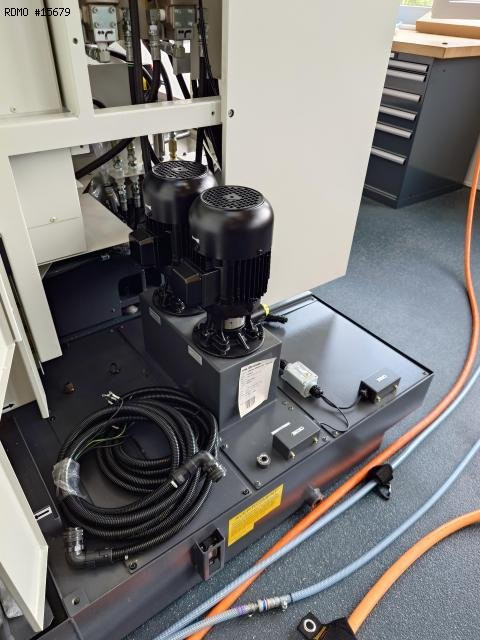

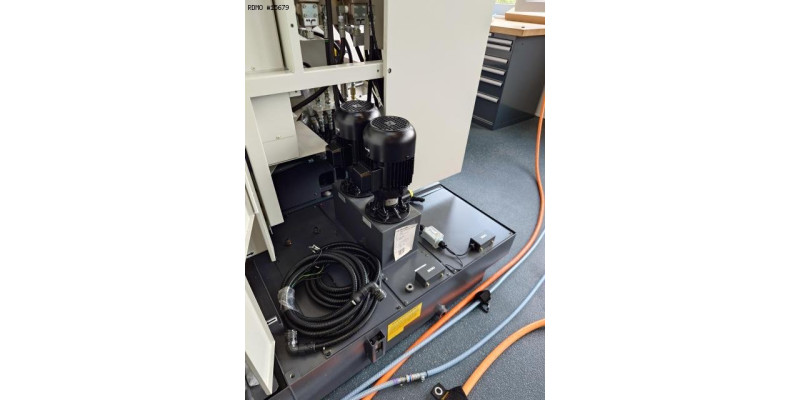

- Coolant tank
* with high-pressure pump : 11 [bars]
* Coolant through spindle

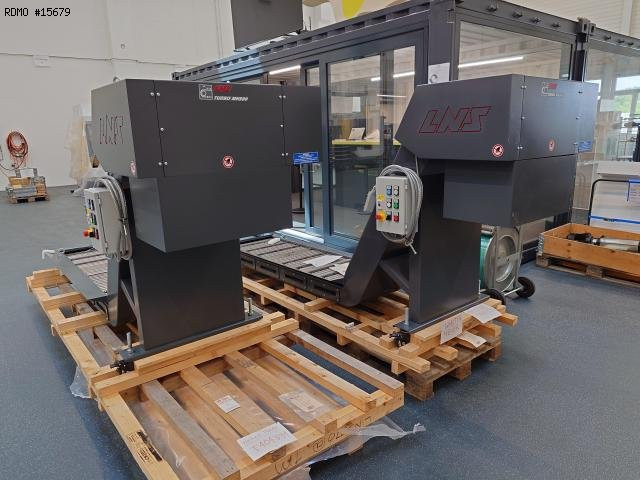

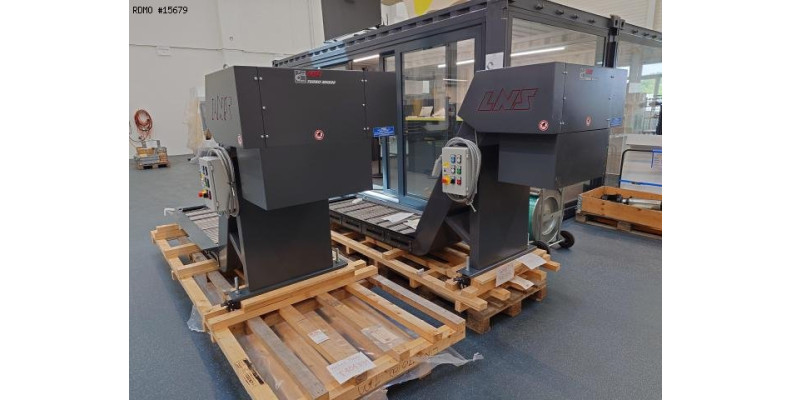

- Chips conveyor : DROITE LNS MH500
- Tool probe
- Parts catcher
- Parts conveying strip
- Predisposition for barfeeder
- Electric transformer
