Essa RE 8

Presses Mechanical press
8808
PDF datasheet to download:
Brand: Essa
Model: RE 8
Year: 2009
Serial: 09-0011
8808

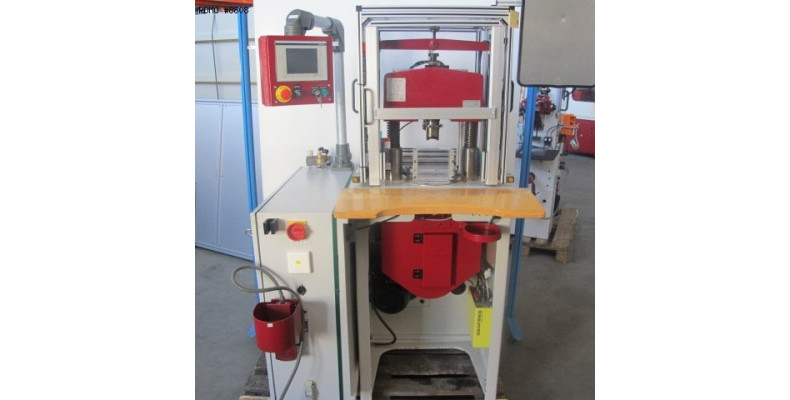

Essa RE 8
PDF datasheet to download:
Brand: Essa
Model: RE 8
Year: 2009
Serial: 09-0011
Ask Price

Caracteristics & Equipment

Caracteristics

- pressure : 4 [t]
- number of supports : 2
- fixed table dimensions : 210 x 210 [mm]
- fixed press assembly
- hole Ø in table : 80 [mm]
- number of strokes in sharpening / cutting : 50 - 150 [c/min]
- adjustable slide : 40 [mm]
- fixed travel : 27 [mm]
- max. height for tooling : 148 [mm]
- longitudinal clearance between supports : 230 [mm]
- max. part diameter in sharpening : 30 [mm]
- max. part thickness in sharpening / cutting : 1.5 / 2 [mm]
- voltage : 380 [V]
- installed power : 1.5 [kW]
- floor space : 1100 x 1100 x 1650 [mm]
- weight : 500 [kg]

Datasheet

PDF datasheet to download:

Description

Cutting and sharpening (descent in small sequences programmed for a cleaner cutting side) Used Machine tools for sale
