- Spindle speeds : 5 - 300 [rpm]
- C axis indexing precision : 0.001 [°]
- Vertical travel of the main spindle : 130 [mm]
- Vertical travel of the main spindle (manual mode) : 140 [mm]

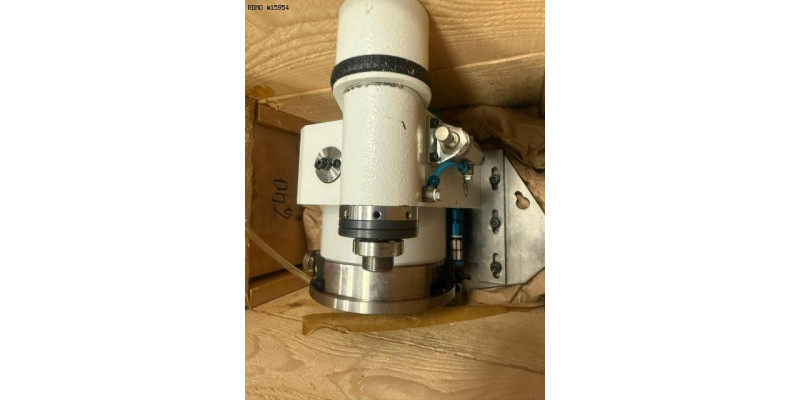

- Rotational speed of the grinding spindle with motor : 4500 - 80.000 [rpm]

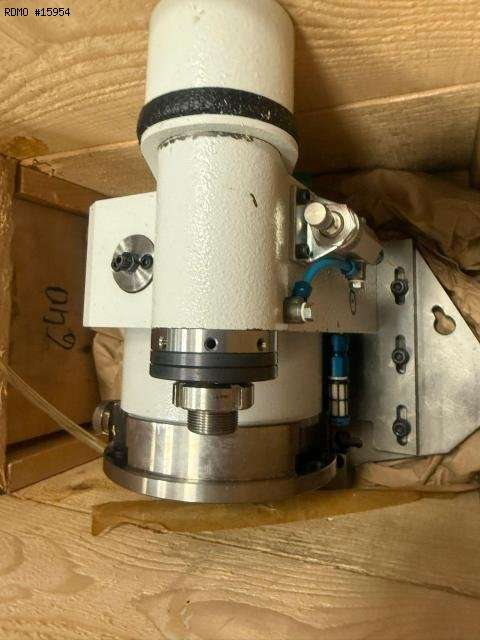

- Rotational speed of the grinding spindle with turbine : 100.000 - 160.000 [rpm]

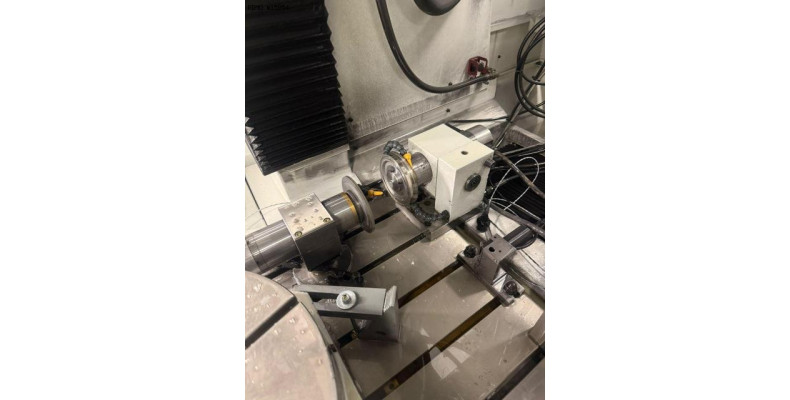

- Cylindrical grinding without/with intermediate plate max. : 230 / 360 [mm]
- Maximum grinding length Z (with block) : 125 [mm]
- Maximum acute angle in conical grinding : 16 [°]
- Maximum grinding depth in conical grinding with angle : 44 [mm]
LINEAR AXES
- Travels on X/Y/Z axes : 700 / 500 / 500 [mm]
- Rapid traverses rates (X/Y) : 4000 [mm/min]
- Cutting feed rates (X/Y) : 0 - 2000 [mm/min]

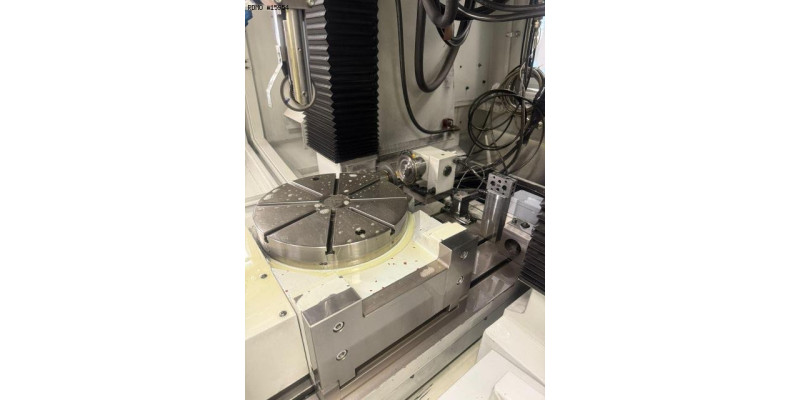

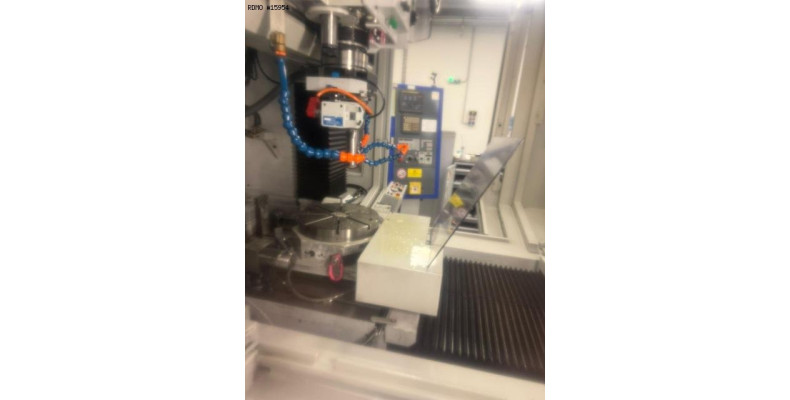

TABLE
- Table dimensions : 770 x 630 [mm]
- Maximum weight upon table : 500 [kg]
- Distance table / spindle nose (min./max.) : 0 - 600 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2650 x 2577 [mm]
- Machine height : 2677 [mm]
- Machine weight : 5600 [kg]
MACHINE HOURS
- Number of working hours : 44995 [h]
Equipment

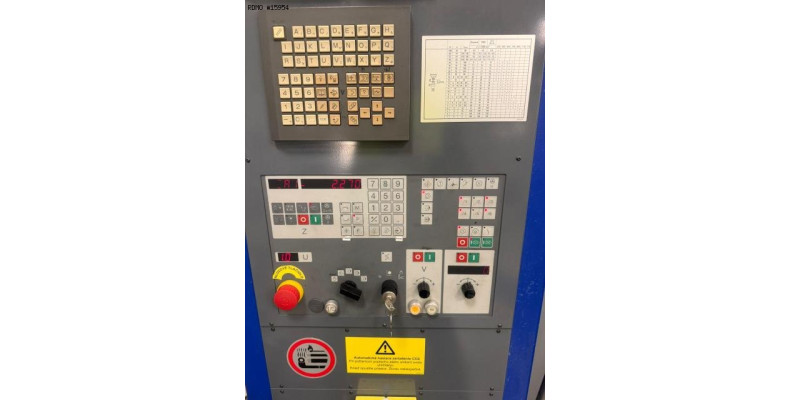

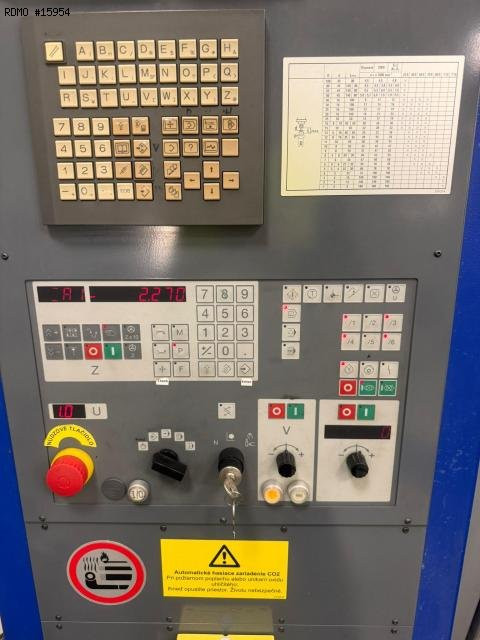

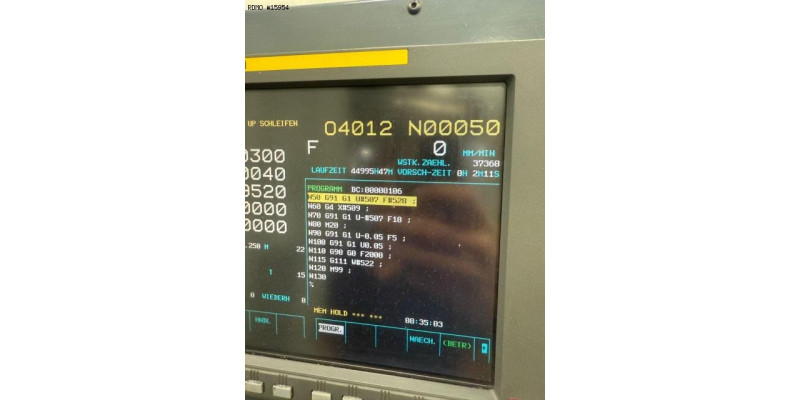

- CNC : Fanuc
- Coolant tank
* with high-pressure pump
* with paper filtering unit

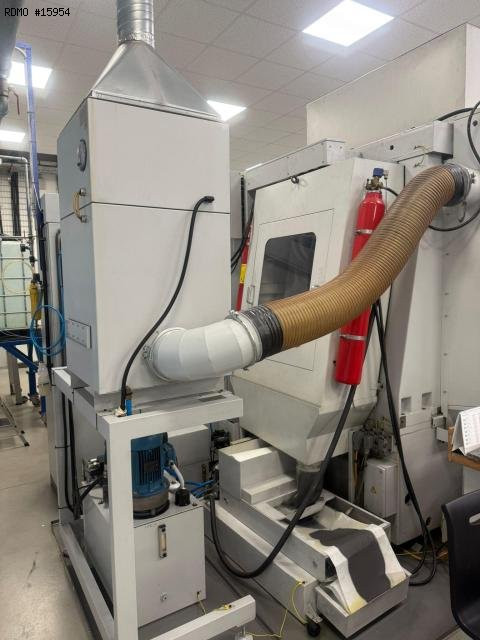

- Oil mist extractor
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
